SAIC Yuejin 4x2 Integrated Tow Truck & Rollback Tow Truck (5T Crane / 8T Tow Capacity)

1. Product Overview

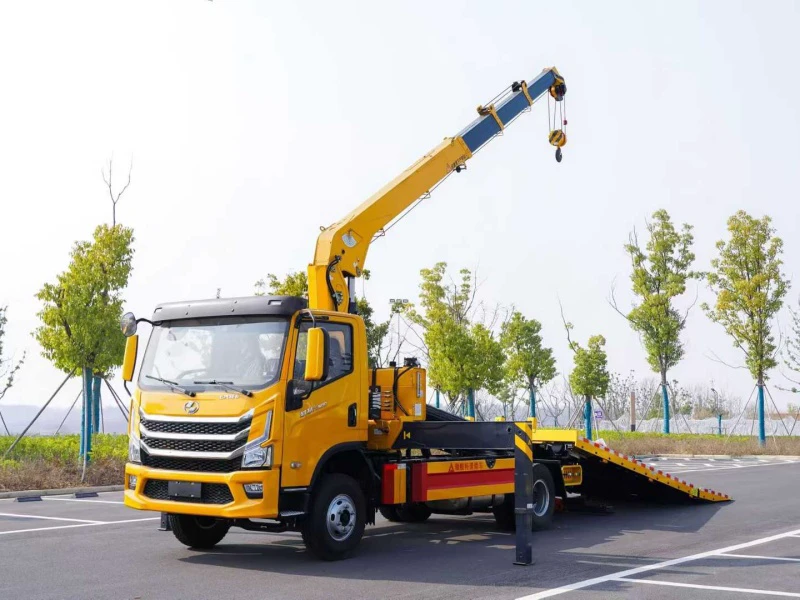

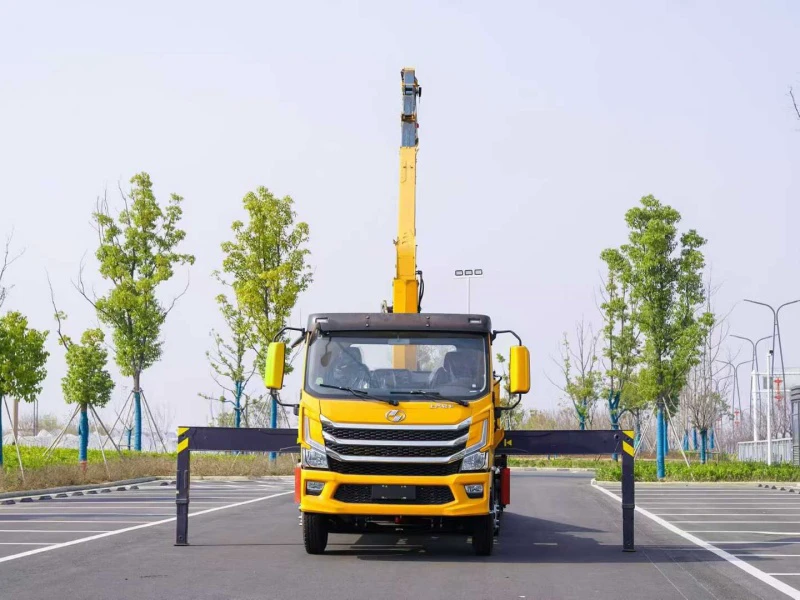

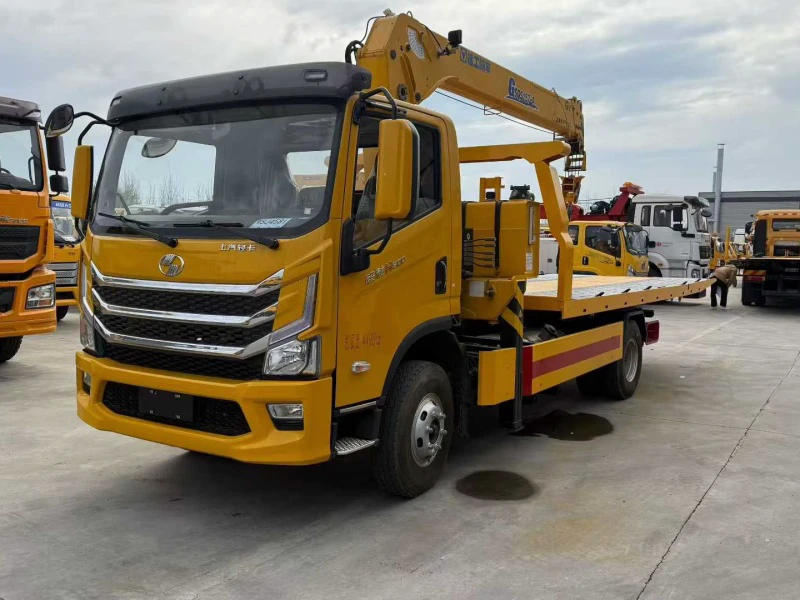

The SAIC Blue Plate Tow Truck with Integrated Crane is a multi-functional recovery vehicle combining lifting, towing, and rescue capabilities. Built on a robust SAIC Yuejin wide-body chassis and equipped with an XCMG hydraulic crane and a high-strength tow plate system, it is designed for urban road rescue, accident recovery, and emergency equipment handling. This model meets Category C driving license requirements, offering both operational flexibility and regulatory compliance for efficient city operations.

2. Core Specifications

• Chassis: SAIC Yuejin wide-body, 3800mm wheelbase

• Engine: Weichai 180 HP diesel engine

• Transmission: FAST 8-speed synchromesh gearbox with high/low range

• Frame Structure: Triple-layer straight-through beam

• Rear Axle: 8-ton reinforced rear axle

• Tires: Factory 825R16 steel-belted tires

• Crane: XCMG 5-ton 4-section boom, 11.2m arm length, 12.8m lifting height, full hydraulic 360° rotation

• Tow Plate: 8-ton capacity, 5.8m length × 2.5m width, dual-section hydraulic rear tow arm

3. Design & Structure
The vehicle features a wide-body design with a 3800mm wheelbase, balancing road accessibility and operational stability. The tow plate is widened and coated with a non-slip surface, suitable for transporting small vehicles and equipment. The integrated layout of the crane and tow plate optimizes space, emphasizing a "multi-purpose, one-truck" design philosophy that integrates lifting, towing, and rescue functions within a compact footprint.

4. Structural & System Advantages

• Engine System: The Weichai 180 HP engine delivers high torque output for frequent start-stop operations and low-speed rescue tasks, with enhanced fuel efficiency.

• Transmission System: The FAST 8-speed synchromesh gearbox offers smooth shifting and well-distributed gear ratios, balancing highway economy and off-road power needs.

• Chassis & Axle System: The triple-layer straight-through beam enhances torsional strength, while the 8-ton reinforced rear axle and 825R16 tires improve load stability and adaptability to rough terrain.

• Crane & Tow System: The XCMG 4-section boom crane covers medium- and low-altitude lifting needs with precise hydraulic control. The dual-section rear tow arm allows adjustable lifting angles to accommodate various recovery scenarios.

5. Key Features & Manufacturer Advantages

• Multi-Functional Integration: Combines lifting, towing, and rescue operations in one vehicle, reducing equipment investment and improving response efficiency.

• Regulatory Compliance & Cost Efficiency: Blue license plate classification allows operation with a Category C driver's license, lowering entry barriers and compliance costs.

• High Load Capacity: The 8-ton tow plate and 5-ton crane meet the demands of most urban recovery and emergency tasks.

• Chengli Group Support: Offers integrated chassis and superstructure manufacturing and testing to ensure functional reliability. The manufacturer provides license registration services, a nationwide warranty network, and rapid spare parts supply to support the vehicle throughout its operational lifecycle.
