8.6m Sinotruk Mobile Medical Examination Vehicle | Complete Mobile Clinic Solution

The 8.6-meter Sinotruk Mobile Medical Examination Vehicle is a fully integrated, large-scale mobile clinic designed for comprehensive health screening services. This advanced medical vehicle combines modular cabin technology with professional-grade diagnostic equipment, enabling efficient on-site examinations including DR imaging, ultrasound, biochemical testing, hematology analysis, and urinalysis. Engineered for versatility and rapid deployment, it serves diverse healthcare scenarios from community health programs to emergency medical response and mobile medical outreach.

Key Technical Specifications

• Medical Vehicle Model: CL5150XYL6AYS (Chengli Brand, Certification Batch 390)

• Gross Vehicle Weight: 15,100 kg

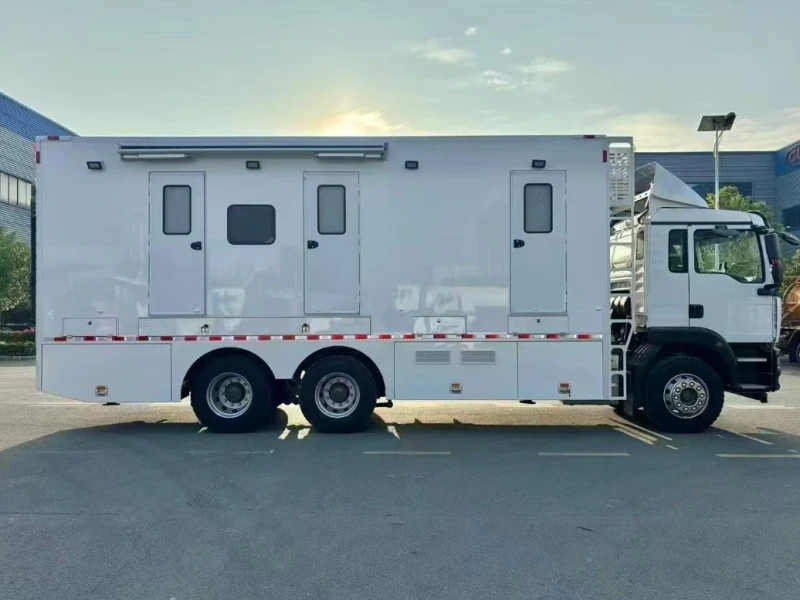

• Mobile Clinic Dimensions: 8,600 × 2,550 × 3,900 mm

• Chassis Type: ZZ5186XXYN561GF1 (Sinotruk Heavy-duty Chassis)

• Emission Standard: GB17691-2018 China VI Compliance

• Maximum Travel Speed: 110 km/h (Configurable speed limitation available)

• Axle Configuration: 2-axle, 6-tire setup for optimal stability

• Suspension System: Advanced rear air suspension

• Braking Technology: ZF commercial vehicle ABS with optional EBS upgrade

Design & Structural Features

• Cabin Construction: Sealed-unit design with expandable modular architecture

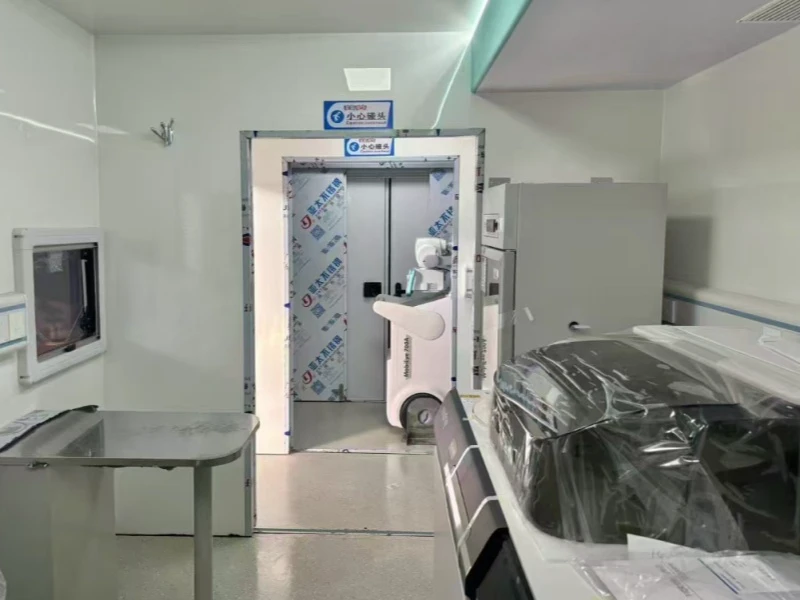

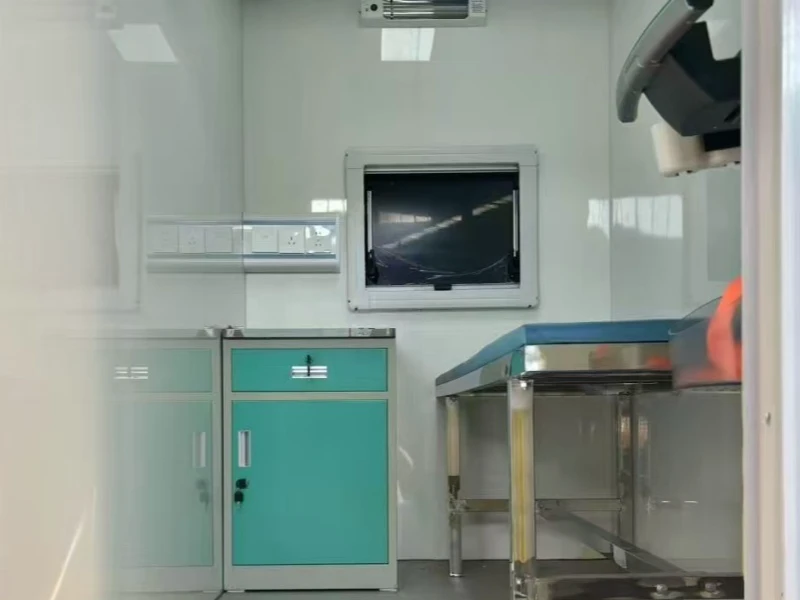

• Medical Interior Layout: Strategically organized examination zones, patient waiting area, and medical storage compartments

• Building Materials: Reinforced high-strength framework with corrosion-resistant finishing

• Healthcare Design Concept: Patient-centered approach emphasizing medical privacy, barrier-free accessibility, and intelligent environmental controls

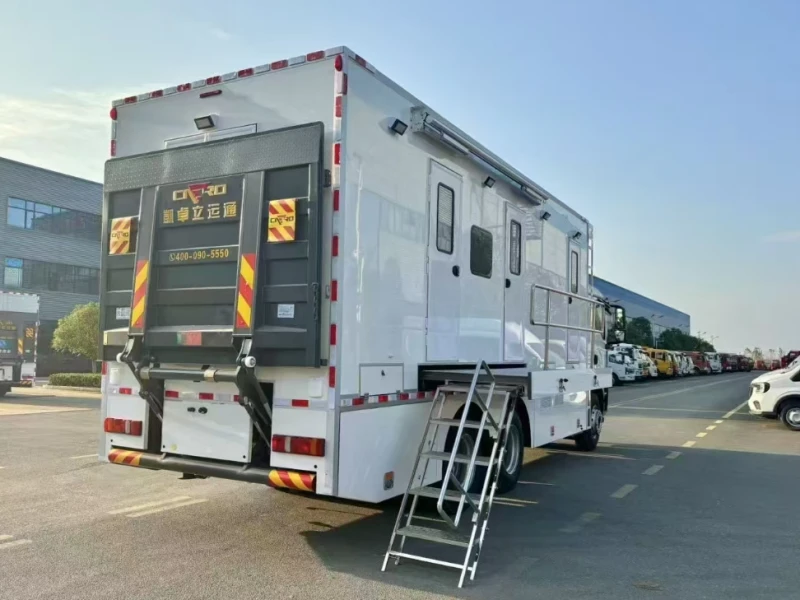

• Protective Features: Heavy-duty Q235 carbon steel rear guard system

Powertrain & Performance Advantages

• Engine Options: Multiple Sinotruk MC07/WP series diesel-powered engines (228-257 kW range) delivering fuel-efficient performance

• Transmission System: Durable manual/AMT gearbox technology for smooth power delivery

• Axle Capacity: High-load commercial vehicle axles (5,500 kg front/9,600 kg rear) for all-terrain capability

• Wheelbase Flexibility: Multiple configuration options (3,600-6,300 mm range)

• Tire Selection: All-terrain medical vehicle tires (295/80R22.5 18PR specification)

• Safety Systems: Integrated vehicle stability control with optional electronic braking enhancement

Product Features & Manufacturing Excellence

• Complete Medical Workspace: Factory-installed medical examination equipment including surgical facilities, LED medical lighting, and sterilization systems

• Rapid Deployment Capability: Self-sufficient mobile medical unit with independent power generation, climate control, and water supply systems

• Custom Medical Solutions: Adaptable mobile hospital configurations for specialized medical service requirements

• Chengli Group Capabilities:

  • Certified special vehicle manufacturer with full regulatory compliance

  • Integrated research and development facilities ensuring quality medical vehicles

  • Extensive experience in emergency response vehicles and public health mobility solutions

  • Comprehensive after-sales service network for medical equipment maintenance
