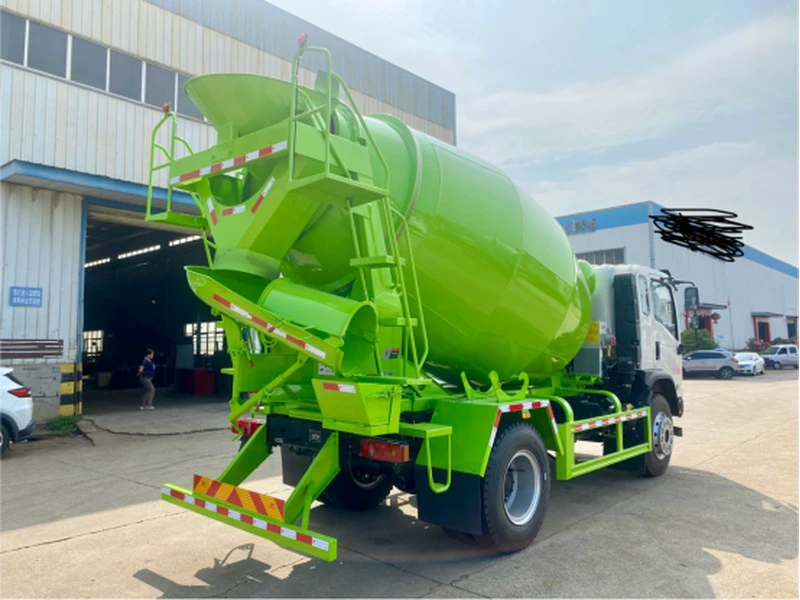

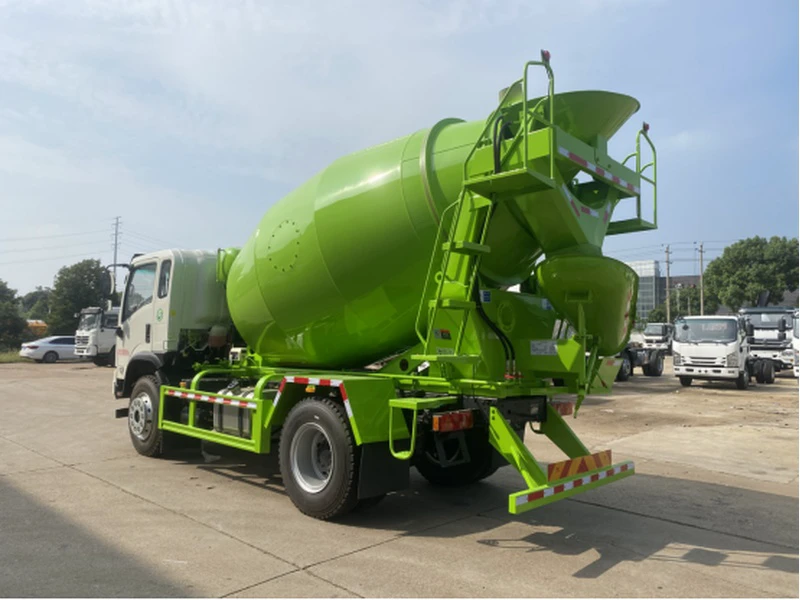

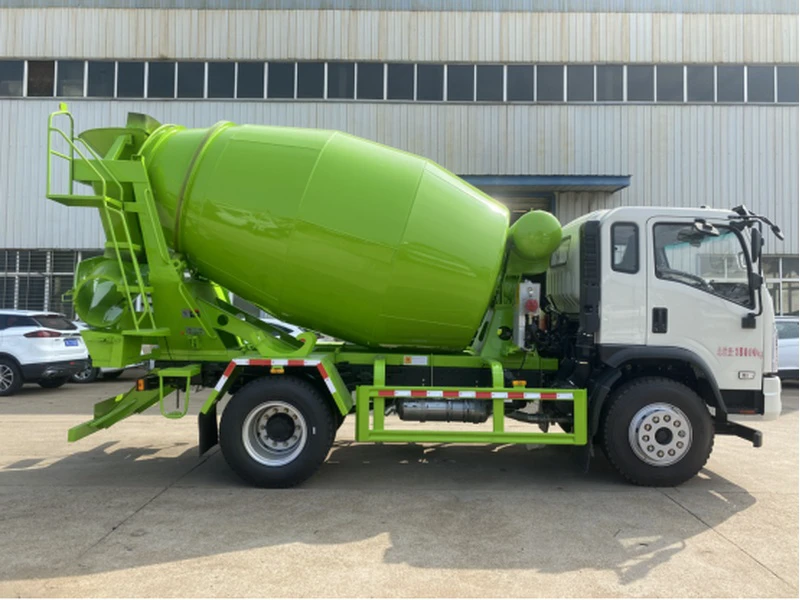

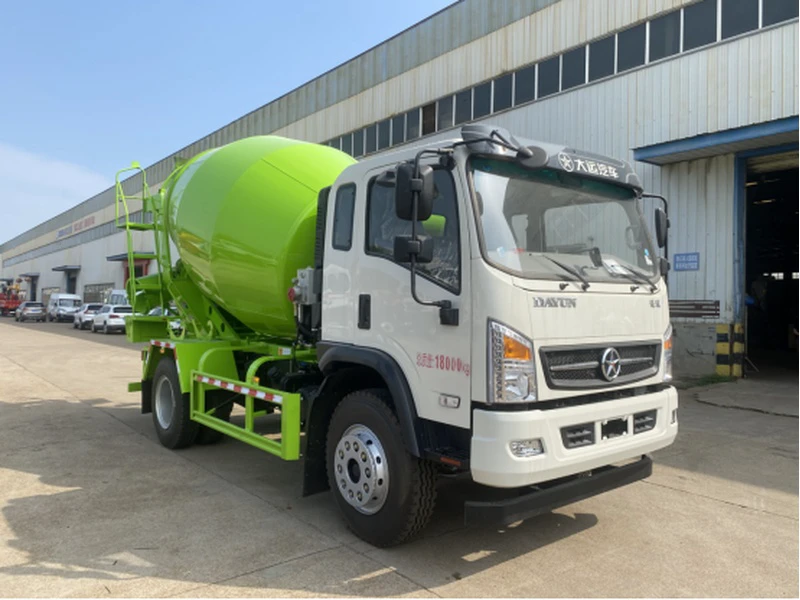

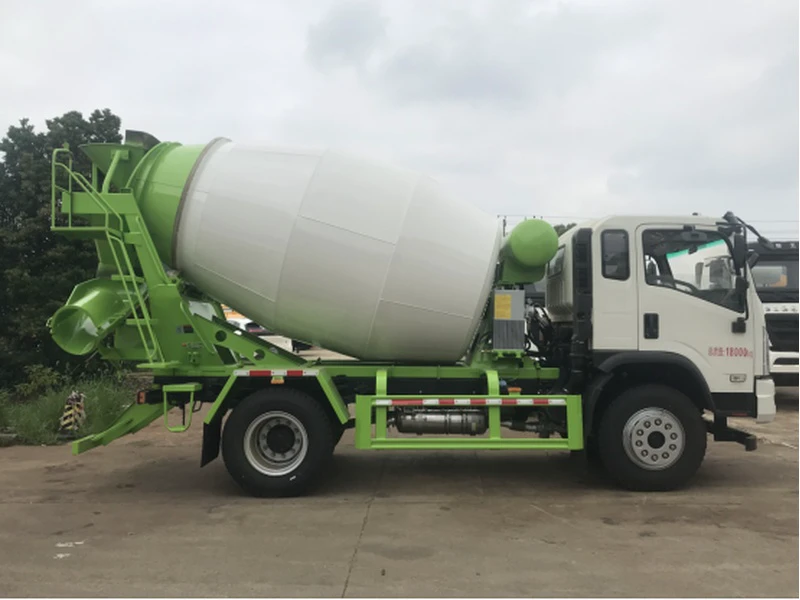

Dayun 7.5m³ Concrete Mixer Truck / Cement Mixer
I. Product Overview
The Dayun Yuntu concrete mixer truck is a reliable construction vehicle built on the Dayun DYQ3181D6AA heavy duty chassis, specifically engineered for ready-mix concrete transport and construction site delivery. This 7.5 cubic meter mixer truck combines proven Yuchai engine power, Fast Gear transmission, and a robust chassis platform to deliver consistent performance for infrastructure projects, residential construction, and commercial building applications. The vehicle features a Dayun Yuntu cab with factory air conditioning, power windows, central door lock, and remote key, providing operator comfort for extended working hours. With 700 nationwide service centers, convenient maintenance access, and free first maintenance for select models, this mixer truck represents an exceptional value for concrete transport operations.
II. Core Specifications
Component | Specification |
|---|---|
Complete Vehicle Model | DYQ5181GJBD6AC |
Chassis Model | DYQ3181D6AA |
Drive Configuration | 4×2 single rear axle |
Engine | Yuchai YCS04200-68 4-cylinder 200 HP diesel engine |
Emission Standard | Euro VI |
Transmission | Fast Gear small 8-speed manual gearbox |
Tires | 10.00R20/18PR steel wire radial tires |
Wheelbase | 3,600 mm |
Front Axle | 3.6 ton capacity |
Rear Axle | Reinforced 10 ton capacity |
Total Mass | 18,000 kg |
Curb Weight | 8,245 kg |
Rated Load Capacity | 9,560 kg |
Overall Dimensions (L×W×H) | 7,235 × 2,400/2,500 × 3,730 mm |
Cab | Dayun Yuntu cab with factory air conditioning, power windows, central door lock, remote key |
Fuel Tank | Aluminum alloy fuel tank |
Mixing Capacity (Actual) | 7.5 cubic meters |
Mixing Capacity (Announced) | 3.98 cubic meters |
Drum Material | Q345 manganese steel, 4 mm drum body, 6 mm high-strength steel end caps |
Hydraulic System | Keyi reducer, Weifu pump and motor (upgradable upon request) |
Standard Color | White / Red (custom colors available) |
III. Dimensions, Materials, and Design Concept
Overall Dimensions: 7,235 × 2,400/2,500 × 3,730 mm, optimized for construction site access and urban maneuverability
Wheelbase: 3,600 mm, providing stability for concrete transport while maintaining turning radius suitable for job site conditions
Drum Material: Q345 manganese steel with 4 mm drum body and 6 mm high-strength steel end caps for exceptional durability and wear resistance
Design Concept:
The design philosophy centers on operational reliability, driver comfort, and cost efficiency. The Dayun Yuntu cab features a upgraded interior with power windows, central door lock, remote key, and factory air conditioning, providing a comfortable work environment for extended operating hours. The superior chassis platform with original engineering series components ensures enhanced durability and extended service life. The wide visibility from the cab enhances safety during tight maneuvering on construction sites. The reinforced 10-ton rear axle and 10.00R20 steel wire tires provide the load capacity required for concrete transport while maintaining road stability.
IV. Detailed Structure and Component Advantages
Chassis Platform:
The Dayun DYQ3181D6AA chassis features a superior platform with original engineering series components designed specifically for construction applications. The reinforced frame and 10-ton rear axle provide the structural integrity required for concrete mixing operations. The 3,600 mm wheelbase is optimized for mixer truck applications, balancing maneuverability with load stability. The 3.6-ton front axle and 10.00R20/18PR steel wire tires ensure reliable load capacity and puncture resistance for demanding job site conditions.
Power Train:
The Yuchai YCS04200-68 200 HP 4-cylinder engine delivers reliable power with excellent fuel economy for both highway transport and job site maneuvering. The Euro VI emission compliance ensures operation in regions with stringent environmental regulations. The Fast Gear small 8-speed manual transmission provides smooth shifting and ample low-end torque for frequent start-stop operations at construction sites, enabling precise control during drum rotation and vehicle positioning.
Mixing Drum:
The 7.5 cubic meter mixing drum (with 3.98 cubic meter公告 capacity) is fabricated from Q345 manganese steel with 4 mm drum body and 6 mm high-strength steel end caps. This wear-resistant construction ensures long service life even with continuous concrete mixing operations. The drum design incorporates optimized blade geometry for uniform mixing and efficient discharge.
Hydraulic System:
The hydraulic system features Keyi reducer, Weifu pump, and Weifu motor, providing reliable power for drum rotation. This proven configuration ensures consistent mixing performance and smooth operation. Upgraded hydraulic components are available upon request to meet specific operational requirements.
Cab and Comfort:
The Dayun Yuntu cab features upgraded interior trim with power windows, central door lock, remote key, and factory air conditioning. The wide visibility design enhances safety during tight maneuvering on construction sites. The modern cab design includes decals and power标识, reflecting the vehicle's capability and quality.
V. Product Features and Manufacturer Advantages
Product Features
Superior Chassis Platform: The original engineering series components and reinforced frame provide exceptional durability and extended service life, reducing maintenance costs and downtime.
Comfortable Operator Environment: The upgraded cab interior with factory air conditioning, power windows, central door lock, and remote key ensures operator comfort during extended operating hours, reducing fatigue and improving productivity.
Reliable Powertrain: The Yuchai 200 HP engine and Fast Gear small 8-speed transmission combination delivers proven reliability and fuel efficiency, minimizing operating costs.
Durable Mixing Drum: The Q345 manganese steel construction with 4 mm drum body and 6 mm end caps provides exceptional wear resistance and durability for demanding concrete mixing applications.
Enhanced Visibility: The wide visibility cab design enhances safety during tight maneuvering on construction sites, reducing the risk of accidents and vehicle damage.
Aluminum Fuel Tank: The aluminum alloy fuel tank provides corrosion resistance and weight savings, contributing to improved fuel efficiency.
Customization Options: Custom colors and upgraded hydraulic components are available upon request to meet specific operational requirements.
CLW Group Manufacturer Advantages
As a leading Chinese special vehicle manufacturer, CLW Group Special Automobile Co., Ltd. delivers comprehensive quality across all production aspects:
Complete Vehicle Announcements: The DYQ5181GJBD6AC model is included in the national vehicle announcement directory, ensuring legal registration nationwide
Superior Chassis Quality: Utilizes Dayun original chassis with engineering series components for enhanced durability and reliability
Reliable Components: Features Yuchai engine, Fast Gear transmission, Keyi reducer, and Weifu hydraulics for proven performance and serviceability
Comprehensive Service Network: With 700 nationwide service centers, maintenance and repairs are convenient and accessible across all regions
Free Maintenance Benefit: First maintenance for select models is available under free service policy, reducing initial operating costs
Factory Direct Sales: Direct factory sales model eliminates intermediaries, offering competitive pricing and comprehensive pre-sales and after-sales service
Customization Capability: Custom colors and upgraded hydraulic options available to meet specific customer requirements
This Dayun Yuntu 7.5 cubic meter concrete mixer truck combines superior chassis quality, reliable powertrain, and operator-focused design, making it an ideal choice for ready-mix concrete suppliers, construction contractors, and infrastructure development projects requiring dependable concrete transport solutions.
