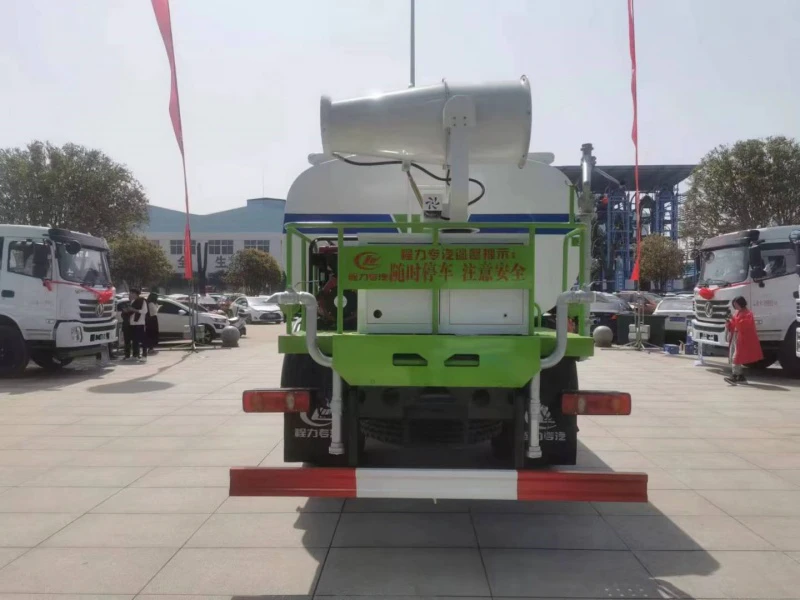

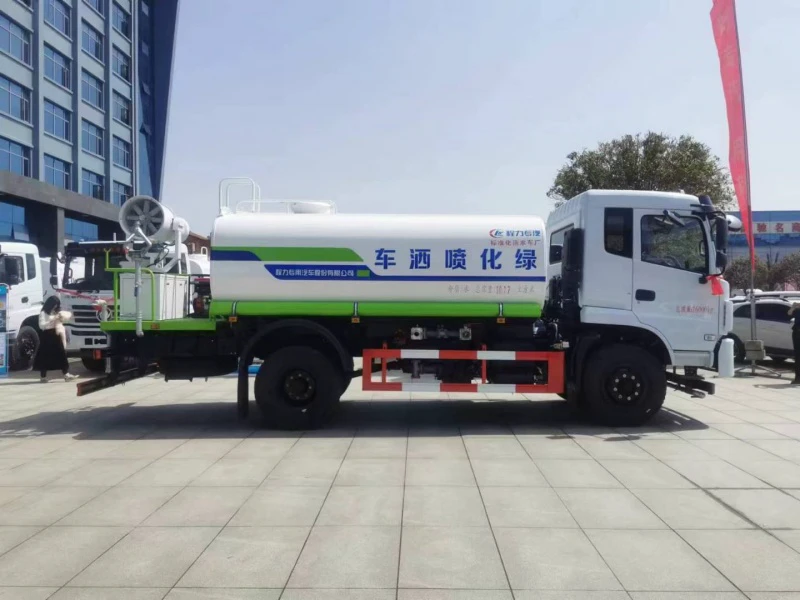

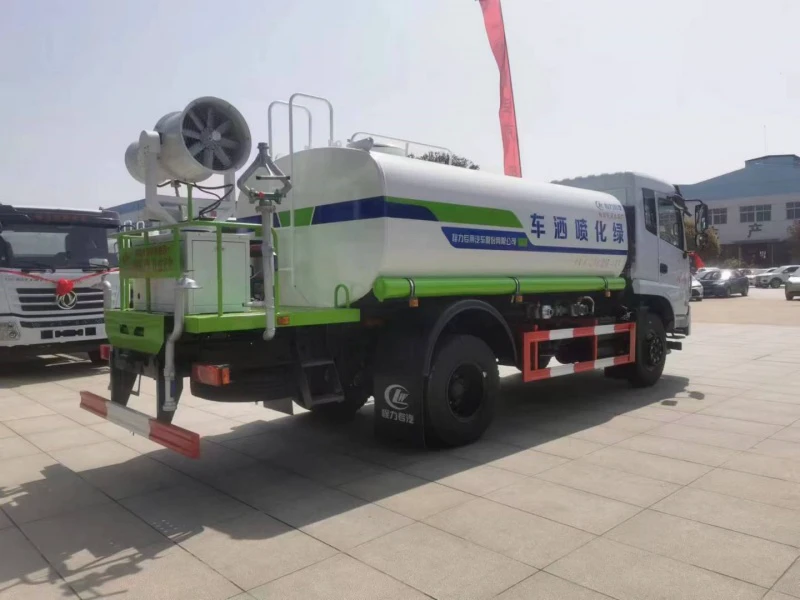

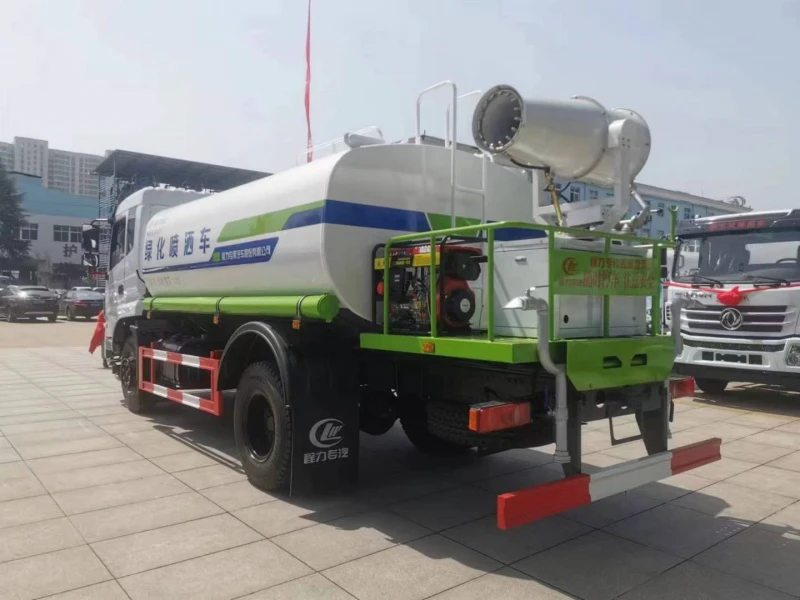

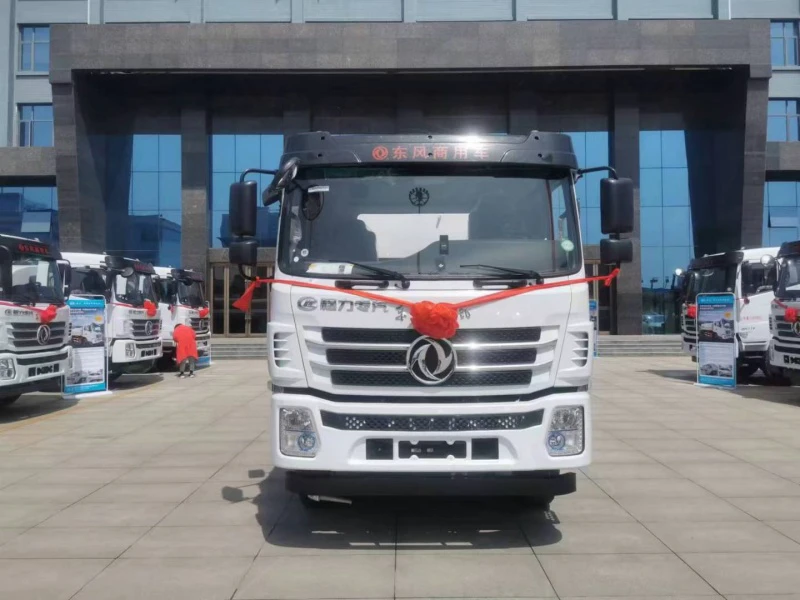

DFAC 12-Ton Water Sprinkler Truck – Professional Municipal Cleaning Equipment (Capacity: 12 m³ / approx. 3,170 US gallons)
1. Product Overview
The DFAC 12-ton water sprinkler truck is a high-capacity commercial vehicle engineered for municipal maintenance, industrial dust control, and urban landscaping applications. This heavy-duty water tank truck features an integrated sprinkler system designed for road cleaning, street washing, and firefighting support operations.
2. Technical Specifications & Performance Parameters
Water Tank Volume: 12 cubic meters (approx. 3,170 US gallons capacity)
Commercial Truck Chassis: EQ1160GSZ6DJ heavy-duty platform
Diesel Engine Power: Yuchai YCY30170-60 (170 HP, China VI compliant)
Transmission System: Fastt 8-speed manual gearbox with integrated PTO
Suspension Configuration: 2.8-ton front axle / 8-ton rear axle
Tire Specification: 9.00 steel radial tires for enhanced durability
Vehicle Wheelbase: 3,950 mm (approx. 155.5 inches)
Cab Configuration: DFAC K6 Series commercial vehicle cab with climate control system
3. Design Specifications & Construction Details
Truck Body Design: Aerodynamic cab structure with optimized driver ergonomics
Water Tank Construction:
Heavy-duty Q235 carbon steel fabrication
4 mm reinforced tank walls (0.157 inches)
3 mm internal surge baffles (0.118 inches)
4 mm standard head plates (5 mm optional)
Engineering Philosophy: Advanced weight distribution system with corrosion-resistant coating technology
Fluid Transfer System: 3-inch (76 mm) high-flow piping network with industrial-grade ball valves
4. Mechanical Components & Engineering Advantages
Powertrain System: Yuchai turbocharged diesel engine delivers optimal fuel efficiency and torque performance for municipal service vehicles
Drivetrain Configuration: Heavy-duty transmission with power take-off unit ensures reliable pump operation during street cleaning procedures
Chassis Engineering: Reinforced axle system provides exceptional load capacity for water distribution trucks
Pumping Technology: High-pressure centrifugal pump with 6-meter self-priming capability (19.7 feet) featuring integrated filtration and fire suppression connectivity
5. Operational Features & Manufacturing Excellence
Multi-Functional Spraying Equipment:
Front-mounted high-pressure cleaning nozzles
Rear wide-coverage sprinkler system
Side-spray attachments for curb cleaning
Adjustable water cannon with multiple spray patterns (98.4 feet maximum range)
Premium Component Options:
Seamless die-cast aluminum piping connectors
Corrosion-resistant stainless steel valve assemblies
Lightweight aluminum spray accessories
Chengli Special Vehicle Manufacturing Advantages:
Customized truck body fabrication services
ISO-certified production facilities
Nationwide service network for maintenance support
Advanced water truck manufacturing expertise
Competitive commercial vehicle pricing with warranty coverage
Industry Applications: Municipal water trucks, construction site dust suppression, highway maintenance vehicles, airport runway cleaning equipment, industrial plant service trucks.
Certification & Compliance: Meets Chinese commercial vehicle standards with optional export certifications available for international markets including Southeast Asia, Africa, and Middle Eastern regions.
