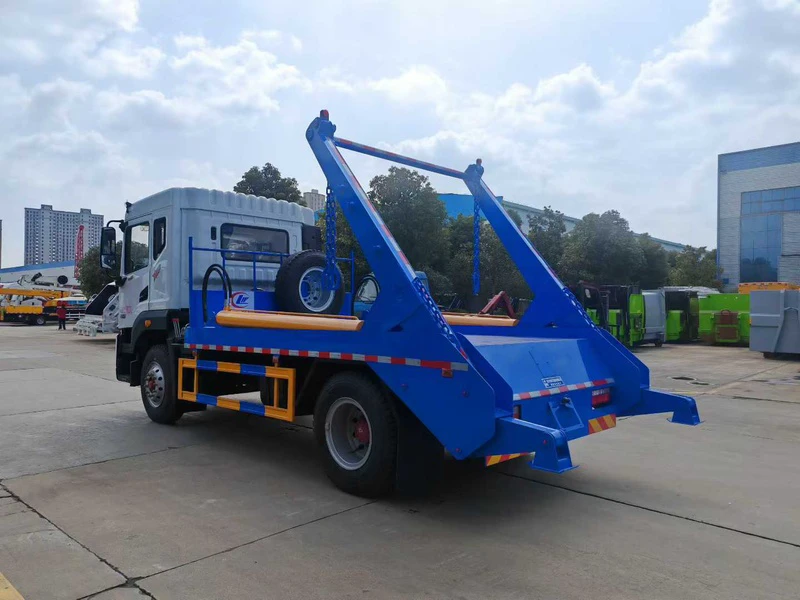

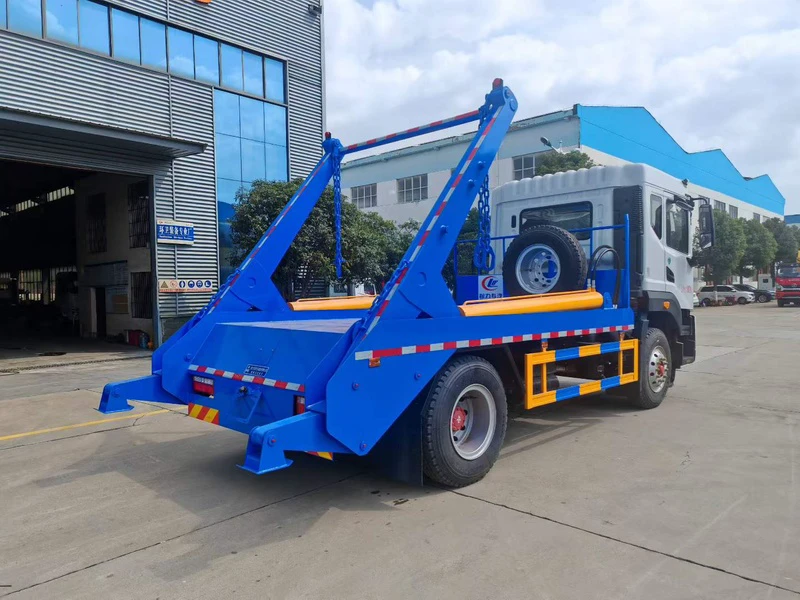

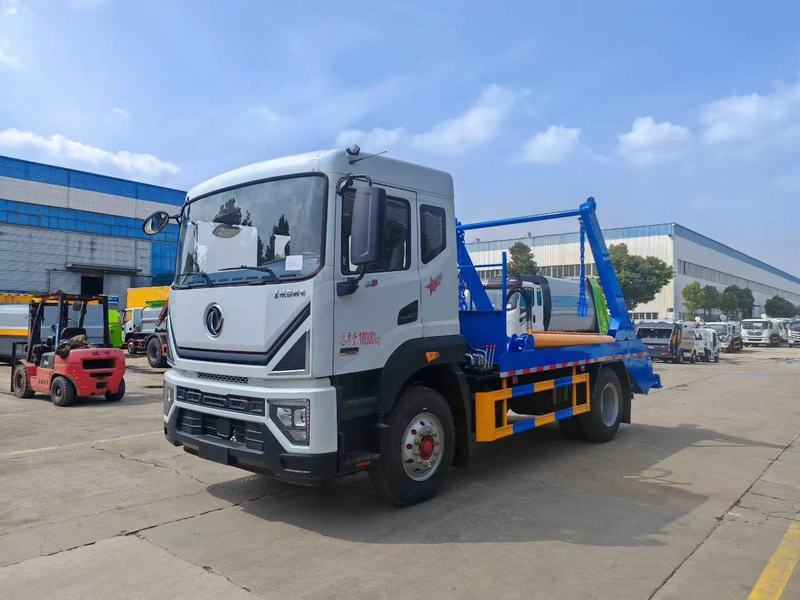

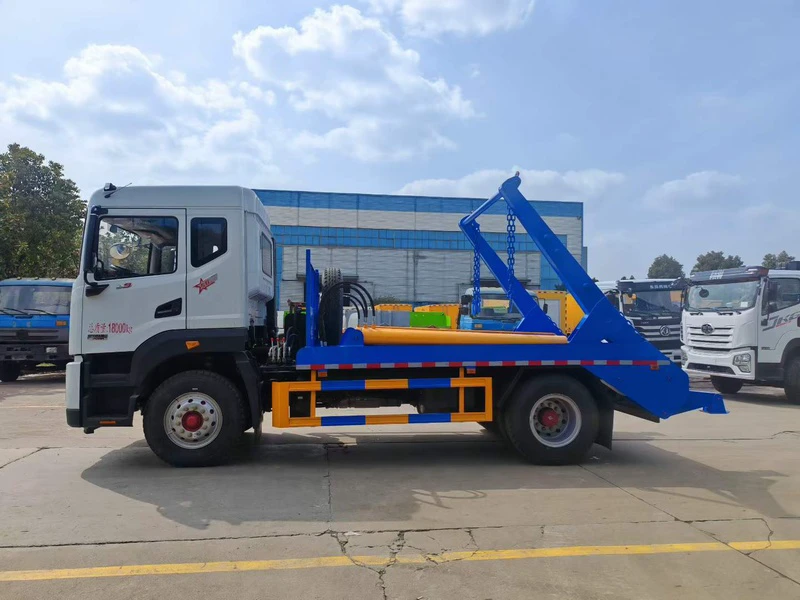

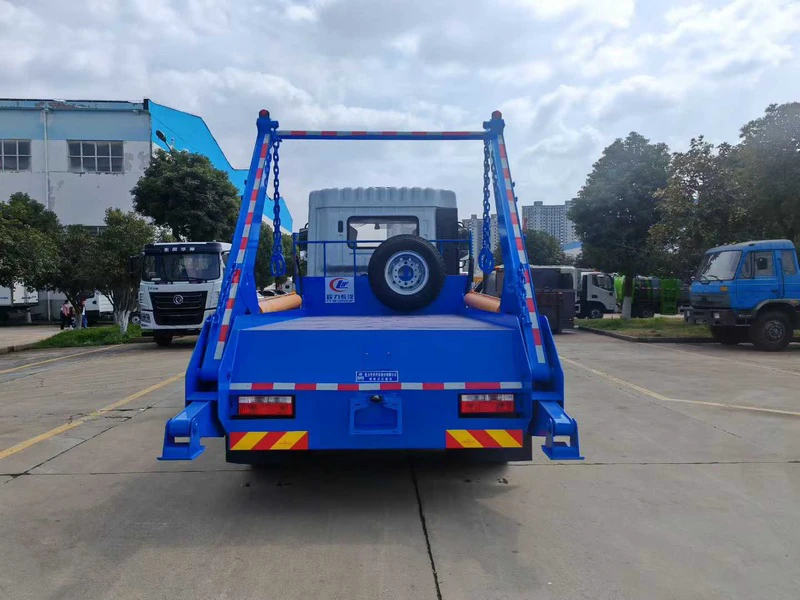

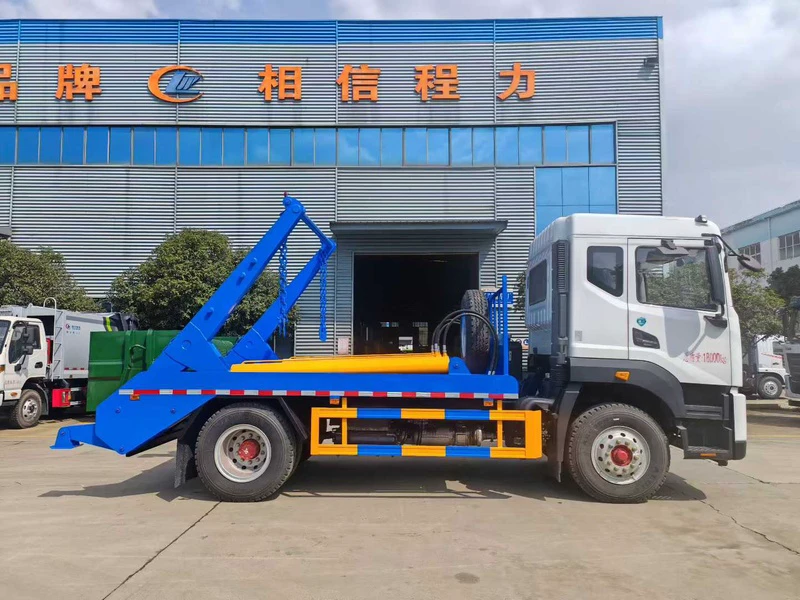

Dongfeng D9 Swing Arm Garbage Truck / Detachable Container Waste Vehicle

I. Product Overview

The DFAC D9 swing arm garbage truck is a high performance municipal waste collection vehicle built on the reliable Dongfeng Duolika D9 heavy duty chassis. This detachable container waste vehicle is specifically designed for bagged waste collection, bulk household garbage transport, and efficient unloading operations in urban communities, industrial parks, and rural areas. The core advantage of this swing arm refuse vehicle is its separate container design, allowing the waste bin to be completely detached from the chassis. The hydraulic swing arm mechanism enables rapid container loading and self dumping operations, achieving the one truck multiple containers operational model for cyclic transport and significantly reducing sanitation operating costs.

II. Core Specifications

III. Dimensions, Materials, and Design Concept

Overall Dimensions: 7360 × 2500 × 3310 mm (standard configuration)

Container Volume: 8 to 10 cubic meters effective capacity

Container Material: 3 mm side plates and 4 mm bottom plates fabricated from premium carbon steel from leading domestic mills

Design Concept:

The design philosophy centers on operational flexibility, cost efficiency, and durability. The detachable container system enables one truck multiple containers operation, where a single vehicle services numerous collection points by exchanging full containers for empty ones, maximizing vehicle utilization. The hydraulic swing arm mechanism with 145-degree rotation angle ensures smooth container handling in confined spaces. The 250mm double-layer frame and 10-ton rear axle provide the structural foundation for demanding waste transport applications. The dual hydraulic rear stabilizers ensure stability during unloading operations, while the sealed container design prevents waste spillage and odor emissions.

IV. Detailed Structure and Component Advantages

Chassis Platform:

The Dongfeng Duolika D9 chassis provides a robust foundation with 250mm double-layer frame engineered for 18-ton total mass capacity. The 10-ton rear axle and 10.00R20 steel wire tires deliver exceptional load capacity and puncture resistance for demanding waste collection routes. The 3950 mm wheelbase offers optimal maneuverability in urban environments while maintaining loading stability.

Power Train:

The Cummins B6.2NS6B210 210 HP engine delivers reliable power with optimized fuel efficiency for both highway transport and hydraulic pump operation. The Fast Gear 8-speed manual gearbox provides superior torque matching and smooth shifting, enabling precise control during low-speed container handling. The Euro VI emission compliance ensures operation in regions with stringent environmental regulations.

Hydraulic Swing Arm Mechanism:

The hydraulic swing arm system features a reinforced alloy steel main arm with 145-degree rotation angle, enabling reliable container lifting and dumping in various site conditions. The hydraulic system operates at 16 Mpa working pressure with safety relief valves to prevent overload. The dual hydraulic rear stabilizers deploy automatically during unloading to ensure vehicle stability and operator safety.

Container Design:

The waste container is fabricated from 3 mm side plates and 4 mm bottom plates of premium carbon steel, providing exceptional corrosion resistance and impact durability. Reinforced lifting lugs are welded at both ends of the container for secure attachment to the swing arm mechanism. Sealed covers are optional for odor control and windblown litter prevention.

Loading and Unloading Operation:

The single cycle time for container loading or unloading is 60 seconds or less. From the cab, the operator controls the hydraulic functions via manual or electric controls. The swing arm engages the container lifting lugs, raises the container onto the chassis frame, and secures it for transport. During unloading, the arm lifts and rotates the container to the dumping angle, allowing complete waste discharge into reception pits or transfer stations.

V. Product Features and Manufacturer Advantages

Key Operational Benefits:

One truck multiple containers configuration enables a single vehicle to service numerous collection points, reducing fleet requirements by up to 60%. Rapid cycle time of 60 seconds minimizes downtime at each location. High payload capacity of 11.2 tons reduces transport frequency and operating costs.

Structural Durability:

The 250mm double-layer frame and 10-ton rear axle provide the structural integrity for continuous heavy load operations. 3 mm side plates and 4 mm bottom plates in the container resist wear and corrosion from waste materials. The reinforced swing arm ensures reliable performance over thousands of cycles.

Safety Features:

Dual hydraulic rear stabilizers provide stable platform during unloading operations. Container locking mechanism prevents accidental detachment during transport. Safety relief valves in the hydraulic system protect against overload. ABS braking system ensures safe stopping in all conditions.

Environmental Protection:

Optional sealed container covers prevent waste spillage, odor emissions, and windblown litter during transport. The enclosed hydraulic system eliminates fluid leakage risks. Durable container construction prevents leachate leakage that could contaminate soil and groundwater.

Operator Comfort and Convenience:

The 2315mm wide cab with factory air conditioning, power windows, and central door lock provides a comfortable work environment. Power steering and clutch assist reduce operator fatigue during frequent maneuvering. Cab-integrated controls enable single-operator container handling without leaving the vehicle.

Chengli Group Manufacturer Advantages:

As a leading Chinese special vehicle manufacturer, Chengli Special Automobile Co., Ltd. delivers comprehensive quality across all production aspects. The CLW5180ZBS6 model is included in the national, ensuring legal registration nationwide. Premium materials including carbon steel from leading domestic mills ensure consistent quality. Hydraulic components are sourced from reputable manufacturers for long-term reliability. Nationwide after-sales support includes Dongfeng chassis service network for chassis-related issues and Chengli technical support for superstructure components. Customization capabilities enable adaptation to specific container types, capacity requirements, and operational needs including ground-level containers, pit-type containers, and sealed containers. Complete vehicle documentation and technical support are provided with every unit.

This Dongfeng D9 swing arm garbage truck combines operational flexibility, structural durability, and cost efficiency delivering a reliable solution for municipal waste collection and sanitation management applications.
