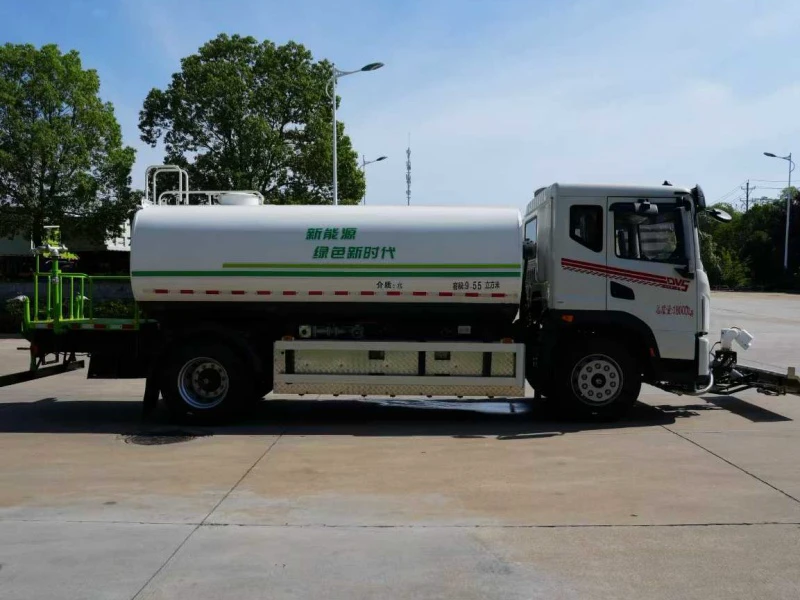

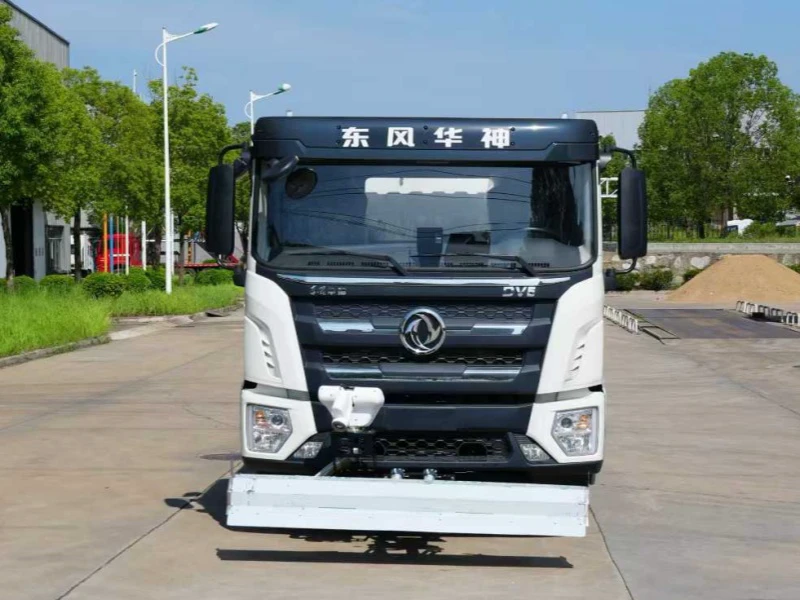

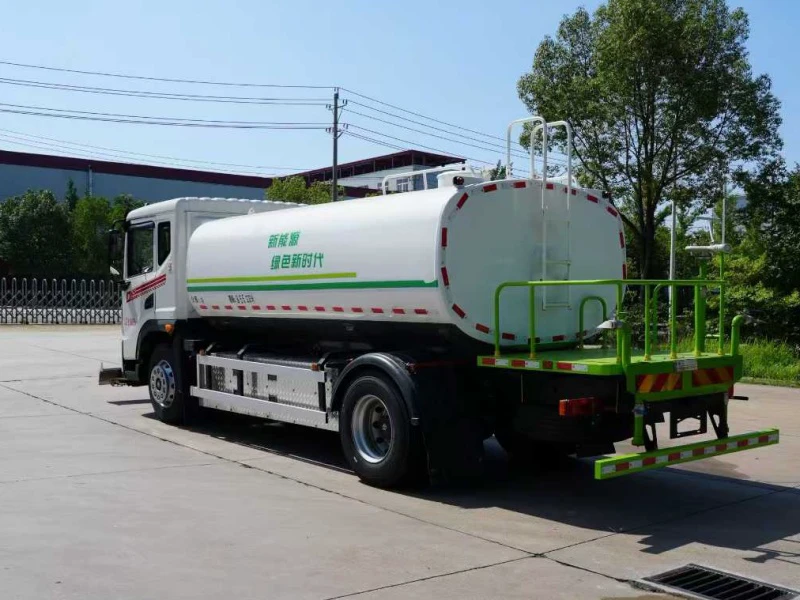

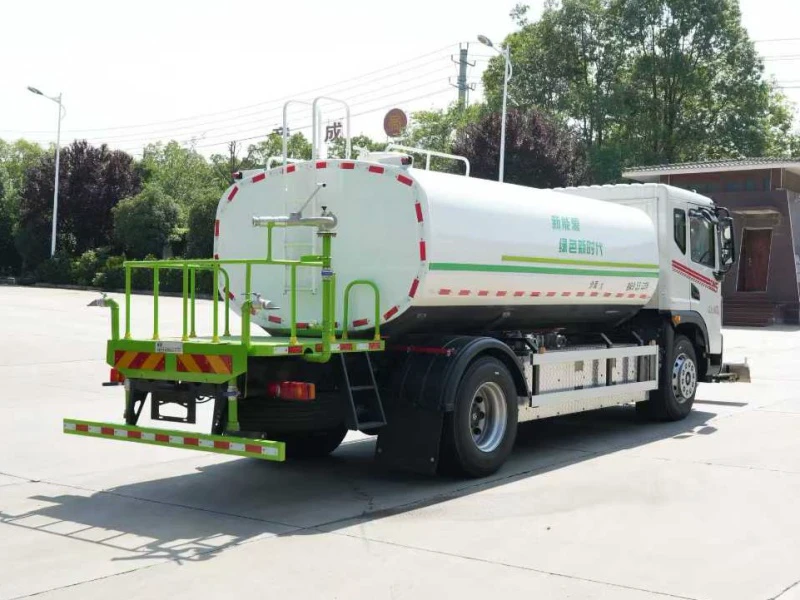

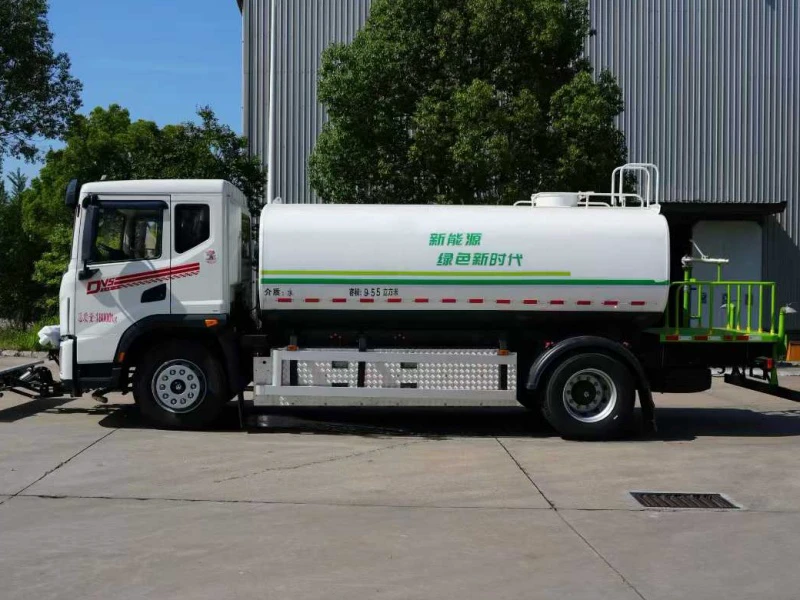

DFAC Huashen DV5 All-Electric 12 Cubic Meter Water Sprinkler Truck – Eco-Friendly Municipal Cleaning Solution

1. Electric Water Truck Overview | Zero-Emission Municipal Vehicle

The DFAC Huashen DV5 all-electric water sprinkler truck represents a fully-electric commercial vehicle engineered for environmentally friendly road cleaning, urban dust suppression, and sustainable municipal operations. This new energy special-purpose vehicle integrates advanced electric vehicle technology with professional water spraying systems to provide zero-emission cleaning solutions for smart city development, green urban maintenance, and eco-conscious municipal fleets.

2. Technical Specifications | Electric Truck Performance Parameters

• Vehicle model designation: CSC5180GQXEHBEV electric commercial truck

• Chassis platform: EQ1180GLEVJ1 new energy vehicle platform

• Water tank capacity: 3,170 US gallons (12 cubic meters)

• Overall dimensions: 354×98.4×116.9 inches (8,995×2,500×2,970 mm)

• Vehicle wheelbase: 196.9 inches (5,000 mm)

• Gross vehicle weight: 39,683 lb (18,000 kg)

• Payload capacity: 19,239 lb (8,725 kg)

• Maximum speed: 55 mph (89 km/h)

• Tire specifications: 295/80R22.5 18PR commercial truck tires

• Steering system: Hydraulic power steering system

• Charging compatibility: National standard fast charging EV infrastructure

3. Design Engineering & Construction Details

• Tank construction: Premium carbon steel material

• Structural thickness: 0.20 inch head / 0.16 inch side / 0.20 inch base (5mm/4mm/5mm)

• Welding technology: Fully automated welding process with double-sided forming

• Internal design: Two fully welded tank baffles for liquid stability

• Connection systems: Embedded gasket flange design for leak prevention

• Filtration system: Updated sand-filtering tee configuration

• Design philosophy: Optimized for electric vehicle efficiency and municipal service durability

4. Electric Powertrain & Battery System Advantages

• Battery technology: 540.96V lithium iron phosphate battery system

• Energy capacity: 218.54 kWh battery storage

• Battery specifications: 404Ah battery rating

• Electric motor: AC permanent magnet synchronous drive motor

• Motor control: Advanced vector control technology

• Driving range: 385 km (40 km/h constant speed) vehicle endurance

• Charging capability: Fast charging compatible EV charging system

• Vehicle features: Standard air conditioning cab comfort system

5. Operational Features & Manufacturing Excellence

Water Spraying System Functions:

• Front high-pressure flushing for road surface cleaning

• Rear sprinkling system for uniform water distribution

• Side nozzle spraying for curb area irrigation

• Rear water cannon with high-pressure capability

• Integrated work platform for operational access

Optional Equipment Systems:

• 30-40 mist cannon for dust suppression

• Electronic water cannon for precision control

• Front-mounted high-pressure cleaning device

Electric Vehicle Advantages:

• Zero tailpipe emissions for clean air compliance

• Reduced operating noise for urban environments

• Lower maintenance requirements compared to diesel

• Operating cost savings through electric power

• Government incentive eligibility for green vehicles

Manufacturing & Service Capabilities:

• Chengli Group expertise in new energy vehicle production

• Specialized EV integration for municipal applications

• Advanced manufacturing facilities with quality control

• Comprehensive technical support network

• Sustainable vehicle solutions for modern cities
