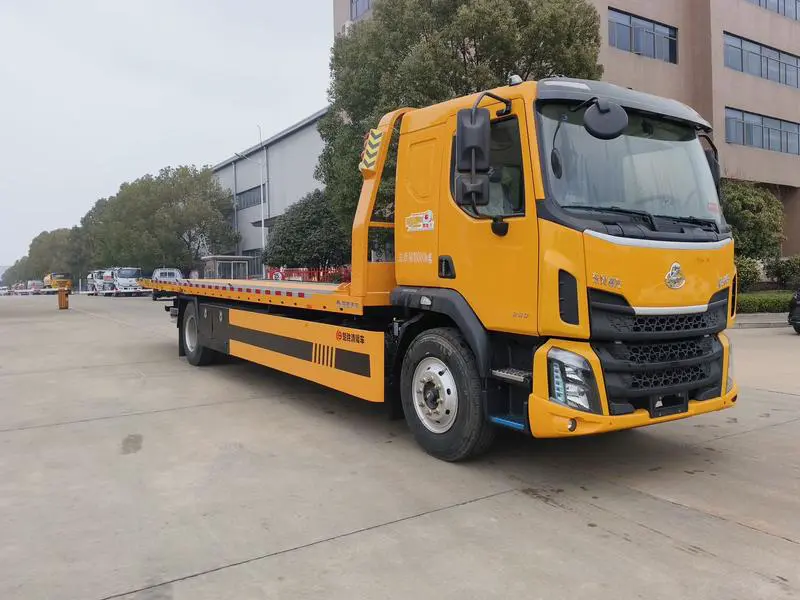

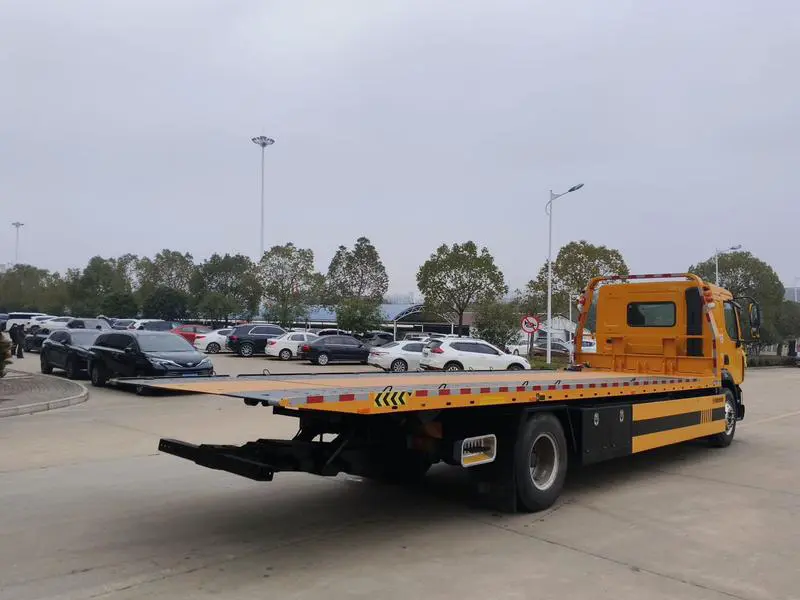

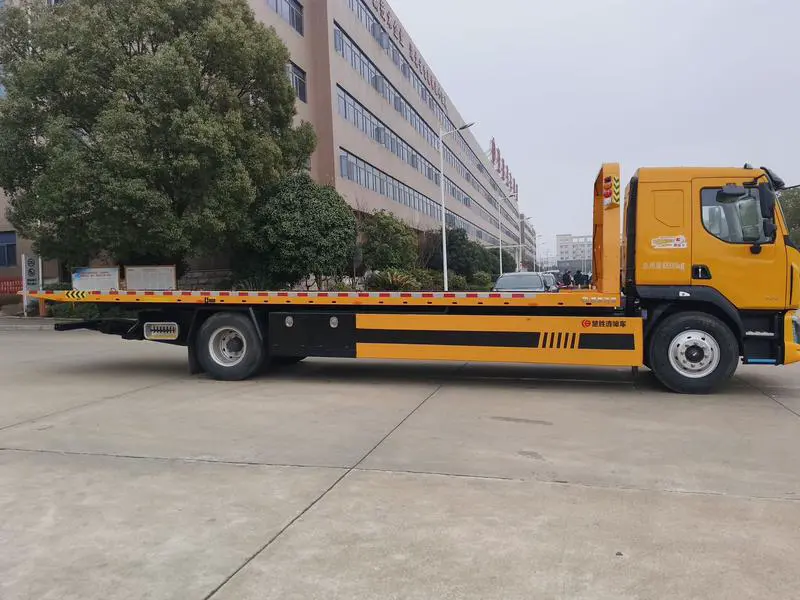

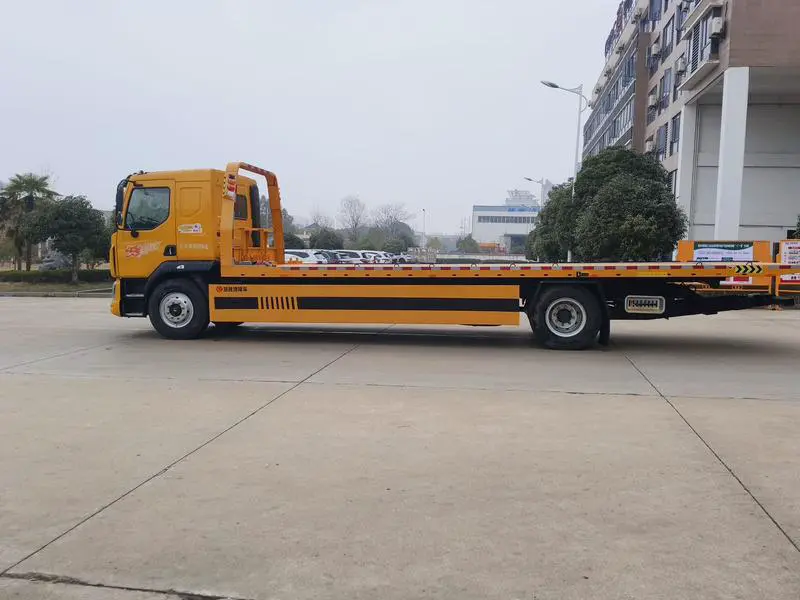

DFAC Liuzhou 4×2 Heavy-Duty Wrecker – 10T Flatbed (Up to 17T Capacity)

I. Product Introduction

The DFAC Liuzhou 4×2 Heavy-Duty Wrecker is a professional flatbed recovery vehicle designed for heavy-duty towing, equipment transport, and roadside assistance operations. With a 10-ton rated flatbed capable of handling loads up to approximately 17 tons, this wrecker delivers exceptional performance for recovering trucks, buses, construction machinery, and commercial vehicles. Built on the reliable Dongfeng Liuzhou chassis with a 6300 mm wheelbase, powerful Yuchai engine, and robust Fast transmission, this vehicle is the ideal choice for towing companies, construction contractors, and municipal fleets operating in demanding conditions.

II. Core Parameters

III. Exterior Dimensions, Body Design & Material Concept

• Overall Dimensions: Designed with a 6300 mm wheelbase chassis, ensuring stable handling and balanced weight distribution for heavy loads.

• Flatbed Configuration: The flatbed features 10P12 diamond-checkered steel plate (6 mm thickness) with hydraulic tailgate functionality:

  • Main deck: 7.6 m

  • Hydraulic tailgate: 1.3 m

• Structural Reinforcement: The flatbed features steel plate edging and a reinforced grid-type chassis layout with additional square tube reinforcement under the deck for enhanced strength and durability.

• Design Philosophy: The hydraulic tailgate design enables easy loading and unloading of vehicles and machinery. The reinforced grid-type chassis layout provides superior load distribution, making this vehicle ideal for heavy equipment transport.

IV. Structural Advantages – Powertrain, Frame & Chassis

• Engine (Yuchai YCS04220-61A): Delivers 220 HP with advanced emission technology, providing ample low-end torque for heavy lifting and towing operations while ensuring fuel efficiency.

• Transmission (Fast 8JS85C): The 8-speed manual gearbox offers precise gear ratios, optimizing power delivery for both highway driving and low-speed recovery scenarios.

• Frame: The 231 mm frame is engineered for heavy-duty applications, providing exceptional load-bearing capacity and resistance to torsional stress during recovery operations.

• Front & Rear Axles: The 3.6T front axle and 8T rear axle with 4.333 ratio are designed to withstand high dynamic loads, ensuring stable handling and braking performance under full load conditions.

• Suspension: 8/9+5 leaf spring configuration delivers superior load-carrying capacity and ride stability.

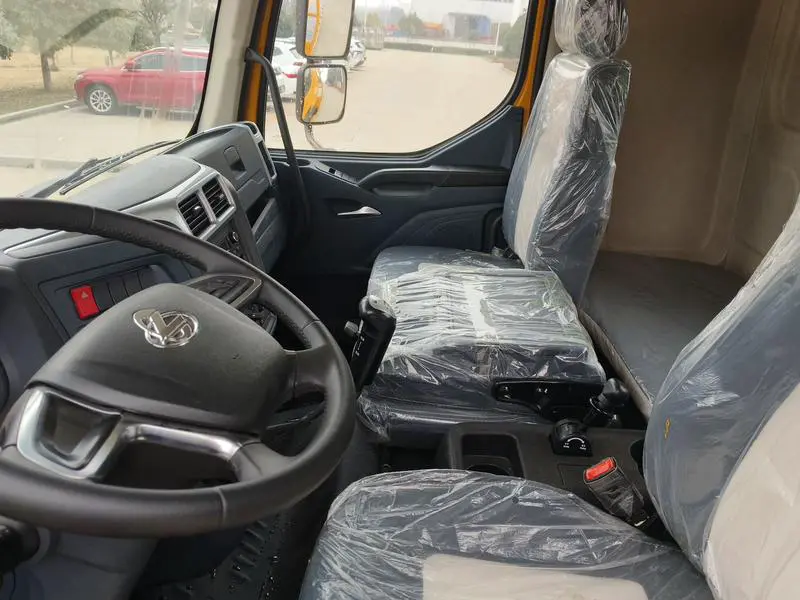

• Cab (M31B): Features semi-floating cab suspension, hydraulic tilt mechanism, air suspension driver seat, laminated glass, LCD instrument cluster, and integrated telematics for enhanced driver comfort and operational efficiency.

• Safety & Compliance: Equipped with ABS, tachograph, remote central locking, self-adjusting arm, right-turn warning tone, and speed limiter (89 km/h) for regulatory compliance.

V. Wrecker Body Configuration & Recovery Equipment

The upper body is designed for professional heavy-duty recovery operations:

• Flatbed: 10P12 diamond-checkered steel plate (6 mm thickness) with hydraulic tailgate functionality. Total deck length of 8.9 m (7.6 m main deck + 1.3 m hydraulic tailgate).

• Reinforced Construction: Steel plate edging, grid-type chassis layout, and additional square tube reinforcement under the deck ensure maximum durability under heavy loads.

• Hydraulic Winch: 80 kN winch with 45 m steel cable for powerful pulling and recovery operations.

• Rear Tow Arm: 12T 3-section rear tow arm mounted directly to the frame for maximum strength and stability.

• Hydraulic Components:

  • Cylinders: Haizhanli hydraulic cylinders

  • Hydraulic Pump: Hefei Wanye hydraulic pump

  • Hydraulic Valve: Italian VOD hydraulic valve

  • PTO: Original factory / Suizhou PTO

• Control System: Dual-side synchronized control for convenient operation from either side of the vehicle.

• Additional Equipment:

  • 1 tool box

  • 2 auxiliary wheels

  • 1 pair of L-type tire clamps

  • 4 tie-down straps

  • 2 pairs of tow forks

  • 1 pair of tow fork sockets

  • 1 chain hook

• Design Features: Lowered center of gravity design, auxiliary air hose assembly, rear tow arm mounted on frame for optimal strength.

VI. Applications & Usage Scenarios

The Dongfeng Liuzhou 4×2 Heavy-Duty Wrecker – 10T Flatbed is a specialized vehicle designed for:

• Heavy-duty vehicle recovery and towing operations

• Large equipment transport (excavators, construction machinery up to 17 tons)

• Commercial vehicle recovery (trucks, buses)

• Highway traffic management and maintenance support

• Urban road engineering machinery transfer

• Long-distance equipment hauling

With its 10-ton rated flatbed capable of handling approximately 17 tons, powerful Yuchai engine, reinforced frame, and comprehensive recovery equipment, this vehicle delivers exceptional performance for the most demanding recovery and transport scenarios.

VII. Chengli Group Manufacturer Advantages

Chengli Special Purpose Vehicle Co., Ltd., as a leading manufacturer in China's special-purpose vehicle industry, brings deep technical expertise and strong manufacturing capabilities to every unit. Key advantages include:

• Large-Scale Production: Modern production facilities with industry-leading annual capacity ensure short delivery lead times and stable supply.

• Comprehensive Quality Control: From raw material procurement and chassis modification to final vehicle assembly, a strict quality management system is implemented throughout the process. Every vehicle undergoes multiple inspection stages to ensure quality.

• Technical R&D Strength: A professional R&D team is dedicated to continuous product optimization and innovation, developing specialized vehicle models tailored to diverse market requirements.

• Complete Compliance Certification: All products are certified under the national compliance system with complete documentation, ensuring smooth registration and operation for customers.

• Global Service Network: Products are exported to markets worldwide, supported by a comprehensive after-sales service system that provides timely technical support and parts supply.

• Stock Availability: This model features consistent specifications and reliable supply, ensuring prompt delivery for customers.
