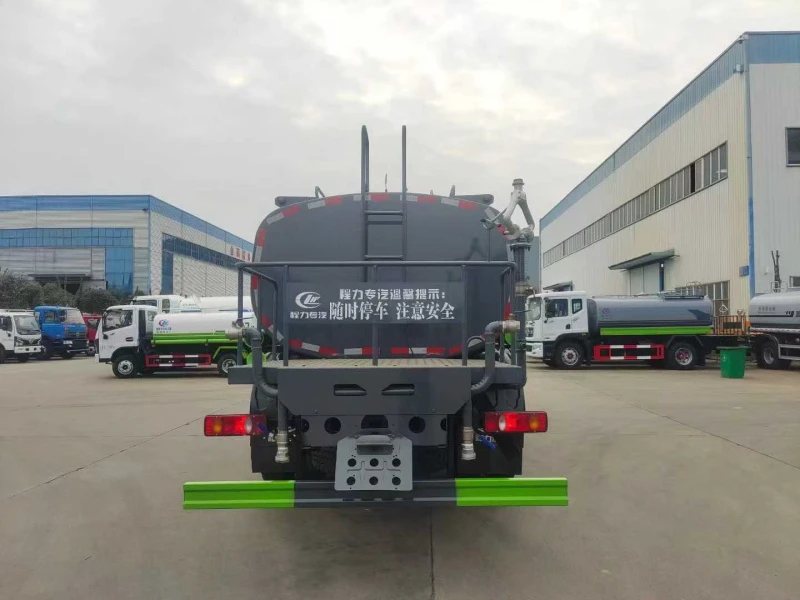

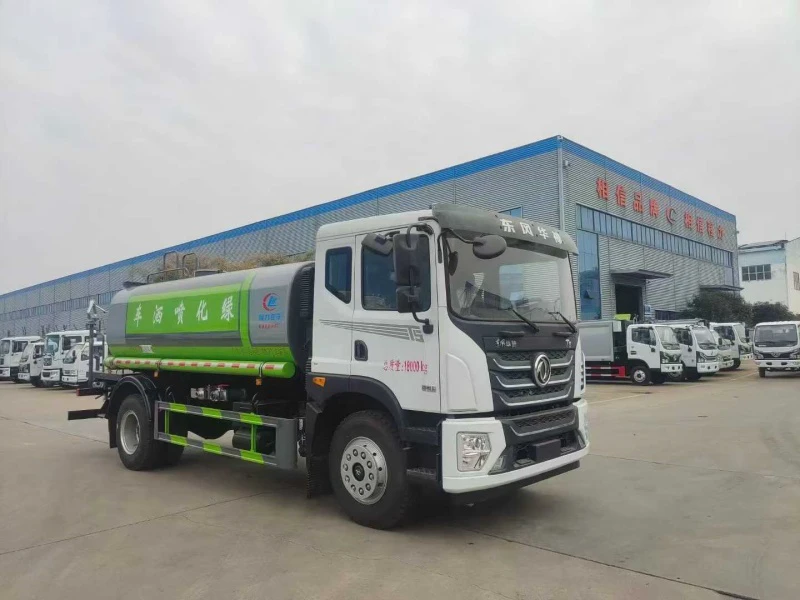

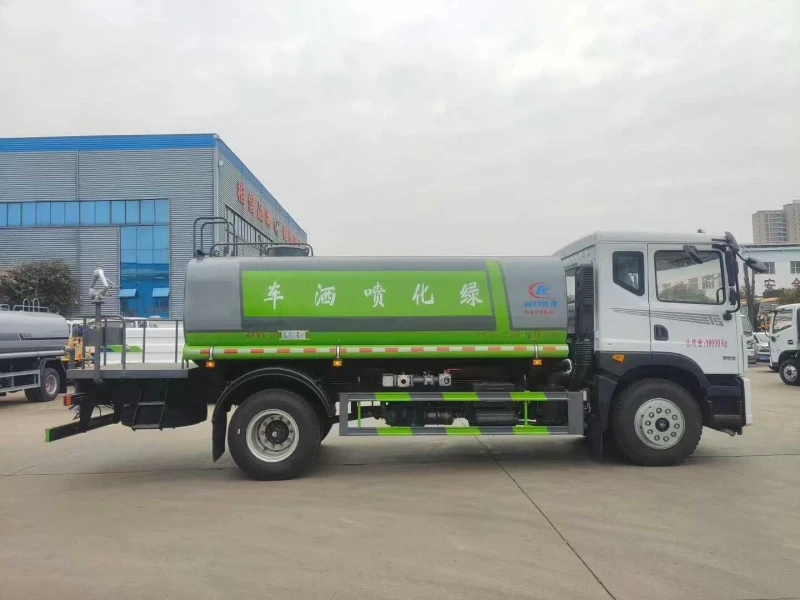

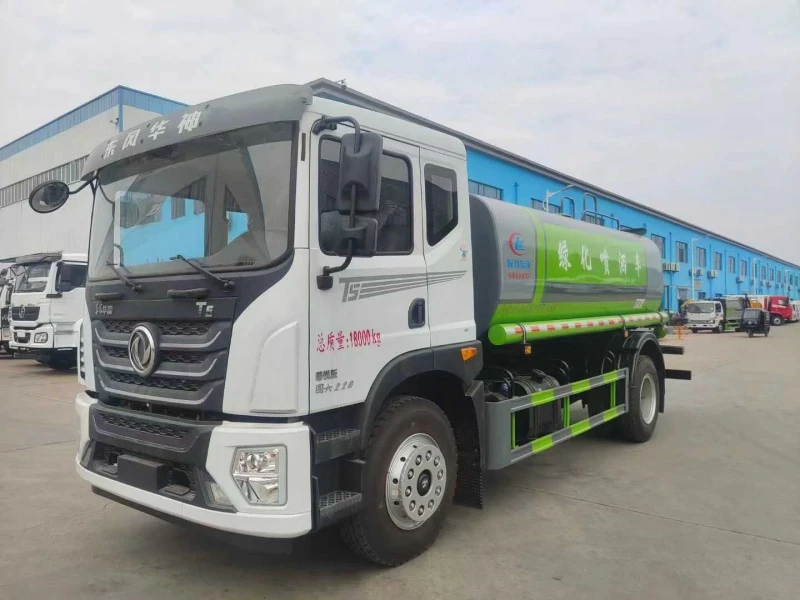

DFAC Huashen T5 15T Water Sprinkler Truck - Professional Municipal Cleaning Vehicle

I. Product Overview – High-Capacity Water Spraying Solution

The DFAC Huashen T5 15-ton water sprinkler truck (Chassis Model EQ5180GLVJ) is a heavy-duty water truck designed for municipal street cleaning, road dust suppression, greenery irrigation, and construction site watering. This commercial water tanker features a high-volume 15m³ water tank and professional spraying systems, providing efficient water distribution for urban sanitation departments, road maintenance crews, and landscaping companies.

II. Key Specifications – Industrial Water Spraying Equipment

• Vehicle Model: DFAC Huashen T5 water spraying truck

• Chassis System: EQ5180GLVJ heavy truck chassis

• Power System: Yuchai 245HP 6-cylinder diesel engine

• Transmission: Fast 8-speed manual transmission

• Wheelbase Configuration: 4500mm heavy-duty wheelbase

• Axle System: 5-ton front axle, 10-ton rear axle

• Tire Specification: 10.00R20 steel-belted tires

• Frame Structure: 250mm reinforced truck frame

• Cab Features: Hydraulic cab tilt mechanism, power windows, power steering, ABS braking system

III. Design & Construction – Professional Water Tank Engineering

• Tank Capacity: 15m³ water tank (16m³ optional)

• Tank Dimensions: 5000×2300×1620mm water storage container

• Material Technology: 4mm carbon steel construction using single-roll pressing technology

• Manufacturing Process: Seamless tank formation with high-pressure air testing

• Internal Structure: Multi-chamber anti-sloshing design

• Surface Protection: Anti-corrosion coating system with reflective safety markings

• Customization Options: Custom graphics application and color scheme selection

IV. Structural Advantages – Advanced Water Distribution System

• Chassis Platform: DFAC T5 commercial truck with enhanced driver comfort features

• Power Configuration: 245 horsepower engine providing reliable water pumping power

• Drivetrain System: 8-speed heavy-duty gearbox for smooth power delivery

• Axle Configuration: 153 heavy-duty axles ensuring superior load capacity

• Water Pump System: Suizhou Yifeng high-pressure water pump with self-priming capabilities

• Spraying Configuration: Multi-nozzle sprinkler system including front flush, rear spray, side irrigation

• Water Cannon: Rear platform high-pressure cannon with 28m jet stream and 30m mist spray

• Performance Parameters: 7m self-priming height, 15m spraying width

• Safety Features: Side protection barriers, emergency water valves, firefighting connections

V. Key Features & Operational Benefits – Municipal Service Vehicle

Operational Advantages:

• High-efficiency water distribution reducing operational time

• Versatile spraying functions for multiple cleaning applications

• Large water capacity minimizing refill frequency

• Durable tank construction ensuring long service life

• Safety-enhanced design with improved road visibility

Technical Features:

• Professional sprinkler system for precise water control

• High-pressure water capabilities for effective cleaning performance

• Customizable appearance matching municipal fleet requirements

• Environmentally focused design supporting urban cleanliness initiatives

VI. Application Scenarios – Comprehensive Water Management

• Municipal street cleaning operations in urban areas

• Road dust control on construction sites and highways

• Park and landscape irrigation for public green spaces

• Industrial area cleaning and dust suppression

• Emergency water supply for firefighting support

• Tree watering and garden maintenance services

VII. Manufacturer Support & Customization – Special Vehicle Solutions

Professional vehicle manufacturers provide:

• Custom configuration options for specific operational needs

• Quality assurance through rigorous testing procedures

• Technical support services for maintenance and operation

• Fleet customization capabilities for large-scale municipal purchases
