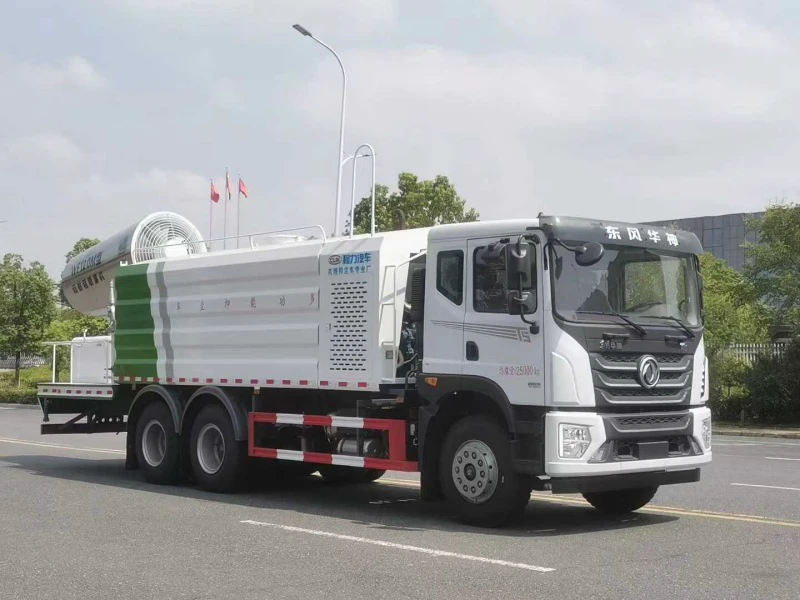

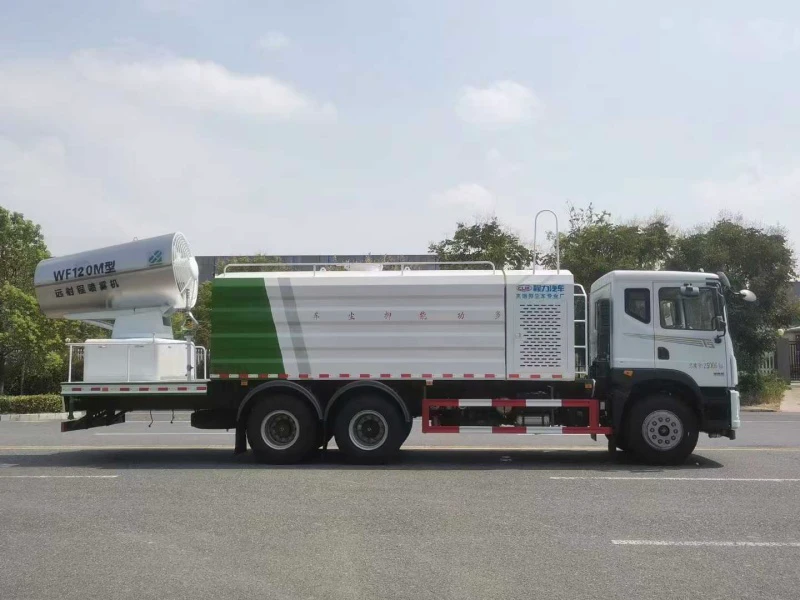

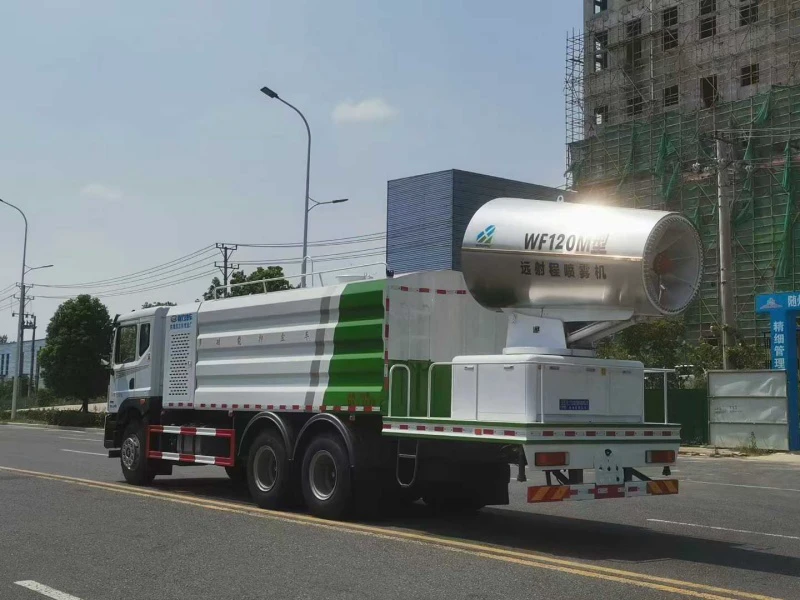

Dongfeng Huashen T5 Rear Dual Axle Multi-function Dust Suppression Truck | DFAC 6×4 water sprinkler truck with 16m³ tank and 100-meter fog cannon range

I. Product Overview

The Dongfeng Huashen T5 rear dual axle dust suppression truck is built on a genuine Guochao VI Dongfeng original chassis, delivering exceptional performance for large scale municipal sanitation, construction site dust control, mining operations, and industrial environmental protection applications. This heavy duty vehicle combines a 16 cubic meter square round tank with comprehensive sprinkler functions and a high power fog cannon system offering 60 to 120 meter spray range options. Designed for versatility and durability, the vehicle features full anti corrosion tank treatment and is equipped with all standard sprinkler functions including front flush, rear sprinkle, side spray, and platform mounted water cannon, making it an ideal solution for urban air quality management and dust suppression requirements.

II. Core Specifications

III. Dimensions, Materials, and Design Concept

Overall Dimensions: Standard Dongfeng Huashen T5 rear dual axle configuration

Tank Volume: 16 cubic meters full load capacity

Tank Shape: Square round tank design optimized for structural strength and liquid stability

Tank Material: Premium Q235 carbon steel with full anti corrosion and anti rust treatment for extended service life

Design Concept:

The design philosophy centers on durability, operational versatility, and environmental protection. The square round tank configuration provides optimal structural integrity while maximizing liquid capacity and minimizing liquid surge during transport. The full anti corrosion treatment protects against both water and chemical dust suppression agents, ensuring long term reliability in harsh operating environments. The vehicle integrates complete sprinkler functionality with advanced fog cannon technology, offering a comprehensive solution for both road maintenance and airborne dust control applications.

IV. Detailed Structure and Component Advantages

Engine:

The Cummins 260 HP Euro VI diesel engine delivers robust power with optimized fuel efficiency. This reliable powerplant provides exceptional performance for both highway transport and heavy duty pump operation while meeting stringent emission standards. The engine ensures consistent power output for demanding continuous use applications including simultaneous sprinkler and fog cannon operation.

Chassis and Axles:

Built on the genuine Dongfeng Huashen T5 rear dual axle chassis with 4350+1350 mm wheelbase, the vehicle features a heavy duty configuration engineered for 16 cubic meter loads plus fog cannon equipment. The tandem rear axle design provides exceptional load distribution and stability for large capacity tanks and high power systems. The 11.00R20 steel wire radial tires deliver superior load capacity, puncture resistance, and traction across all terrain types, with a spare tire included for extended range operations.

Tank Construction:

The 16 cubic meter square round tank is fabricated from premium Q235 carbon steel meeting national standards. The square round design combines the structural advantages of rectangular tanks with the liquid flow characteristics of round tanks, optimizing both strength and stability. The tank receives full anti corrosion and anti rust treatment on all interior surfaces, significantly extending service life in applications involving water and chemical suppressants.

Fluid Handling System:

The vehicle is equipped with a high capacity water pump as standard equipment, delivering exceptional flow rates for all sprinkler functions. Standard features include front flush for road washing, rear sprinkle for wide area coverage, side spray for targeted irrigation, and a platform mounted high pressure water cannon for long range applications. The system includes a self flow valve, fire hose connector, and two water hoses for flexible operation.

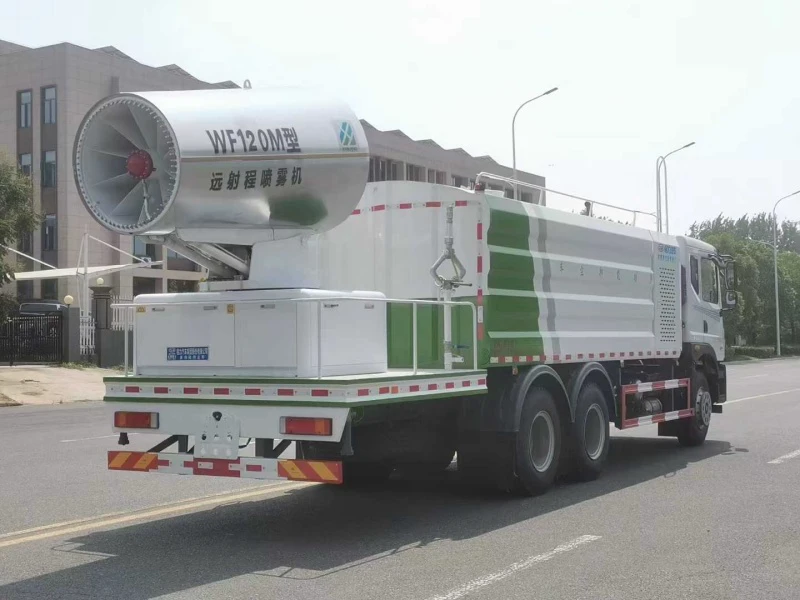

Fog Cannon System:

The vehicle accommodates options ranging from 60 to 120 meter spray range, with the CLW-100 model providing 80 meter effective range capability. The CLW-100 system includes a 120 KW generator set, 37 KW fan motor, and 11 KW stainless steel multi-stage centrifugal pump. The system features 100 meter wireless remote control operation for convenient positioning and adjustment.

V. Product Features and Manufacturer Advantages

Standard Sprinkler Functions:

Front flush delivers high pressure forward jets for effective road washing and debris removal. Rear sprinkle provides wide angle coverage for large area applications including dust settling and road wetting. Side spray enables targeted irrigation for green belts and roadside vegetation. The platform mounted high pressure water cannon functions as an adjustable monitor for long range spraying, fire fighting assistance, and special application requirements.

Fog Cannon Specifications:

The CLW-100 fog cannon delivers an 80 meter distance under indoor static wind conditions. Actual field range varies based on humidity, temperature, wind speed, and other weather factors, with some evaporation occurring in arid environments. The fine mist production maximizes surface area contact with airborne particles achieving high dust suppression efficiency. The system includes 100 meter wireless remote control for flexible operation and positioning.

Generator Set Integration:

The 120 KW generator set provides ample power for continuous fog cannon operation, enabling extended duty cycles without reliance on vehicle engine operation. This configuration reduces fuel consumption and engine wear during stationary spraying applications.

Dual Purpose Capability:

The fog cannon system can be effectively utilized for both dust suppression and pesticide application providing versatile functionality for municipal, industrial, and agricultural applications. The fine mist production ensures efficient coverage with minimal water consumption.

Operator Environment:

The cab includes factory installed air conditioning for comfortable operation in all climates. The Huashen T5 cab design provides excellent visibility and ergonomic control placement. ABS enhances safety during all operating conditions.

Chengli Group Manufacturer Advantages:

As a leading Chinese special vehicle manufacturer, Chengli Special Automobile Co., Ltd. delivers comprehensive quality across all production aspects. Material quality is ensured through verified premium Q235 carbon steel with certified thickness meeting national standards. The tank features full anti corrosion and anti rust treatment for extended service life. Manufacturing precision is achieved through robotic welding for consistent seam quality and structural integrity. Component standardization ensures worldwide parts availability for pumps, valves, and fittings. Customization flexibility allows multiple configurations to match specific operational requirements including various fog cannon ranges and control systems. An extensive experience base supports municipal and industrial customers globally. Complete documentation including accompanying tools and relevant paperwork is provided with every vehicle. Service support includes factory direct technical assistance and comprehensive parts availability through established distribution networks.

This Dongfeng Huashen T5 rear dual axle model combines robust construction, comprehensive sprinkler functionality, and advanced fog cannon technology delivering a versatile solution for large scale dust suppression and environmental protection applications.
