Dongfeng 4x2 Automated Side Loader (ASL)|Dongfeng 7.5 Cu.m Side-loading Compactor Garbage Truck | Forika Chassis | China VI Standard High-Efficiency Sanitation Vehicle
I. Product Introduction

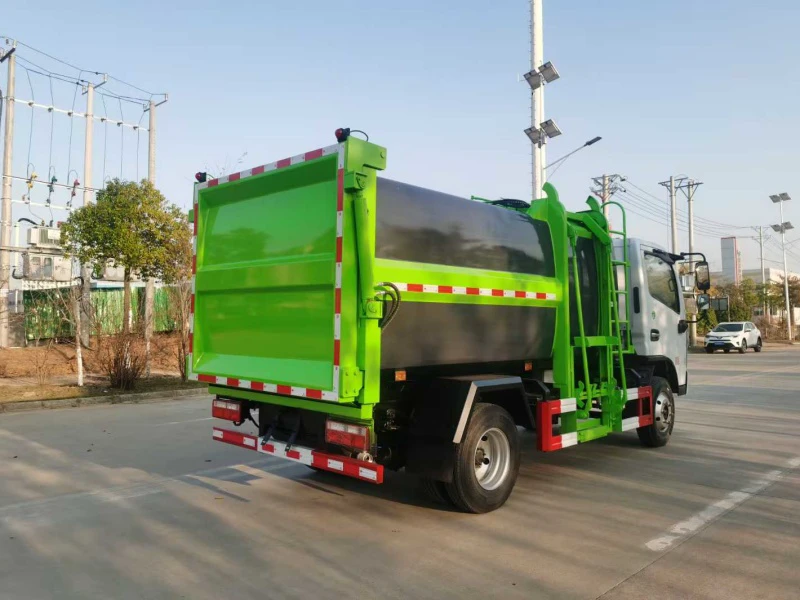

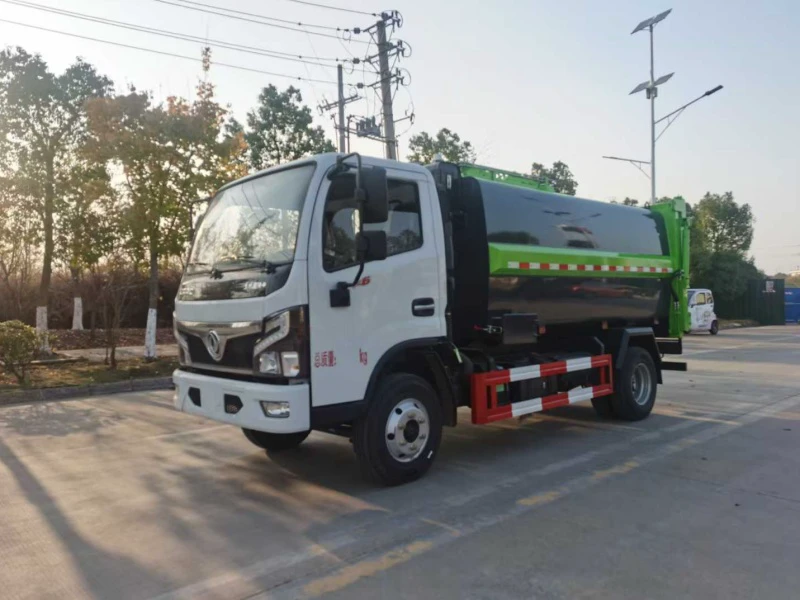

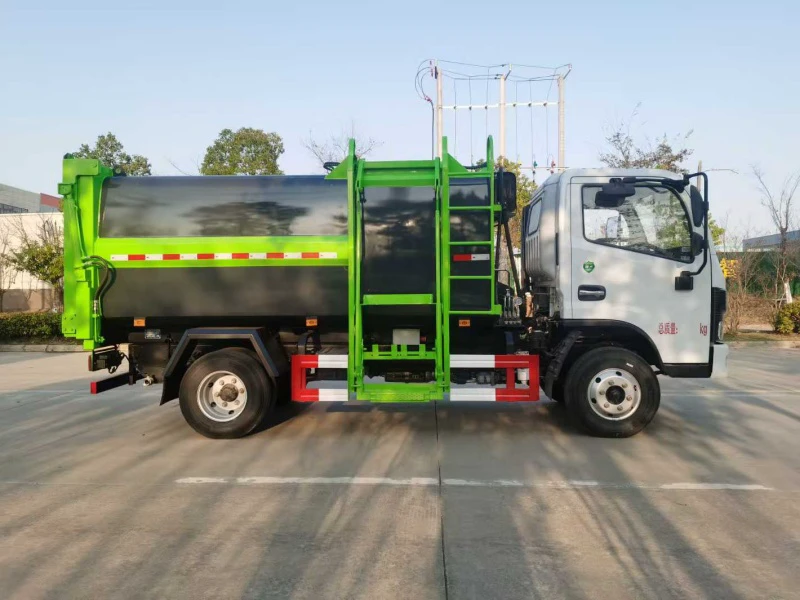

The Dongfeng 7.5 Cu.m Side-loading Compactor Garbage Truck is a professional sanitation vehicle built on the reliable Dongfeng Forika chassis, designed for efficient collection and transportation of domestic waste in urban streets, residential communities, and industrial parks. Equipped with side-bin lifting and internal compression technology, this garbage compactor truck features large capacity, easy operation, and excellent leak-proof performance, making it a dependable choice for improving waste management efficiency.
II. Key Specifications
Chassis Model: Dongfeng Forika
Engine: Yunnei 126 HP China VI diesel engine
Wheelbase: 3308 mm
Tire Specification: 7.00 steel radial tires
Braking System: Standard ABS anti-lock braking
Body Volume: 7.5 cubic meters
Emission Standard: China VI compliant
III. Design & Structure
Overall Dimensions: Compact design with optimized wheelbase for excellent road accessibility and operational stability.
Body Volume: 7.5 Cu.m large-capacity container with full-push ejection system for complete and clean unloading.
Material & Build: High-strength wear-resistant steel body with reinforced key sections for enhanced durability.
Design Philosophy: Focus on practicality and user-friendly operation, featuring front inspection windows, maintenance access, and splash guards at the loading port to minimize wastewater spillage.
IV. Structural & Performance Advantages
Engine System: Powered by a Yunnei 126 HP China VI diesel engine, delivering strong performance, excellent fuel economy, and clean emissions.
Transmission & Drivetrain: Matched with a reliable transmission system for smooth power delivery, suitable for frequent stop-start operations.
Chassis & Load Capacity: Dongfeng Forika specialized chassis with a 3308 mm wheelbase ensures stable load-bearing, supported by durable 7.00 steel radial tires.

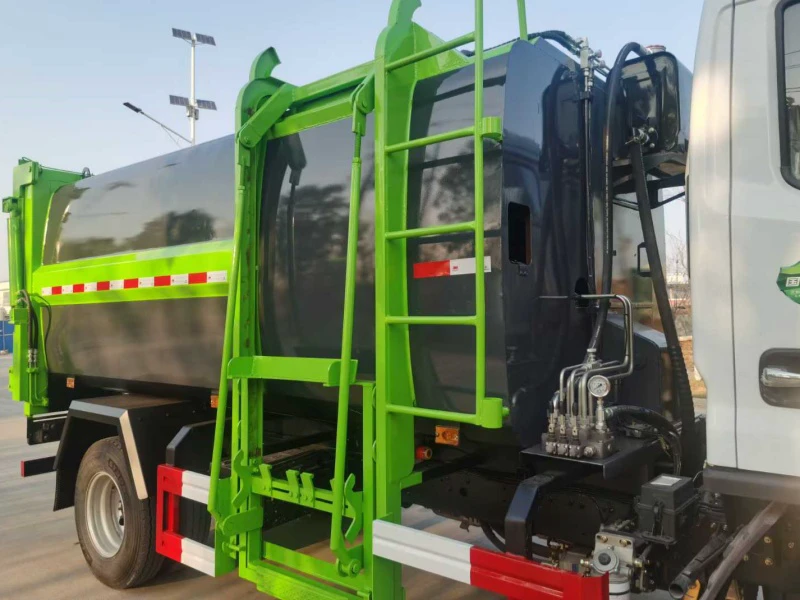

Superstructure Features:
Side-bin lifting mechanism compatible with 120L/240L standard waste bins for efficient loading.
Rear door hydraulic locking system ensures tight sealing to prevent leakage during transport.
Linked cover plate at the loading port for easy and hygienic operation.
V. Product Features & Manufacturer Strengths
Product Highlights:
Large 7.5 Cu.m compression body enables high operational efficiency and reduces collection frequency.
Full-push ejection design ensures clean unloading with minimal residue.
Comprehensive sealing and leak-proof systems meet environmental and sanitation standards.
Chengli Group Advantages:
Holds complete certifications for specialized vehicle manufacturing with a mature product line in sanitation vehicles.
Provides integrated production and debugging from chassis to superstructure for quality control.
Maintains a nationwide after-sales network with timely technical support and spare parts supply.
