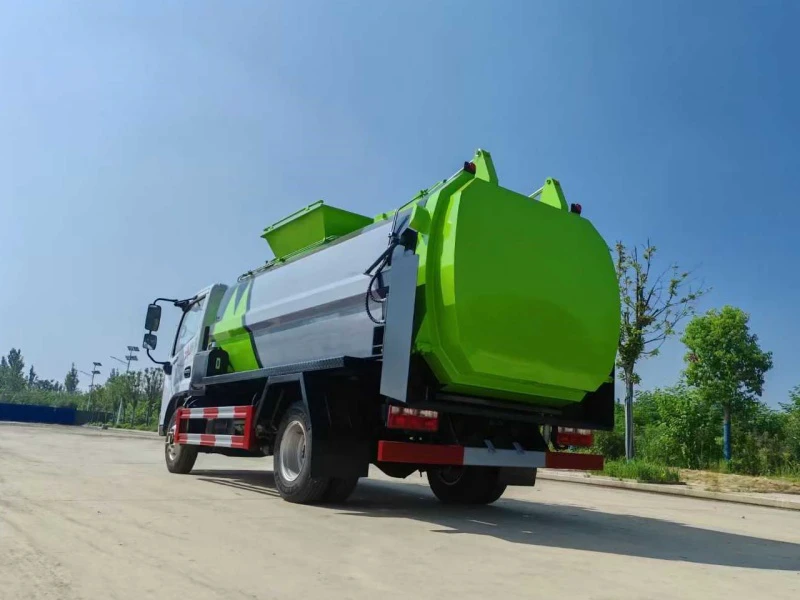

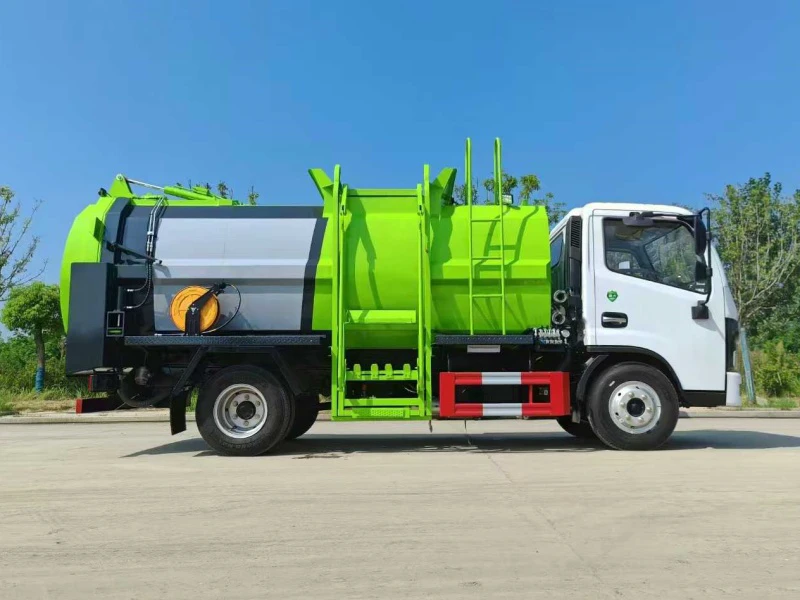

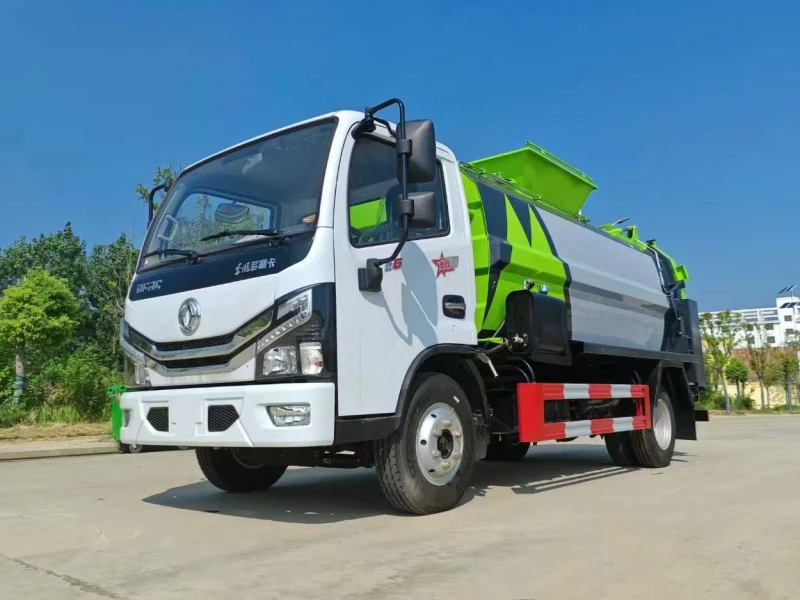

Dongfeng 4x2 Food Waste Truck – Efficient Solid-Liquid Separation Professional Sanitation Vehicle

1. Product Introduction
The Dongfeng Xiaoduolika Kitchen Waste Collection Truck (Model: CL5070TCA6BGX) is a 6-cubic-meter specialized food waste collection and transport vehicle developed on the Dongfeng commercial vehicle chassis. Utilizing advanced solid-liquid separation and hydraulic pushing technology, this kitchen waste truck is specifically designed for the collection and transportation of urban restaurant waste, food waste, and other wet refuse. It offers large capacity, high operational efficiency, and excellent sealing performance, providing a professional solution to enhance urban sanitation efficiency.

2. Key Specifications

Vehicle Model: CL5070TCA6BGX
Chassis Model: EQ1075SJ3CDF
Body Volume: 6 cubic meters
Gross Vehicle Weight: 7360 kg
Wheelbase: 3308 mm
Engine Power: 93–103 kW (126–140 HP)
Fuel Type: Diesel
Rated Load Capacity: 2565–3070 kg

3. Design & Structure

Overall Dimensions: Compact 3308 mm wheelbase with a small turning radius, ideal for operation in narrow urban roads.
Body Design: 6 Cu.m curved body with enhanced structural strength, providing greater effective volume than similar products.
Materials: High-strength, wear-resistant steel with excellent corrosion resistance and deformation resistance.
Design Philosophy: Focus on efficient collection, solid-liquid separation, and leak-free transport, with an optimized body structure to ensure environmentally clean operation.

4. Structural & Performance Advantages

Powertrain: Equipped with a 126–140 HP diesel engine, offering flexible power options to meet diverse operational needs.
Chassis & Suspension: 3308 mm wheelbase with 500 mm ground clearance ensures good road accessibility and adaptability to complex urban road conditions.
Load Capacity: Maximum rated load capacity of 3070 kg, delivering superior load-bearing performance.
Specialized Superstructure:
- Hydraulic System: High-quality lifting cylinders, control valves, and high-pressure pipelines ensure reliable sealing with no leakage.

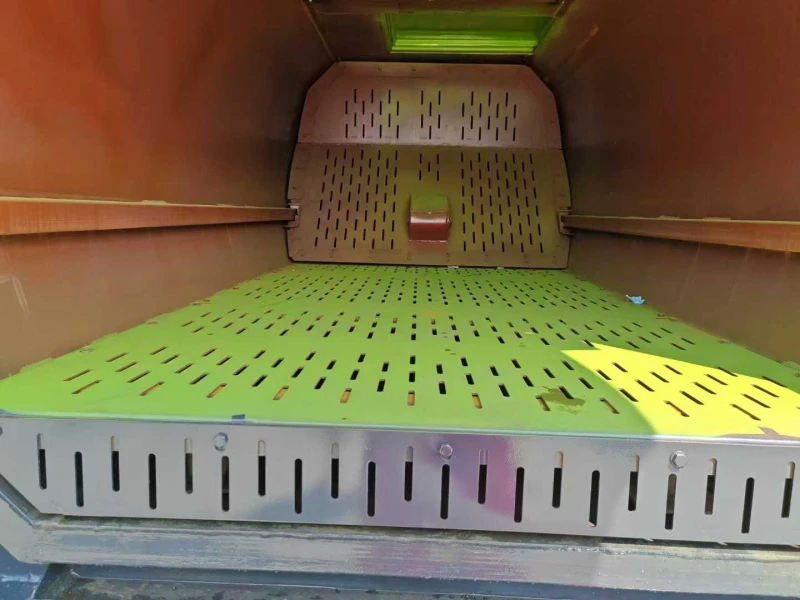

- Separation System: Solid-liquid separation pusher design enables smooth unloading with minimal residue.
- Sealing System: Hydraulically operated top and rear covers ensure fully sealed transport.
- Observation System: Dual viewing windows allow real-time monitoring of liquid levels inside the body.
- Drainage System: Bottom drainage port for convenient wastewater discharge.

5. Product Features & Manufacturer Strengths

Product Features:
- Solid-liquid separation technology improves waste processing efficiency.
- Hydraulic pusher design provides large loading capacity and clean unloading.
- Dual-mode control system (electric + manual) ensures safe and reliable operation.
- Side-loading collection method with a small operating radius, suitable for confined spaces.
- Fast operation cycle, completing tasks in ≤50 seconds per cycle.

Chengli Group Advantages:
- Mature specialized vehicle modification technology with precise craftsmanship.
- Comprehensive quality inspection system to ensure product reliability.
- Nationwide after-sales service network providing timely technical support.
- Customizable configurations based on customer requirements.
