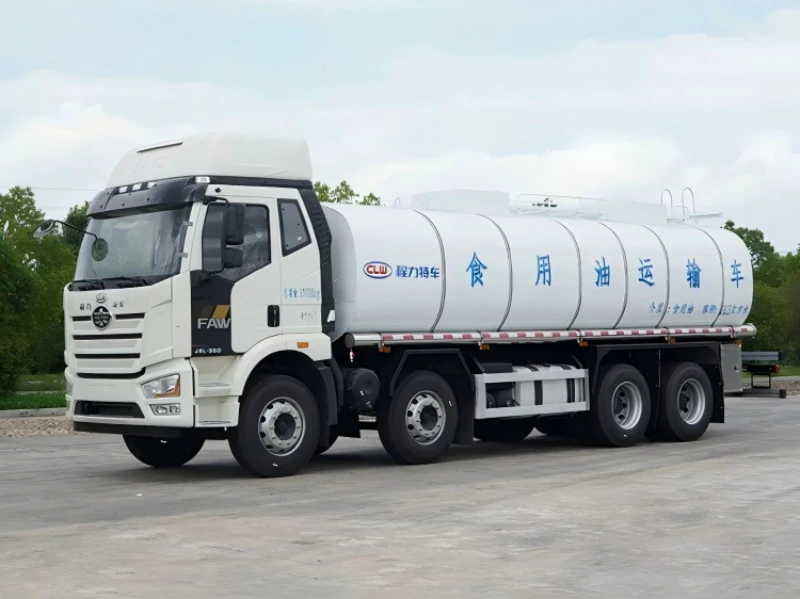

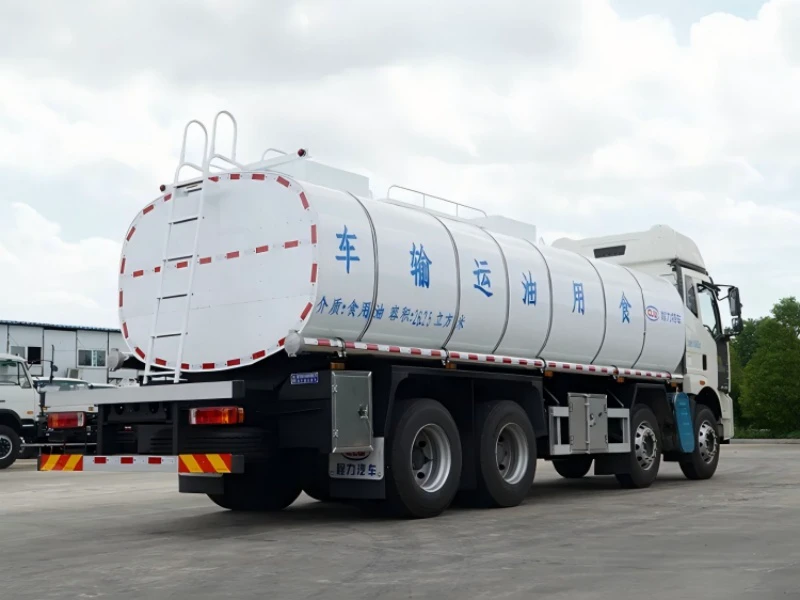

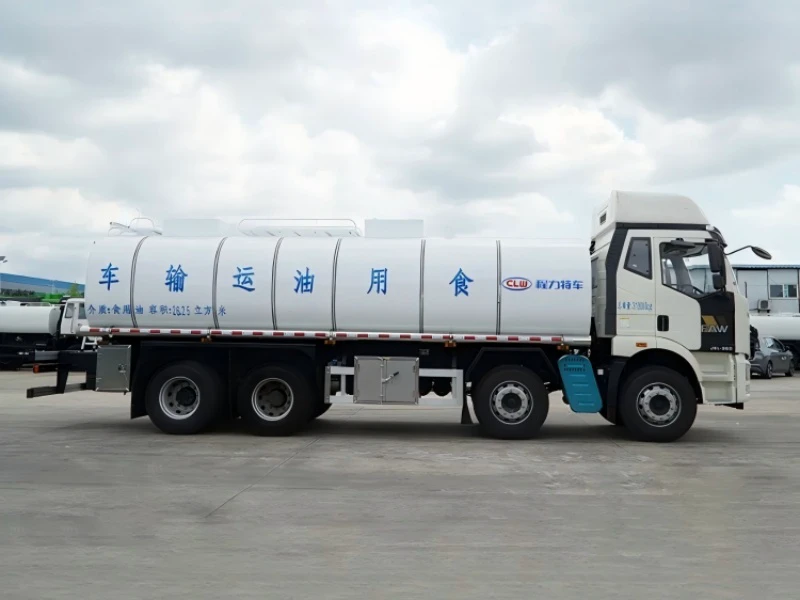

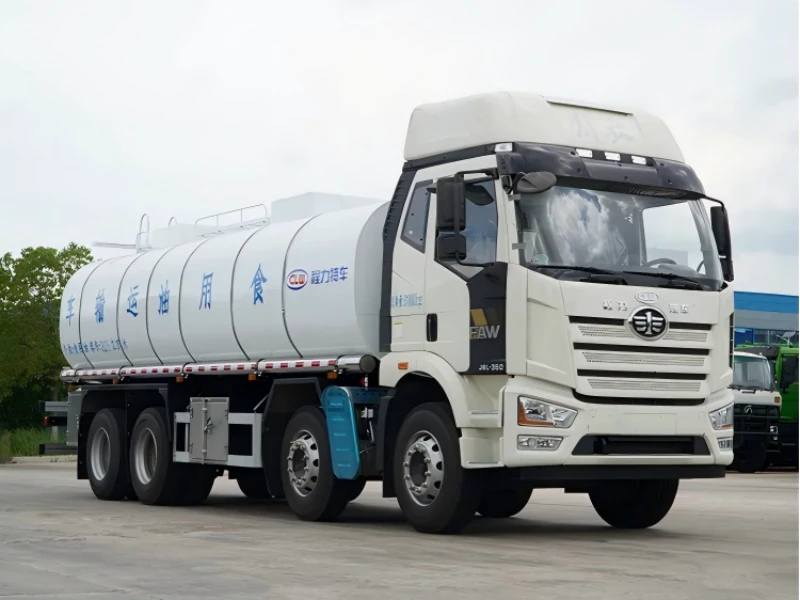

FAW 8×4 Edible Oil Transport Tank Truck – 35m³ High Capacity Tanker for Cooking Oil Delivery
I. Product Introduction
The FAW 8×4 Edible Oil Transport Tank Truck is a heavy-duty, high-capacity tanker specifically engineered for the safe and efficient bulk transportation of cooking oil, vegetable oil, and other edible liquids. Built on a premium FAW 8×4 chassis, this edible oil transport truck is powered by a 350 HP diesel engine with selectable Euro 2 emission standards (Euro 3/4/5/6 available). Featuring a 6mm aluminum alloy tank body with a capacity of 25.6 m³ (expandable to 35 m³), this cooking oil delivery truck is equipped with an oil pump, bottom loading system, oil gas recovery system, European standard aluminum manhole cover, and emergency valve. With a gross vehicle weight of 31,000 kg and a curb weight of 10,805 kg, this vehicle delivers exceptional payload efficiency for large-scale edible oil logistics.
II. Key Specifications
Parameter | Specification |
|---|---|
Vehicle Name | FAW 8×4 Edible Oil Transport Tank Truck |
Vehicle Model | CL5310GSY6BWN |
Chassis Model | FAW |
Drive Type | 8×4 |
Condition | New |
Fuel Type | Diesel |
Engine Horsepower | 350 HP |
Engine Displacement | 8,900 ml (8.9 L) |
Emission Standard | Euro 2 (Euro 3/4/5/6 selectable) |
Transmission | 12-speed with overdrive |
Traction System | 8×4 |
Wheelbase | 1,850 + 4,800 + 1,350 mm |
Curb Weight | 10,805 kg |
Gross Vehicle Weight | 31,000 kg |
Overall Dimensions (L×W×H) | 10,310 × 2,550 × 3,550 mm |
Body Dimensions (L×W×H) | 9,000 × 2,480 × 1,700 mm |
Tank Material | 6mm high-quality aluminum alloy plate |
Tank Capacity | 25.6 m³ (optional 3–35 m³) |
Tire Specification | 12.00R20 |
Number of Tires | 12 + 1 spare |
Max Speed | 80 km/h |
Production Cycle | 45–50 working days |
Warranty | 12 months from date of supply |
Place of Origin | Hubei, China |
III. Tank Configuration & Equipment
The FAW 8×4 edible oil tank truck features a high-quality aluminum alloy tank body designed for food-grade safety and durability.
Component | Specification |
|---|---|
Tank Material | 6mm high-quality aluminum alloy plate |
Tank Capacity | 25.6 m³ (standard) / 3–35 m³ (optional) |
Compartments | Single tank without compartments |
Oil Pump | Included |
Bottom Loading System | Included |
Oil Gas Recovery System | Included |
Manhole Cover | European standard aluminum |
Emergency Valve | Included |
Top Foldable Fence | Included |
Ladder | Included |
Grounding Wire | Included |
Fire Extinguisher | Included |
IV. Chassis & Powertrain
The FAW 8×4 cooking oil delivery truck is built on a reliable FAW chassis with proven performance.
8×4 Drive Configuration: Four axles with 12+1 tires provide exceptional stability and load distribution for heavy edible oil transport.
Engine (350 HP): Delivers ample power for fully loaded transport on highways and regional roads. Selectable Euro 2–6 emission standards for global market compliance.
12-Speed Transmission with Overdrive: Wide gear ratio range for smooth starts under full load and fuel-efficient highway cruising.
Wheelbase (1,850 + 4,800 + 1,350 mm): Optimized for stability and weight distribution of the large-capacity tank.
Tires (12.00R20): Heavy-duty tires with 12+1 configuration provide excellent load capacity and durability.
Max Speed (80 km/h): Suitable for safe and efficient edible oil transport operations.
V. Weight & Payload Efficiency
Parameter | Value |
|---|---|
Gross Vehicle Weight | 31,000 kg |
Curb Weight | 10,805 kg |
Payload Capacity | 20,195 kg (approx. 20.2 tons) |
The lightweight 6mm aluminum alloy tank construction significantly reduces vehicle weight, maximizing payload capacity for edible oil transport.
VI. Customization Options
The FAW edible oil tank truck offers flexible customization to meet diverse operational requirements.
Option | Availability |
|---|---|
Tank Capacity | 3–35 m³ (3,000–35,000 liters) |
Chassis Brand | DFAC, Dongfeng, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, ISUZU, HINO |
Drive Type | 4×2, 4×4, 6×4, 6×6, 8×4 |
Steering | Left-hand drive or right-hand drive |
Emission Standard | Euro 2, 3, 4, 5, 6 |
Tank Material | Aluminum alloy or stainless steel |
VII. Applications
The FAW 8×4 edible oil transport tank truck is specifically designed for:
Palm Oil Transport: Bulk delivery from refineries to bottling plants and distribution centers.
Rapeseed Oil Logistics: Efficient transport of canola oil for food processing.
Soybean Oil Delivery: Bulk shipment of soybean oil for commercial and industrial use.
Corn Oil Transport: Safe delivery of corn oil to food manufacturers.
Sesame Oil Logistics: Specialized transport for premium edible oils.
Peanut Oil Delivery: Bulk transport of peanut oil for retail and food service.
Other Edible Liquids: Syrups, molasses, and food-grade liquid ingredients.
VIII. Product Features Summary
Feature | Benefit |
|---|---|
6mm aluminum alloy tank body | Lightweight, corrosion-resistant, food-grade safe |
25.6 m³ capacity (3–35 m³ optional) | Large volume for bulk edible oil transport |
8×4 drive configuration | Exceptional stability and load capacity |
350 HP engine (Euro 2–6 selectable) | Powerful, compliant with global regulations |
12-speed overdrive transmission | Smooth shifting, fuel-efficient cruising |
Oil pump + bottom loading system | Efficient loading and unloading operations |
Oil gas recovery system | Environmental compliance |
European standard manhole cover + emergency valve | Safety and international compatibility |
12.00R20 tires (12+1 configuration) | Excellent load capacity and durability |
12-month warranty | Peace of mind for international buyers |
45–50 working days production cycle | Reliable delivery schedule |
IX. FAW & CLW Group Manufacturer Advantages
FAW (First Automotive Works) is China's oldest and most prestigious automobile manufacturer, known for durable and reliable commercial vehicle chassis. CLW Group (CLW Special Purpose Vehicle Co., Ltd.) is a leading manufacturer of tank trucks and special-purpose vehicles, with decades of experience in the industry.
FAW Chassis Quality: FAW chassis are built to strict quality standards, ensuring long-term durability and low maintenance costs for every edible oil transport truck.
Specialized Food Grade Expertise: CLW Group has extensive experience manufacturing aluminum alloy tank trucks for edible oil and liquid food transport.
Large-Scale Production: Modern manufacturing facilities ensure short delivery lead times and consistent product quality.
Comprehensive Quality Control: From raw material procurement to final assembly, a strict quality management system is implemented at every stage of the production process.
Technical R&D Strength: A dedicated professional R&D team continuously optimizes tank design, food safety features, and corrosion resistance for food-grade applications.
Complete Compliance Certification: All products are certified under national and international standards with full documentation for smooth export and registration.
Global Sales and Service Network: Products are exported to countries worldwide, supported by comprehensive after-sales service including online support, video technical assistance, and onsite installation.
Flexible Customization: Tank capacity (3–35 m³), chassis brand, drive type (4×2 to 8×4), steering (LHD/RHD), and emission standards (Euro 2–6) can be customized to meet specific customer requirements.
Flexible Payment Terms: 30–50% deposit, balance before delivery (T/T).
Cost-Effective Value: CLW Group offers competitive EXW/FOB/CFR/CIF/DAF/DDU pricing without compromising on quality, making this FAW 8×4 edible oil transport tank truck a trusted choice for food logistics operators globally.
