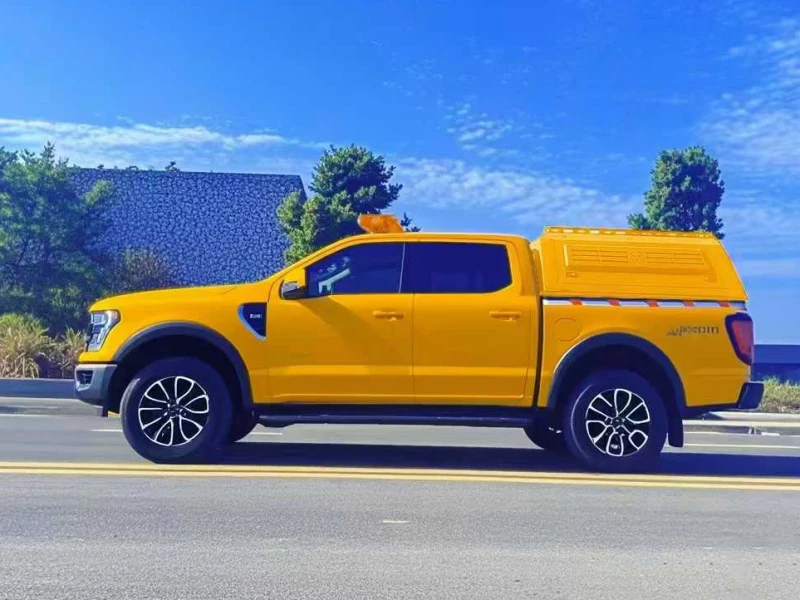

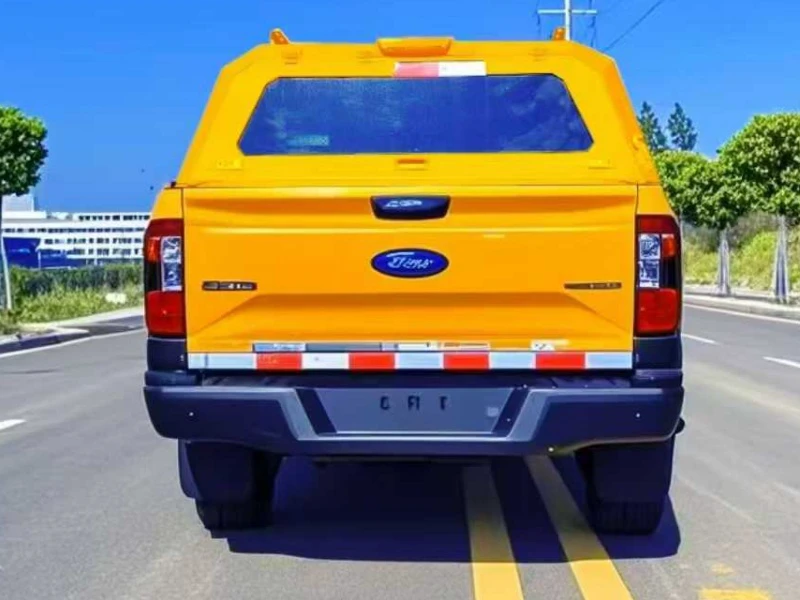

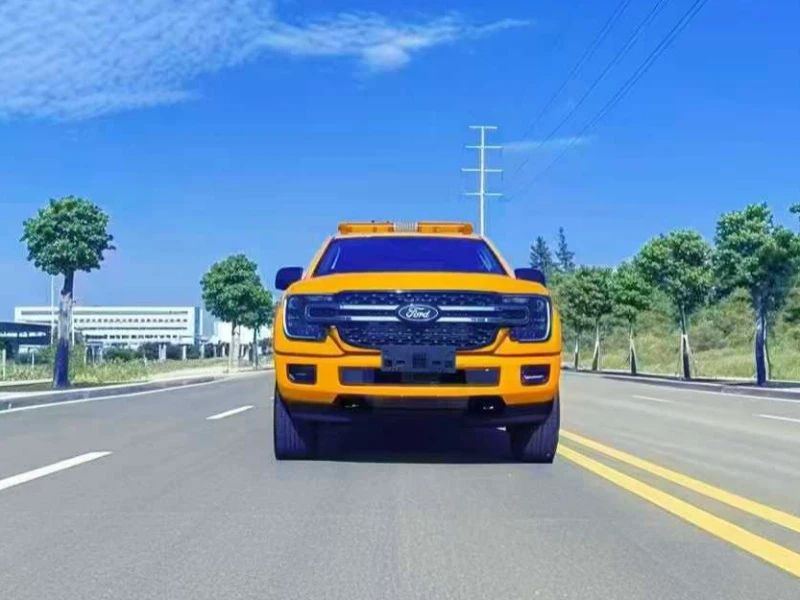

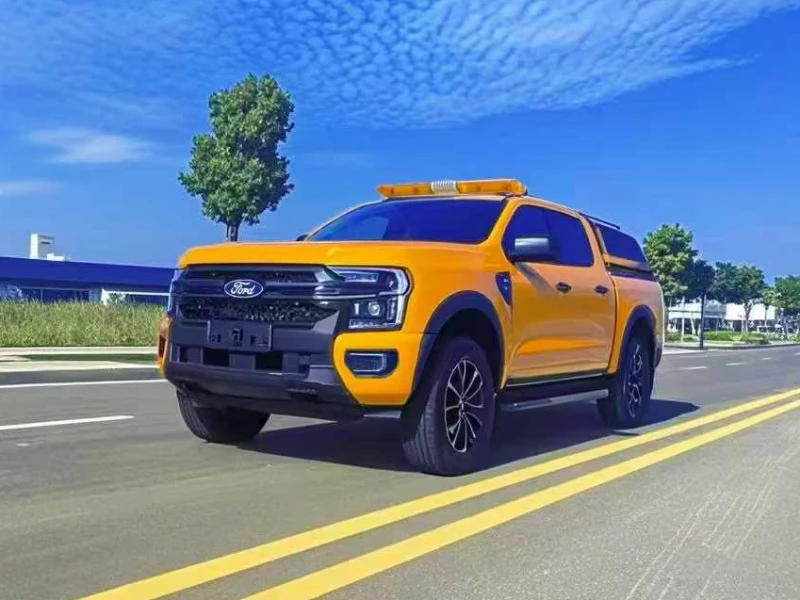

Ford Pickup 4WD Drainage Vehicle Product Overview
The Ford Pickup 4WD Drainage Vehicle is a professionally modified specialized vehicle built on a heavy-duty 4WD pickup chassis. Engineered specifically for flood control, emergency drainage operations, and rescue missions, this versatile platform features powerful pumping systems, integrated power generation, and exceptional off-road capability. With maximum drainage capacity reaching 2,400 m³/h, this vehicle combines drainage, power generation, lighting, and rescue functions into a single mobile unit—making it the ideal choice for urban flooding emergencies, subway tunnel drainage, pipeline emergency repairs, and drought relief water transfer operations.
Core Specifications
Parameter | Value |
|---|---|
Chassis Type | Heavy-duty 4WD Pickup Chassis |
Engine | High-power Diesel Engine |
Max Torque | 635 N·m |
Transmission | 10-speed Automatic (10AT) |
Drive System | All-terrain 4WD |
Maximum Speed | 140 km/h |
Wading Depth | 800 mm (safe wading) |
Ground Clearance | High clearance design |
Seating Capacity | 5 persons (full leather safety seats) |
Maximum Drainage Capacity | 2,400 m³/h (configurable with multiple pumps) |
Pump Type | DIVO high-flow portable permanent magnet pumps |
Single Pump Weight | Minimum 22 kg (lightweight, one-person deployable) |
Pump Head | Up to 35 m (with high-head hydraulic components) |
Generator Power | 100 kW |
Fuel Tank Capacity | 230 L (supports 8 hours continuous operation) |
Lighting Tower | LED retractable lighting tower, 1.2 m lift height, 365° horizontal / 180° vertical rotation, 150W per lamp, 22,600 lumens |
Tow Winch | 10T front towing winch / 5T rear towing hook |
Exterior Dimensions, Layout, Materials and Design Concept
Exterior Dimensions: Custom configuration based on extended cab 4WD pickup chassis, specifically designed to accommodate comprehensive drainage equipment integration.
Vehicle Features: The vehicle comes equipped with full leather safety seats and 360° panoramic cameras for enhanced safety and comfort during emergency response. Electric side steps provide convenient access, while the right-side ladder enables inspection and observation. The roof rack offers substantial load capacity for additional equipment.
Materials: High-strength body construction with reinforced chassis protection. The vehicle features waterproof control cabinets with visualization displays for pump parameter monitoring and adjustment.
Design Concept: The vehicle embodies a "versatile drainage response platform" philosophy, combining genuine off-road capability with specialized flood control equipment integration. The modular design allows field replacement of hydraulic components, enabling自由切换 between high-flow and high-head drainage modes based on operational requirements.
Detailed Structure and Chassis Advantages
Engine and Transmission: The high-power diesel engine delivers robust torque, ensuring reliable performance even when fully loaded with drainage equipment. The 10-speed automatic transmission provides smooth shifting and optimal power delivery across all driving conditions, with maximum speed reaching 140 km/h.
Four-Wheel Drive System: The all-terrain 4WD system ensures exceptional mobility in complex environments. With 800mm safe wading depth, the vehicle can navigate flooded areas and rough terrain that would immobilize conventional vehicles.
Recovery Equipment: Front 10T towing winch and rear 5T towing hook enable vehicle self-recovery and rescue operations in challenging conditions.
Drainage System
Pump Configuration: The vehicle can be configured with multiple DIVO high-flow portable permanent magnet pumps, covering drainage capacity from 2,000 to 2,400 m³/h. High-head hydraulic components are available for applications requiring up to 35 meters lift.
Lightweight Design: Each pump weighs as little as 22 kg, allowing single-person deployment without mechanical assistance. The compact size enables operation in confined spaces不受地形和空间限制.
Modular Flexibility: Field-replaceable hydraulic components allow quick切换 between high-flow and high-head drainage modes, adapting to different emergency scenarios.
Control System: Each pump features an independent control system integrated into waterproof cabinets with LCD displays showing rotation speed, power parameters, and enabling precise flow adjustment. Operating radius extends up to 500 meters.
Accessories: Each pump includes a 20-meter cable with waterproof IP67 quick connectors; a high-strength integrated polyethylene float with bayonet lifting ring for rapid pump connection; and two DN200 hoses (25 meters each) with stainless steel quick clamps.
Power and Lighting Systems
Generator: The 100kW generator set features automatic speed adjustment, supporting full-load operation of all pumps and electrical units. The 230L fuel tank enables 8 hours continuous operation. An intelligent LCD screen displays operating parameters and fault information.
Lighting Equipment: Front roof-mounted spotlight array supports野外作业 illumination. The roof-top retractable LED lighting tower (remotely controlled) extends 1.2 meters, rotates 365° horizontally and 180° vertically. Each 150W lamp delivers 22,600 lumens for夜间作业 requirements. Side and rear flashing/lighting combination lamps provide周边警示 and illumination.
Product Features and Manufacturer Advantages
Versatile Application Scenarios: The Ford Pickup 4WD Drainage Vehicle excels in multiple emergency scenarios including urban waterlogging, subway flooding, pipeline emergency repairs, and drought relief water transfer operations.
Integrated Capabilities: This vehicle combines drainage, power generation, lighting, and rescue functions in a single platform, offering true multi-purpose utility.
Rapid Deployment: The lightweight pump design enables quick deployment by a single operator, significantly reducing response time during flood emergencies.
Extended Operating Radius: With 500-meter remote operation capability, the vehicle can be positioned safely while pumps operate in hazardous or confined areas.
Proven Technology: Built on a proven heavy-duty chassis platform, this vehicle delivers exceptional reliability and performance in the most challenging conditions.
Drainage Equipment Features:
Lightweight portable pumps (22 kg) for easy handling
Modular design enabling field configuration changes
High-flow capacity up to 2400 m³/h for rapid flood response
High-head capability up to 35 meters for deep water extraction
IP67 waterproof connections ensuring reliable operation in wet conditions
