Foton 4×2 Livestock Transport Truck – Advanced Multi-Layer Livestock Carrier

I. Product Introduction

The Foton 4×2 Livestock Transport Truck is a state-of-the-art vehicle designed for the safe, humane, and efficient transportation of pigs, piglets, and other livestock. Built on a reliable Foton chassis with a 5750 mm wheelbase, this livestock transport truck is powered by a Yuchai 245 HP engine paired with a Fast 8-speed transmission, delivering strong performance for long-haul livestock transport. The cargo body is constructed from high-strength aluminum alloy using professional custom extrusions and welded assembly. Featuring a three-layer, nine-pen configuration, each pen is equipped with duckbill drinkers, spray nozzles, and a comprehensive climate control system. With hydraulic lift tailgate, dual-temperature HVAC, air filtration, and real-time monitoring, this vehicle ensures optimal animal welfare and operational efficiency. Fully compliant with environmental and fuel regulations, this truck is the ideal choice for livestock producers and transport operators.

II. Core Parameters

III. Exterior Dimensions, Body Specifications & Design Philosophy

• Overall Dimensions: Designed with a 5750 mm wheelbase and 7700 mm cargo box length, the vehicle offers excellent stability and maneuverability for livestock transport.

• Body Material: Constructed from high-strength aluminum alloy using professional custom extrusions and welded assembly, providing lightweight durability and corrosion resistance.

• Multi-Layer Design: The body features three layers with three pens per layer, totaling nine independent pens, allowing for separation of livestock by size, weight, or health status.

• Interior Features: Each pen is equipped with 2 duckbill drinkers and 2 spray nozzles for hydration and cooling. Floors and ceilings are designed to fold up, allowing easy access for loading, unloading, cleaning, and personnel movement. An optional automatic lift for the ceiling is available.

• Design Philosophy: The design prioritizes animal welfare, operational efficiency, and ease of maintenance. The foldable floor and ceiling enable quick access to all pens for loading, washing, and inspection. The multi-layer configuration maximizes livestock capacity while maintaining individual pen separation, and the aluminum alloy construction reduces vehicle weight for improved fuel economy and payload.

IV. Structural Advantages – Engine, Transmission, Chassis & Climate Control

• Engine (Yuchai 245 HP): Powered by a Yuchai 245 HP diesel engine, delivering strong low-end torque for heavy loads with proven reliability and fuel efficiency for long-haul livestock transport.

• Transmission (Fast 8-Speed): Equipped with a Fast 8-speed manual gearbox, offering precise gear ratios for smooth acceleration and optimal power delivery across varying road conditions.

• Chassis: The Foton 4×2 chassis with a 5750 mm wheelbase provides excellent stability and load distribution for the multi-layer livestock body.

• Ventilation System: The vehicle is equipped with 15 fans total—9 supply fans at the front and 6 exhaust fans at the rear—providing alternating airflow across each layer to maintain fresh air circulation and reduce heat stress.

• Climate Control: A dual-temperature HVAC unit regulates interior temperature, ensuring optimal conditions for livestock in both hot and cold weather.

• Air Filtration: An integrated air filtration system helps maintain clean air inside the cargo area, reducing the spread of airborne pathogens.

• Monitoring System: Interior cameras and temperature sensors provide real-time monitoring of livestock conditions and cargo environment, displayed on the dashboard for driver awareness.

V. Product Features & Chengli Group Manufacturer Advantages

Product Features

• Three-Layer, Nine-Pen Configuration: The 3-layer, 9-pen design allows for efficient separation of livestock by size, weight, or health status, maximizing capacity while maintaining animal welfare.

• Foldable Floors and Ceilings: The interior floors can be folded up, and the ceiling can be raised (with optional automatic lift), providing easy access for personnel to load, unload, clean, and inspect each pen.

• Comprehensive Hydration & Cooling: Each pen is equipped with 2 duckbill drinkers for continuous water access and 2 spray nozzles for cooling during hot weather.

• Advanced Ventilation System: A total of 15 fans (9 supply + 6 exhaust) with alternating airflow across layers ensures fresh air circulation, reducing heat stress and improving animal comfort.

• Dual-Temperature Climate Control: The dual-temperature HVAC unit maintains optimal interior temperature year-round, protecting livestock from extreme weather conditions.

• Air Filtration System: Integrated air filtration helps reduce airborne contaminants, supporting biosecurity and animal health.

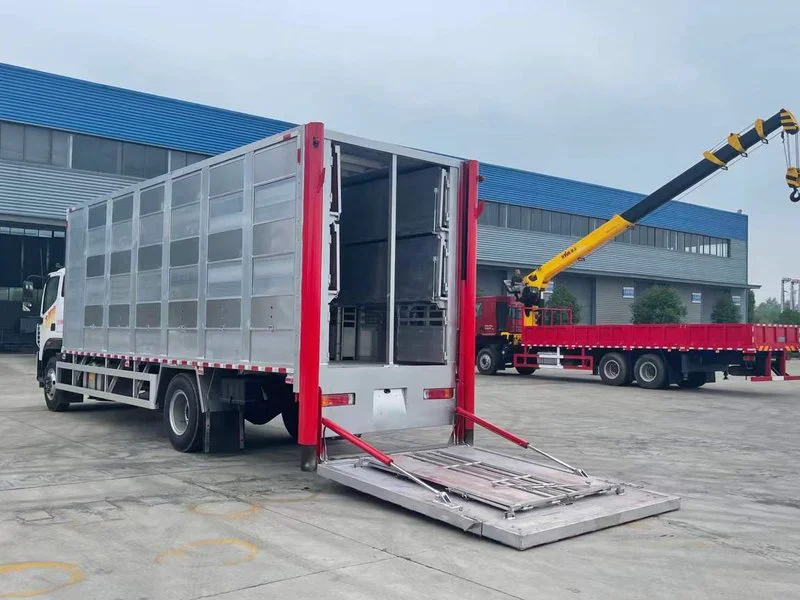

• Hydraulic Lift Tailgate: The rear hydraulic lift tailgate simplifies loading and unloading, reducing labor requirements and improving operational efficiency.

• Real-Time Monitoring: Interior cameras and temperature sensors allow the driver to monitor livestock conditions and cargo environment in real time, ensuring prompt response to any issues.

• Aluminum Alloy Construction: The high-strength aluminum alloy body is lightweight, corrosion-resistant, and durable, reducing vehicle weight for improved fuel economy and payload.

• Full Compliance: The vehicle is fully compliant with environmental and fuel regulations, ensuring smooth registration and operation.

Chengli Group Manufacturer Advantages

Chengli Group, a leading manufacturer in China’s special-purpose vehicle industry, brings decades of expertise to every livestock transport truck. Key advantages include:

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent supply.

• Comprehensive Quality Control: From raw material selection to final assembly, strict quality management ensures every vehicle meets rigorous standards.

• Technical R&D Strength: A dedicated engineering team continuously optimizes livestock transport design, ventilation systems, and animal welfare features.

• Complete Compliance Certification: All vehicles are certified under national standards with full documentation for smooth registration and operation, including environmental and fuel compliance.

• Global Service Network: Products are exported worldwide, supported by responsive after-sales service and parts availability.

• Customization Capability: Flexible manufacturing allows for tailored configurations, including optional automatic ceiling lift and other specialized features.

• Cost-Effective Value: Chengli offers competitive pricing without compromising on quality, delivering exceptional value for livestock transport operators.
