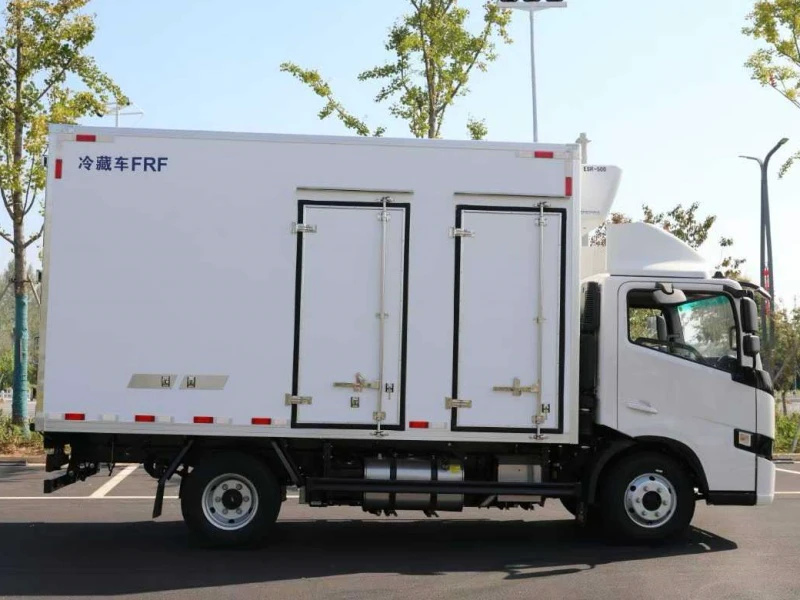

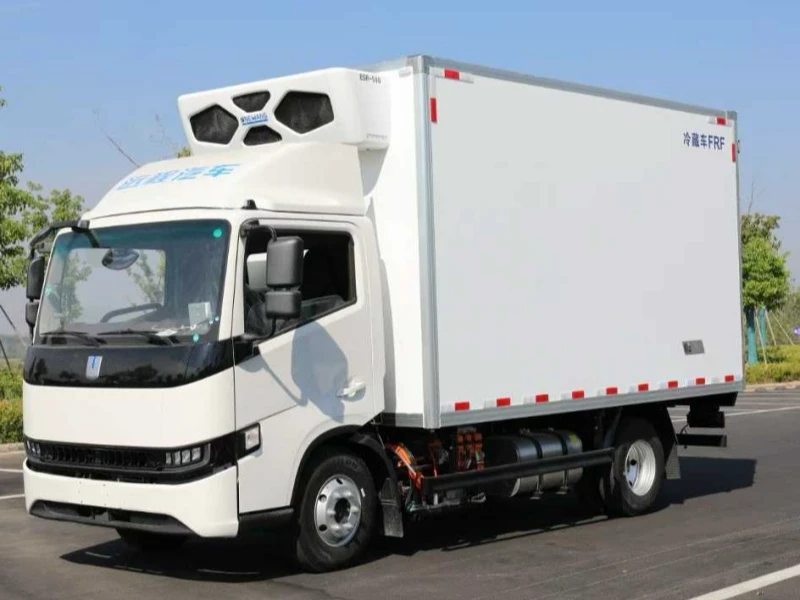

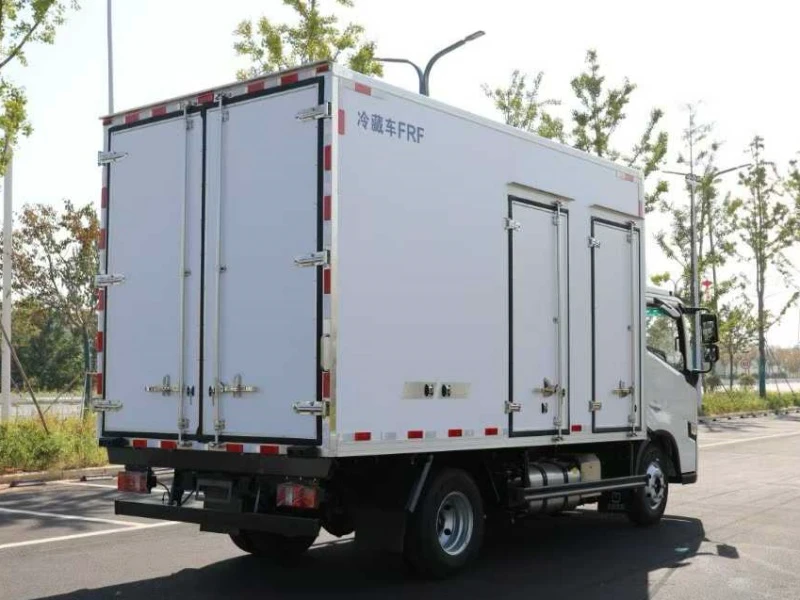

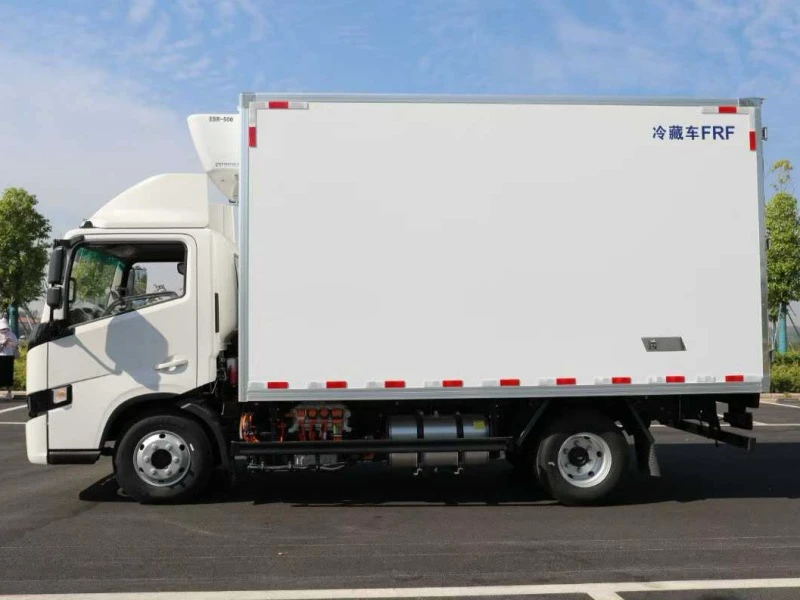

Geely Yuan Cheng H9M Methanol Series: The Advanced Range-Extended Electric Chassis for 4.2-Meter Refrigerated Trucks
1. Product Brief
The Geely Yuan Cheng H9M is a dedicated electric truck chassis engineered for refrigerated box trucks and cold chain logistics. Its innovative methanol range-extended electric powertrain provides the benefits of zero-emission electric drive for urban delivery, with the extended range needed for regional distribution—making it an ideal sustainable transport solution for perishable goods transportation.
2. Core Specifications & Performance
Chassis Model: JGL5049XLCSHEVGMR1 (Type-Approved for Refrigerated Body)
Powertrain: Methanol-Electric Series Range-Extender
Electric Drive Motor: 80 kW (Rated) / 185 kW (Peak) High-Torque Motor
Battery System: Geely “Intelligent Core” 81.144 kWh LiFePO4 Battery Pack
Range: 200 km (Pure Electric Mode) / Up to 1200 km (Full Methanol + Charge)
Max Speed: 110 km/h | Wheelbase: 3360 mm
Axle Capacity: 2.5T Front / 5T Rear (Featuring HAND e-Drive Electric Axle)
3. Dimensions, Body & Design Philosophy
Cargo Space Compatibility: Designed for standard refrigerated box bodies with internal dimensions of approximately 4020 x 2100 x 2100 mm (LxWxH).
Chassis & Frame: Robust construction using high-strength materials to support insulated bodies and refrigeration units.
Design Focus: Optimized for payload efficiency and aerodynamics. The wide-body cab (2080mm) enhances driver comfort and space, supporting long-duty cycles in temperature-controlled logistics.
4. Detailed Structure & Component Advantages
Range Extender Unit: Features a dedicated Geely 1.8L Methanol Engine (68 kW), optimized for high-efficiency power generation to charge the battery, providing a reliable energy replenishment solution.
E-Drive System: The integrated HAND e-Drive Rear Axle combines motor and transmission, improving energy efficiency, regenerative braking recovery, and reducing mechanical maintenance.
Energy Storage & Management: Advanced LiFePO4 battery technology ensures safety, longevity, and stable performance in varying climates, crucial for refrigerated transport.
Fuel & Energy Carrying Capacity: Dual 120L methanol tanks provide long operational range, supported by a 15L gasoline tank for auxiliary starting.
Braking & Safety: Full air brake system ensures reliable stopping power for loaded commercial vehicles.
5. Key Features & Manufacturer Strengths
Emission Reduction & Sustainability: Utilizes clean methanol fuel, significantly reducing well-to-wheel carbon and particulate emissions compared to diesel, supporting green logistics initiatives.
Total Cost of Ownership (TCO): Lower fuel costs of methanol combined with reduced EV maintenance lead to superior operational economy for commercial fleets.
Driver-Centric Cab: Includes automatic headlights, digital instrument cluster, rotary gear selector, central locking, power windows, and fast-charging capability.
Chengli Group Integration Expertise: As a leading special vehicle manufacturer, Chengli guarantees professional body mounting, system integration for refrigeration units, and comprehensive after-sales service, ensuring vehicle reliability for critical cold chain operations.
