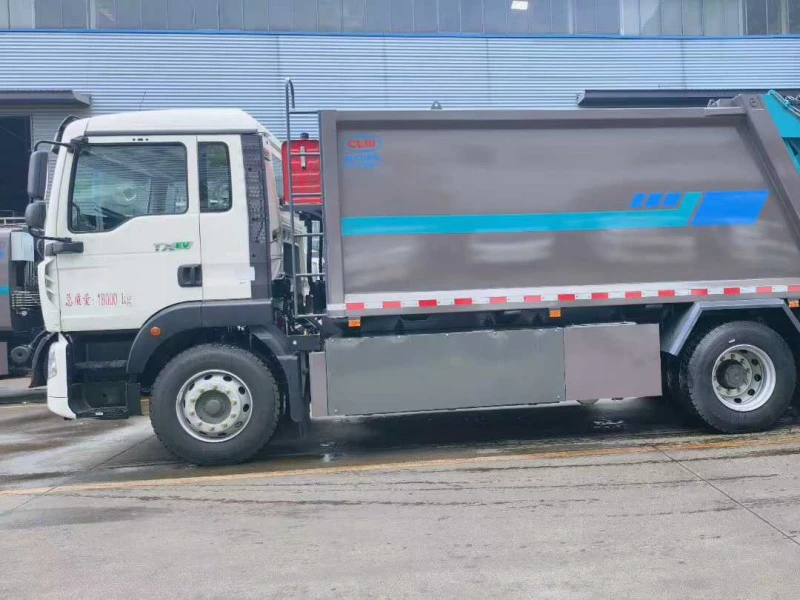

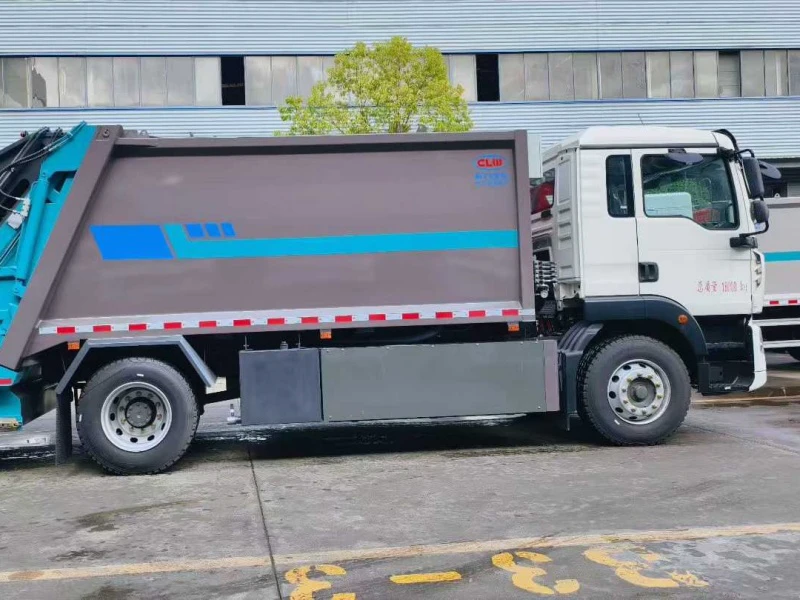

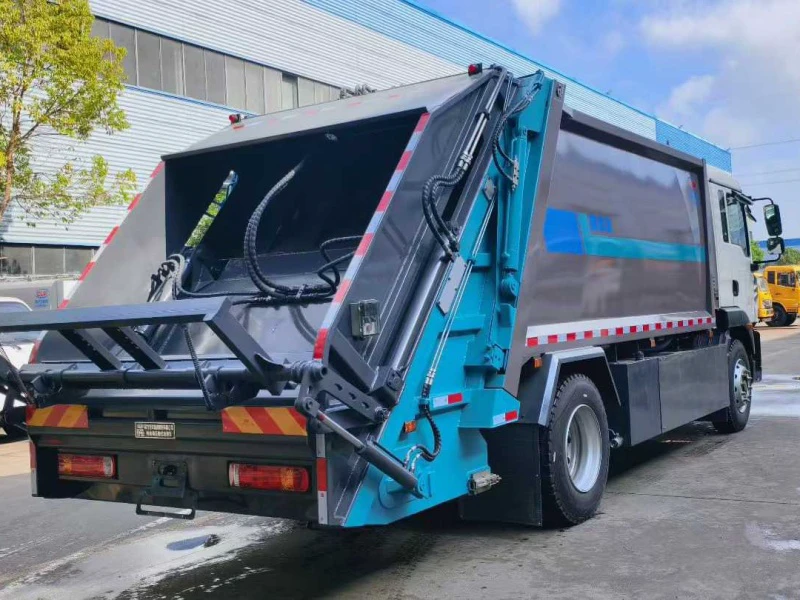

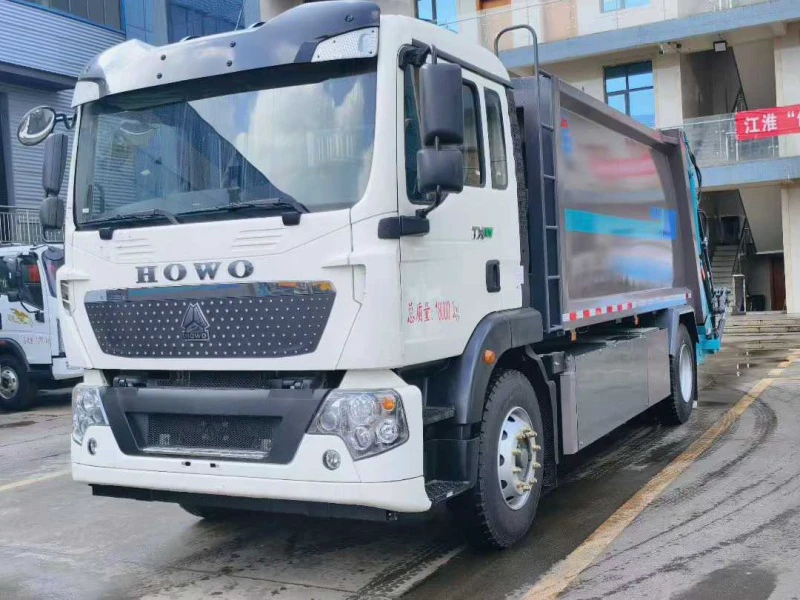

HOWO 4x2 Electric Rear Loading Compactor Truck – New Energy Sanitation Equipment Solution

1. Product Introduction
The SINOTRUK HOWO Pure Electric 15 Cubic Meter Compactor Garbage Truck is an intelligent sanitation vehicle developed on a next-generation new energy technology platform. Adopting a zero-emission, environmentally friendly design, this electric garbage truck integrates CATL high-performance battery systems and efficient electric drive technology to provide a green, low-carbon waste management solution for urban areas. As a representative model of new energy sanitation equipment, it features low noise and zero emissions during operation, making it particularly suitable for environmentally sensitive locations such as city centers, residential communities, parks, and scenic areas. It is an essential asset in modern smart city development and municipal sanitation management.

2. Key Specifications

• Drive Configuration: 4×2

• Wheelbase: 4500 mm

• Cab: HOWO TX-M Series

• Motor: Wolong TZ342XS-ZQV16 permanent magnet synchronous motor, rated power 150 kW

• Battery: CATL 246.67 kWh lithium iron phosphate battery pack

• Transmission: HW12702L gearbox + HW50YH-F119 PTO

• Front Axle: VGD75

• Rear Axle: MCJ11BG single rear axle, ratio 5.29

• Frame: Double-layer reinforced (7+4/250)

• Suspension: Front and rear reinforced multi-leaf springs (11/9+8)

• Braking: ABS anti-lock braking system (4S/4M)

• Tires: 295/80R22.5

3. Design & Structure

• Overall Dimensions: Optimized for excellent road accessibility and operational flexibility.

• Body Volume: 15 cubic meter compression-type garbage body.

• Materials: High-strength, wear-resistant steel construction for durability.

• Design Philosophy: High-efficiency compression mechanism and a tightly sealed tailgate system ensure environmental compliance, operational hygiene, and enhanced loading capacity tailored to urban waste collection needs.

4. Structural & Performance Advantages

• Chassis & Drivetrain:

  • Double-layer reinforced frame provides superior load-bearing capacity.

  • VGD75 front axle and MCJ11BG single rear axle (ratio 5.29) ensure reliable power transmission and stability.

  • Reinforced multi-leaf spring suspension supports heavy-duty operation.

  • ABS braking and 295/80R22.5 tires enhance safety and traction.

• Electric Powertrain:

  • Wolong 150 kW permanent magnet synchronous motor delivers strong and smooth acceleration.

  • CATL 246.67 kWh battery ensures long operating range and fast charging capability.

  • Efficient transmission and PTO system support continuous hydraulic operation for compaction and loading.

• Superstructure:

  • 15 Cu.m compression body with high-efficiency hydraulic compaction system.

  • Intelligent electronic control system for easy and precise operation.

  • Compliant with national standards, includes video recording system.

5. Product Features & Manufacturer Strengths

• Environmental Leadership: Zero emissions during operation, fully compliant with national new energy policies.

• High Efficiency: Large 15 Cu.m capacity combined with efficient compression significantly improves waste handling productivity.

• Economic Benefits: Over 60% lower operating costs compared to traditional fuel-powered trucks.

• Quiet Operation: Low-noise design suitable for residential areas, schools, and hospitals.

• Safety & Intelligence: Equipped with ABS, video monitoring, and advanced electronic controls for safe and user-friendly operation.

• Policy Advantages: Eligible for new energy vehicle subsidies, priority road access, and other policy incentives.

Chengli Group Advantages:

• Proven expertise in manufacturing and customizing new energy sanitation vehicles.

• Integrated production from chassis adaptation to superstructure assembly, ensuring quality and performance.

• Nationwide service network providing reliable technical support and spare parts supply.

• Commitment to delivering sustainable, cost-effective, and high-performance sanitation solutions.

6. Application Scenarios

• Road cleaning and waste collection in urban centers

• Garbage transfer in residential communities

• Environmental maintenance in parks and scenic spots

• Commercial district waste management

• Waste collection services for enterprises and institutions

This pure electric compactor garbage truck represents the future direction of sanitation equipment, meeting high environmental standards while supporting energy-saving initiatives. It is an ideal choice for sanitation service providers and municipal departments seeking to upgrade to green, intelligent, and efficient waste management operations.
