JMC XCMG 2T Knuckle Boom Truck-Mounted Crane | JMC 2T Knuckle Boom Truck-Mounted Crane with XCMG 2T Knuckle Boom Crane

Ultimate Flexibility for Indoor and Confined Space Operations

I. Product Overview

The JMC XCMG 2T Knuckle Boom Truck-Mounted Crane combines the renowned reliability of the JMC Shunda chassis with XCMG's precision-engineered 2-ton articulating crane. Available in both single cab and double cab configurations, this Blue Label vehicle offers unique advantages over traditional straight boom cranes, particularly in indoor operations, warehouses, factories, and confined spaces where maneuverability is limited. Powered by the fuel-efficient Isuzu 116 HP engine, this compact crane truck delivers exceptional versatility while remaining accessible with a standard C-class driver's license.

II. Core Specifications

III. Dimensions, Material & Design Concept

Single Cab Configuration:

• Cargo Box (L×W×H): 3.59 × 1.85 × 0.38 m (11.78 × 6.07 × 1.25 ft)

• Cargo Box Volume: approx. 2.52 m³ = 666 US Gallons

Double Cab Configuration:

• Cargo Box (L×W×H): 2.77 × 1.85 × 0.38 m (9.09 × 6.07 × 1.25 ft)

• Cargo Box Volume: approx. 1.95 m³ = 515 US Gallons

• Design Concept: "Flexibility Meets Efficiency." This vehicle is engineered to prioritize operational versatility, with the knuckle boom design enabling work in environments where straight boom cranes cannot operate.

• Cargo Box Construction:

  • Floor thickness: Optional 3 mm (0.12 in), 4 mm (0.16 in), or 5 mm (0.20 in) steel plate

  • Side walls: Cross-pattern ribbed structure for enhanced strength

• Cab Design: The JMC Shunda cab features an aerodynamic front face (available in red or white) that reduces wind resistance for improved fuel economy. The interior is functional and practical with essential controls conveniently positioned.

• Aerodynamic Advantage: The streamlined design minimizes wind drag during highway transit, contributing to lower fuel consumption and reduced operating costs.

IV. Crane Specifications

This model features the XCMG 2-ton knuckle boom crane with advanced articulating technology.

Crane Configuration:

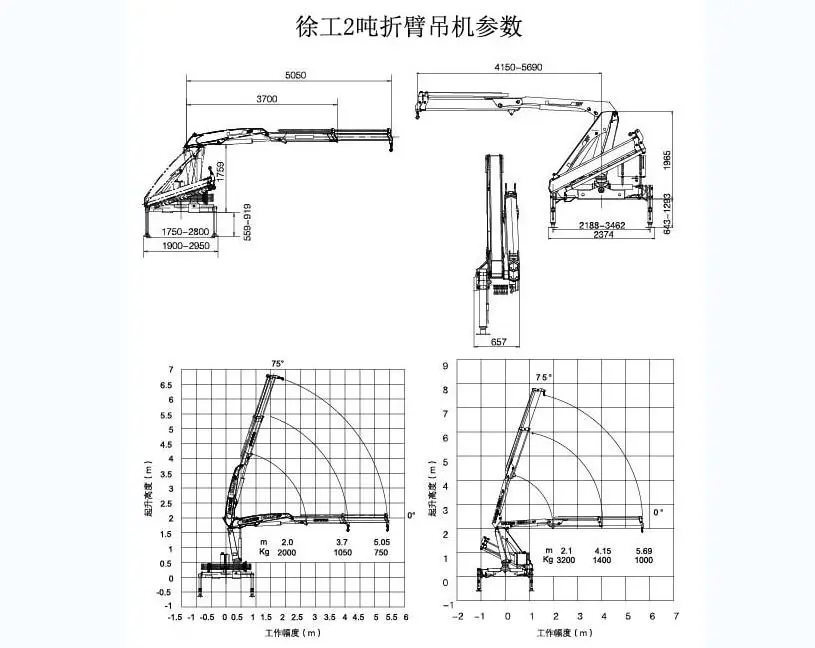

2T 3-Section Knuckle Boom Lifting Capacity:

• Fully extended boom length: 5.05 m (16.6 ft)

• Lifting height: 7.2 m (23.6 ft)

• Lifting capacity at 5.05 m radius: 750 kg (1,653 lbs)

• Lifting capacity at 3.7 m radius: 1,050 kg (2,315 lbs)

• Lifting capacity at 2.0 m radius: 2,000 kg (4,409 lbs)

Important Note: The knuckle boom is controlled by one lift cylinder and two luffing cylinders, providing exceptional flexibility and precise control. While the 400-degree rotation is not continuous full-circle, it fully covers both sides and the rear of the vehicle for comprehensive loading capability.

V. Structural Details & Advantages

1. Powertrain System

• Isuzu 116 HP Engine: The Japanese-designed Isuzu engine delivers:

  • Low noise operation – ideal for residential and indoor work

  • Exceptional reliability – reduced failure rates and downtime

  • Fuel efficiency – lower operating costs over vehicle lifetime

  • Proven technology – trusted by operators worldwide

• Jiangchi 5-Speed Transmission: The transmission provides:

  • Smooth gear changes with no sticking

  • Driving experience comparable to passenger cars

  • Optimal power delivery for both transit and crane operation

• Power Adequacy: The 116 HP output is perfectly matched to the demands of 2-ton crane operations and loaded transport.

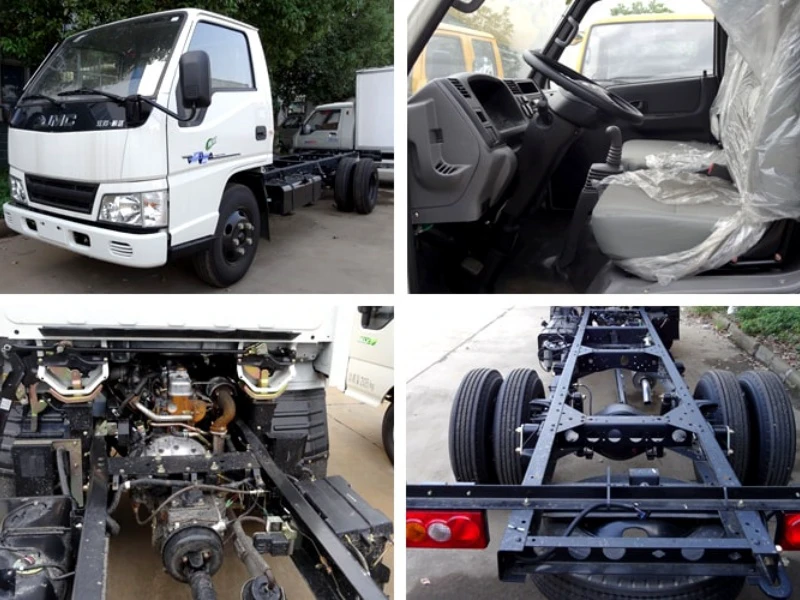

2. Chassis System

• JMC Shunda Dedicated Chassis: Engineered specifically for crane mounting with optimized weight distribution.

• Braking System: Meets China V new regulations with:

  • Hydraulic brakes with ABS for reliable stopping power

  • Automatic brake adjusters for consistent performance

  • Anti-spray mud flaps for improved visibility in wet conditions

• Lighting System: The adjustable headlights can be modified for different angles, providing optimal illumination for various operating environments and times of day.

• Power Steering: Standard equipment reduces operator fatigue during urban maneuvering and tight-space operations.

• Compact Dimensions: The short wheelbase and overall length enable:

  • Easy navigation through narrow city streets

  • Excellent turning radius

  • Unrestricted urban access with C-class license

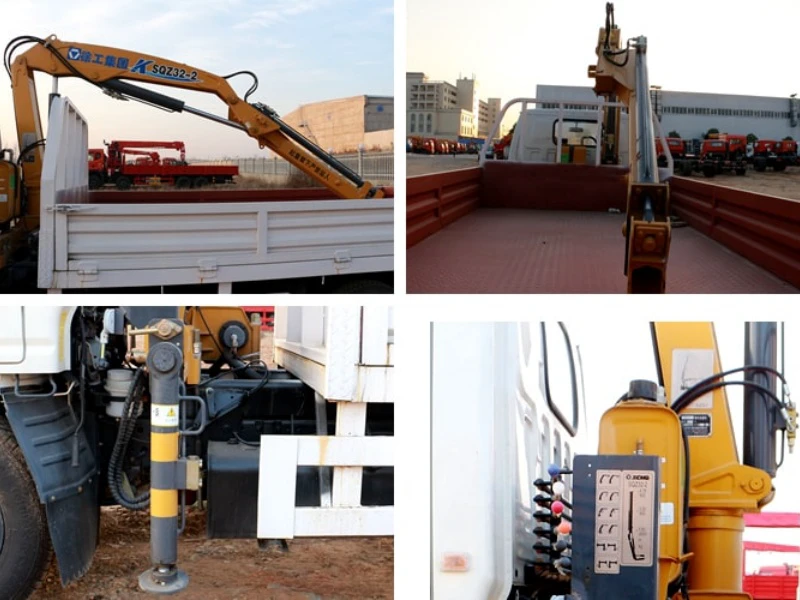

3. Crane System

• Multi-Cylinder Articulating Design: The knuckle boom features:

  • One lift cylinder for main boom elevation

  • Two luffing cylinders for precise articulation control

  • Exceptionally flexible operation compared to straight booms

• Low Operating Height: The knuckle boom's compact stowed height makes it ideal for:

  • Indoor facilities with low ceilings

  • Warehouse operations under overhead obstructions

  • Covered docks and industrial buildings

  • Factory environments with limited vertical space

• Cable-Free Operation: Unlike straight boom cranes, the knuckle boom operates without wire ropes, offering:

  • Simplified maintenance requirements

  • Reduced wear components

  • Precise load placement

  • Ability to work in spaces where straight booms cannot operate

• Rack-and-Pinion Rotation: The 400-degree rotation system provides comprehensive coverage for loading from both sides and the rear of the vehicle.

VI. Product Features & Manufacturer Advantages

• Dual Cab Options: One of the few Blue Label crane trucks offering both single cab (3-seat) and double cab (5-seat) configurations, meeting diverse crew transport requirements while complying with national standards.

• Superior Indoor/Confined Space Performance: The knuckle boom design excels where straight booms cannot operate:

  • Factories with overhead obstructions

  • Warehouses with low ceilings

  • Docks with limited maneuverability

  • Power utility maintenance in confined areas

  • Brick yards for material handling

• Isuzu Long-Term Value: The Japanese-engineered Isuzu engine delivers:

  • Low maintenance costs through reduced failure rates

  • Excellent fuel economy

  • Quiet operation suitable for residential areas

  • Proven longevity and reliability

• C-Class Accessibility: As a Blue Label vehicle, it offers:

  • Operation with standard driver's license

  • Free access to urban areas

  • No commercial license requirements

• Aerodynamic Efficiency: The JMC Shunda cab design reduces wind resistance, contributing to:

  • Lower fuel consumption

  • Reduced wind noise

  • Enhanced highway stability

• Flexible Crane Configuration: Available with:

  • 2-ton or 3.2-ton capacity options

  • Straight boom or knuckle boom choices

  • Multiple boom section configurations

• Future-Ready Compliance: While current models feature China V emissions with manual windows, upcoming China VI models will include power windows as standard, ending the era of manual operation.

• Superior Driving Experience: The Jiangchi transmission provides car-like shifting smoothness with no sticking or hesitation, reducing driver fatigue.

• Manufacturer Advantage (Chengli Group): As a specialized manufacturer, Chengli Group offers integrated vehicle design and manufacturing, ensuring perfect coordination between the JMC chassis and XCMG crane. Customers benefit from single-source quality control, comprehensive after-sales support, and access to genuine parts for both the truck body and the hydraulic crane system.
