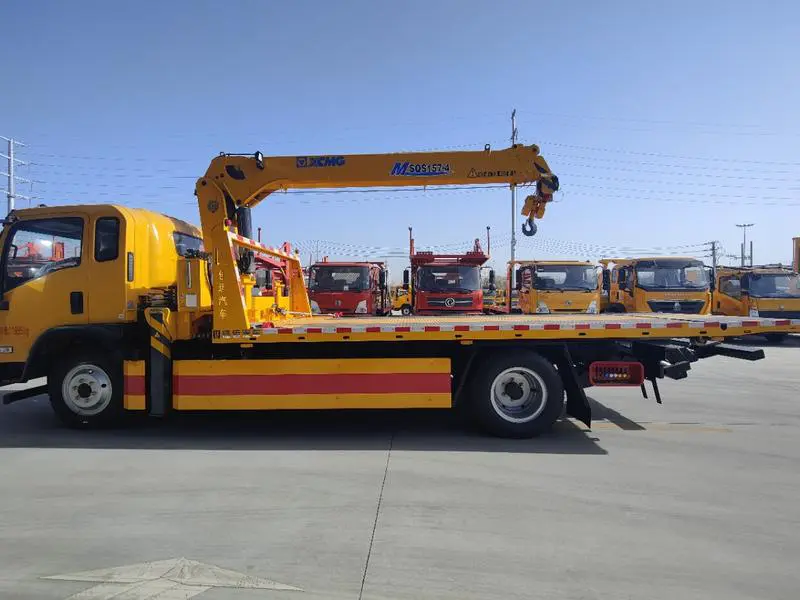

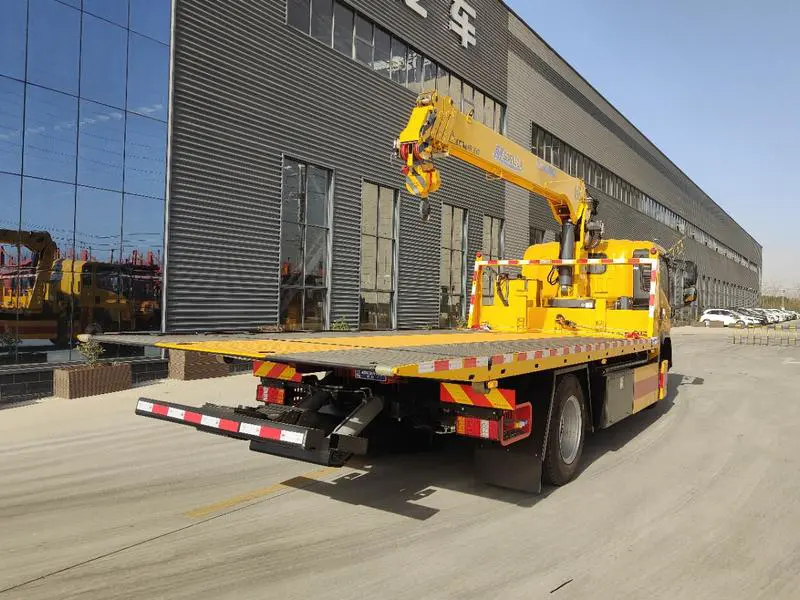

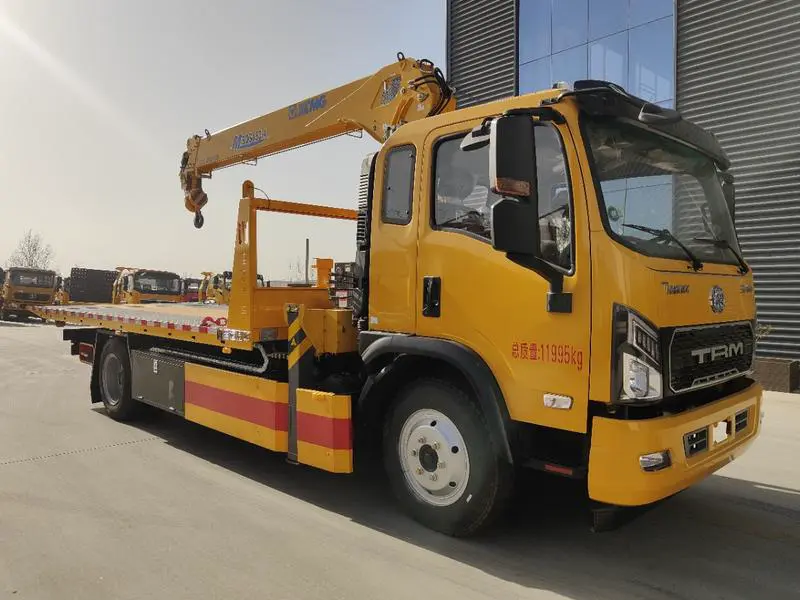

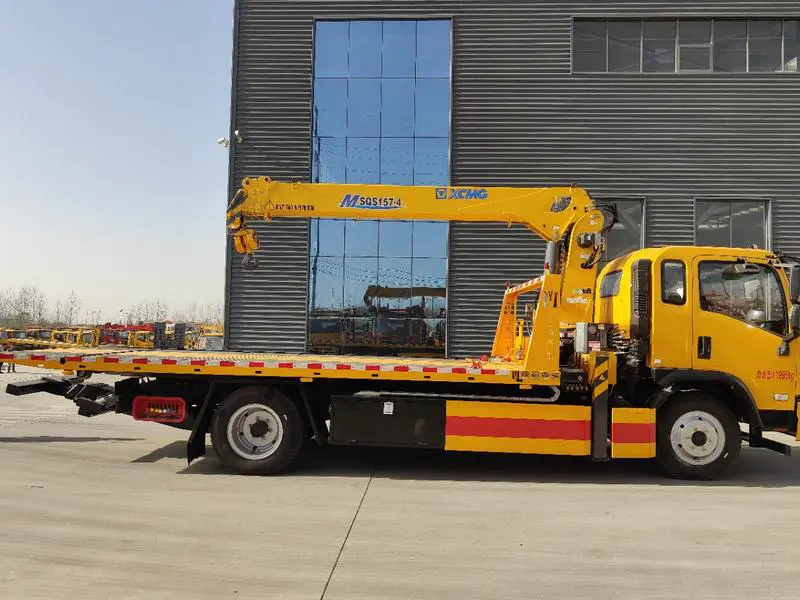

Sanhuan Crane-Integrated Wrecker – Heavy-Duty Recovery Solution

I. Product Introduction

The Sanhuan Chuangkexing Crane-Integrated Wrecker is a heavy-duty recovery vehicle designed for professional towing, lifting, and roadside assistance operations. Combining a powerful crane with a flatbed tow system, this vehicle offers exceptional versatility for recovering heavy trucks, buses, construction machinery, and commercial vehicles. Built on a reinforced triple-layer frame and powered by a high-torque engine, it delivers reliable performance for towing companies, construction contractors, municipal fleets, and highway maintenance teams operating in demanding conditions.

II. Core Parameters

III. Exterior Dimensions, Body Design & Material Concept

• Overall Dimensions: Designed with a 4700 mm wheelbase chassis, ensuring balanced weight distribution and stable towing dynamics even under heavy loads.

• Flatbed Configuration: Total flatbed length of 6.2 m, including a 1 m hydraulic tailgate, enabling efficient loading and unloading of disabled vehicles and machinery.

• Deck Material: 6 mm thick diamond-checkered steel plate, providing superior anti-slip performance and long-term durability under frequent heavy loading.

• Design Philosophy: The recessed flatbed design lowers the center of gravity, improving stability during transport. The integrated crane and tow system allows simultaneous lifting, towing, and transporting of multiple vehicles, maximizing operational efficiency.

IV. Structural Advantages – Powertrain, Frame & Hydraulic System

• Engine (YCDV3663-180): Delivers 180 HP with advanced emission technology, providing ample low-end torque for heavy lifting and towing operations while ensuring fuel efficiency.

• Transmission (Fast 8-speed): The 8-speed manual gearbox offers precise gear ratios, optimizing power delivery for both highway driving and low-speed recovery scenarios.

• Triple-Layer Frame: The 250 mm (6.5+5) triple-layer frame is engineered for heavy-duty applications, providing exceptional load-bearing capacity and resistance to torsional stress during crane operations and towing.

• Rear Axle: The 8T rear axle is designed to withstand high dynamic loads, ensuring stable handling and braking performance under full load conditions.

• Cab Features: The Chuangkexing 2100 semi-sleeper cab offers enhanced driver comfort with a multi-function steering wheel, air suspension seat, air conditioning, power windows, central locking, and remote key entry, ensuring fatigue-free operation during long-distance hauls.

V. Wrecker Body Configuration & Recovery Equipment

The upper body configuration is designed for professional recovery operations:

• 8T Crane: Integrated crane for lifting heavy vehicles and equipment, expanding operational capabilities beyond standard towing functions.

• 6T Hydraulic Winch: Provides powerful pulling force for recovering vehicles from ditches, embankments, or other difficult positions.

• Reinforced Flatbed: The 6.2 m flatbed with 6 mm thick diamond-checkered steel plate and recessed design ensures stable vehicle transport with enhanced safety.

• Hydraulic Tailgate: The 1 m hydraulic tailgate facilitates easy loading and unloading, reducing operator effort and improving efficiency.

• Heavy-Duty Rear Tow Arm: The 8T 3-section rear tow arm provides extended reach and flexibility for towing vehicles of various sizes.

• Comprehensive Recovery Kit: Includes tow sockets, two pairs of tow forks, a tire clamping device, six tie-down straps, auxiliary wheels, two air hoses, a handwashing tank, and a double chain hook, allowing operators to handle diverse recovery scenarios without additional equipment.

VI. Applications & Usage Scenarios

The Sanhuan Chuangkexing Crane-Integrated Wrecker is a specialized vehicle designed for:

• Towing disabled trucks, buses, and commercial vehicles

• Lifting and recovering construction machinery and equipment

• Emergency rescue and recovery operations

• Highway traffic management and maintenance support

• Urban road engineering machinery transport

With its integrated crane, reinforced frame, and comprehensive recovery equipment, this vehicle is an essential asset for towing companies, construction firms, and municipal fleet operators.

VII. Chengli Group Manufacturer Advantages

Chengli Special Purpose Vehicle Co., Ltd., as a leading manufacturer in China's special-purpose vehicle industry, brings deep technical expertise and strong manufacturing capabilities to every unit. Key advantages include:

• Large-Scale Production: Modern production facilities with industry-leading annual capacity ensure short delivery lead times and stable supply.

• Comprehensive Quality Control: From raw material procurement and chassis modification to final vehicle assembly, a strict quality management system is implemented throughout the process. Every vehicle undergoes multiple inspection stages to ensure quality.

• Technical R&D Strength: A professional R&D team is dedicated to continuous product optimization and innovation, developing specialized vehicle models tailored to diverse market requirements.

• Complete Compliance Certification: All products are certified under the national compliance system with complete documentation, ensuring smooth registration and operation for customers.

• Global Service Network: Products are exported to markets worldwide, supported by a comprehensive after-sales service system that provides timely technical support and parts supply.

• Stock Availability: This model features consistent specifications and reliable supply, ensuring prompt delivery for customers.
