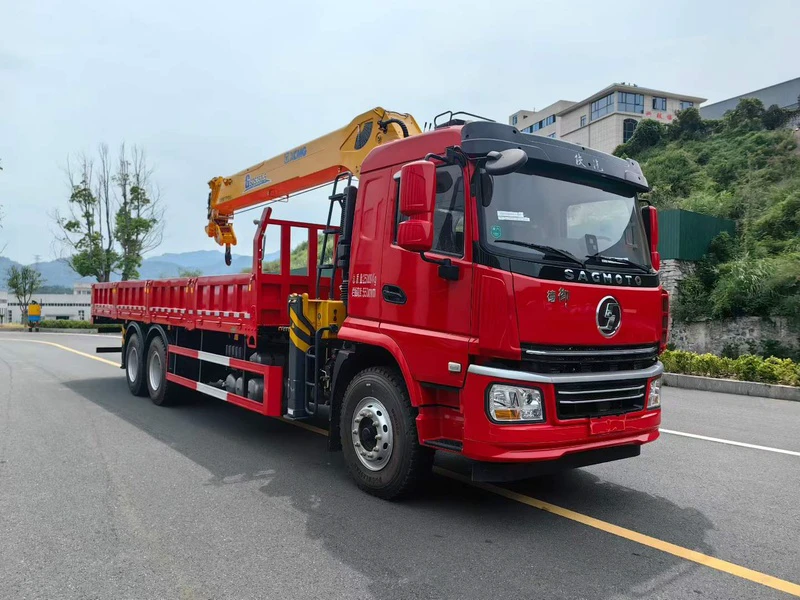

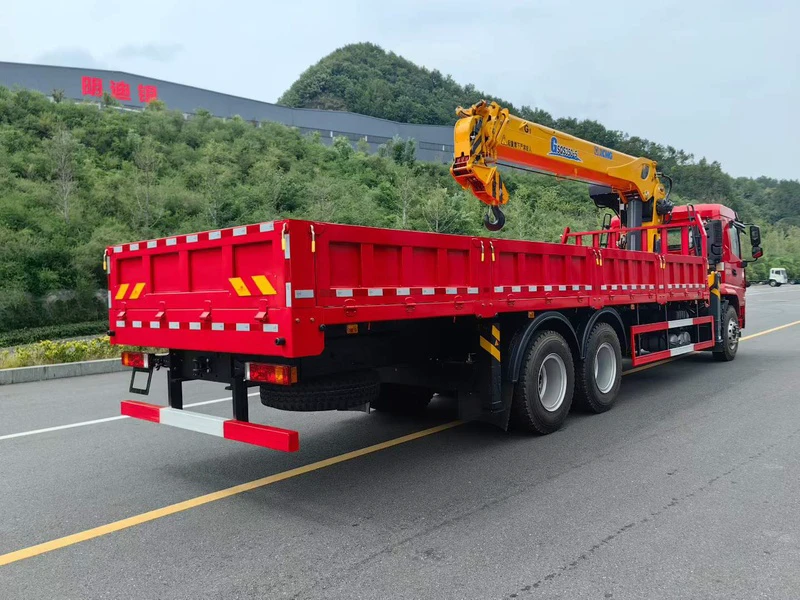

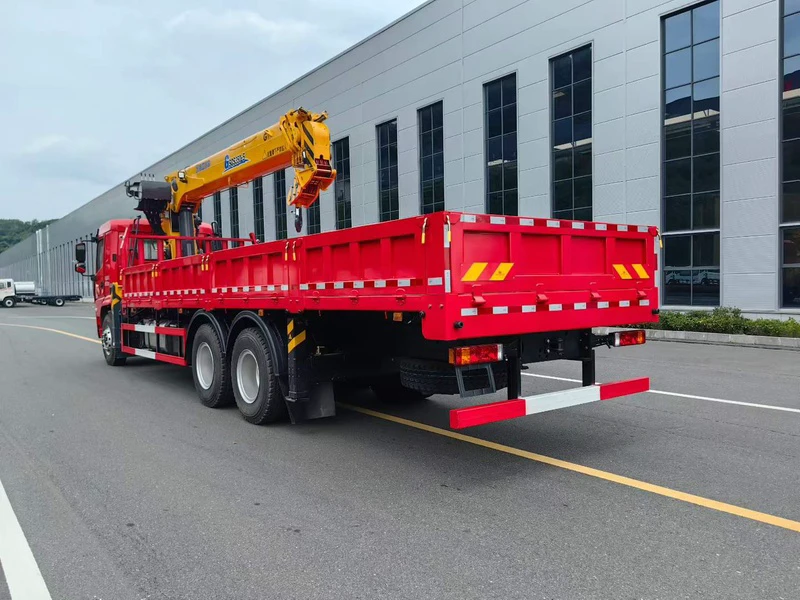

Shacman 6×4 Loader Crane Truck – Integrated XCMG 14-5 Articulated Crane for Heavy-Duty Transport & Lifting
I. Product Introduction
The Shacman 6×4 Rear Double Axle Truck is a heavy-duty loader crane vehicle engineered for efficient material transport and on-site lifting. Integrated with a XCMG 14-5 articulated crane, this truck eliminates the need for separate lifting equipment, making it ideal for construction, utilities, and heavy logistics.
II. Core Parameters
Parameter | Specification |
|---|---|
Drive Type | 6×4 (Rear Double Axle) |
Engine | Yuchai 300 HP (Turbocharged diesel) |
Transmission | Fast 9-Speed (Manual, double countershaft) |
Axles | Front: 6.5T / Rear: 11.5T (Hub reduction) |
Tires | 11.00 R20 (Radial, steel-belted) |
Crane Model | XCMG 14-5 (5-section boom) |
Max Lifting Height | 19.6 m |
Cargo Box Length | 8.4 m |
Volume Capacity | Approx. 20.2 m³ (8.4 × 2.4 × 1.0 m internal) |
Wheelbase | 5800 + 1350 mm |
Frame Thickness | 8+5 mm double-layer frame |
III. Dimensions, Body Specs, Material & Design Philosophy
Overall Dimensions (L×W×H): ~11200 × 2550 × 3850 mm
Cargo Box (Internal): 8400 × 2400 × 1000 mm (customizable height)
Material: High-strength wear-resistant steel for the dump body; chassis frame uses BS700 high-tensile steel
Design Philosophy: The crane subframe is fully integrated with the chassis rail to distribute lifting stress evenly, ensuring operational safety during simultaneous transport and lifting.
IV. Structural Advantages
Engine: The Yuchai 300 HP delivers high torque at low RPM for strong climbing ability and fuel efficiency under full load.
Transmission: The Fast 9-Speed gearbox features a double countershaft design for smooth shifting and durability in demanding conditions.
Axles: The 6.5T front axle provides precise steering; the 11.5T rear axle is equipped with a heavy-duty differential lock to prevent wheel slip on uneven terrain.
Chassis: The double-layer frame (8+5 mm) resists torsional stress, while multi-leaf spring suspension enhances load-carrying stability.
V. Product Features & CLW Group Advantages
Product Features:
All-in-one functionality: Combines a 14-ton-meter crane with an 8.4 m cargo body, reducing equipment costs and improving job site efficiency.
Precision lifting: The XCMG 14-5 crane offers a 19.6 m working radius with hydraulic outriggers for quick stabilization.
High stability: The 11.00 R20 tires and reinforced rear axle maintain stability even when the crane operates at full extension.
CLW Group Advantages:
Factory integration: Chassis and crane are integrated in-house, eliminating compatibility risks from aftermarket modifications.
Custom engineering: Tailored solutions available for subframe reinforcement, hydraulic upgrades, and cargo box configurations.
Quality assurance: Each unit undergoes static load testing and crane cycle testing before delivery.
Global support: Comprehensive after-sales service with OEM parts for both Shacman chassis and XCMG crane components.
