Sinotruk 4×4 Grapple Loader: Heavy-Duty Forestry & Material Handling Solution

For forestry operations, timber yards, and bulk material handling, having the right equipment is essential to maximize productivity and navigate challenging terrain. The Sinotruk 4×4 Grapple Loader is a purpose-built off-road machine engineered to handle the toughest lifting and loading tasks with precision and reliability.

This article explores the key features and technical specifications of the Sinotruk 4×4 Grapple Loader, highlighting its powerful drivetrain, advanced hydraulic system, and versatile configurations that make it an indispensable asset for professionals in forestry, agriculture, and construction.

Overview: Sinotruk 4×4 Grapple Loader

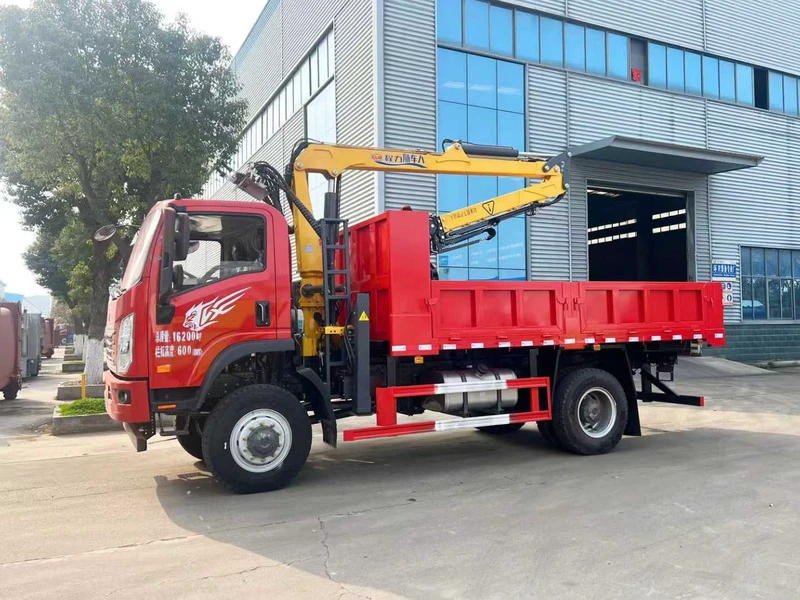

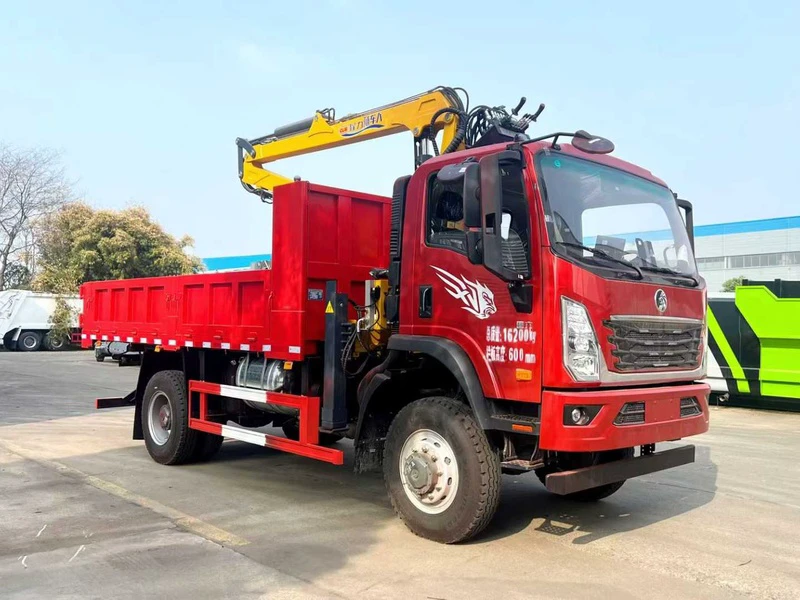

The Sinotruk 4×4 Grapple Loader combines the rugged durability of a Sinotruk chassis with a high-performance grapple crane system. Designed for off-road environments, this vehicle delivers exceptional stability, traction, and lifting power, ensuring efficient material handling even in the most demanding conditions.

Key Specifications

1. Powertrain & Chassis

• Engine: Yuchai 200 HP – providing reliable, high-torque performance for continuous heavy-duty operation.

• Drive System: 4×4 all-wheel drive, significantly enhancing off-road capability and stability on uneven terrain, mud, sand, and slopes.

• Body Configuration: Equipped with a double-cylinder dump body, allowing for efficient unloading of timber, branches, scrap metal, or other bulk materials.

2. Grapple Crane System

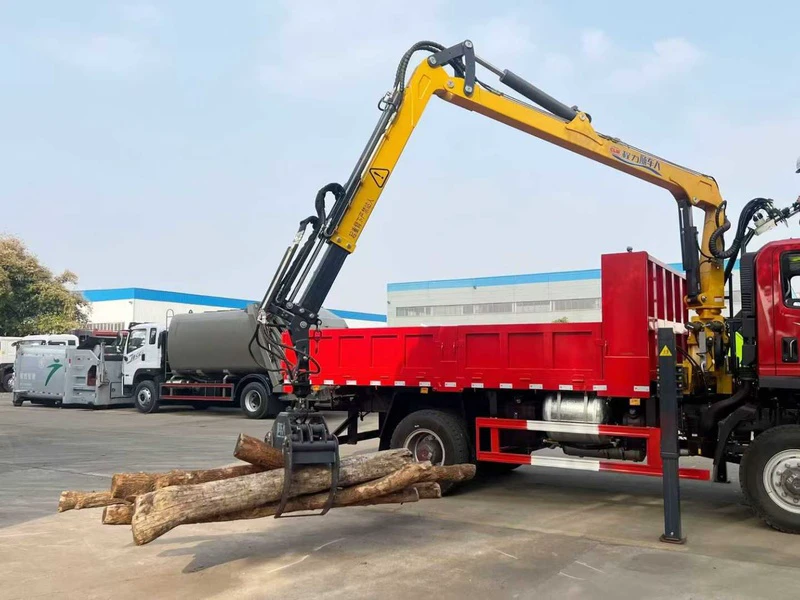

The loading system features a Chengli Suiren 8.1-meter articulated crane, paired with a specialized grapple designed for secure and efficient gripping:

• Grapple Type: 2+2 flat jaw grapple – ideal for gripping logs, tree trunks, branches, hay bales, and bulky waste materials.

• Connection Options:

  • Soft connection – flexible hydraulic hoses for enhanced maneuverability and smoother operation.

  • Hard connection (optional) – rigid piping for increased durability and faster response in intensive applications.

• Lifting Capacity: 600 kg at full extension – ensuring effective lifting and loading even at maximum reach.

Enhanced Off-Road Performance

The 4×4 drivetrain is one of the standout features of the Sinotruk 4×4 Grapple Loader. Unlike standard 4×2 trucks, this all-wheel-drive system provides superior traction on unpaved roads, steep slopes, and soft ground. Whether operating in a remote logging site, a muddy construction zone, or a rural agricultural field, the vehicle maintains stability and mobility, reducing downtime and increasing efficiency.

Key benefits of the 4×4 drive system include:

• Enhanced off-road capability in challenging terrain

• Improved vehicle stability during crane operation on uneven surfaces

• Reliable power distribution for simultaneous driving and hydraulic crane functions

Versatile Applications

The Sinotruk 4×4 Grapple Loader is designed for a wide range of industries and applications:

• Forestry & Logging: Loading, sorting, and transporting timber logs and tree trunks.

• Agriculture: Handling hay bales, silage, branches, and other bulk agricultural materials.

• Construction & Demolition: Managing scrap wood, construction debris, and waste materials.

• Recycling & Waste Management: Processing bulky waste, scrap metal, and large items at transfer stations or recycling facilities.

Conclusion

The Sinotruk 4×4 Grapple Loader is a powerful, versatile, and durable solution for forestry, agriculture, and material handling operations that demand off-road mobility and reliable lifting performance. With its Yuchai 200 HP engine, true 4×4 drivetrain, and advanced Chengli Suiren grapple crane system, this vehicle delivers the strength and stability required for the most demanding jobs.
