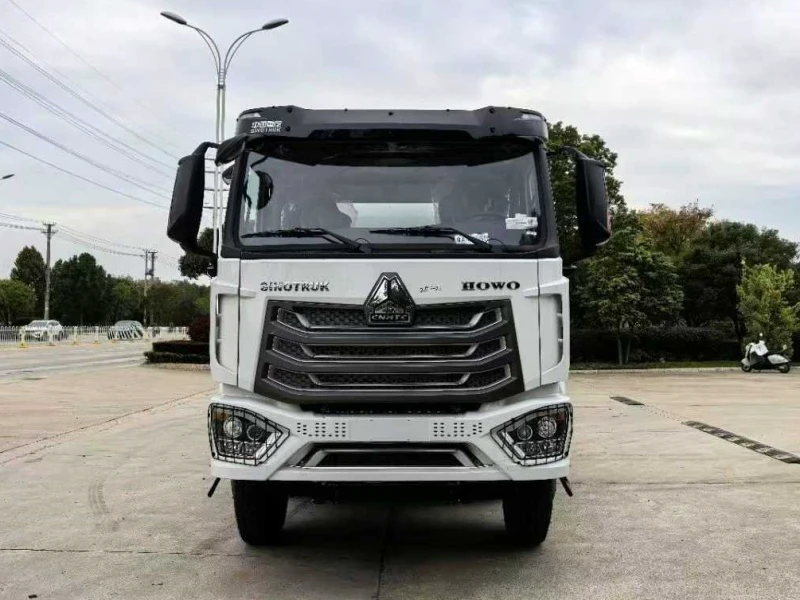

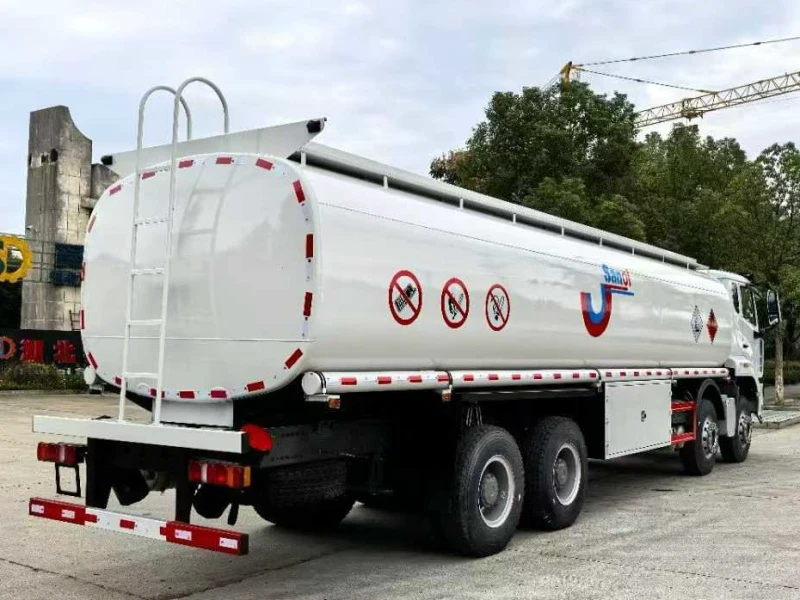

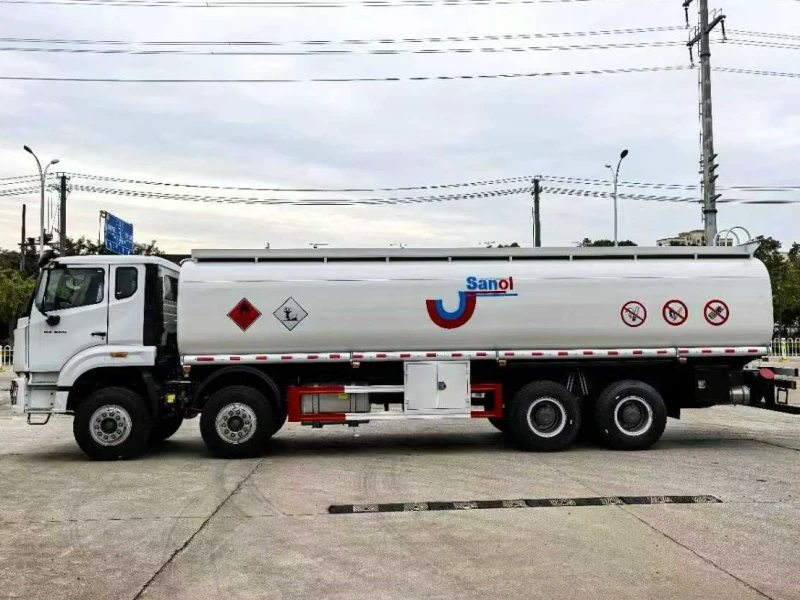

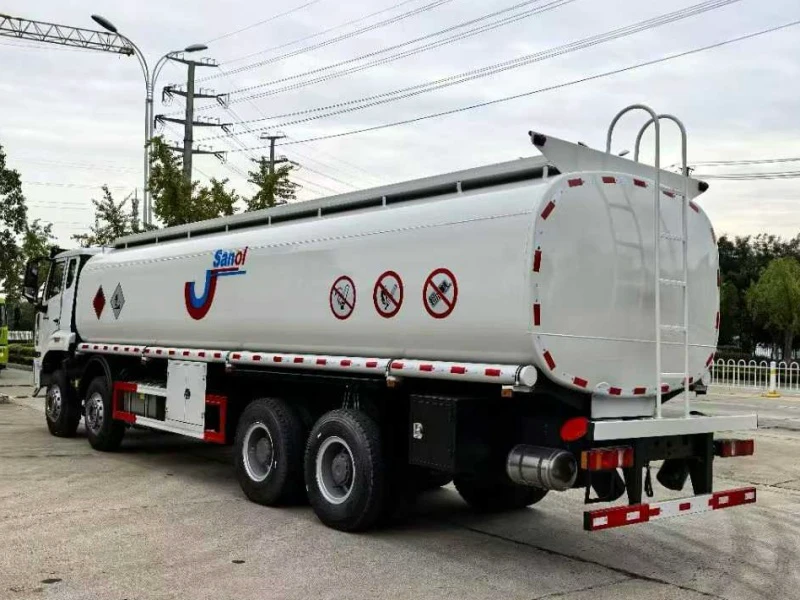

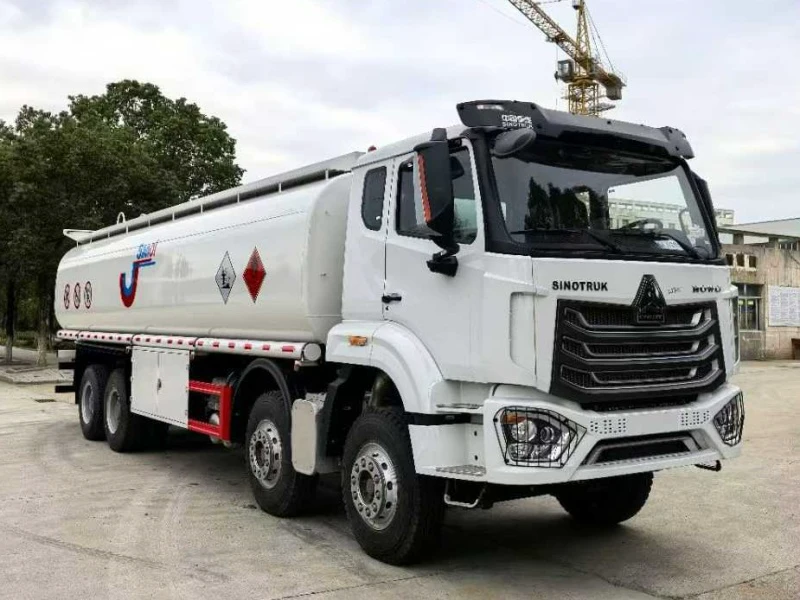

Sinotruk Howo 8×4 Oil Tanker Truck – 35m³ High-Capacity Fuel Transport Vehicle

I. Product Introduction

The Sinotruk Howo 8×4 Oil Tanker Truck is a high-capacity fuel transport vehicle designed for petroleum distribution, diesel delivery, and bulk liquid logistics. As a leading oil tanker truck manufacturer, Chengli Group combines rugged engineering with practical design to deliver reliable fuel transport vehicles for global markets. This 35m³ fuel tanker features a powerful 400 HP Euro II engine, robust HW19710 transmission, and a durable 35-cubic-meter tank. With a 6-compartment design that allows both independent and interconnected operation, this Sinotruk Howo 8×4 oil tanker truck offers exceptional flexibility for delivering different fuel grades in a single trip. If you are looking for competitive oil tanker truck price, this model delivers outstanding value without compromising on quality or durability.

II. Core Parameters

III. Exterior Dimensions, Tank Specifications & Design Philosophy

• Overall Dimensions: Approx. 11,800–12,200 mm × 2,500 mm × 3,500 mm (varies slightly by configuration).

• Tank Dimensions: Length ~8,500–9,000 mm, width ~2,400 mm, height ~1,800 mm. The square-round design combines the structural strength of a round tank with the space efficiency of a rectangular profile.

• Tank Material: 6mm high-quality carbon steel – thicker than standard (typically 4–5mm), providing extra durability for rough operating environments.

• Head Construction: Hydraulic pressure-formed heads ensure seamless, stress-resistant end closures that meet pressure vessel standards.

• Compartment Design: The tank is divided into 6 compartments, each equipped with bottom loading points. The compartments can be interconnected (allowing mixed loading of a single product) or isolated (enabling transport of up to 6 different fuel grades in one trip).

• Design Philosophy: "Flexibility + durability for bulk fuel logistics" – The 6-compartment configuration maximizes operational efficiency by reducing the number of trips needed for multiple fuel types. As a trusted oil tanker truck manufacturer, Chengli Group ensures every Sinotruk Howo oil tanker truck meets rigorous safety and performance standards while offering competitive oil tanker truck price.

IV. Structural Advantages – Engine, Transmission, Axles & Chassis

• Engine (WP12S400E201 – 400 HP Euro II): Delivers high torque at low RPM, ideal for heavy loads and rough terrain. The Euro II standard makes this fuel transport vehicle suitable for markets where newer emission standards are not yet enforced, while providing proven reliability and easy serviceability.

• Transmission (HW19710 10-speed + HW70 PTO): The 10-speed manual gearbox offers a wide gear ratio range for smooth starts under full load and fuel-efficient highway cruising. The HW70 flange-type PTO provides reliable power take-off for the self-priming pump.

• Front Axle (VGD95 drum brake): Robust construction with drum brakes – simple, durable, and easy to maintain in remote areas.

• Rear Axle (MCX16ZG dual rear axle – drum brake): The dual rear axles with a 4.803 ratio provide exceptional torque multiplication for heavy loads and challenging terrain. Drum brakes are field-serviceable without specialized tools.

• Frame: Heavy-duty frame rails designed to support the 35-ton payload without excessive flex, reinforced with front/rear stabilizer bars for cornering stability.

• Suspension: Multi-leaf spring suspension with main driver air suspension seat for comfort during long hauls.

• Tires: 11.00R20 – a rugged, puncture-resistant tire commonly used in heavy-duty transport, easy to source globally.

V. Product Features & Chengli Group Manufacturer Advantages

Product Features

• 35m³ High Capacity: Large tank volume reduces trip frequency, improving delivery efficiency for bulk fuel transport. This 35m³ fuel tanker is one of the most popular configurations in our oil tanker lineup.

• 6 Compartments with Interconnect Option: Transport up to 6 different fuel grades in one trip, or interconnect all compartments for a single product. Each compartment has its own bottom loading point for flexible depot loading.

• Thick 6mm Carbon Steel Construction: Thicker than industry standard, providing extra resistance to impacts, corrosion, and wear – ideal for rugged job sites.

• Self-Priming Pump (80-60): Reliable pump system with 3-inch piping and 80 ball valves, mounted conveniently on the co-driver side for easy operation.

• Safety Equipment: Includes two 8kg fire extinguishers, reverse buzzer, front/rear stabilizer bars, and a checkered plate walkway for safe top access.

• Low-Maintenance Design: Drum brakes and simple electrical system (NANO) reduce downtime and repair costs in remote locations.

• Euro II Compliance: Suitable for markets where Euro II is still accepted, offering proven reliability and lower oil tanker truck price compared to higher-emission engines.

Chengli Group Manufacturer Advantages

Chengli Group is a leading oil tanker truck manufacturer in China's special-purpose vehicle industry, bringing decades of expertise to every oil tanker and fuel transport vehicle. Key advantages include:

• Large-Scale Production: Modern facilities with high annual capacity ensure short delivery lead times and consistent quality.

• Competitive Oil Tanker Truck Price: Economies of scale allow Chengli Group to offer factory-direct pricing without compromising on quality.

• Comprehensive Quality Control: From raw material inspection to tank pressure testing and pump calibration, every Sinotruk Howo 8×4 oil tanker truck undergoes strict quality checks.

• Technical R&D Strength: In-house engineering team continuously optimizes compartment design, pump integration, and chassis-tank matching.

• Complete Export Documentation: Full paperwork package including commercial invoice, packing list, and certificate of origin for smooth customs clearance.

• Global Service Network: Export-ready with after-sales support and spare parts availability worldwide.

• Customization Capability: Options for ABS, additional compartments, alternative pump sizes, and paint colors available upon request.
