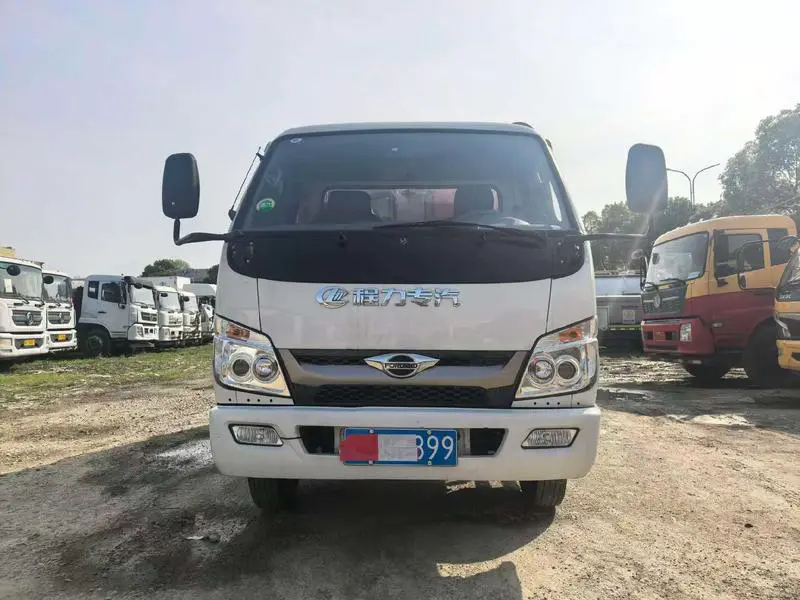

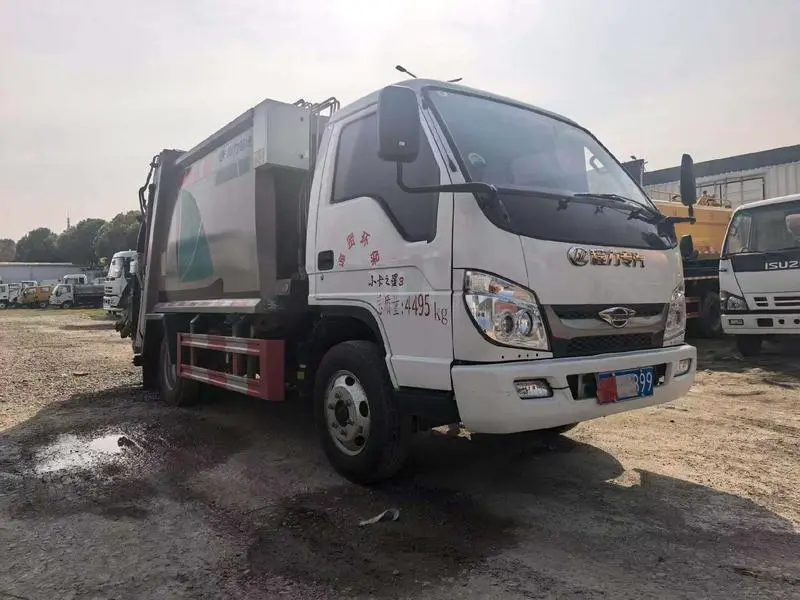

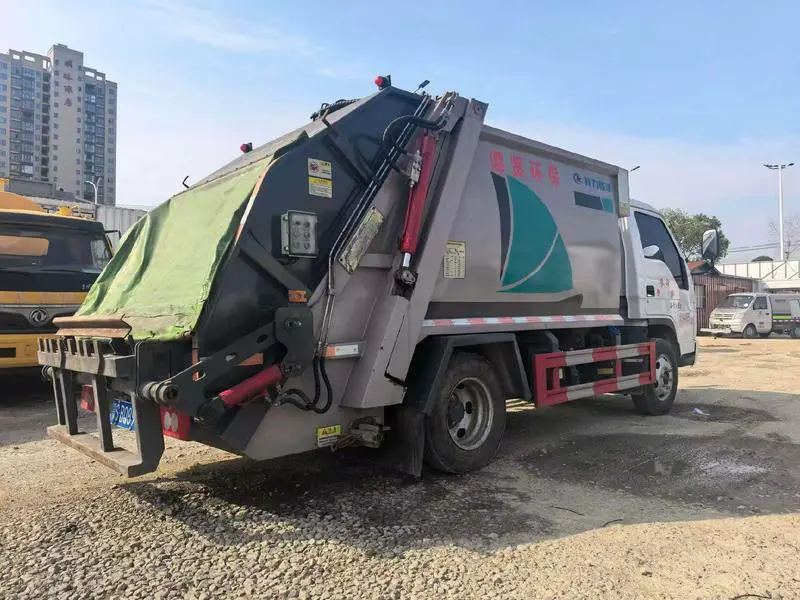

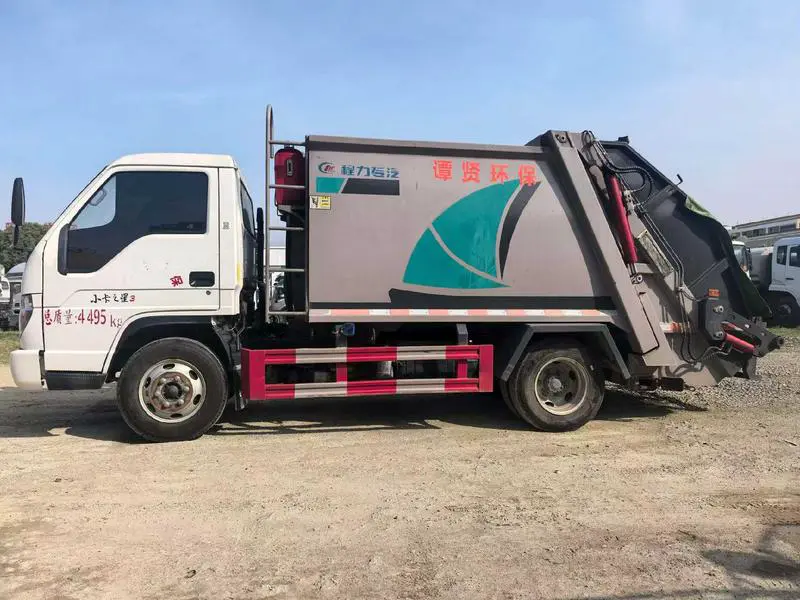

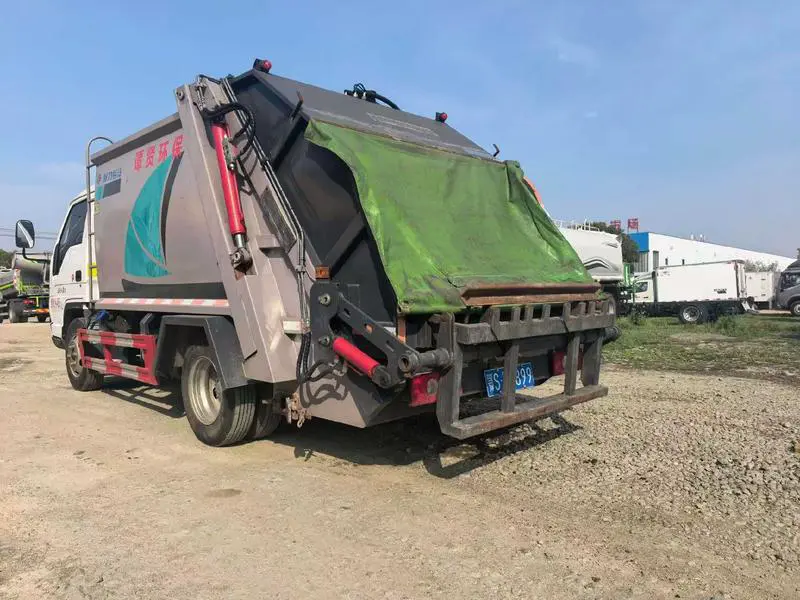

Used Foton Compactor Garbage Truck– 5m³ | 2025 | Quanchai 115hp

I. Product Overview

This used Foton Forland 3 compactor garbage truck is a 2025 model year vehicle with an ultra-low 5m³ (5 cubic meter) waste compaction body. Powered by the reliable Quanchai 115hp diesel engine mated to a 5-speed manual transmission, this truck comes factory-equipped with air conditioning.

It is the ideal solution for municipal waste collection, residential community garbage disposal, commercial area sanitation, and rural waste management applications where maneuverability and efficiency matter most.

The compact design allows this second-hand refuse compactor to navigate narrow urban streets, residential alleys, and even underground parking garages with ease.

II. Key Specifications

III. Dimensions & Chassis Configuration

Standard Compaction Equipment:

• Two-way compression technology – increases loading efficiency by up to 30%

• Push-pull plate compaction mechanism – durable and easy to maintain

• 120L/240L standard garbage bin compatibility – works with most municipal bins

• Rear bin lifting mechanism – hydraulic operation, smooth and reliable

• Dual sewage tanks – prevents liquid leakage during transport

• Wireless remote control – allows operator to manage loading from outside the cab

IV. Structural Advantages

A. Engine & Powertrain

The Quanchai 115hp diesel engine is a proven powerplant in the light-duty compactor truck segment. It delivers reliable performance with Euro VI equivalent emissions compliance, making it suitable for markets with strict environmental regulations.

• 115 horsepower – adequate for fully loaded 5m³ compaction operations

• Diesel fuel – widely available and cost-effective

• 5-speed manual transmission – smooth shifting, low maintenance cost

• Air brake system with parking brake – safe stopping power even on slopes

B. Chassis & Maneuverability

The Foton Forland 3 chassis is a light-duty platform specifically designed for urban sanitation applications.

• 2,850mm wheelbase – provides excellent turning radius for narrow streets and alleys

• 6.50R16 steel cord tires – good load capacity for daily waste collection routes

• Power steering – reduces driver fatigue during frequent turning

• ABS braking system – enhances safety in wet or slippery conditions

• Compact overall dimensions – fits through standard residential gates and into underground parking

C. Compaction Body & Waste Management System

The 5m³ compaction body is constructed from high-strength steel (Q345/T700) with robot-welded seams for maximum durability.

• Compression ratio up to 1:4 – turns 5m³ of loose waste into 1.25m³ of compacted refuse

• Single cycle time – approximately 20-30 seconds from bin lift to compaction

• Dual sewage tanks – minimizes liquid leakage and odor during transport

• Wireless remote control – standard equipment for operator convenience

• Sealed tailgate – prevents waste spillage during transit

• Easy maintenance access – removable panels for hydraulic and electrical components

V. Cab & Driver Comfort Features

The Foton Forland 3 cab is designed for driver comfort and safety during long collection routes.
