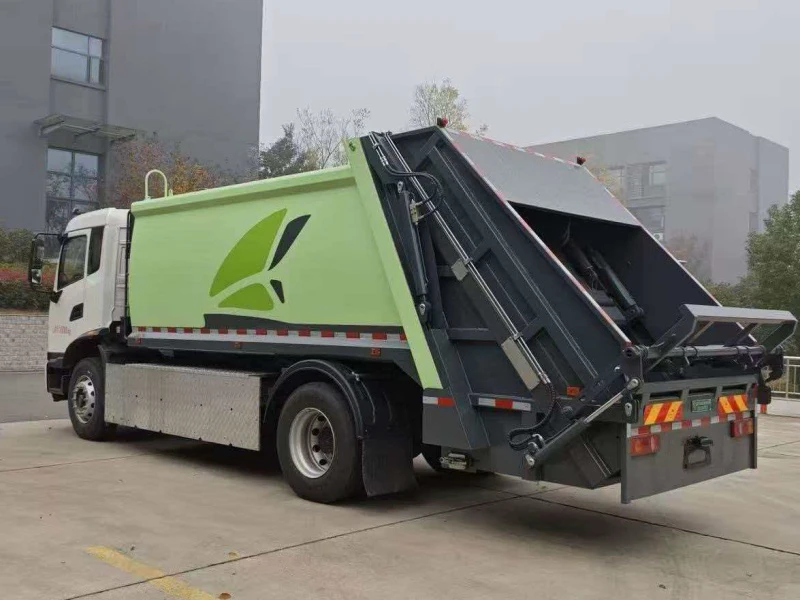

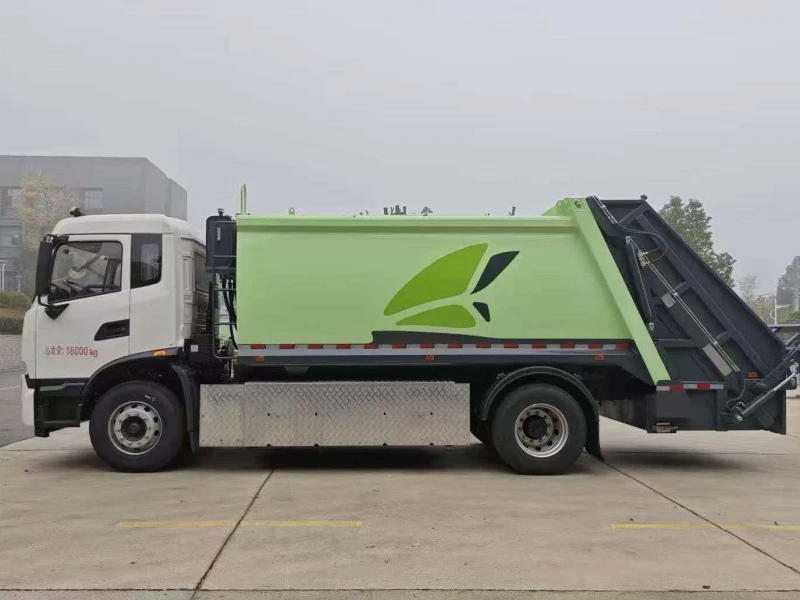

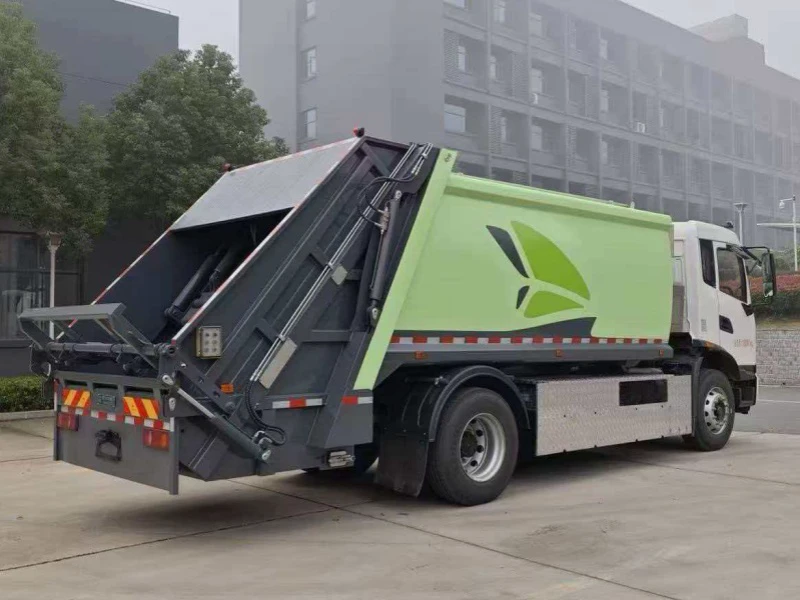

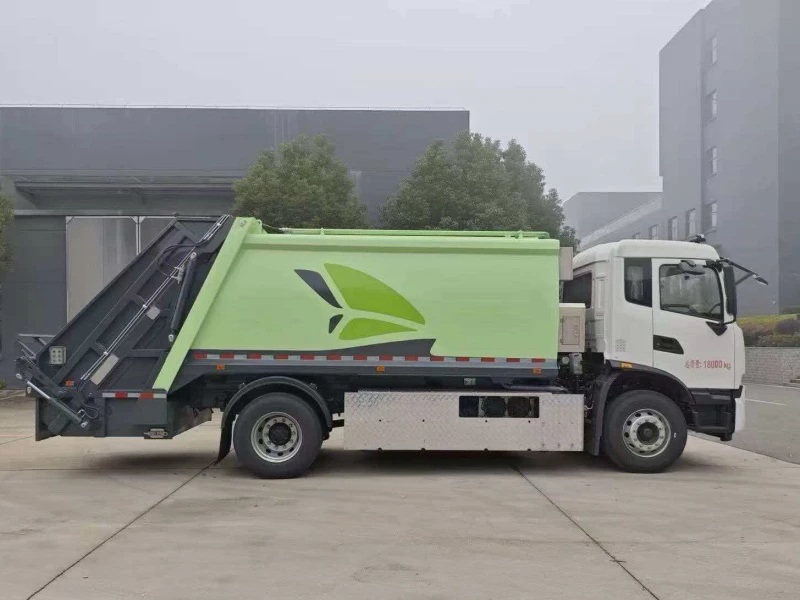

18-Ton Dongfeng 4×2 Electric Compactor Garbage Truck – 232kWh High-Capacity Sanitation Solution

I. Product Introduction

The 18-Ton Dongfeng 4×2 Electric Compactor Garbage Truck is a high-performance, zero-emission waste management vehicle designed for efficient municipal solid waste collection, compaction, and transport. Built on the reliable Dongfeng Tianjin 4×2 pure electric chassis (DFH1180EEV19) with a 4500mm wheelbase, this Dongfeng electric compactor garbage truck is powered by a 232kWh CATL lithium iron phosphate (LFP) battery and features a 16 cubic meter Q345 high-strength manganese steel compactor body. With a total mass of 18,000 kg and a 280 km fully loaded range, this electric sanitation vehicle delivers exceptional performance for urban waste collection operations with zero tailpipe emissions and significantly reduced operating costs. As a product of Chengli Group (CLW) —a leading specialized vehicle manufacturer in China—this truck combines advanced electric drivetrain technology with robust compaction capabilities and comprehensive waste handling functions.

II. Core Specifications

III. Chassis & Powertrain

Dongfeng Tianjin 4×2 Pure Electric Chassis (DFH1180EEV19)

The Dongfeng electric compactor garbage truck is built on the DFH1180EEV19 dedicated pure electric chassis platform:

• 4×2 Drive Configuration: Optimized maneuverability and stability for urban waste collection routes

• 4500mm Wheelbase: Provides stable support for the 16 m³ compactor body

• 6500kg Front Axle / 11500kg Rear Axle: Heavy-duty construction for demanding sanitation applications

• 8/10+8 Leaf Spring Suspension: Superior load capacity and ride stability

• 295/80R22.5 Tires: Heavy-duty tires for excellent load capacity and durability

Third-Generation Battery System

The vehicle is equipped with a third-generation battery system featuring a 232kWh CATL LFP battery – the industry benchmark for commercial electric vehicles:

• High Energy Density: Extended range for full-day urban waste collection operations

• Long Cycle Life: 8-year/800,000 km warranty on the three-electric system

• Thermal Stability: LFP chemistry provides excellent safety and durability in demanding conditions

• Fast Charging: Approximately 1.5 hours for full charge – minimizes downtime between shifts

High-Performance Drive Motor

The permanent magnet synchronous motor delivers 310 kW peak power (156 kW rated):

• High Efficiency: Superior power delivery with reduced energy losses compared to induction motors

• Strong Low-End Torque: Ideal for stop-and-go urban waste collection routes

• Low Noise Operation: Reduced noise pollution for early-morning and nighttime sanitation operations

• Proven Reliability: Based on the established PMSM technology widely used in commercial EVs

IV. Compactor System & Performance

16m³ Q345 Manganese Steel Compactor Body

The compactor body is constructed from Q345 high-strength manganese steel:

• Arc-Shaped Design: Increases effective volume while enhancing vehicle aesthetics

• High-Strength Construction: Superior wear resistance and impact strength for demanding waste compaction operations

• Corrosion-Resistant: Designed for long-term durability in harsh waste management environments

• Full Sealing: Prevents liquid leakage and secondary pollution during transport

Compaction System

• Compactor Motor: 40 kW dedicated motor – provides powerful and efficient compaction force

• Energy Consumption: Approximately 30 kWh/hour – optimized for cost-effective operation

• Hydraulic System: Premium components including Haipu Ruisi hydraulic cylinders and multi-way valves, Wanlun gear pumps, and Nippon Valqua seals

• Compaction Valve: Standard compaction valve effectively increases waste density and loading capacity

• Loading Capacity: Equivalent to 2.5 times the volume of non-compacted waste compared to same-tonnage trucks

CAN-Bus Control System

The vehicle features an advanced CAN-Bus control system:

• Fewer Wiring Connections: Reduced electrical complexity and failure points

• Automatic Fault Code Display: Simplifies maintenance and repair

• Dual Control Modes: Both computer-controlled and manual operation ensure high vehicle utilization

• Automated Operation: Photoelectric switch plus time dual-system control for intelligent operation

V. Loading & Unloading Systems

Flipping Mechanism

• Standard Configuration: 120L/240L standard bin flipper (or triangular hopper)

• Optional Configurations: Large drop hopper, swing arm hopper (available upon request)

• Dual Loading Options: Supports both bin lifting and manual loading

Automated Operation

• One-Button Unloading: Simplifies discharge operations

• Wireless Remote Control: Allows single-operator control for all filling and unloading operations

• Two Operation Modes: Fully automatic and semi-automatic modes available

• Reduced Labor Intensity: Significantly improves working conditions and reduces physical demands on workers

Tailgate Wastewater Collection

• Integrated Wastewater Tank: Collects all liquid during the compaction process

• Environmental Protection: Completely solves the problem of secondary pollution during waste transport

VI. Key Advantages

1. Third-Generation Battery Technology

The third-generation battery electric vehicle features the latest battery technology with 232kWh capacity, providing 280 km fully loaded range – sufficient for full-day urban waste collection operations with zero emissions.

2. High-Performance Compaction

The 16m³ Q345 manganese steel compactor body with arc-shaped design provides:

• Large Volume: Industry-leading capacity for 18-ton electric compactor trucks

• High Compaction Density: Compaction valve effectively increases waste density and loading capacity

• Superior Durability: Q345 high-strength steel with anti-corrosion treatment ensures long service life

3. Advanced Hydraulic System

Premium hydraulic components from Haipu Ruisi and Wanlun ensure:

• Reliable Operation: Lower failure rate compared to conventional systems

• Extended Component Life: High-quality oil seals and filtration system

• Temperature Management: Increased oil tank capacity prevents hydraulic oil overheating

4. Automated & Intelligent Operation

The CAN-Bus control system enables:

• User-Friendly Operation: One-button unloading and wireless remote control

• Reduced Labor Costs: Single-operator capability for all operations

• Easy Maintenance: Automatic fault code display simplifies diagnostics

5. Direct Power Take-Off

• Dedicated Vehicle Matching: Optimized integration for perfect performance

• Fewer Operational Steps: Simplified operation compared to diesel vehicles

• Lower Failure Rate: Reduced complexity for increased reliability

6. Environmental Benefits

• Zero Tailpipe Emissions: Clean operation for urban low-emission zones

• Reduced Noise Pollution: Quiet operation for early-morning routes

• Lower Carbon Footprint: Sustainable solution for modern urban sanitation

VII. Applications

The 18-Ton Dongfeng 4×2 Electric Compactor Garbage Truck is specifically designed for:

• Municipal Solid Waste Collection: Residential and commercial waste collection in urban and suburban areas

• City Main Roads & Highways: Sanitation operations on major urban thoroughfares

• Residential Communities: Waste collection in housing estates and gated communities

• Industrial Facilities: Factory and industrial park waste management

• Waste Transfer Centers: Bulk waste transport to processing and disposal facilities

VIII. CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) is a leading manufacturer of specialized vehicles in China, with a strong reputation in the compactor garbage truck and electric sanitation vehicle segments.

• Industry Leader: CLW Group holds designations from the China Ministry of Industry and Information Technology for specialized vehicle manufacturing and has extensive experience in waste management equipment production.

• Third-Generation Battery Technology: CLW Group integrates the latest third-generation battery electric vehicle technology, ensuring optimal performance and reliability.

• Dongfeng Partnership: CLW Group combines its advanced compactor systems with Dongfeng's proven 4×2 pure electric chassis platform, ensuring seamless integration and superior performance.

• Global Presence: Since 2004, CLW (Chengli) vehicles have been exported worldwide, building a reputation for quality and reliable after-sales service.

• Integrated Manufacturing: As a core enterprise of CLW Group, the company operates a complete production chain from chassis integration to body fabrication, ensuring quality control and cost efficiency.

• Quality Assurance: Strict quality control at every stage, from material selection to final assembly, including compactor body pressure testing and hydraulic system calibration.

• After-Sales Support: Comprehensive after-sales service, including spare parts availability and technical support.
