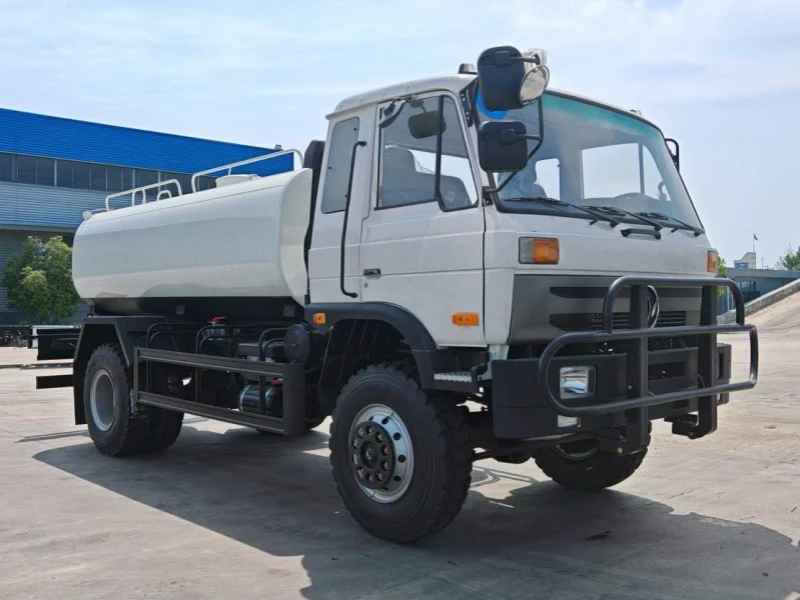

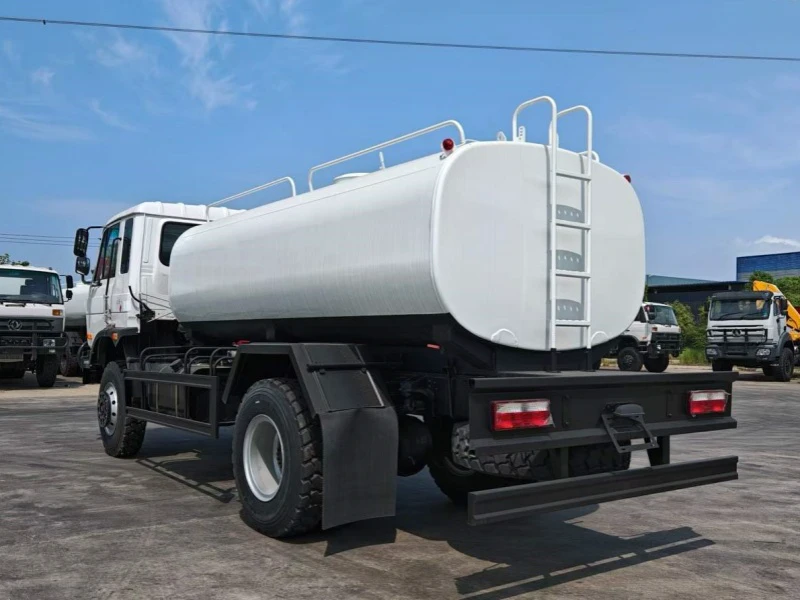

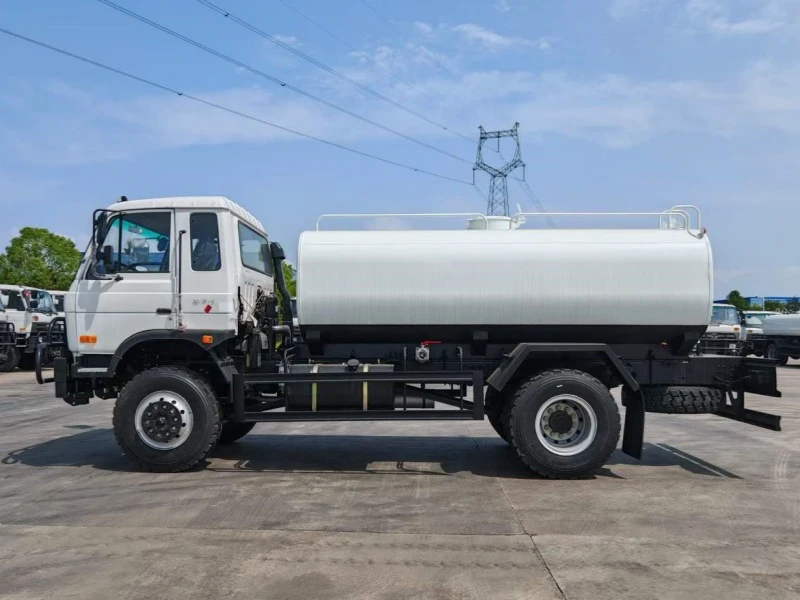

Dongfeng 4×4 Water Tanker Truck – 8m³ Off-Road Water Transport Vehicle
I. Product Introduction
The Dongfeng 4×4 Water Tanker Truck is a rugged off-road water transport vehicle designed for water supply, dust suppression, and irrigation applications in construction sites, mining operations, and remote areas. Built on a reliable Dongfeng 4×4 all-wheel-drive chassis with a 3950mm wheelbase, this water tanker truck is powered by a Dongfeng Cummins B170 33 engine delivering 170 HP, paired with a Fast 8-speed transmission and 11.00R20 heavy-duty tires. Featuring an 8 cubic meter (8,000 liter) water tank with an integrated electrophoretic coating (E-coat) process, this 4×4 water truck offers exceptional corrosion resistance and durability for demanding water transport operations.
II. Key Specifications
Parameter | Specification |
|---|---|
Drive Type | 4×4 (All-Wheel Drive, Left Hand Drive) |
Wheelbase | 3950 mm |
Engine Model | Dongfeng Cummins B170 33 |
Engine Power | 125 kW / 170 HP |
Engine Torque | 560 N·m |
Engine Displacement | 5.9 L |
Transmission | Fast "Xiaobadang" 8-speed manual |
Tires | 11.00R20 (6+1 pcs) |
Water Tank Capacity | 8 m³ (8,000 liters) |
Tank Process | Full electrophoretic coating (E-coat) |
III. Chassis & Powertrain
4×4 All-Wheel Drive
The Dongfeng 4×4 water tanker features a rugged all-wheel-drive system that delivers power to all four wheels, providing exceptional traction on mud, sand, snow, steep slopes, and unpaved roads. This off-road water truck is specifically engineered for construction sites, mining operations, and remote areas where standard 4×2 trucks cannot operate.
Dongfeng Cummins B170 33 Engine
The 5.9L diesel engine delivers 170 HP and 560 N·m of torque, providing ample low-end power for heavy loads and challenging terrain. This engine is known for its reliability, fuel efficiency, and easy serviceability in demanding environments.
Fast 8-Speed Transmission
The Fast "Xiaobadang" 8-speed manual transmission offers a wide gear ratio range for smooth starts under full load and fuel-efficient cruising on highways.
IV. Water Tank & Coating Technology
8,000 Liter Water Tank
The 8m³ water tank is designed for efficient water transport and distribution:
Capacity: 8,000 liters (8 m³) – sufficient for construction site dust suppression, vegetation irrigation, and emergency water supply
Material: High-quality carbon steel for durability and impact resistance
Full Electrophoretic Coating (E-coat)
The entire tank undergoes comprehensive electrophoretic coating (E-coat) treatment, a premium anti-corrosion process that provides:
Superior Corrosion Resistance: Uniform coating coverage reaches all internal and external surfaces, including hard-to-reach areas
Extended Service Life: Significantly extends the service life of the water tank in corrosive environments
Enhanced Durability: Electrophoretic coating offers excellent resistance to rust, chemicals, and environmental corrosion
Better Appearance: Provides a smooth, uniform finish that maintains its appearance over time
V. Applications
The Dongfeng 4×4 water tanker truck is specifically designed for:
Construction Site Dust Suppression: Spraying water to control dust at construction and demolition sites
Mining Operations: Water supply for dust control and equipment cooling in mining areas
Agricultural Irrigation: Water transport for crop irrigation in remote or off-grid areas
Forestry Fire Prevention: Emergency water supply for forest fire prevention and suppression
Remote Area Water Supply: Transporting drinking water to communities and facilities without permanent water infrastructure
Road Construction: Water supply for road building and maintenance projects
VI. Key Advantages
1. 4×4 Off-Road Capability
The all-wheel-drive system provides superior traction on challenging terrain, ensuring the vehicle can reach remote job sites and operate in adverse weather conditions.
2. Large 8,000L Water Capacity
The 8m³ tank provides substantial water storage capacity, reducing the frequency of refilling trips and improving operational efficiency.
3. Premium E-coat Corrosion Protection
The full electrophoretic coating process ensures the water tank remains corrosion-free even in harsh environments and with frequent water contact, significantly extending the vehicle's service life.
4. Proven Powertrain
The Cummins 170 HP engine and Fast 8-speed transmission deliver reliable power and fuel efficiency for demanding water transport operations.
5. Heavy-Duty Construction
The 11.00R20 tires, reinforced suspension, and 4×4 drivetrain ensure exceptional durability and reliability in severe operating conditions.
VII. Manufacturer Advantages
Dongfeng is a leading commercial vehicle manufacturer in China, with decades of experience in off-road and heavy-duty truck production. CLW Group (CLW Special Purpose Vehicle Co., Ltd.) integrates specialized water tank configurations with Dongfeng's proven off-road platforms.
Proven Platform: The Dongfeng 4×4 chassis is a well-established off-road platform with strong reliability in real-world operations.
Premium Coating Process: CLW Group employs advanced electrophoretic coating technology for superior corrosion protection of water tanks.
Quality Assurance: Strict quality control throughout the manufacturing and assembly process, including tank pressure testing and coating inspection.
After-Sales Support: Comprehensive service network for fleet maintenance and parts availability.
