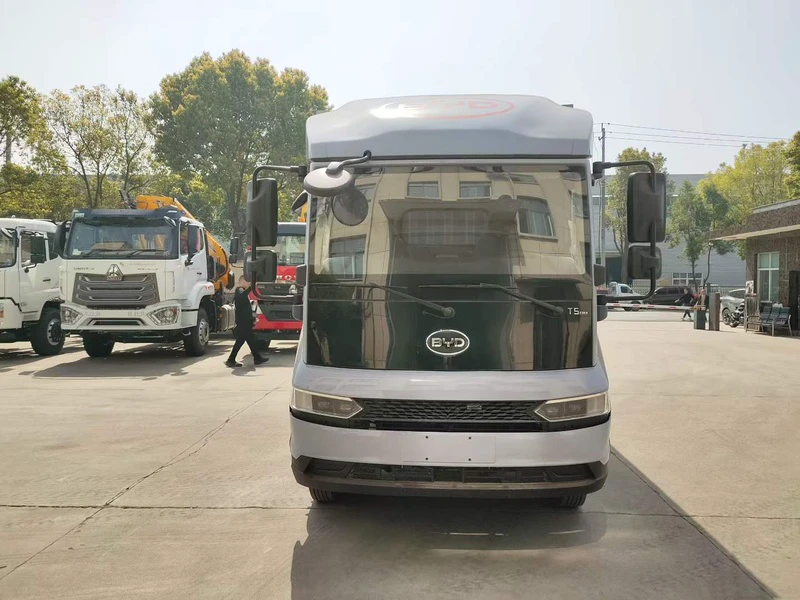

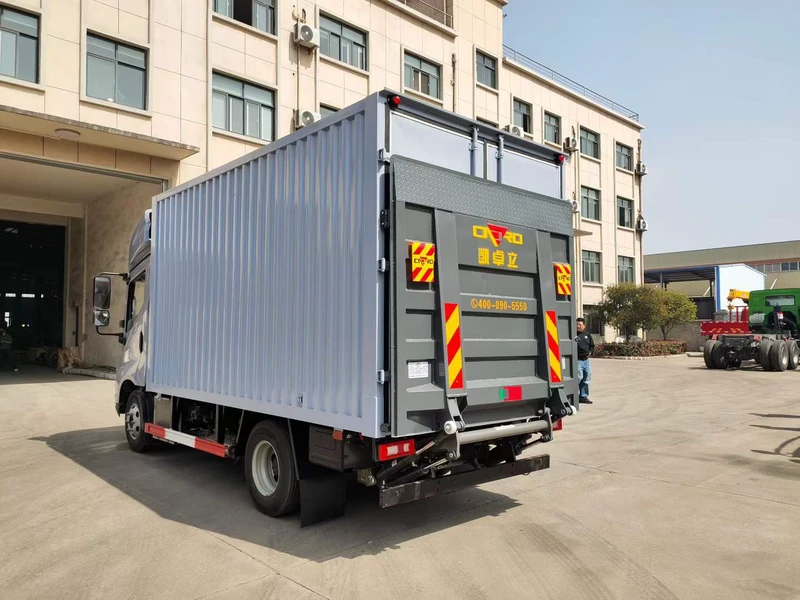

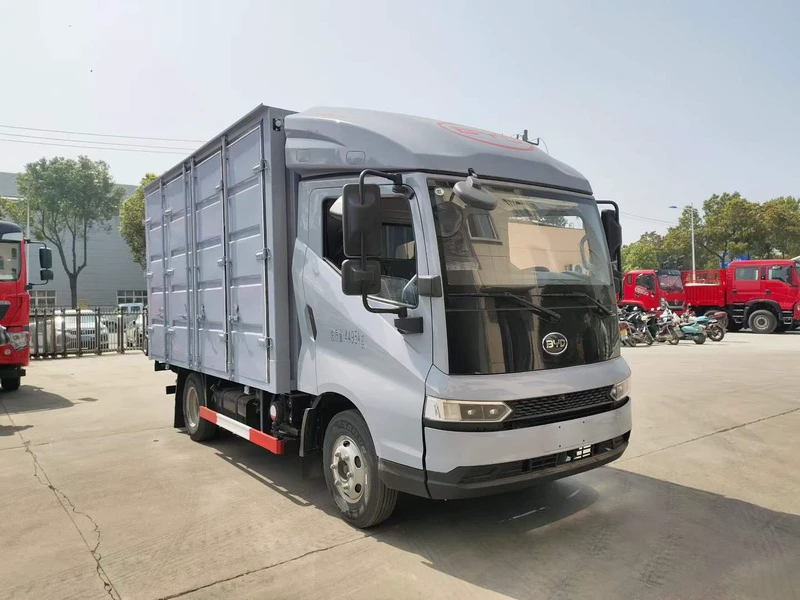

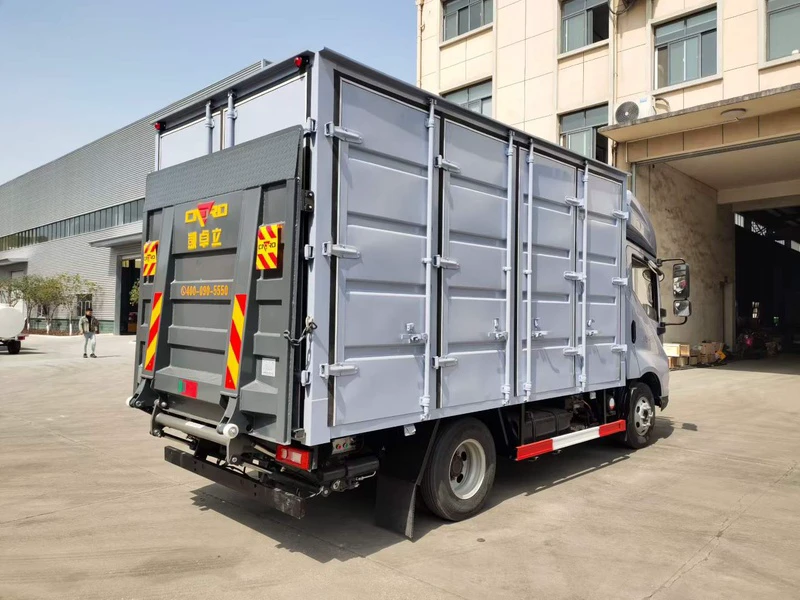

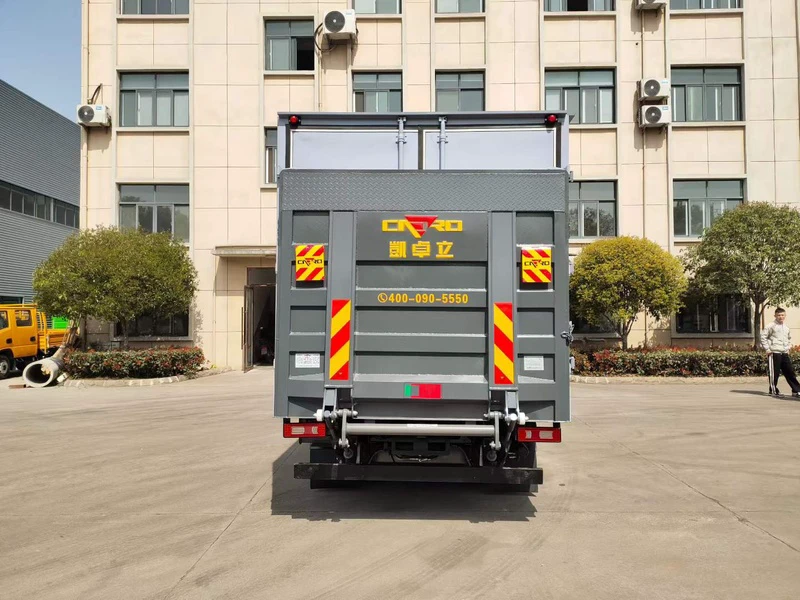

BYD T5 All‑Electric Box Truck – 4‑Meter Cargo Box
I. Product Introduction
The BYD T5 All‑Electric Box Truck sets a new benchmark for sustainable urban logistics, combining zero‑emission mobility with the rugged durability required for frequent stop‑and‑go delivery routes. As a leading model in the new energy light truck category, this vehicle is engineered for global markets, delivering consistent performance under full load while reducing operational costs. Built on BYD’s advanced electric chassis and paired with a purpose‑built cargo body from CLW Group, this export‑ready truck is designed for rapid deployment in diverse logistics environments, from city centers to suburban distribution networks.
II. Core Parameters
Built around a high‑efficiency pure electric powertrain, the BYD T5 delivers reliable power and low total cost of ownership.
Motor: Permanent magnet synchronous motor with peak power of 150 kW (approx. 201 hp) , offering strong low‑end torque for urban stop‑and‑go driving.
Gross Vehicle Weight (GVWR): 4,495 kg, providing substantial load‑carrying capacity for commercial freight.
Battery: BYD Blade Battery (Lithium Iron Phosphate), available from 82 kWh to 94.3 kWh, known for thermal stability and extended cycle life.
Driving Range: Over 275 km (approx. 171 miles) per charge, supporting full‑day delivery schedules.
Cargo Volume: The cargo box provides 18.48 m³ (approx. 653 cubic feet) of usable space, optimized for palletized goods and mixed freight.
Wheelbase: 3,360 mm, balancing highway stability with city maneuverability.
Acceleration: 0–50 km/h in 5.5 seconds under full load, ensuring responsive performance in traffic.
III. Exterior Dimensions, Cargo Box Specifications, Material, and Design Philosophy
The vehicle combines a compact urban footprint with a spacious cargo area, built for durability and thermal efficiency.
Overall Dimensions (L×W×H): 5,995 mm × 2,160 mm × 3,150 mm — designed to fit standard parking and loading bay dimensions.
Cargo Box Interior (L×W×H): 4,000 mm × 2,100 mm × 2,200 mm — a 4‑meter‑long box ideal for European and Asian logistics standards.
Material & Insulation: The cargo body uses a sandwich composite panel construction with fiberglass inner and outer skins, offering high impact resistance and low thermal conductivity. An 80 mm (approx. 3.1 in) insulation layer helps maintain stable interior temperatures, while the floor is reinforced with a checkered aluminum plate for wear resistance and slip protection.
Design Philosophy: The cab features a wide‑body single‑row layout with a focus on driver ergonomics. A full LCD instrument cluster, rotary gear selector, and one‑key start reduce driver fatigue, while the streamlined exterior enhances aerodynamic efficiency to extend real‑world range.
IV. Structural Advantages: Powertrain, Transmission, and Chassis
The BYD T5 is built on a robust chassis architecture designed for heavy‑duty commercial use.
Powertrain & Motor Layout: The rear‑mounted permanent magnet motor improves traction when loaded and frees up chassis space for a lower center of gravity. The integrated electric drive axle combines motor, axle, and differential into a compact unit, reducing weight and improving energy transfer.
Transmission System: A single‑speed automatic transmission (E‑CVT) delivers seamless power delivery with fewer moving parts, lowering maintenance requirements compared to conventional transmissions.
Front & Rear Axle: The chassis adopts a body‑on‑frame structure with integral axles and multi‑leaf spring suspensions, specifically tuned to maintain stability under high payloads and on uneven surfaces. This setup enhances chassis durability for long‑term fleet use.
Braking & Control: Equipped with front and rear drum brakes, electronic parking brake (EPB) , and electronic stability control (ESC) , the system ensures reliable stopping performance even when fully loaded.
V. Product Features and CLW Group Manufacturer Advantages
This export model represents the synergy between BYD’s electric technology and CLW Group’s expertise in specialized vehicle manufacturing.
Smart & Convenience Features: The cab includes automatic climate control, power windows, central locking, a multi‑function steering wheel, and automatic LED headlights. OTA update capability allows for continuous software improvements. An optional 10.1‑inch touchscreen with DiLink intelligent networking supports remote vehicle diagnostics, remote A/C activation, and GPS fleet tracking.
Safety Systems: Standard active safety features include ABS, hill‑hold control, cruise control, and a reverse camera or radar. The high‑strength cab structure and battery protection frame provide robust passive safety.
CLW Group Strengths: As a leading Chinese manufacturer of specialized commercial vehicles, CLW Group brings decades of production experience and 5G‑enabled smart manufacturing to ensure precision welding, painting, and assembly. With exports to 112 countries and regions and KD (knocked‑down) assembly facilities in markets such as Kazakhstan and Malaysia, CLW Group offers localized support and parts availability. The company’s commitment to green supply chain management ensures that every BYD T5 meets international standards for durability, safety, and environmental compliance.
