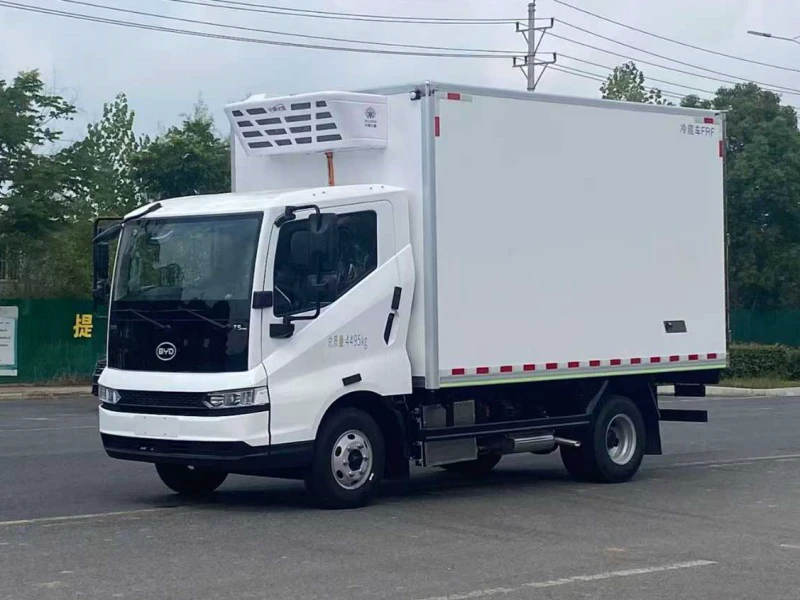

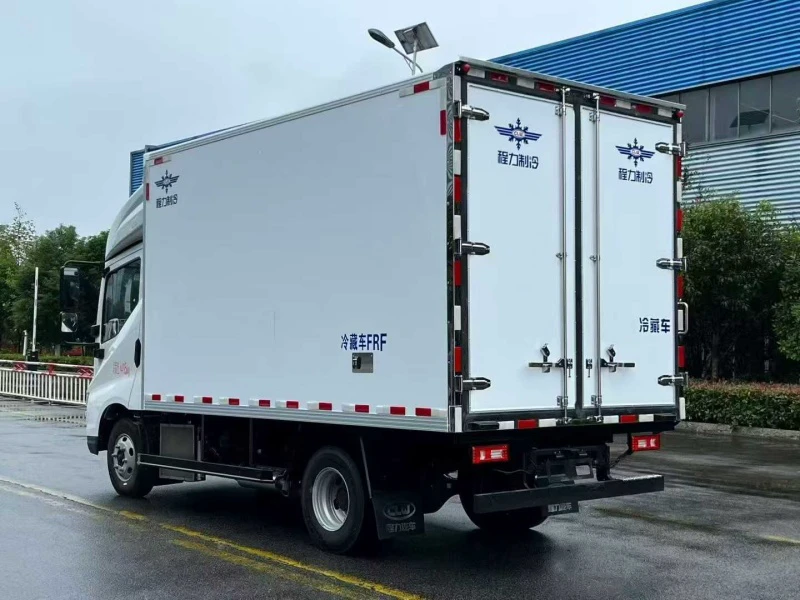

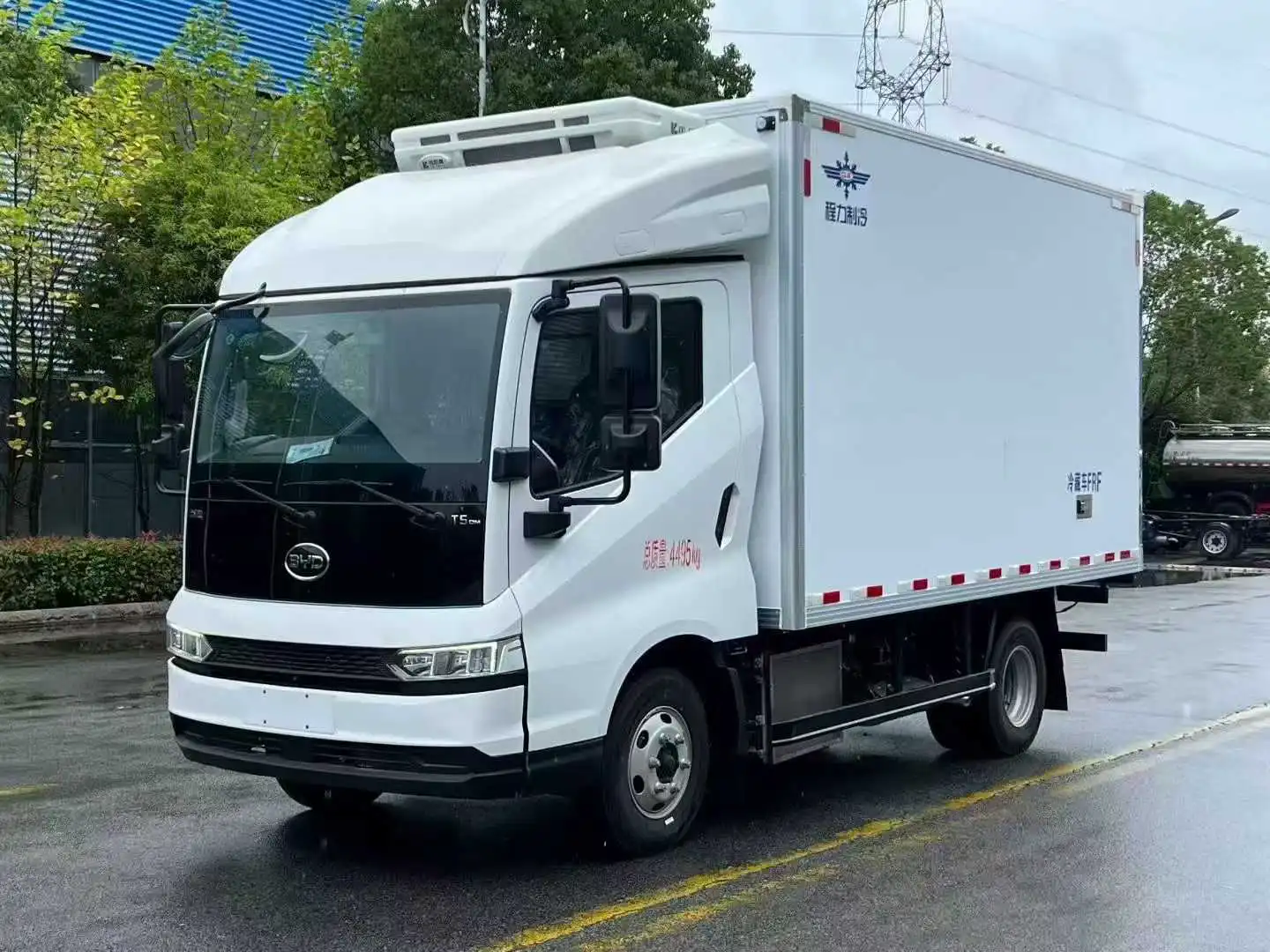

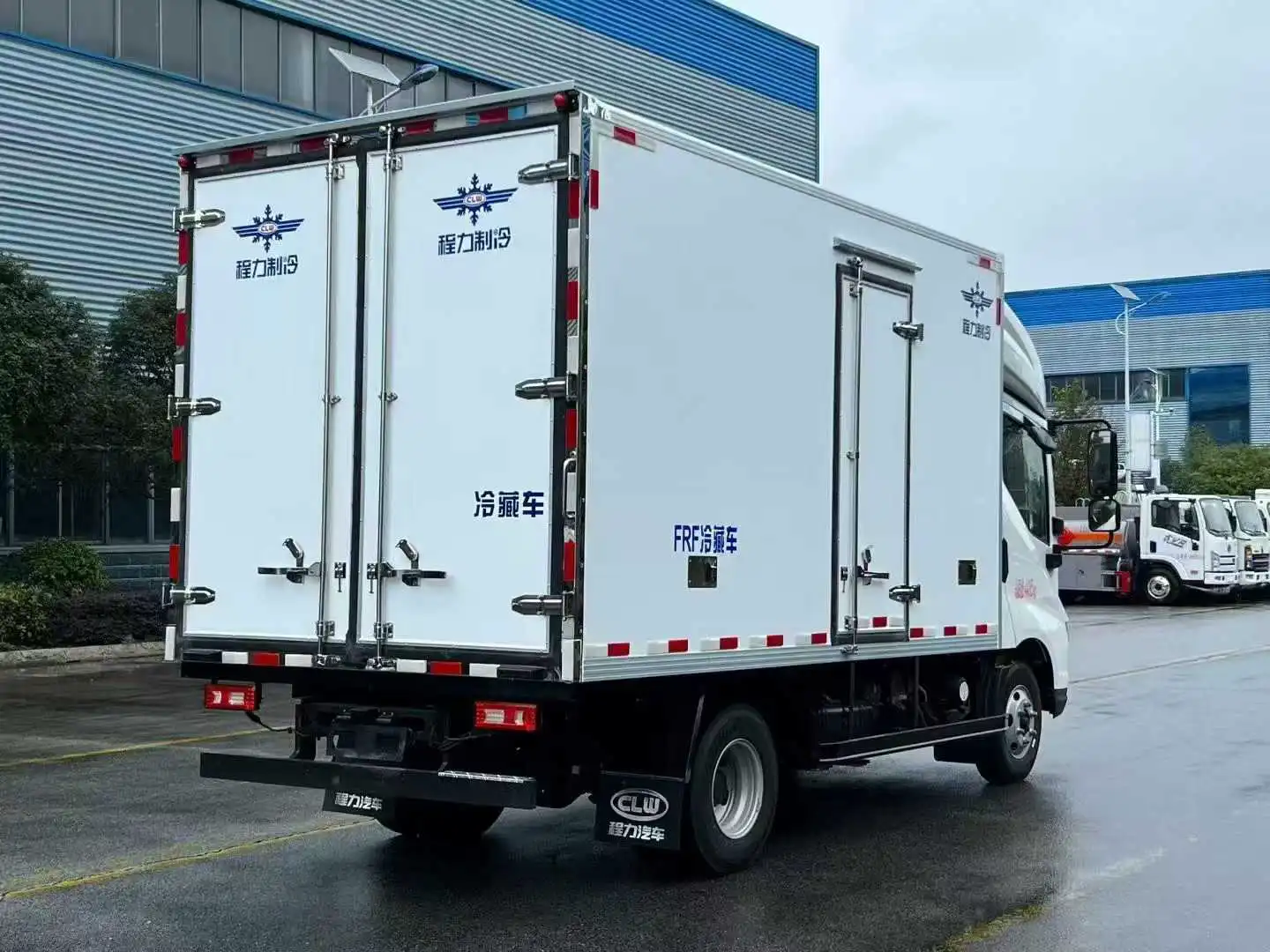

BYD T5DM Hybrid Refrigerated Truck – Intelligent Cold Chain Solution for Modern Logistics
1. Product Overview – Advanced Hybrid Refrigeration Vehicle
The BYD T5DM hybrid refrigerated truck integrates next-generation range-extender technology with professional cold chain logistics capabilities. Designed for temperature-controlled transport applications, this innovative commercial vehicle serves perishable goods distribution, pharmaceutical supply chain operations, and frozen food delivery networks, offering environmentally friendly urban delivery with extended-range hybrid operation for regional distribution routes.
2. Key Specifications – Hybrid Performance & Load Capacity
Powertrain Configuration: Gasoline range-extender electric vehicle (REEV) system
Battery Technology: Revolutionary BYD Blade Battery (18.3 kWh capacity, 168.64 wh/kg energy density)
Operational Range Capability: >50 km pure electric driving range, >500 km total hybrid range
Vehicle Weight Specifications: Gross vehicle weight rating 4495 kg, Curb weight 3440 kg
Chassis Dimensions: 3360 mm extended wheelbase for enhanced load stability
3. Dimensions & Body Construction – Professional Refrigerated Transport Unit
Complete Vehicle Dimensions: 5998 × 2260 × 3380 mm
Cargo Space Specifications: 4000 × 2100 × 2200 mm temperature-controlled storage compartment
Body Structural Design: Advanced steel-wood composite construction with thermal bridge isolation technology
Insulation System: 8 cm XPS extruded polystyrene insulation with fiberglass reinforced panels
Interior Floor Design: Durable plastic steel flooring with 15 cm protective side skirts and integrated drainage channels
4. Structural Advantages – Integrated Hybrid Powertrain System
Electric Drive Performance: 150 kW high-efficiency permanent magnet motor (340 Nm maximum torque) with rapid 5.5-second acceleration (0-50 km/h)
Hybrid Power Generation: Dedicated 1.5T hybrid engine achieving industry-leading 41% thermal efficiency rating
Drive System Engineering: Innovative integrated rear axle design for optimized power transmission efficiency
Braking System Technology: Advanced BSC hydraulic brake system with dramatically improved response time
Performance Characteristics: ≥100 km/h maximum road speed with exceptional energy efficiency metrics
5. Features & Manufacturer Value – Complete Cold Chain Solution
Refrigeration System: Standard Chengli 690EV refrigeration unit with precise digital temperature management
Smart Vehicle Connectivity: Comprehensive DiLink intelligent system featuring real-time remote monitoring, advanced GPS navigation, over-the-air software updates, and natural voice control
Safety Technology Package: Electronic stability control (ESC), anti-lock braking system (ABS), hill start assist (HHC), electronic parking brake (EPB)

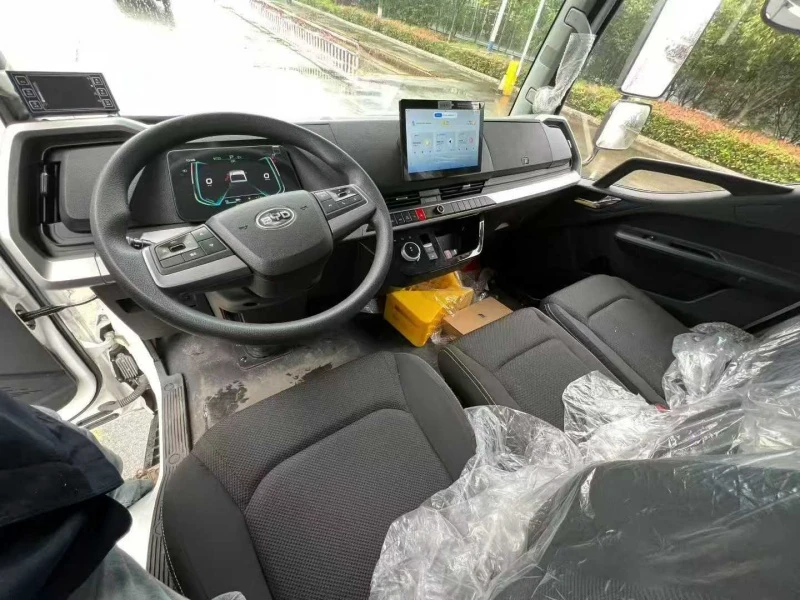

Driver Cabin Features: Spacious wide-body single cab with flat-floor configuration, 10.1-inch multimedia touchscreen, automatic climate control system
Customization & Accessories: Adjustable rail systems, mobile meat hook frames, specialized ventilation channels, stainless steel interior lining, thermal partition panels
Insurance & Financial Services: BYD insurance program currently operational in eight provinces with ongoing national expansion
Comprehensive Warranty Coverage:
Battery system: 6 years/300,000 km extended warranty
Electric drive components: 5 years/250,000 km protection plan
Vehicle chassis: 3 years/100,000 km standard warranty
