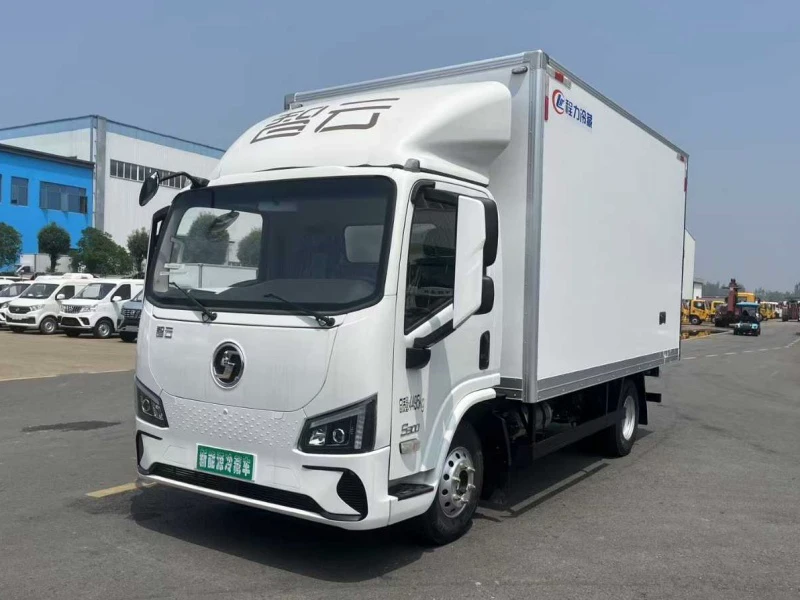

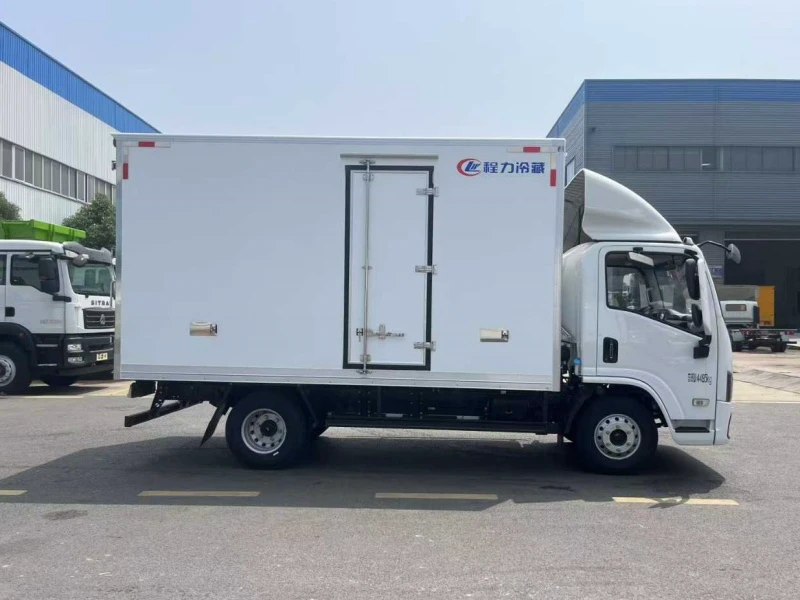

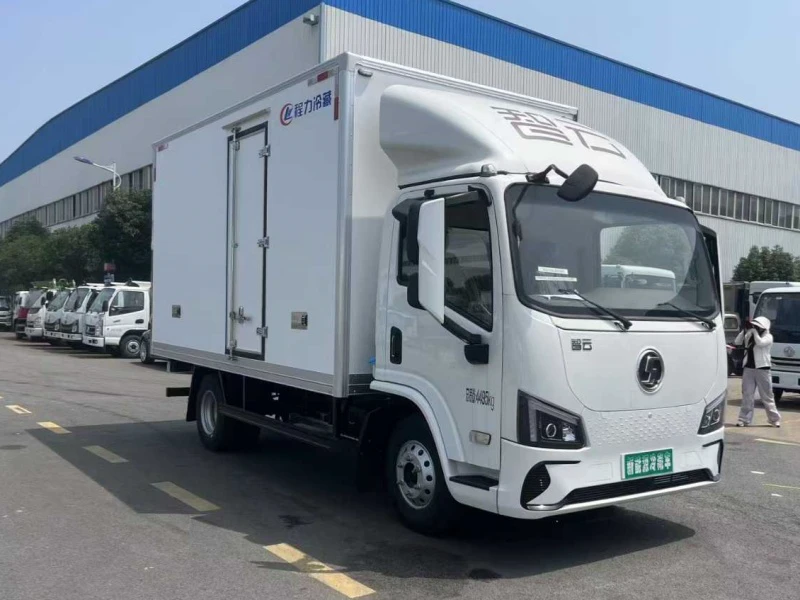

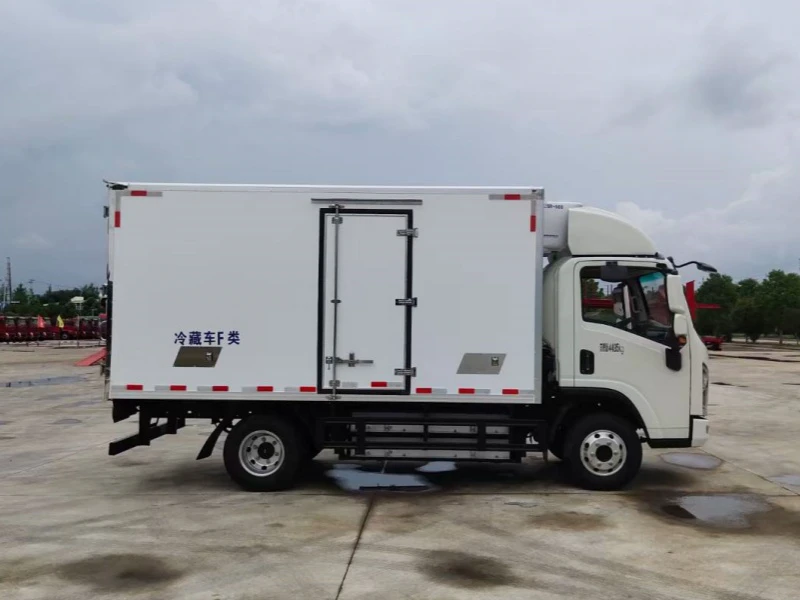

Product Introduction: Shacman Zhiyun S300 Pure Electric Refrigerator Truck | Shacman 4m Electric Refrigerator Truck with 100.46kWh Battery and 280km Range

I. Product Overview

The Shacman Zhiyun S300 Pure Electric Refrigerator Truck (Model: SX5045XLCBEV341N1) represents the pinnacle of versatility and performance in electric cold chain logistics. Available in three battery capacity options—100.46 kWh, 120 kWh, and 140 kWh—this zero-emission electric refrigerated truck allows operators to select the ideal range configuration for their specific delivery routes. Designed for urban and regional temperature-controlled distribution, this new energy refrigerated truck features a spacious 2020 mm wide cab, advanced thermal management, and durable construction. As part of the Chengli special vehicle series, this electric refrigerator truck combines CATL battery technology with Hande maintenance-free electric drive axle and comprehensive smart features, making it ideal for cold chain logistics, food distribution, pharmaceutical transport, and low-emission zone delivery operations requiring flexible range options for sustainable cold chain and green logistics initiatives.

II. Core Parameters

• Chassis Model: SX5045XLCBEV341N1 (Shacman Zhiyun S300 Electric Chassis)

• Overall Dimensions: 5,995 mm × 2,260 mm × 3,250 mm / 3,350 mm (Approx. 19.7ft × 7.4ft × 10.7ft / 11.0ft)

• Cargo Box Internal Dimensions: 4,080 mm × 2,100 mm × 2,100 mm (Approx. 13.4ft × 6.9ft × 6.9ft)

• Internal Volume: Approx. 18.0 m³ (636 cubic feet)

• Gross Vehicle Weight: 4,495 kg

• Curb Weight: 3,250 kg

• Chassis Weight: 2,550 kg

• Wheelbase: 3,360 mm (Approx. 132.3 inches)

Battery Options:

• Battery Brand: CATL (Contemporary Amperex Technology Co., Limited)

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

Powertrain & Chassis:

• Drive Motor: Huichuan TZ220XS-HD002

• Power / Horsepower: 120 kW / 163 HP

• Front Axle: 2.2T

• Rear Axle: 3.5T Hande maintenance-free electric drive axle

• Suspension: Leaf springs - 3/5+2

• Service Brake: Air brake

• Frame: Single-layer frame, 180/4.5 mm (Approx. 7.1/0.18 inches)

• Tires: 7.00R16LT 8PR liquid gold tires

Cab Features:

• Cab Model: S300 single row

• Cab Width: 2,020 mm (Approx. 79.5 inches) super-wide cab

• Internal Cab Width: 1,800 mm (Approx. 70.9 inches)

• Seats: Fixed two-tone seats with armrests

• Storage: Overhead storage compartment

• Sun Visors: Driver and passenger side sun visors

• Steering Wheel: Multi-function with cruise control

• Reverse Camera: Standard

• Climate Control: Automatic constant temperature air conditioning

• Gear Shift: Rotary knob shifter

• Mirrors: Integrated electric heated mirrors

• Windows: Electric windows

• Seat Belt Alarm: Driver side with lock alert

• Central Locking: One central key + two mechanical keys

• Headlights: Halogen front combination lights

• Instrument Cluster: Color combination LCD instrument

• Multimedia: 10-inch multimedia screen

• Roof Fairing: Standard

• Power Outlets: 24V power socket + USB fast charging port

• Front Under Mirror: Standard

• Remote Control: APP remote control (door, window, AC control, remote flash/horn vehicle locating)

Electrical & Control Systems:

• Controller: Integrated controller with upper body power take-off port

• Steering: EPS electric power steering

• Horn: Electric horn

• ABS: Domestic four-channel ABS

• Brake System: Dual-circuit pneumatic brake

• Batteries: 60Ah maintenance-free dual batteries

• Brake Adjustment: Automatic brake gap adjuster

• Wheels: Steel wheels

• Rear Protection: Steel rear underrun protection

• Air Tanks: Aluminum alloy air tanks

• Spare Tire: Spare tire bracket + hoist (spare tire not included)

Warranty Periods:

• Battery: 8 years / 600,000 km

• Motor & Controller: 6 years / 300,000 km

• Rear Axle: 6 years / 300,000 km with long oil change interval

III. Dimensions, Materials & Design Concept

• Three Battery Options: The Shacman Zhiyun S300 offers unprecedented flexibility with 100.46 kWh, 120 kWh, and 140 kWh battery configurations, allowing operators to select the optimal balance of range and payload for their specific routes. The 100.46 kWh option features natural cooling for lighter duty cycles in urban delivery applications, while the 120 kWh and 140 kWh options utilize liquid cooling for enhanced thermal management during extended operation and fast charging for regional logistics requirements.

• Cargo Box Dimensions: The spacious 4,080 mm (13.4 ft) cargo box length with 2,100 mm width and height provides approximately 18.0 m³ (636 ft³) of temperature-controlled space, accommodating standard pallets for efficient loading and maximizing delivery capacity per route for temperature-sensitive cargo.

• Material Quality: The refrigerated body construction utilizes high-quality materials with appropriate thickness for thermal efficiency and durability. The frame features single-layer construction with 180/4.5 mm dimensions (approx. 7.1/0.18 inches thickness), optimized for the 4,495 kg GVW rating and meeting national vehicle standards for structural integrity.

• Design Philosophy: The vehicle embodies a "Flexible Range, Maximum Efficiency, Driver Comfort" design concept. The three battery options provide operational flexibility for diverse route requirements, from short urban trips to extended regional deliveries. The super-wide 2,020 mm cab with automatic climate control, multi-function steering wheel, and 10-inch multimedia screen ensures operator comfort during long shifts. APP remote control functionality enables fleet managers and drivers to precondition the cabin and monitor vehicle status remotely, supporting fleet management and smart city logistics integration.

IV. Detailed Structure & Component Advantages

• Electric Drive System: Powered by the Huichuan TZ220XS-HD002 permanent magnet synchronous motor delivering 120 kW (163 HP), providing excellent torque for fully loaded urban operation. The motor is matched with the 3.5T Hande maintenance-free electric drive axle, which eliminates regular axle maintenance and reduces operating costs. The integrated controller features an upper body power take-off port specifically designed for refrigeration unit installation, ensuring seamless integration with electric refrigerated body systems.

• Battery System: The CATL lithium iron phosphate batteries provide industry-leading energy density, safety, and cycle life. Three capacity options allow precise matching to operational requirements for sustainable cold chain operations:

  • 100.46 kWh: Natural/liquid cooling, ideal for urban routes up to 280 km with fast charging capability

  • 120 kWh: Liquid cooling for enhanced thermal management, range up to 330 km for extended urban routes

  • 140 kWh: Liquid cooling for maximum range up to 360 km, ideal for regional distribution and long-haul cold chain

  • All options feature 8-year/600,000 km battery warranty for long-term reliability

• Chassis & Suspension:

  • Frame: Single-layer frame with 180/4.5 mm construction optimized for 4,495 kg GVW and refrigerated body installation

  • Front Axle: 2.2T capacity for precise steering control in congested urban environments

  • Rear Axle: 3.5T Hande maintenance-free electric drive axle with long oil change interval (6 years/300,000 km) for reduced maintenance

  • Suspension: 3/5+2 leaf spring configuration provides excellent ride comfort and load stability for temperature-sensitive cargo protection

  • Tires: 7.00R16LT 8PR liquid gold tires offer low rolling resistance for energy efficiency and exceptional durability for commercial use

• Brake System: Dual-circuit pneumatic brake system with domestic four-channel ABS ensures reliable stopping power. Automatic brake gap adjusters reduce maintenance requirements and ensure consistent braking performance for heavy-duty urban delivery applications.

• EPS Electric Power Steering: Provides precise, responsive steering with variable assist based on vehicle speed, reducing driver fatigue during urban maneuvering and parking. This EPS steering technology enhances maneuverability in narrow city streets.

• Driver-Centric Cab Design:

  • Super-Wide Cab: 2,020 mm external width with 1,800 mm internal width provides exceptional space for operator comfort during long shifts

  • Fixed Two-Tone Seats: With armrests for reduced fatigue during multi-stop delivery routes

  • Multi-Function Steering Wheel: With cruise control for highway efficiency and driver convenience

  • Automatic Constant Temperature Air Conditioning: Maintains consistent cab temperature regardless of outside conditions

  • Rotary Knob Shifter: Modern, intuitive gear selection reducing driver learning curve

  • Integrated Electric Heated Mirrors: Ensure clear visibility in all weather conditions for safe operation

  • 10-Inch Multimedia Screen: With navigation, entertainment, and vehicle information functions

  • Color Combination LCD Instrument: Clear display of vehicle speed, battery charge, range, and system status

  • APP Remote Control: Remote door lock/unlock, window control, air conditioning preconditioning, and flash/horn vehicle locating for fleet management efficiency

• Electrical System: 24V power socket and USB fast charging port keep devices powered. 60Ah maintenance-free dual batteries ensure reliable starting and auxiliary power for refrigeration unit operation.

V. Product Features & Chengli Group Advantages

Product Features:

• Three Battery Options: 100.46 kWh (280 km range), 120 kWh (330 km range), and 140 kWh (360 km range) allow precise matching to operational requirements for flexible range solutions

• CATL Battery Technology: Industry-leading lithium iron phosphate batteries with 8-year/600,000 km warranty for long-term reliability and battery durability

• Maintenance-Free Drive Axle: 3.5T Hande electric drive axle with 6-year/300,000 km long oil change interval reduces operating costs

• Super-Wide Comfort Cab: 2,020 mm cab with automatic climate control, multi-function steering wheel, and 10-inch multimedia screen for driver comfort

• Smart Connectivity: APP remote control for doors, windows, air conditioning, and vehicle locating enabling smart fleet management

• EPS Electric Power Steering: Reduces driver fatigue and improves maneuverability in congested urban areas

• Comprehensive Safety: ABS, reverse camera, electric heated mirrors, and seat belt alarm for workplace safety

• Dual-Circuit Air Brakes: Reliable stopping power with automatic brake adjusters for brake reliability

• Liquid Gold Tires: 7.00R16LT 8PR tires for low rolling resistance, energy efficiency, and durability

• Integrated Controller: Built-in upper body power take-off port for refrigeration unit with seamless integration

• Extended Component Warranty: Comprehensive coverage including battery 8 years/600,000 km; motor/controller 6 years/300,000 km; rear axle 6 years/300,000 km

• Spacious Cargo Box: 4,080 mm length with 18.0 m³ volume for maximum payload capacity in temperature-controlled transport

• Versatile Applications: Suitable for frozen, chilled, and fresh products from -20°C to +20°C for diverse cold chain requirements

• Liquid Cooling Options: 120 kWh and 140 kWh batteries feature liquid cooling for enhanced thermal management during fast charging and extended operation

• Zero-Emission Operation: No tailpipe emissions, ideal for low-emission zones and urban environmental compliance

• Quiet Operation: Electric drive enables early morning and night-time deliveries in noise-sensitive areas

Chengli Group Advantages:

• Industry Leader: As a premier Chinese special vehicle manufacturer, Chengli combines decades of experience with advanced electric vehicle and refrigerated body technology, ranking among China's top specialized vehicle producers with over 50,000 vehicles operating worldwide

• Strategic Partnership: Collaboration with Shacman ensures quality electric chassis with Zhiyun S300 platform; partnership with CATL provides world-class battery systems with three capacity options; cooperation with Huichuan and Hande ensures premium powertrain components for reliable electric drivetrain

• Refrigeration Expertise: Chengli specializes in insulated and refrigerated body construction for all temperature ranges from -20°C to +20°C, with advanced thermal insulation technology

• Quality Manufacturing: ISO9001 certified production facilities with precise assembly, robotic welding, and 100-point quality control for manufacturing excellence

• Customization Capability: Offers tailored solutions for specific temperature requirements, cargo types, and operational needs including multi-temperature compartments and specialized refrigeration units

• Comprehensive Support: Extensive service network with 300+ stations provides 24-hour parts supply, prompt after-sales support, technical hotline, and operator training for genuine parts availability

• Export Experience: Successfully exported to Southeast Asia, Middle East, Africa, South America, and Eastern Europe; full compliance with international standards including EEC and GCC for global markets

• Certified Manufacturer: Holds ISO14001 environmental management certification and meets all national vehicle standards; all vehicles are fully compliant for export and domestic use with necessary certifications

• Proven Track Record: Thousands of Chengli refrigerated vehicles operating successfully in diverse climates worldwide, from tropical to temperate regions, with documented customer satisfaction

• Value Proposition: Competitive pricing (15-20% below comparable international brands), superior construction quality, comprehensive warranties, and long-term partnership potential delivering exceptional value proposition

• Complete Product Line: From 4m to 7.6m refrigerated trucks, Chengli offers multiple models for every cold chain application as a complete product line provider

• Environmental Commitment: All Chengli vehicles meet strict emission standards, with growing electric and new energy vehicle lineup for sustainable logistics and green public works worldwide

• Financial Strength: As a publicly traded company with strong financial backing, Chengli offers stability, warranty fulfillment, and long-term partnership potential for municipal and commercial customers
