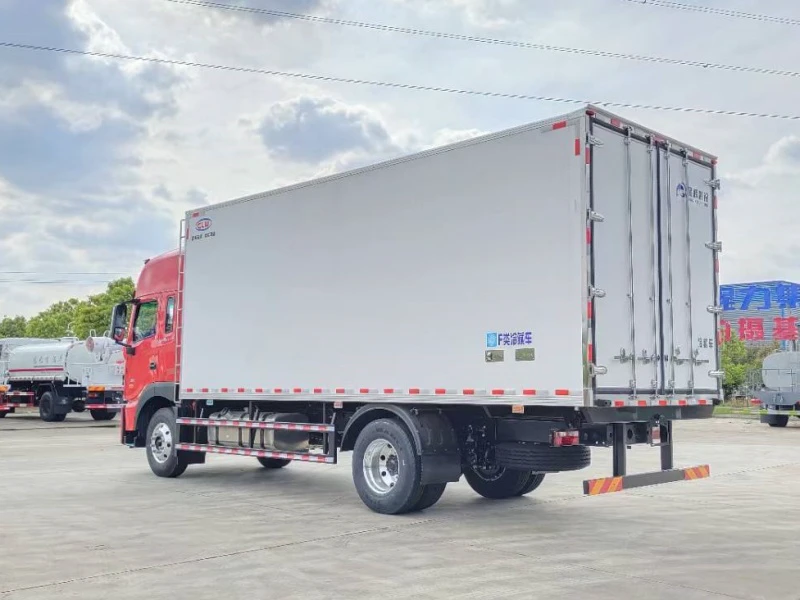

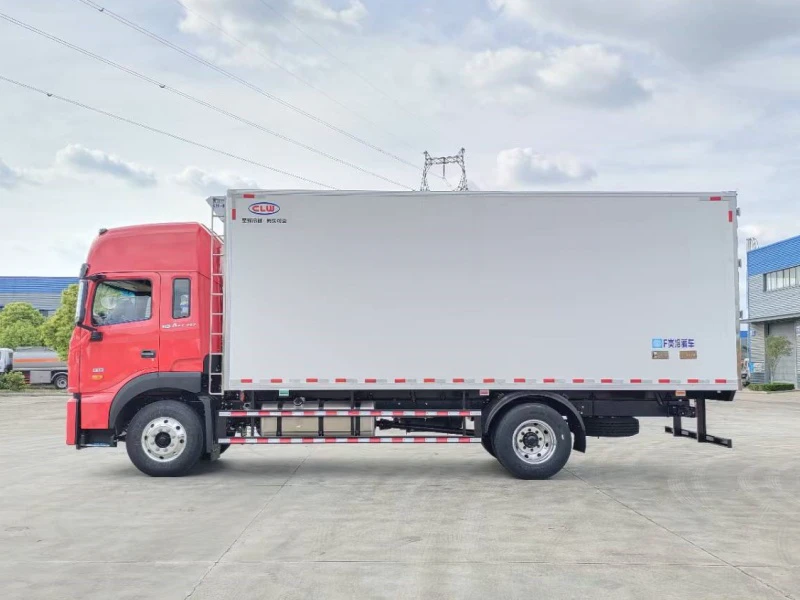

JAC Golfer 6.8-Meter Refrigerator Truck – Heavy-Duty Cold Chain Transport Solution

I. Product Overview

The JAC Golfer 6.8-Meter Refrigerator Truck is a professional heavy-duty cold chain transport vehicle engineered for long-haul and regional temperature-controlled logistics. Built on a dedicated refrigerated truck chassis with high-strength frame and powered by a Yuchai 290 HP National VI diesel engine, this heavy-duty refrigerator truck delivers exceptional cooling performance, structural durability, and operational efficiency for frozen food distribution, pharmaceutical cold chain logistics, and fresh produce transportation. Designed for cold chain logistics providers, food processing plants, medical supply chains, and supermarket replenishment fleets, it offers reliable temperature integrity and compliance with strict sanitary standards for temperature-sensitive cargo protection.

II. Key Specifications

Chassis Model: JAC Golfer A5XIII High-Roof Flat-Floor Cab Commercial Truck Chassis
Overall Dimensions: 9,140 × 2,600 × 3,990 mm (360 × 102.4 × 157 in)
Cargo Box Internal Dimensions: 6,800 × 2,420 × 2,500 mm (268 × 95.3 × 98.4 in)
Cargo Volume: 41.1 m³ / 10,860 US Gallons
Engine System: Yuchai YCS06290-61, 6.4L Displacement, 290 HP / 213 kW National VI Diesel Engine
Transmission Technology: FAST 8JS95TE-C 8-Speed Manual Gearbox with Synchronizer
Wheelbase Configuration: 5,000 mm (196.9 in) / 5,700 mm (224.4 in) Optional
Front Axle Capacity: 4-Ton
Rear Axle Capacity: 9-Ton
Frame Construction: 245 × 70 × 6 mm High-Strength Straight Rail Chassis
Tire Specification: 11R22.5 18PR Steel Radial Commercial Tires
Fuel System: 400L Aluminum Alloy Fuel Tank
Weight Classification: 18,000 kg (39,683 lbs) Gross Vehicle Weight
Curb Weight: 8,150 kg (17,968 lbs)
Rated Payload Capacity: 9,720 kg (21,429 lbs)

III. Cargo Box Design, Materials & Thermal Engineering

Construction Method: Steel-Wood Composite Structure with Thermal Break Bridge Insulation Technology
Frame Reinforcement: Galvanized Steel Tube Skeleton for Structural Integrity and Load-Bearing Capacity
Interior/Exterior Skin: Premium Fiberglass Reinforced Plastic – Non-Absorbent, High Thermal Insulation, Hardness Enhanced, UV/Oxidation Resistant
Insulation Core: 80 mm (3.15 in) XPS Extruded Polystyrene Insulation Board
Bonding Process: Fully Automated Adhesive Application System with Hot Press Lamination – Integrated Glue Spreading and Panel Pressing, Uniform Bonding Distribution, Anti-Bulging Guarantee, High-Speed Production Capability
Flooring System: Plastic-Steel Tread Plate, Slip-Resistant Surface, Durable Heavy-Duty Construction
Side Protection: Inner Skirting Boards for Cargo Stability and Damage Prevention
Interior Corners: Right-Angle Encapsulation Design for Easy Cleaning and Sanitation Compliance
Drainage System: Dual Front Drain Ports for Condensation Management
Door Sealing Technology: Labyrinth-Type Rubber Sealing Strips for Airtight Closure and Temperature Retention
Door Frame: Bright Stainless Steel Trim with Corrosion-Resistant Finish
Edge Protection: Thickened Aluminum Alloy Profile Encapsulation
Corner Protection: Stainless Steel Corner Guards for Impact Resistance
Hardware Components: Stainless Steel Door Hinges, Heavy-Duty Locks, and Precision Fittings
Interior Lighting: Energy-Saving LED Illumination System

IV. Structural & Powertrain Advantages

Engine Technology: Yuchai YCS06 Series 290 HP Diesel Powerplant – 6.4L Displacement, 213 kW Rated Power Output, High Torque Density Curve, Extended Long-Drain Maintenance Interval
Transmission Performance: FAST 8JS95TE-C 8-Speed Manual Gearbox with Synchronizer Technology – Smooth Shifting Engagement, Optimized Gear Ratios Specifically Calibrated for Refrigerated Load Applications
Chassis Strength: 245 × 70 × 6 mm High-Strength Straight Frame Construction, 250 mm Through-Channel Design – Exceptional Torsional Rigidity and Flex Resistance
Axle Configuration: 4-Ton Rated Front Axle Paired with 9-Ton Heavy-Duty Rear Axle – Balanced Dynamic Load Distribution under Full Payload Conditions
Optional Upgrade Package: HOWO 10-Speed Transmission, 4.333 Final Drive Ratio, 435 Enhanced Welded Axle Assembly – Improved Gradeability Performance and Fuel Economy Optimization
Suspension System: Front Multi-Leaf Spring / Rear Airbag Support Configuration – Standard Equipment
Alternative Suspension: Optional 9/9+7 Heavy-Duty Leaf Spring Package
Braking Safety: Dual-Circuit Pneumatic Brake System with Exhaust Brake Retarder, ABS Anti-Lock Braking, Automatic Slack Adjusters
Electrical Architecture: Full CAN Bus Digital Instrument Cluster, 120Ah Maintenance-Free High-Capacity Battery
Driver Environment: Main Seat Air Suspension with Integrated Ventilation and Heating Functions, Passenger Fixed Fabric Seat, Integrated Electric Heating and Adjustment Rearview Mirrors, Power Window Controls, Power Tilt Cab Operation, Multifunction Steering Wheel with Cruise Control Integration
Telematics System: 4G-TBOX Fleet Management and Remote Diagnostics Platform
Lighting Equipment: Halogen Headlamps with LCD Digital Instrument Display

V. Product Features & Chengli Group Advantages

Thermal Integrity Engineering: 80 mm XPS Insulation Core Combined with Thermal Break Bridge Construction Methodology – Minimizes Thermal Heat Infiltration, Maintains Stable Internal Temperature Profile, Significantly Reduces Refrigeration System Parasitic Load
Hygienic Design Standards: Smooth Non-Porous Interior Surface Finish, Right-Angle Corner Encapsulation Detailing, Dual Drain Port Configuration – Fully Compliant with Food Grade and Pharmaceutical Good Distribution Practice Sanitation Requirements
Corrosion Resistance Package: Chemical-Resistant Fiberglass Reinforced Panel Construction, Marine-Grade Stainless Steel Hardware Components, Anodized Aluminum Alloy Edge Trim – Extended Service Life Expectancy in High-Humidity Washdown Operational Environments
Airtight Sealing Performance: Labyrinth-Profile Rubber Compression Seals Integrated with Stainless Steel Door Frame Assembly – Prevents Thermal Leakage, Eliminates Frost Accumulation, Maintains Temperature Setpoint Integrity
Operational Range Extension: 400-Liter Large-Capacity Aluminum Alloy Fuel Tank – Enables Extended Shift Operations and Long-Haul Mission Profiles Without Refueling Interruption

Cargo Retention System: Heavy-Duty Plastic-Steel Composite Flooring with Traction Surface, Integrated Inner Skirting Board Assembly – Prevents Dynamic Load Shift, Protects Floor Structure from Impact Damage
Configuration Flexibility: Multiple Wheelbase Length Options, Axle Ratio Selections, and Suspension Tuning Packages Available for Mission-Specific Optimization
Manufacturing Integration Expertise: Chengli Group Professional Body-to-Chassis Engineering Integration – Validated Thermal Performance Certification and Structural Durability Testing Protocol Compliance
Service Support Infrastructure: Nationwide Authorized After-Sales Service Network with Refrigerated Truck Specialized Maintenance Capabilities and OEM Genuine Parts Supply Chain
Regulatory Compliance Certification: Full Product Certification Meeting and Exceeding National Compulsory Standards for Heavy-Duty Refrigerated Transport Equipment and Cold Chain Logistics Vehicles

This JAC Golfer 6.8-Meter Refrigerator Truck delivers professional-grade, high-capacity cold chain performance for demanding temperature-controlled logistics operations. By integrating a proven heavy-duty commercial vehicle chassis platform with advanced thermal insulation engineering and precision refrigeration system compatibility, it provides cold chain logistics operators, food industry distributors, pharmaceutical supply chain professionals, and retail replenishment fleet managers with a reliable, durable, and cost-optimized solution for regional and long-haul temperature-sensitive cargo transportation applications.
