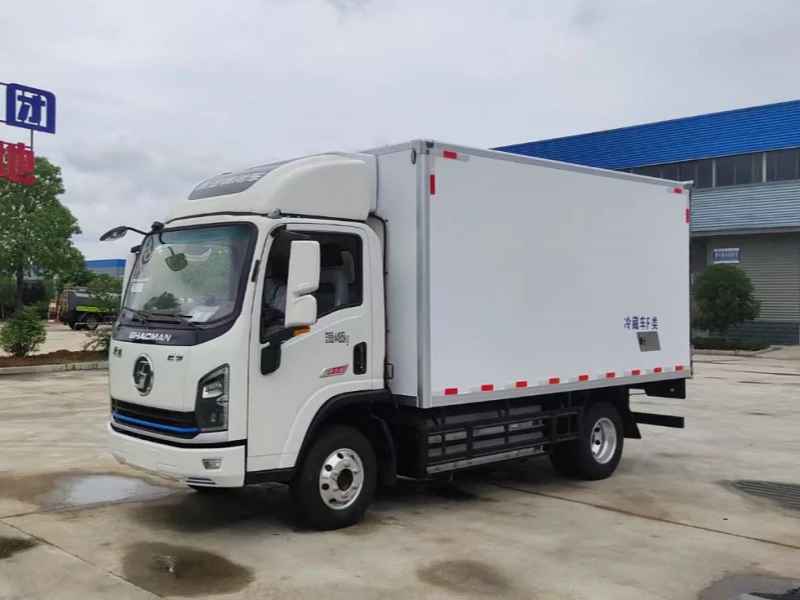

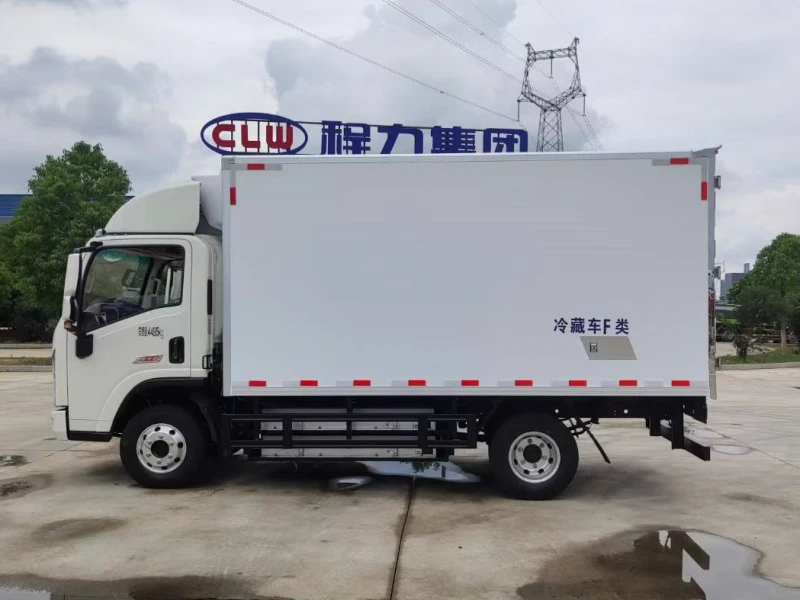

Shaanxi Automobile E9 Electric Refrigerator Truck | Shaanxi Automobile 4-Meter Refrigerator Truck – Zero-Emission Cold Chain Solution

I. Product Overview

The Shaanxi Automobile E9 Electric Refrigerator Truck is a professional-grade zero-emission cold chain vehicle engineered for urban and suburban temperature-controlled logistics. Powered by a Guoxuan 96.7 kWh lithium iron phosphate battery system and equipped with a high-efficiency all-electric refrigeration unit, this truck delivers reliable, quiet, and emission-free performance for frozen food, pharmaceutical, and fresh produce distribution. It provides a sustainable transportation solution for cold chain operators, supermarket supply chains, and medical logistics providers operating in low-emission zones and noise-sensitive urban environments.

II. Key Specifications

• Drive Motor: TZ230XS-YBM407/4D380 Permanent Magnet Synchronous Motor

• Peak Power: 85 kW / 116 HP

• Battery System: Guoxuan 96.7 kWh Lithium Iron Phosphate (LFP) Traction Battery

• Wheelbase: 3,300 mm (129.9 in)

• Frame Construction: 800 × 130–190 (5) Single-Layer Reinforced Steel Frame

• Front Axle: 2.2T Hande Axle

• Rear Axle: 3.5T Hande Axle, Ratio 4.875 (Primary + Auxiliary)

• Suspension System: Front 2 / Rear 2+1 Reduced-Leaf Spring Configuration

• Tires: 6.50R16LT 12PR Vacuum Semi-Steel Radial Tires

• Refrigeration Unit: New Energy ESR-500 All-Electric Refrigeration System, Maintains –15°C (5°F)

• Gross Vehicle Weight: 4,495 kg (9,910 lbs)

• Payload Capacity: 1,150 kg (2,535 lbs)

III. Dimensions, Cargo Box, Materials & Design Philosophy

• Overall Dimensions: 5,995 × 2,250 × 3,050 / 3,150 mm (236 × 88.6 × 120 / 124 in)

• Cargo Box Internal Dimensions: 4,050 × 2,100 × 1,900 / 2,000 mm (159.4 × 82.7 × 74.8 / 78.7 in)

• Cargo Volume: 16.1 – 17.0 m³ / 4,250 – 4,490 US Gallons

• Insulation Technology: Sandwich Panel Construction with Thermal Break Bridge Design

• Insulation Core: 80 mm (3.15 in) Extruded Polystyrene (XPS) Environmental Protection Insulation Board

• Interior/Exterior Skin: Fiberglass Reinforced Plastic (FRP) bonded with High-Strength Structural Adhesive

• Frame Trim: Bright Stainless Steel Outer Frame with Aluminum Alloy Profile Edge Protection

• Door Hardware: Stainless Steel Heavy-Duty Lock and Stainless Steel Hinges

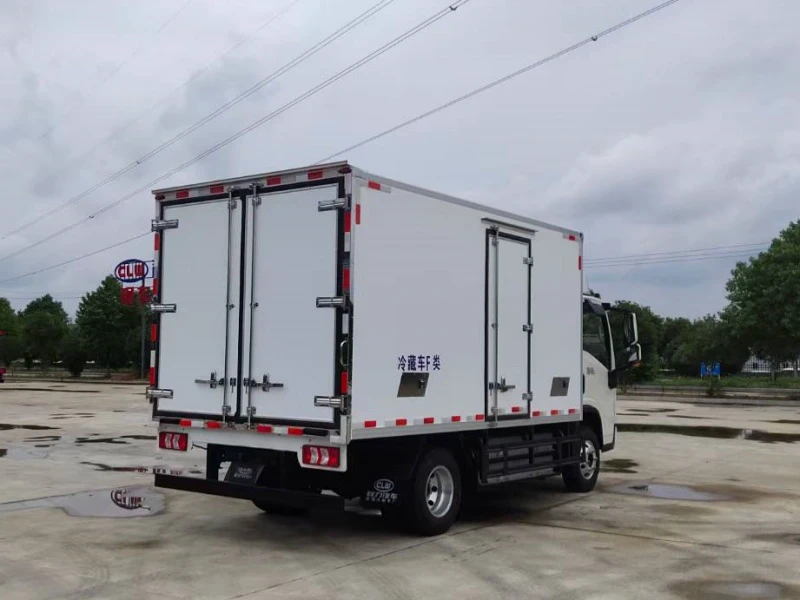

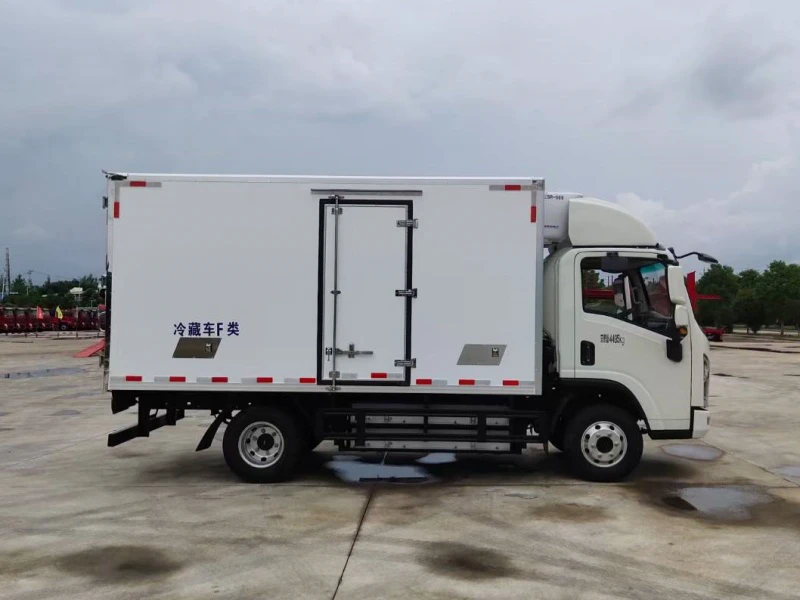

• Side Door Configuration: Single Side Door for Flexible Loading Operations

• Flooring: Aluminum Tread Plate, Slip-Resistant and Durable

• Design Philosophy: Lightweight, Corrosion-Resistant, and Hygienic Interior Construction with Maximum Thermal Efficiency and Minimal Parasitic Energy Loss

IV. Structural & Powertrain Advantages

• Motor Technology: Permanent Magnet Synchronous Drive Motor delivering High Torque Density and Rapid Dynamic Response

• Battery System: Guoxuan LFP Chemistry with Intelligent Thermal Management, Long Cycle Life, and IP67 Protection Rating

• Chassis Engineering: 800 mm Wide Single-Layer High-Strength Frame Optimized for Electric Vehicle Weight Distribution

• Axle Configuration: Hande 2.2T Front Axle and 3.5T Rear Axle with 4.875 Final Drive Ratio Providing Strong Starting Torque and Superior Gradeability

• Suspension Engineering: Reduced-Leaf Spring Design Balancing Ride Comfort with Full Load Capacity

• Braking System: Pneumatic Brake System with Regenerative Braking Capability for Energy Recovery and Extended Driving Range

• Tire Technology: 6.50R16LT Low Rolling Resistance Vacuum Radial Tires Improving Overall Energy Efficiency

• Refrigeration Performance: ESR-500 All-Electric Refrigeration Unit Maintaining –15°C Internal Temperature with Low Power Consumption and Zero Engine Idling Requirement

V. Product Features & Chengli Group Advantages

• Thermal Performance: 80 mm XPS Insulation Core with Thermal-Bridge-Free Construction Minimizing Heat Ingress and Temperature Fluctuation

• Regulatory Compliance: Zero Tailpipe Emissions, Silent Operation, and Full Access to Urban Low-Emission Zones and Night Delivery Schedules

• Cargo Integrity: Precision Temperature Control System Ensuring Product Safety for Frozen Food, Pharmaceuticals, and Perishable Goods

• Durability Assurance: Corrosion-Resistant FRP Panels, Stainless Steel Hardware, and Aluminum Flooring Withstanding Frequent Washdown and Humid Environments

• Operating Economy: Significantly Lower Energy Cost Per Kilometer Compared to Diesel-Powered Refrigerated Trucks with Extended Maintenance Intervals

• Manufacturing Integration: Chengli Group Professional Body-to-Chassis Integration with Complete Thermal Performance Validation

• Service Infrastructure: Nationwide After-Sales Coverage with EV-Certified Technicians and Dedicated Parts Supply

• Regulatory Certification: Full Compliance with National Standards for New Energy Commercial Vehicles and Refrigerated Transport Equipment

• Application Versatility: Suitable for Urban Food Distribution, Pharmaceutical Cold Chain, Supermarket Replenishment, Vaccine Transport, and Frozen Goods Delivery

• Hygiene Design: Smooth, Non-Porous Interior Surfaces Meeting Food-Grade Sanitation Requirements and Facilitating Easy Cleaning

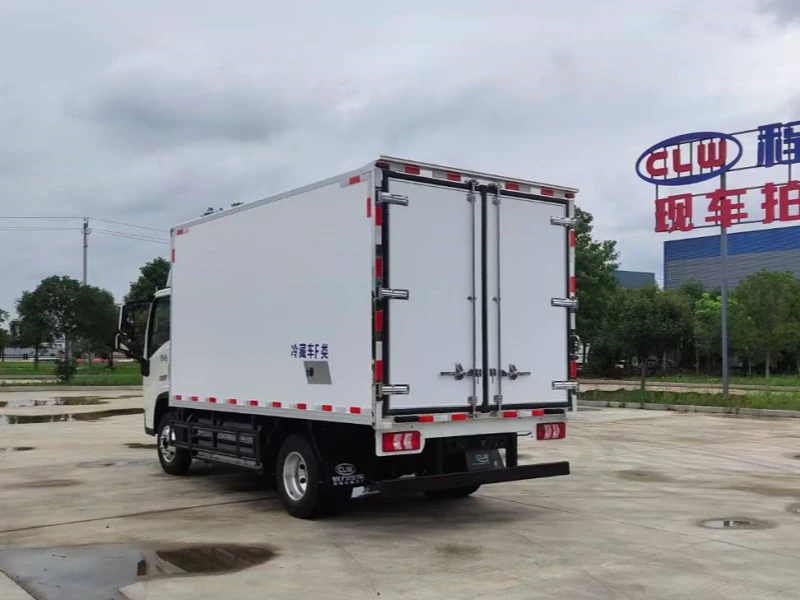

• Cargo Accessibility: Full-Size Rear Doors Combined with Side Door Enabling Efficient Loading and Unloading in Confined Urban Spaces

• Range Confidence: Optimized Powertrain Calibration and Low-Energy Refrigeration System Maximizing Effective Operating Range per Charge Cycle

This Shaanxi Automobile E9 electric refrigerator truck delivers professional-grade, sustainable cold chain performance for modern urban logistics. By integrating advanced electric chassis technology with high-efficiency thermal insulation and an all-electric refrigeration system, it provides cold chain operators, food distributors, pharmaceutical transporters, and retail supply chain professionals with a reliable, low-operating-cost, and environmentally responsible solution for urban and regional temperature-controlled logistics operations.
