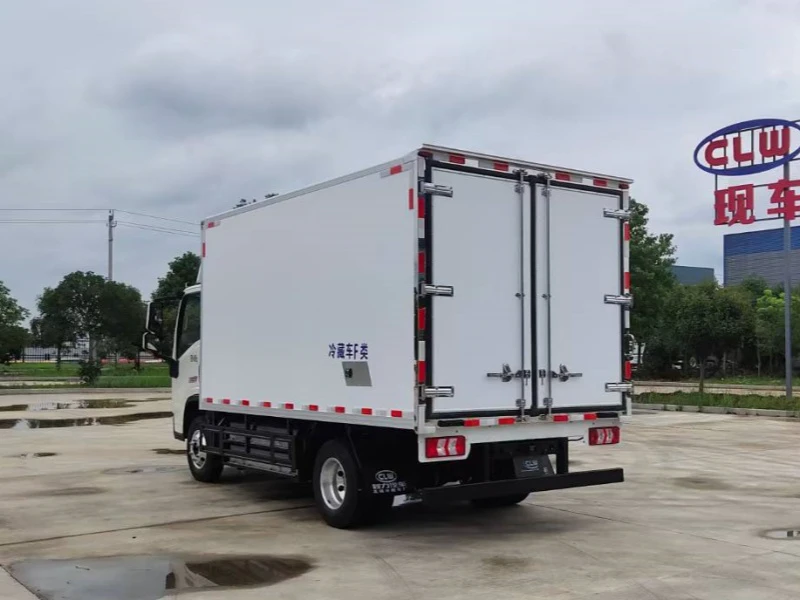

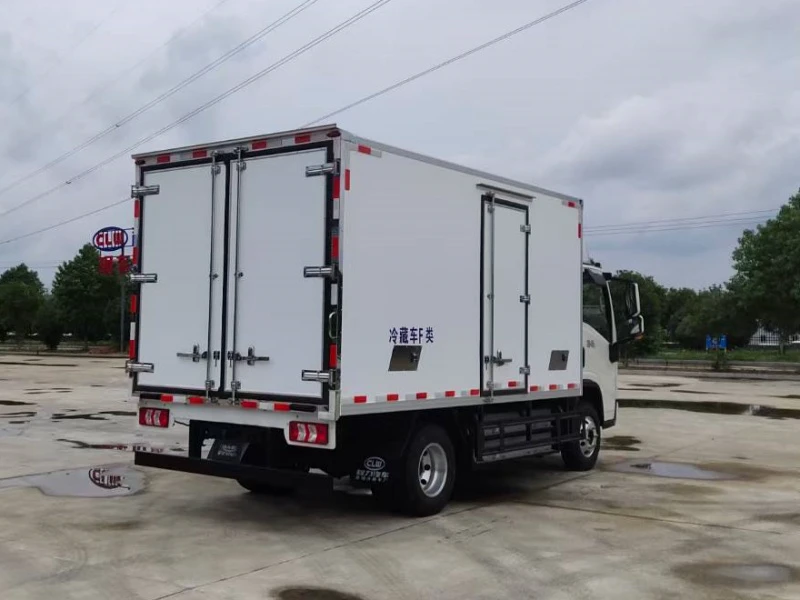

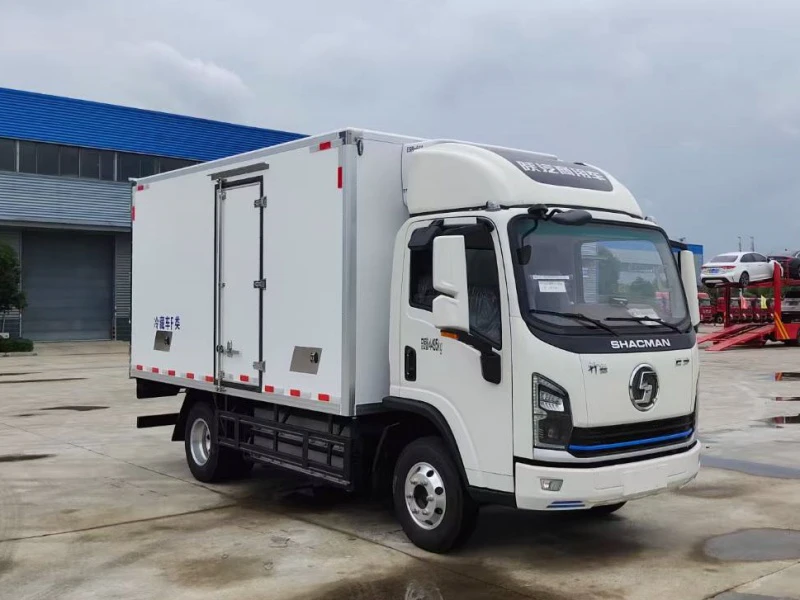

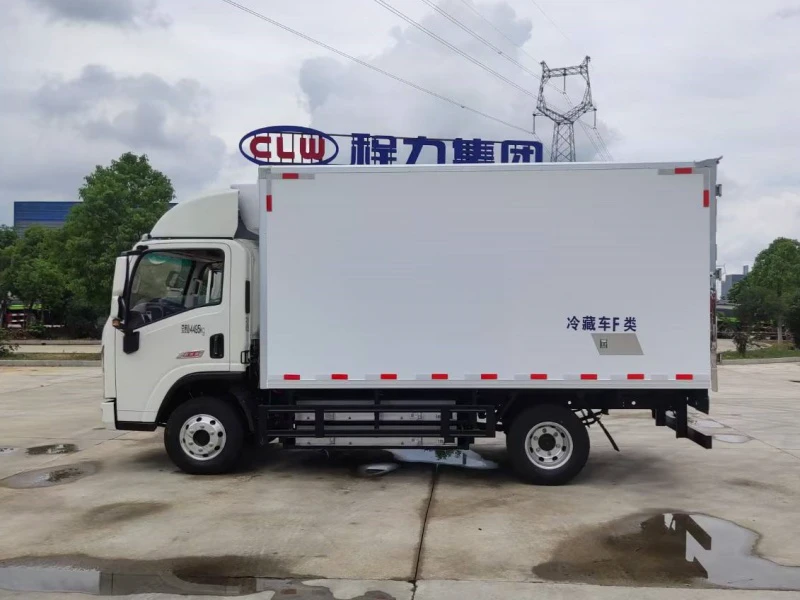

Product Introduction: Shacman E9 New Energy Pure Electric Refrigerator Truck | Shacman 17m³ Electric Refrigerator Truck with 4m Cargo Box Length and 96.7kWh Battery

I. Product Overview

The Shacman E9 New Energy Pure Electric Refrigerator Truck (Model: SX5041XLCBEV331G) represents a groundbreaking advancement in cold chain logistics, combining environmentally responsible electric propulsion with superior temperature-controlled transportation capabilities. This zero-emission electric refrigerated truck is specifically designed for urban and regional cold chain distribution, ensuring perishable goods maintain optimal temperatures throughout transit. Built on the dedicated Shacman E9 electric chassis with 3,300 mm wheelbase and powered by a 96.7 kWh Guoxuan lithium iron phosphate battery, this new energy refrigerated truck delivers reliable performance with zero tailpipe emissions. As part of the Chengli special vehicle series, this electric refrigerator truck features advanced sandwich panel insulation technology, high-quality refrigeration unit, and durable construction, making it ideal for cold chain logistics, food distribution, pharmaceutical transport, and low-emission zone delivery operations.

II. Core Parameters

• Chassis Model: SX1041EV331G (Shacman E9 Electric Chassis)

• Overall Dimensions: 5,995 mm × 2,250 mm × 3,050 mm (3,150 mm) (Approx. 19.7ft × 7.4ft × 10.0ft/10.3ft)

• Cargo Box Internal Dimensions: 4,050 mm × 2,100 mm × 1,900 mm (2,000 mm) (Approx. 13.3ft × 6.9ft × 6.2ft/6.6ft)

• Wheelbase: 3,300 mm (Approx. 129.9 inches)

• Cab Width: 1,835 mm (Approx. 72.2 inches) - Shacman Wing 9 series

Battery & Powertrain:

• Battery Brand: Guoxuan High-Tech

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Battery Capacity: 96.7 kWh

• Drive Motor Model: TZ230XS-YBM407/4D380

• Peak Power: 85 kW / 116 kW

• Front Axle: 2.2T Hande axle

• Rear Axle: 3.5T with 4.875 ratio (main + auxiliary)

• Frame: Single-layer frame, 800×130-190(5) mm (Approx. 31.5 × 5.1-7.5 inches section)

• Suspension: Leaf springs - Front 2 / Rear 2+1 (multi-leaf spring)

• Tires: 6.50R16LT 12PR (vacuum semi-steel)

Refrigerated Cargo Box Specifications:

• Internal Volume: Approx. 16.2-17.0 m³ (572-600 cubic feet) based on height

• Insulation Thickness: 80 mm (Approx. 3.15 inches) - Central insulation layer

• Refrigeration Unit: New Energy ESR-500 (-15°C / 5°F capability)

• Door Configuration: Single side door with stainless steel hardware

III. Dimensions, Materials & Design Concept

• Cargo Box Construction: The refrigerated compartment features advanced sandwich panel insulation technology with a clear distinction of layers:

  • Exterior Surface: High-strength fiberglass reinforced plastic (FRP) with glossy finish for durability and professional appearance

  • Insulation Core: 80 mm (3.15 inches) environmentally friendly extruded polystyrene (XPS) foam board providing exceptional thermal resistance

  • Interior Surface: Fiberglass reinforced plastic (FRP) for food-grade hygiene, corrosion resistance, and easy cleaning

  • Frame Edges: Bright finish stainless steel protective corners for impact resistance

  • Edge Trim: Aluminum profile edging for durability and clean appearance

• Hardware Components:

  • Door Hardware: Stainless steel heavy-duty door lock for security and corrosion resistance

  • Hinges: Stainless steel hinges for long-term durability in all weather conditions

  • Flooring: Aluminum tread plate for durability, slip resistance, and easy cleaning

  • Side Door: Single side door for convenient loading and unloading access

• Material Quality: The combination of FRP inner and outer skins with 80 mm XPS insulation provides exceptional thermal efficiency, structural rigidity, and durability. The stainless steel and aluminum components ensure long-term corrosion resistance in demanding refrigerated transport environments with frequent washing and temperature changes.

• Design Philosophy: The vehicle embodies a "Thermal Efficiency, Zero Emissions, Cargo Integrity" design concept. The 80 mm sandwich panel construction with thermal break technology minimizes temperature fluctuation and energy consumption, while the 96.7 kWh Guoxuan battery provides reliable range for urban distribution. The ESR-500 refrigeration unit maintains temperatures as low as -15°C (5°F), ensuring cargo integrity throughout transit. This design makes it ideal for temperature-sensitive logistics and sustainable cold chain operations in urban environments.

IV. Detailed Structure & Component Advantages

• Electric Drive System: Powered by the TZ230XS-YBM407/4D380 permanent magnet synchronous motor delivering 85 kW continuous and 116 kW peak power, providing excellent torque for fully loaded urban operation. The electric drive system ensures smooth acceleration and regenerative braking for enhanced energy efficiency, extending driving range during multi-stop delivery routes.

• Battery System: The 96.7 kWh Guoxuan lithium iron phosphate battery provides reliable energy storage with excellent safety characteristics and long cycle life. The advanced battery management system (BMS) continuously optimizes performance for refrigerated operation, intelligently balancing drive and refrigeration power requirements to maximize range while maintaining cargo temperature.

• Chassis & Suspension:

  • Frame: Single-layer frame with dimensions 800×130-190(5) mm provides optimal strength-to-weight ratio for refrigerated body installation while maintaining structural integrity

  • Front Axle: 2.2T Hande axle with robust construction for precise steering control and reliable performance

  • Rear Axle: 3.5T capacity with 4.875 ratio (main + auxiliary gearing) optimized for urban start-stop operation and gradeability

  • Suspension: Front 2-leaf and rear 2+1 multi-leaf spring configuration provides excellent ride comfort, load stability, and cargo protection

  • Tires: 6.50R16LT 12PR vacuum semi-steel tires offer low rolling resistance for energy efficiency and durability for commercial use

• Refrigerated Body Construction:

  • Insulation Technology: Advanced thermal break construction eliminates thermal bridging through the frame, maximizing insulation efficiency and preventing condensation

  • Insulation Core: 80 mm (3.15 inches) of environmentally friendly extruded polystyrene (XPS) foam provides superior thermal resistance (R-value) and dimensional stability

  • Inner/Outer Skins: High-strength fiberglass reinforced plastic (FRP) offers durability, impact resistance, hygiene, and easy cleaning

  • Assembly: High-strength structural adhesive bonding ensures permanent, rigid assembly without thermal leakage points

  • Flooring: Aluminum tread plate provides durable, slip-resistant surface that withstands pallet jack and hand truck traffic while being easy to clean

• Refrigeration System: The New Energy ESR-500 refrigeration unit is specifically designed for electric vehicle applications, with capacity to maintain temperatures as low as -15°C (5°F). The unit features efficient operation compatible with the vehicle's electric system, minimizing impact on driving range. Digital temperature control and monitoring ensure precise temperature maintenance throughout transit.

V. Product Features & Chengli Group Advantages

Product Features:

• Zero-Emission Operation: Fully electric with no tailpipe emissions, ideal for low-emission zones and environmentally conscious fleets seeking to reduce carbon footprint

• Superior Insulation: 80 mm (3.15 inches) XPS foam core with FRP skins provides exceptional thermal efficiency for temperature-sensitive cargo, reducing refrigeration energy consumption

• High-Quality Refrigeration: ESR-500 unit maintains temperatures down to -15°C (5°F) for frozen and chilled products with precise digital control

• Durable Construction: Stainless steel door hardware, aluminum edging, and aluminum tread plate flooring ensure long service life in demanding冷链 applications

• Hygienic Interior: Smooth FRP interior surfaces are easy to clean and maintain food safety standards, meeting health regulations

• Optimized Dimensions: 4,050 mm (13.3 ft) cargo box length accommodates standard pallets for efficient loading and unloading

• Reliable Chassis Components: Hande axles and quality suspension components ensure durability and low maintenance costs

• Energy-Efficient Design: Thermal break construction and efficient refrigeration minimize battery consumption, maximizing range

• Versatile Application: Suitable for frozen food, fresh produce, dairy, pharmaceuticals, flowers, and other temperature-sensitive products

• Quiet Operation: Electric drive enables early morning and night-time deliveries in residential and noise-sensitive areas without disturbance

• Thermal Break Technology: Advanced construction eliminates cold bridges for maximum insulation efficiency

• Corrosion Resistance: Stainless steel and aluminum components resist rust and degradation from frequent washing and temperature changes

Chengli Group Advantages:

• Industry Leader: As a premier Chinese special vehicle manufacturer, Chengli combines decades of experience with advanced refrigerated body construction technology, ranking among China's top specialized vehicle producers

• Strategic Partnership: Collaboration with Shacman ensures quality electric chassis; partnership with Guoxuan provides reliable battery systems; cooperation with ESR ensures compatible and efficient refrigeration technology

• Refrigeration Expertise: Chengli specializes in insulated and refrigerated body construction with advanced sandwich panel technology and thermal break engineering

• Quality Manufacturing: ISO9001 certified production facilities with precise assembly, quality control, and testing procedures for each refrigerated body

• Customization Capability: Offers tailored solutions for specific temperature requirements, cargo types, and operational needs including multi-temperature compartments

• Comprehensive Support: Extensive service network ensures prompt after-sales support, genuine parts availability, and technical assistance for refrigeration system maintenance

• Export Experience: Successfully exported to markets worldwide including Southeast Asia, Middle East, Africa, and South America with full compliance with international standards

• Certified Manufacturer: Holds ISO14001 environmental management certification and meets all national vehicle standards for refrigerated transport

• Proven Track Record: Thousands of Chengli refrigerated vehicles operating successfully in diverse climates worldwide, from tropical to temperate regions

• Material Quality Commitment: Use of premium materials including FRP, XPS foam, stainless steel, and aluminum ensures long-term performance and customer satisfaction

• Value Proposition: Competitive pricing combined with superior construction quality delivers exceptional value for cold chain operators
