Product Introduction: Dongfeng Tianjin KR Star Edition Refrigerator Truck (Model: DFH5180XLCEX5A) | DFAC 4×2 Refrigerator Truck with 6.8m Cargo Box and 18T GVW

I. Product Overview

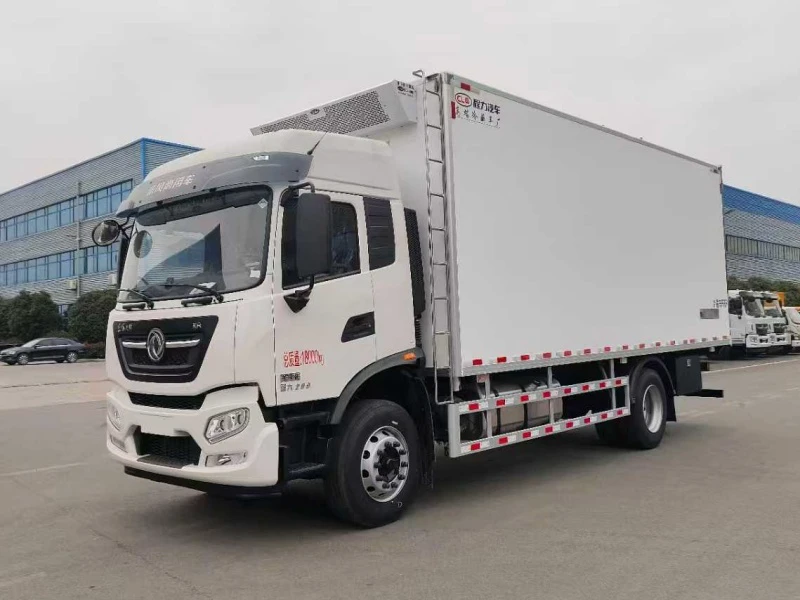

The Dongfeng Tianjin KR Star Edition Refrigerator Truck is a high-performance refrigerated truck designed for efficient and reliable cold chain transportation. Built on the advanced Dongfeng Tianjin KR platform, this model combines durability, advanced refrigeration capabilities, and driver comfort, making it ideal for long-haul deliveries of temperature-sensitive goods such as fresh produce, frozen foods, and pharmaceuticals. As a leading refrigerated truck manufacturer, Chengli Group ensures this vehicle meets the highest standards for temperature-controlled logistics.

II. Key Specifications

• Chassis Model: DFH5180XLCEX5A

• Overall Dimensions (L×W×H): 9,200 mm × 2,600 mm × 3,960 mm

• Cargo Box Internal Dimensions (L×W×H): 6,800 mm × 2,440 mm × 2,500 mm

• Cargo Volume: Approx. 41.5 m³

• Engine: DDi47E260-60, delivering 260 hp for reliable heavy-duty performance

• Transmission: 8JS95TE-C, 8-speed manual gearbox for smooth gear shifting

• Front/Rear Axle Capacity: 3.6T / 8T, ensuring axle durability for loaded trucks

• Frame Dimensions: 220 mm × 75 mm × 7 mm, providing a sturdy chassis frame

• Suspension: Leaf spring (8/10+8) for enhanced ride comfort

• Rear Axle Ratios: 4.3 / 4.11 / 3.91 (configurable) for optimal fuel economy

• Tires: 275/80R22.5 18PR radial tires for improved traction

• Fuel Tank Capacity: 400L (steel) for long-distance range

• Battery: 140Ah maintenance-free battery

• Alternator: 70A for consistent power supply

III. Exterior Dimensions, Materials, and Design Concept

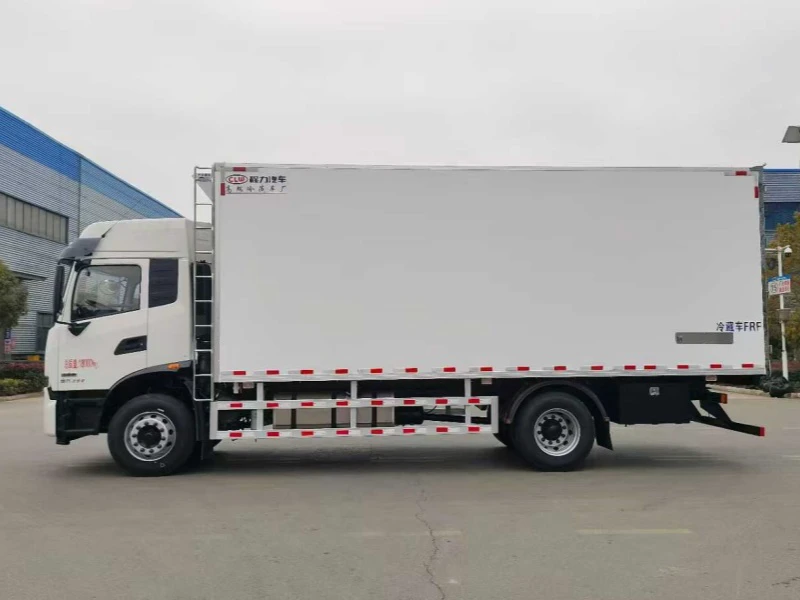

The vehicle's exterior measures 9.2 meters in length, with a height under 4 meters to accommodate various road and bridge height restrictions. The refrigerated box is constructed with inner and outer fiberglass-reinforced plastic and an 8 cm thick insulation layer. The top and bottom panels are reinforced to 10 cm thickness for enhanced durability and thermal insulation. The frame adopts a wood-wrapped galvanized pipe structure with thermal break technology to minimize heat transfer. The design emphasizes aerodynamics and structural integrity, featuring 30 cm wide skirts and a recessed reinforced ventilation channel for improved airflow and temperature control. The aluminum profiles for corners and stainless steel door frames ensure corrosion resistance and long service life.

IV. Structural Advantages

• Engine Performance: The DDi47E260-60 engine offers a balance of power and fuel efficiency, meeting stringent emission standards while providing reliable performance under load. Its high torque output ensures excellent gradeability for hilly routes.

• Transmission Efficiency: The 8JS95TE-C gearbox ensures smooth shifting and adaptability to varying road conditions, enhancing drivability and reducing driver fatigue during long-haul trips.

• Axle Durability: The 3.6T front axle and 8T rear axle are engineered for durability and stability, capable of handling heavy payloads with ease while maintaining axle alignment.

• Chassis Strength: The 220×75×7 mm frame is built for strength and rigidity, supporting the refrigeration unit and cargo weight without compromising structural integrity. The leaf spring suspension absorbs road shocks for cargo protection.

• Cooling System Reliability: The 70A alternator and 140Ah battery ensure consistent power supply to the refrigeration unit, maintaining optimal temperatures during transit even in extreme weather conditions.

V. Product Features and Manufacturer Advantages (Chengli Group)

• Refrigerated Box Construction:

  • High-end refrigerated box manufactured by Chengli using large-scale domestic negative-pressure equipment for seamless, one-piece molding, ensuring airtight insulation.

  • 8 cm thick polyurethane insulation layer with 10 cm reinforced top and bottom panels for superior thermal retention and shock resistance.

  • Wood-wrapped galvanized pipe frame with thermal break technology to prevent heat conduction and maintain cold chain integrity.

  • Full-welded, recessed ventilation channels and 30 cm side skirts for enhanced airflow and protection against road debris.

  • Aluminum profile edging for corners, stainless steel door frames, locks, and hinges for durability and corrosion resistance in humid environments.

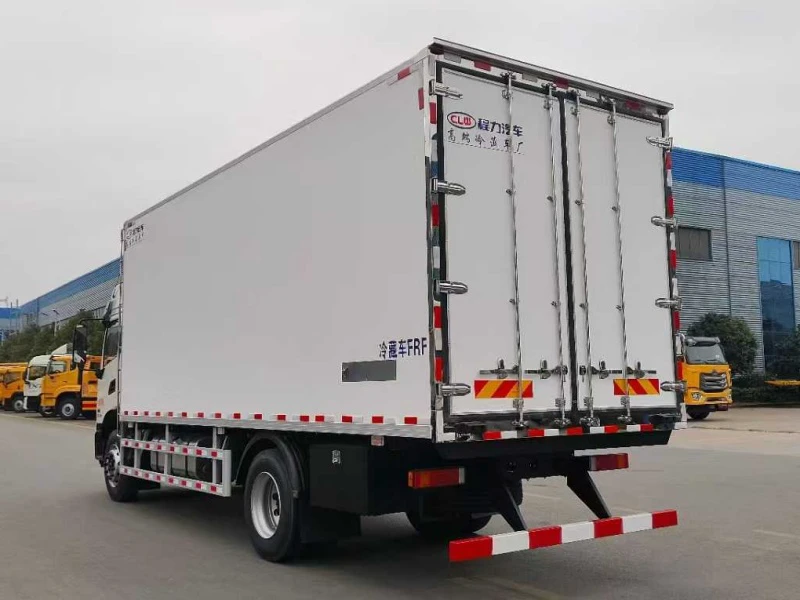

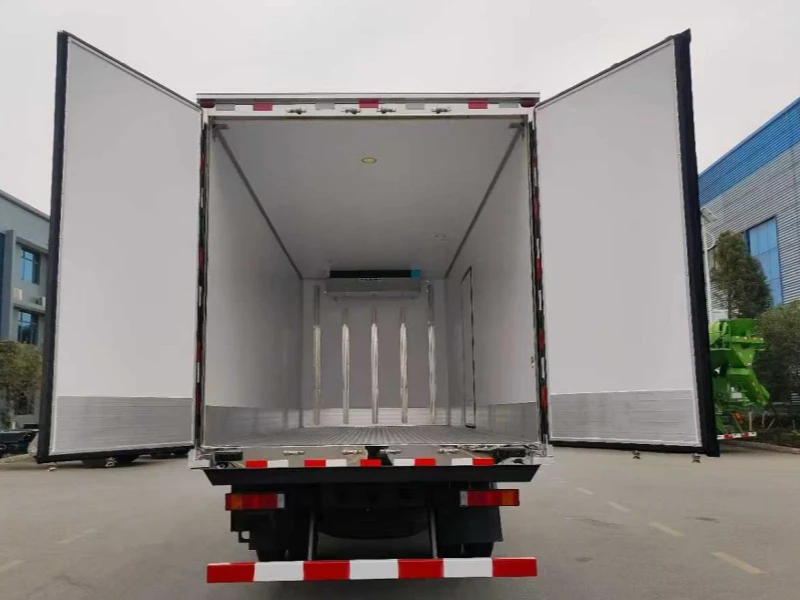

  • Double rear doors and a single side door with heavy-duty hinges for easy loading and unloading of palletized goods.

• Refrigeration Options: Compatible with various refrigeration unit brands, including Carrier and Thermo King, to meet specific temperature requirements ranging from -20°C to 20°C for diverse cargo types.

• Chengli Group Advantages:

  • Renowned as a top refrigerated truck manufacturer with over decades of experience in producing high-quality specialized vehicles.

  • Advanced manufacturing processes, including robotic welding and automated assembly lines, ensuring consistent quality control.

  • Extensive service network and after-sales support across China and export markets, with readily available spare parts.

  • Commitment to innovation, including features like the 9-inch touchscreen display and four-channel monitoring system in this model for enhanced safety and convenience during deliveries.

  • Customization options for fleet operators, including telematics integration for real-time temperature tracking and route optimization.

This Dongfeng Tianjin KR Star Edition Refrigerator Truck is a reliable, efficient, and customizable solution for modern cold chain logistics, backed by the expertise and quality of Chengli Group. Whether transporting frozen seafood, dairy products, or medical supplies, this vehicle ensures cargo integrity from departure to delivery.
