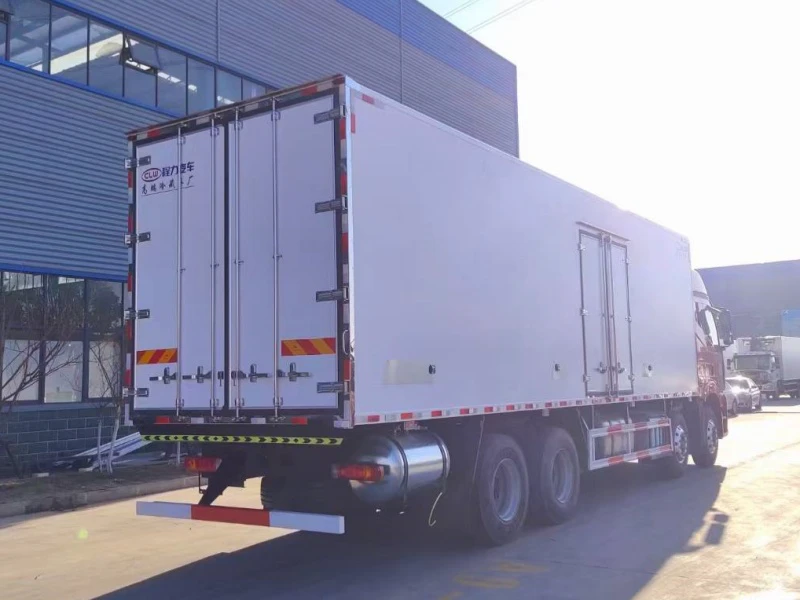

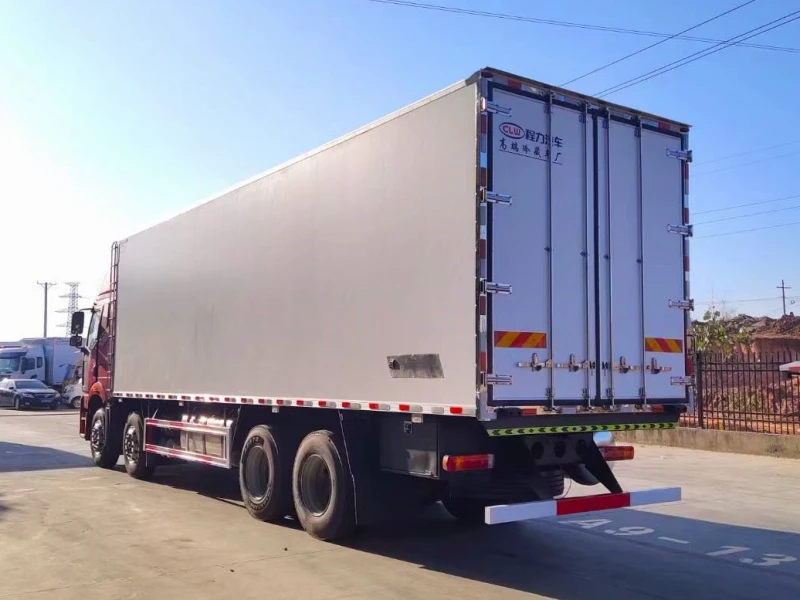

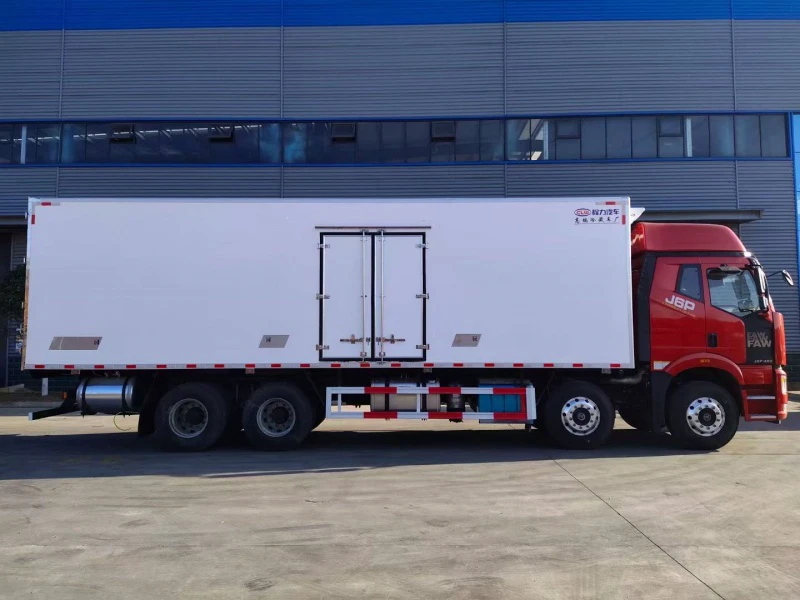

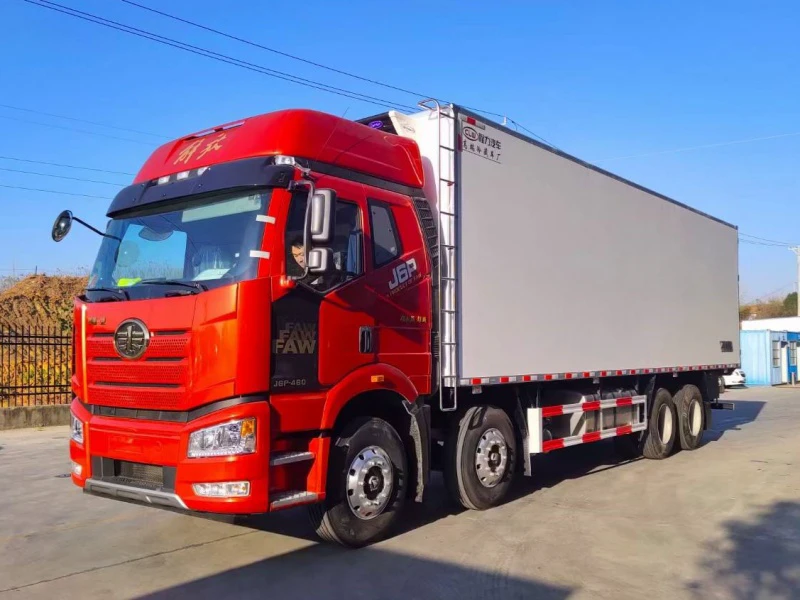

Product Introduction: FAW J6P 8×4 Refrigerator Truck (Model: CA5310XLCP66K24L7T4E6) | FAW 8×4 Refrigerator Truck with 9.6m Cargo Box and 60m³ Volume

I. Product Overview
The FAW J6P 8×4 Refrigerator Truck is a heavy-duty refrigerated vehicle engineered for large-scale cold chain logistics operations. Built on the robust FAW J6P platform, this model combines superior payload capacity, advanced refrigeration technology, and driver-centric comfort. As a specialized refrigerated truck manufactured by Chengli Group, it ensures cargo integrity for frozen foods, pharmaceuticals, and perishable goods across long distances. This multi-axle refrigerated truck is ideal for fleet operators requiring high-volume temperature-controlled transport.

II. Key Specifications

• Chassis Model: CA5310XLCP66K24L7T4E6

• Overall Dimensions (L×W×H): 12,000 mm × 2,600 mm × 4,000 mm

• Cargo Box Internal Dimensions (L×W×H): 9,550 mm × 2,440 mm × 2,500 mm

• Cargo Volume: Approximately 58.3 m³

• Engine: Xichai CA6DM2-46E6, delivering 460 hp

• Transmission: 12-speed gearbox with aluminum alloy housing

• Axle: Ф435 welded axle with ABS, 2-hole V-rod, 1,878 mm track width

• Wheelbase: 1,900 mm + 4,700 mm + 1,390 mm

• Tires: 12R22.5 radial tires

• Fuel Tank Capacity: 600L + 400L dual side-mounted aluminum fuel tanks

• Suspension: Cab with four-point air suspension

• Safety Features: Seatbelt reminder, brake lining wear warning system

III. Exterior Dimensions, Materials, and Design Concept
The vehicle measures 12 meters in length with a height of 4 meters, designed to maximize refrigerated cargo capacity while complying with road regulations. The refrigerated box features high-strength construction with 2,440 mm internal width and 2,500 mm internal height, providing ample space for palletized goods. The design prioritizes thermal efficiency and durability, with corrosion-resistant materials and reinforced structures suitable for heavy-duty applications. The J6P cab features a high-roof design with ample interior space for driver comfort during long-haul operations.

IV. Structural Advantages

• Engine Performance: The Xichai CA6DM2-46E6 engine delivers 460 hp with high torque output, ensuring excellent climbing ability and fuel efficiency for fully loaded highway operations. It meets stringent emission standards with its advanced combustion system.

• Transmission Efficiency: The 12-speed gearbox with aluminum alloy housing reduces overall vehicle weight while providing smooth gear transitions, adapting well to varying road gradients and reducing driver fatigue.

• Axle Durability: The Ф435 welded axle is engineered for heavy-duty applications, with ABS ensuring safe braking performance under full load. The 2-hole V-rod design enhances axle stability and alignment.

• Chassis Strength: The 1,900+4,700+1,390 mm wheelbase configuration ensures excellent weight distribution and stability for 8×4 refrigerated trucks carrying heavy payloads.

• Fuel System Reliability: The dual 600L+400L side-mounted aluminum fuel tanks provide extended range for long-haul operations, reducing refueling stops.

• Cab Comfort: The four-point air suspension system isolates road vibrations, reducing driver fatigue during extended journeys. The automatic climate control maintains comfortable cabin temperatures in all weather conditions.

V. Product Features and Manufacturer Advantages (Chengli Group)

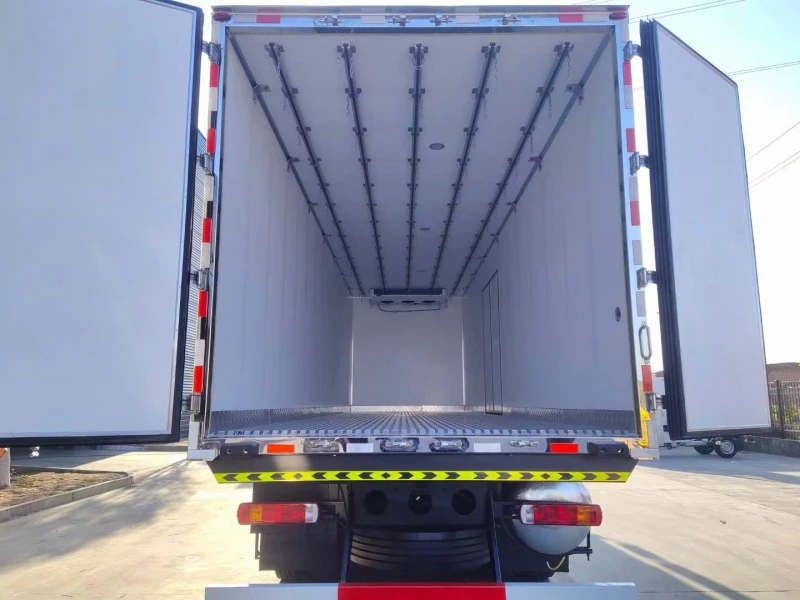

• Refrigerated Box Construction:

  • High-quality insulation materials ensuring minimal temperature fluctuation for sensitive cargo.

  • Reinforced floor and wall structures for durability under heavy loads.

  • Corrosion-resistant stainless steel door frames, locks, and hinges for longevity.

  • Optional side doors and custom configurations for flexible loading operations.

  • LED interior lighting for improved visibility during night operations.

  • Floor ventilation channels for optimal cold air circulation.

• Refrigeration Options: Compatible with leading refrigeration unit brands including Carrier, Thermo King, and Kaixue to maintain temperatures ranging from -20°C to 20°C.

• Cab Technology & Safety:

  • 10-inch multimedia system with integrated entertainment and vehicle information display.

  • Single DIN compatible system for navigation and fleet management.

  • Electric windows and electrically adjustable heated rearview mirrors for convenience.

  • Seatbelt reminder and brake lining wear warning systems enhancing operational safety.

  • metal paint for durable and attractive exterior finish.

• Chengli Group Advantages:

  • Leading refrigerated truck manufacturer with advanced production facilities for seamless one-piece molded insulation boxes.

  • Extensive service network across China and export markets with readily available spare parts.

  • Customization options for fleet operators, including telematics integration for real-time temperature monitoring.

  • Commitment to quality with robust manufacturing processes ensuring long-term reliability.

  • Expertise in producing specialized vehicles for various applications, from frozen food transport to pharmaceutical logistics.

This FAW J6P 8×4 Refrigerator Truck represents the perfect balance of power, capacity, and cold chain reliability, backed by Chengli Group's expertise in specialized vehicle manufacturing. Whether transporting frozen seafood, dairy products, or medical supplies across long distances, this vehicle ensures cargo arrives in perfect condition.
