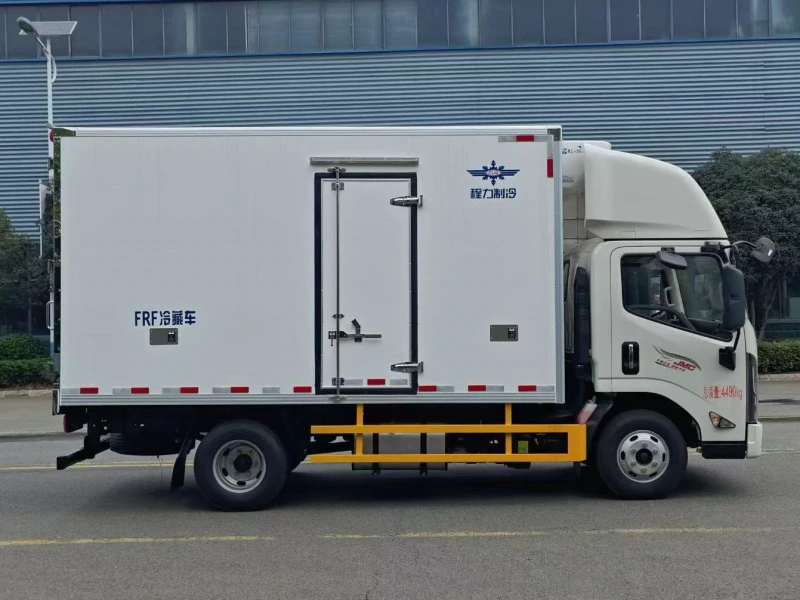

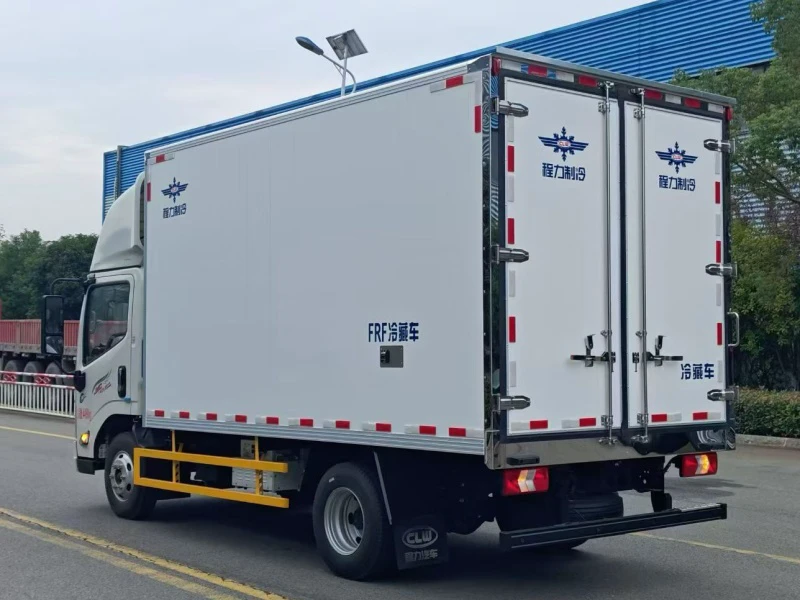

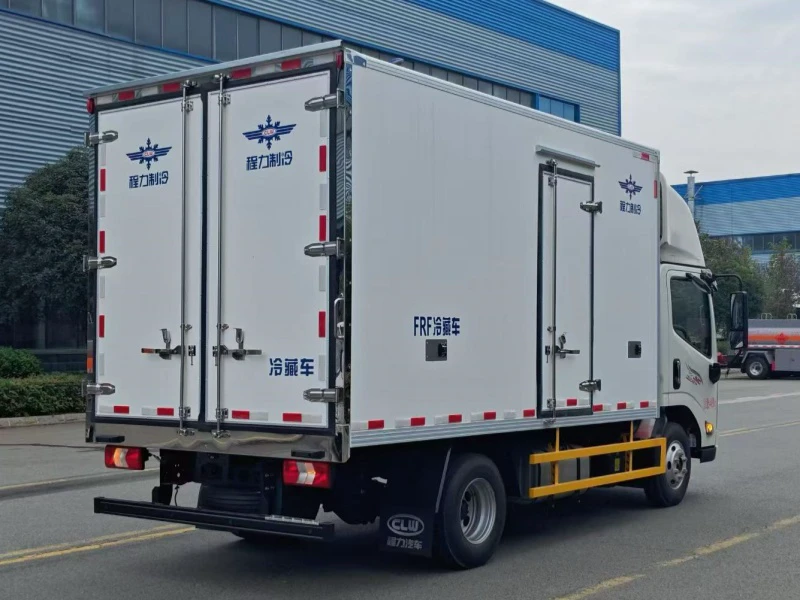

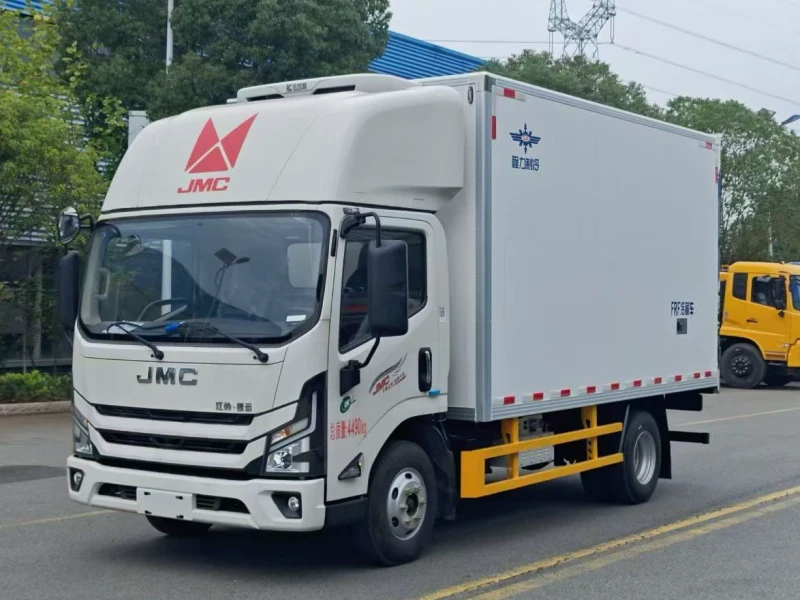

Product Introduction: 4.2m Jiangling New Kaiyun Wide Cab 164HP Refrigerator Truck (Model: JX5049XLCTGA26) | JMC 4×2 Refrigerator Truck with 4.2m Cargo Box and 18m³ Volume
I. Product Overview
The 4.2m Jiangling New Kaiyun Wide Cab 164HP Refrigerator Truck is a versatile and efficient light-duty refrigerated vehicle designed for urban cold chain logistics and last-mile delivery. Built on the reliable Jiangling Kaiyun platform, this model combines a spacious wide cab, powerful 164hp engine, and advanced refrigeration technology. As a specialized refrigerated truck manufactured by Chengli Group, it ensures cargo integrity for fresh produce, frozen foods, and pharmaceuticals in city environments. This 4.2-meter refrigerated truck is ideal for small to medium-sized fleet operators requiring maneuverability and temperature-controlled transport.
II. Key Specifications
Chassis Model: JX1049TGA26
Overall Dimensions (L×W×H): 5,995 mm × 2,260 mm × 3,255 mm
Cargo Box Internal Dimensions (L×W×H): 4,020 mm × 2,100 mm × 2,100 mm
Cargo Volume: Approximately 17.7 m³
Engine Power: 164 hp (3.0L displacement) with 450 N·m torque
Transmission: 6-speed manual gearbox
Rear Axle: 5-ton capacity
Chassis Weight: 2,250 kg
Fuel Tank Capacity: 120L
Frame Dimensions: 180 mm height / 900 mm width straight-through beam
Braking System: Spring brake chamber (air brake)
Electrical System: Dual factory-installed batteries, factory 150A heavy-duty alternator
Special Features: PTO one-key refrigeration control, cruise control, reversing radar, daytime running lights
III. Exterior Dimensions, Materials, and Design Concept
The vehicle measures 5,995 mm in length with a 2,060 mm wide cab, designed for urban maneuverability while maximizing cargo capacity. The refrigerated box features steel-wood composite construction with thermal break technology, galvanized pipe frame, and high-quality fiberglass-reinforced plastic inner and outer panels. The 80 mm thick XPS extruded polystyrene insulation layer ensures superior temperature retention. The design prioritizes thermal efficiency and durability, with plastic-steel patterned floor, right-angle interior edging, and labyrinth rubber door seals for airtight insulation. The aerodynamic cab design with deflector reduces wind resistance for improved fuel economy.
IV. Structural Advantages
Engine Performance: The 3.0L 164hp engine delivers high torque output (450 N·m) with economic small ratio (4.222), ensuring excellent fuel efficiency and climbing ability for urban delivery routes.
Transmission Efficiency: The 6-speed manual gearbox provides smooth gear transitions and adapts well to stop-and-go city driving conditions.
Axle Durability: The 5-ton rear axle is engineered for light-duty applications, ensuring stability and durability under full load conditions.
Chassis Strength: The 180 mm height / 900 mm width straight-through beam frame provides robust support for the refrigeration unit and cargo weight.
Electrical Reliability: Dual factory-installed batteries and factory 150A heavy-duty alternator ensure consistent power supply to the refrigeration unit, even during extended idling in urban deliveries.
Specialized Features: Factory-installed dual brackets for refrigeration system and PTO one-key refrigeration control simplify operation and improve reliability.
Safety Features: Reversing radar, daytime running lights, and multifunction steering wheel enhance driver safety and convenience.
V. Product Features and Manufacturer Advantages (Chengli Group)
Refrigerated Box Construction:
Steel-wood composite structure with thermal break technology and galvanized pipe frame for enhanced durability.
High-quality fiberglass-reinforced plastic inner and outer panels (non-light-absorbing, excellent thermal insulation, high hardness, oxidation-resistant).
80 mm thick XPS extruded polystyrene insulation layer bonded with high-strength adhesive using automated gluing and pressing equipment for uniform application and bubble-free panels.
Plastic-steel patterned floor for durability and easy cleaning.
Interior side skirts and right-angle edging for improved insulation and protection.
Two front drainage holes for easy cleaning and maintenance.
Labyrinth rubber door seals and bright stainless steel door frames for airtight insulation.
Thickened aluminum alloy edge trim around the box, stainless steel corner guards, door locks, hinges, and fittings for corrosion resistance.
Energy-efficient LED lighting inside the cargo box.
Refrigeration Options: Compatible with various refrigeration unit brands to maintain temperatures ranging from -20°C to 20°C for diverse cargo types.
Factory-Installed Refrigerator Truck Features:
Dual factory-installed brackets specifically designed for applications.
Dual factory-installed batteries for reliable power supply.
Factory 150A heavy-duty alternator for consistent refrigeration unit operation.
PTO one-key refrigeration control for simplified operation.
Cruise control and daytime running lights for enhanced driving comfort and safety.
Chengli Group Advantages:
Leading refrigerated truck manufacturer with advanced production facilities including automated gluing and pressing equipment for seamless panel production.
Extensive service network across China and export markets with readily available spare parts.
Customization options for fleet operators, including telematics integration for real-time temperature monitoring.
Commitment to quality with robust manufacturing processes ensuring long-term reliability.
Expertise in producing specialized vehicles for various applications, from fresh food delivery to pharmaceutical logistics.
This 4.2m Jiangling New Kaiyun Wide Cab 164HP Refrigerator Truck represents the perfect balance of power, efficiency, and cold chain reliability for urban logistics, backed by Chengli Group's expertise in specialized vehicle manufacturing. Whether transporting fresh produce, dairy products, or medical supplies in city environments, this vehicle ensures cargo arrives in perfect condition while providing excellent maneuverability and driver comfort.
