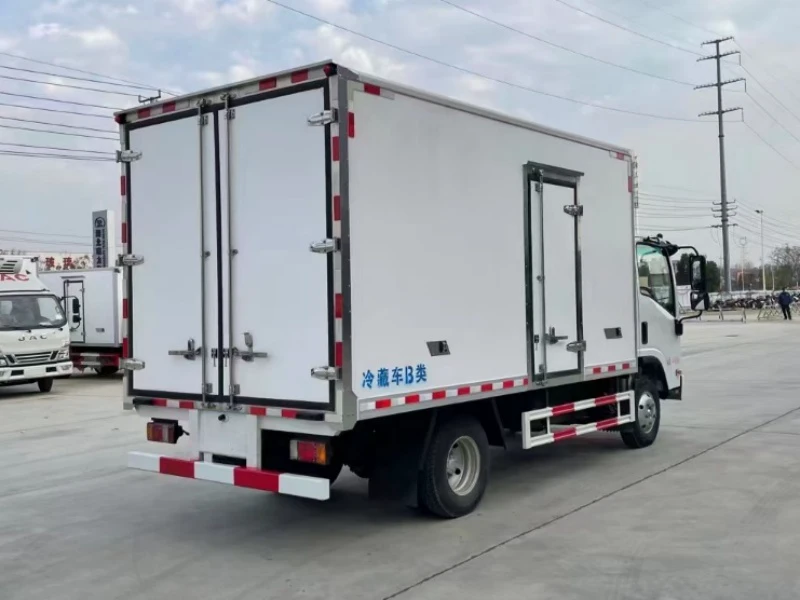

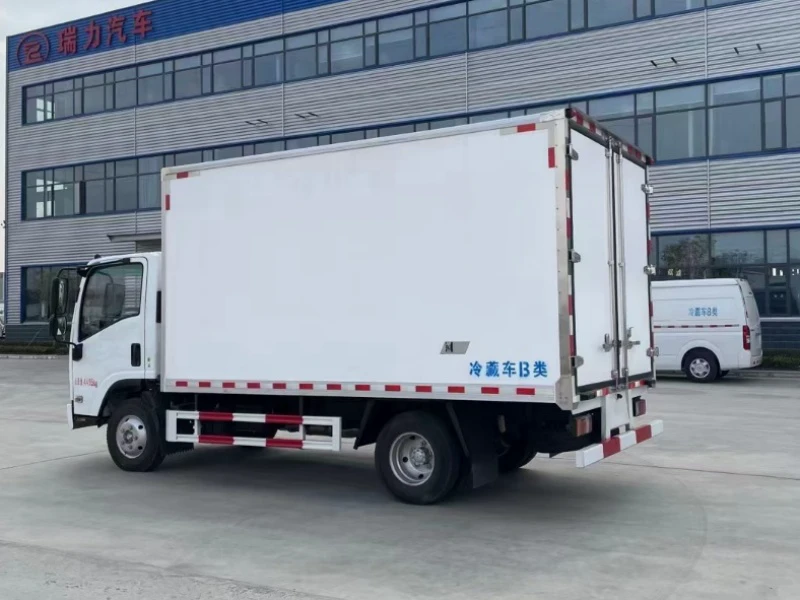

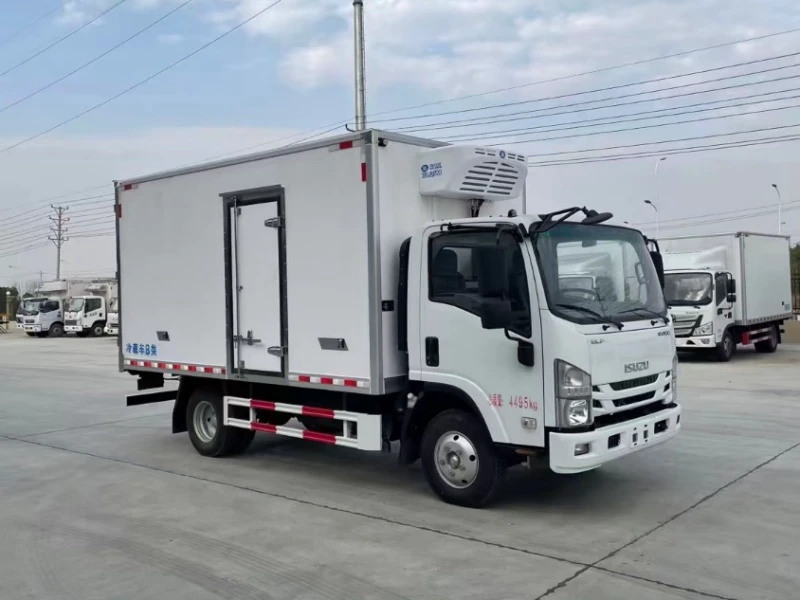

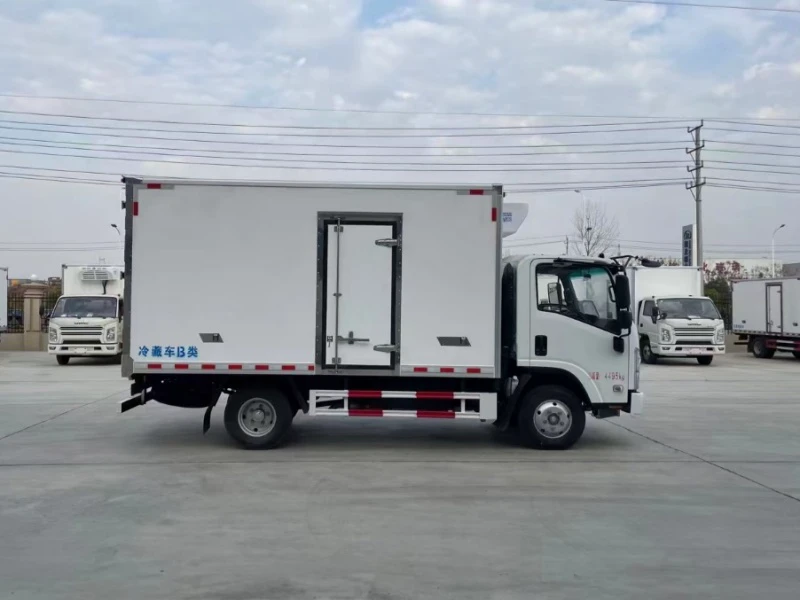

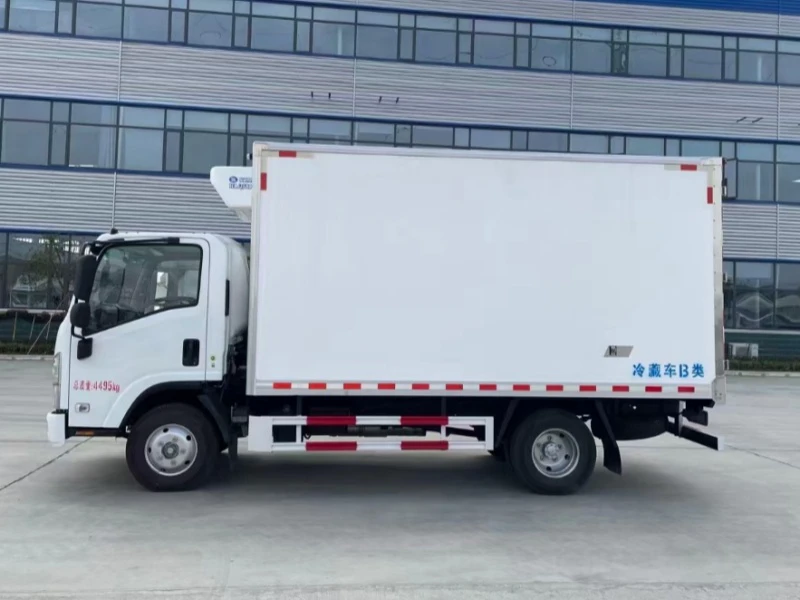

Product Introduction: Isuzu KV100 Refrigerator Truck | Isuzu 4×2 Refrigerator Truck with 4.2m Cargo Box and 18m³ Volume

I. Product Overview
The Isuzu KV100 Refrigerator Truck is a reliable and efficient light-duty refrigerated vehicle engineered for urban cold chain logistics and temperature-sensitive cargo delivery. Built on the trusted Isuzu KV100 platform, this model combines a durable chassis, fuel-efficient engine, and advanced refrigeration technology. As a specialized refrigerated truck manufactured by Chengli Group, it ensures cargo integrity for fresh produce, frozen foods, and pharmaceuticals in city environments. This 4.2-meter refrigerated truck is ideal for small to medium-sized fleet operators requiring durability and temperature-controlled transport.

II. Key Specifications

• Engine Model: 4KH1CN6LB (Qingling Isuzu)

• Transmission: Isuzu MSB-5MT, 5-speed manual

• Power Output: 120 hp (88 kW)

• Displacement: 2,999 ml (inline 4-cylinder)

• Tires: 7.00R16 8PR steel radial tires

• Braking System: Air brake with ABS

• Cab Features: Power steering, air conditioning, power windows, multifunction LCD instrument cluster

• Overall Dimensions (L×W×H): 5,995 mm × 2,260 mm × 3,110 mm

• Cargo Box Internal Dimensions (L×W×H): 4,200 mm × 2,050 mm × 2,000 mm

• Cargo Volume: Approximately 18 m³

• Rear Axle Capacity: 5 tons

• Wheelbase: 3,360 mm

III. Exterior Dimensions, Materials, and Design Concept
The vehicle measures 5,995 mm in length with a 2,260 mm width, designed for urban maneuverability while maximizing cargo capacity. The refrigerated box features vacuum adsorption and hydraulic adsorption integrated molding technology, with sandwich composite bonding achieving national Class A insulation standards. The construction includes high-quality fiberglass-reinforced plastic inner and outer panels with an 8 cm thick polyurethane foam insulation layer. The aluminum checkered floor ensures durability and easy cleaning, while labyrinth rubber door seals with thermal break strips provide airtight insulation. The design prioritizes thermal efficiency and corrosion resistance, with 30 cm high aluminum alloy edge trim around the box, stainless steel corner guards, and electrocoated auxiliary frame, fenders, and guards for enhanced durability.

IV. Structural Advantages

• Engine Performance: The Qingling 4KH1CN6LB engine delivers 120 hp with high fuel efficiency and reliability, meeting stringent emission standards. Its proven durability makes it ideal for frequent urban start-stop delivery operations.

• Transmission Efficiency: The Isuzu MSB-5MT 5-speed manual gearbox provides smooth gear transitions and adapts well to city driving conditions, reducing driver fatigue.

• Axle Durability: The 5-ton rear axle is engineered for light-duty applications, ensuring stability and durability under full load conditions.

• Chassis Strength: The 3,360 mm wheelbase provides excellent stability for urban transport, while the air brake system with ABS ensures safe stopping under load.

• Cab Comfort & Visibility: The multifunction LCD instrument cluster provides clear vehicle information, while air conditioning and power windows enhance driver comfort.

• Corrosion Protection: Electrocoated auxiliary frame, fenders, and guards provide superior rust resistance, extending vehicle life in humid environments.

V. Product Features and Manufacturer Advantages (Chengli Group)

• Refrigerated Box Construction:

  • Vacuum adsorption and hydraulic adsorption integrated molding technology for seamless panel production.

  • Sandwich composite bonding achieving national Class A insulation standards.

  • High-quality fiberglass-reinforced plastic inner and outer panels with 8 cm thick polyurethane foam insulation.

  • Aluminum checkered floor for durability and easy cleaning.

  • Labyrinth rubber door seals with thermal break strips for airtight insulation.

  • 30 cm high aluminum alloy edge trim around the box, stainless steel corner guards, door locks, hinges, and door frames.

  • Stainless steel rear door handrail for convenience.

  • Energy-efficient LED lighting inside the cargo box near rear door.

  • Right front side door for flexible loading operations.

  • Electrocoated auxiliary frame, fenders, and guards for corrosion resistance.

• Refrigeration Options:

  • Temperature range options: -5°C or -15°C.

  • Compatible with domestic or imported refrigeration unit brands.

• Optional Configurations:

  • Ventilation channels for improved air circulation.

  • Meat hook rails for hanging meat transport.

  • Slot rails for adjustable cargo securing.

• Chengli Group Advantages:

  • Leading refrigerated truck manufacturer with advanced production facilities including vacuum adsorption molding equipment.

  • Extensive service network across China and export markets with readily available spare parts.

  • Customization options for fleet operators, including telematics integration for real-time temperature monitoring.

  • Commitment to quality with robust manufacturing processes ensuring long-term reliability.

  • Expertise in producing specialized vehicles for various applications, from fresh food delivery to pharmaceutical logistics.

This Isuzu KV100 Refrigerator Truck represents the perfect balance of reliability, efficiency, and cold chain performance for urban logistics, backed by Chengli Group's expertise in specialized vehicle manufacturing. Whether transporting fresh produce, dairy products, or medical supplies in city environments, this vehicle ensures cargo arrives in perfect condition while providing excellent maneuverability and durability.
