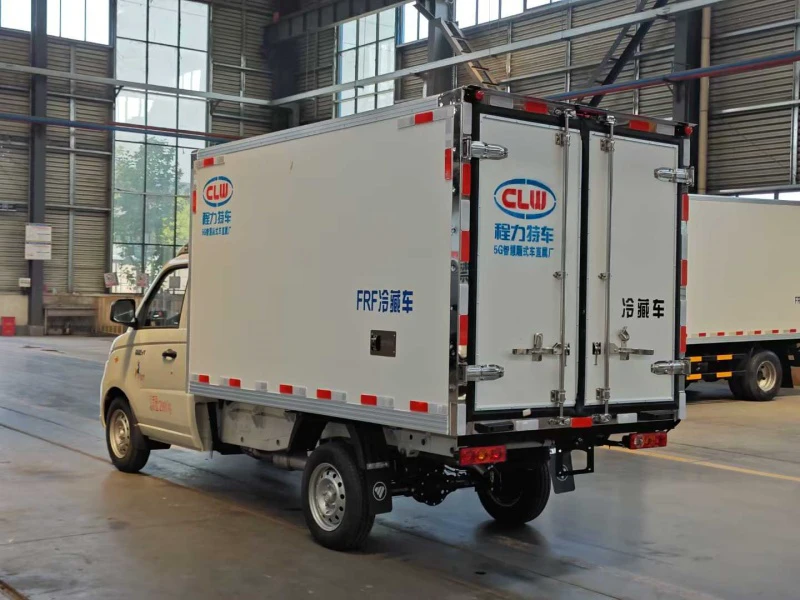

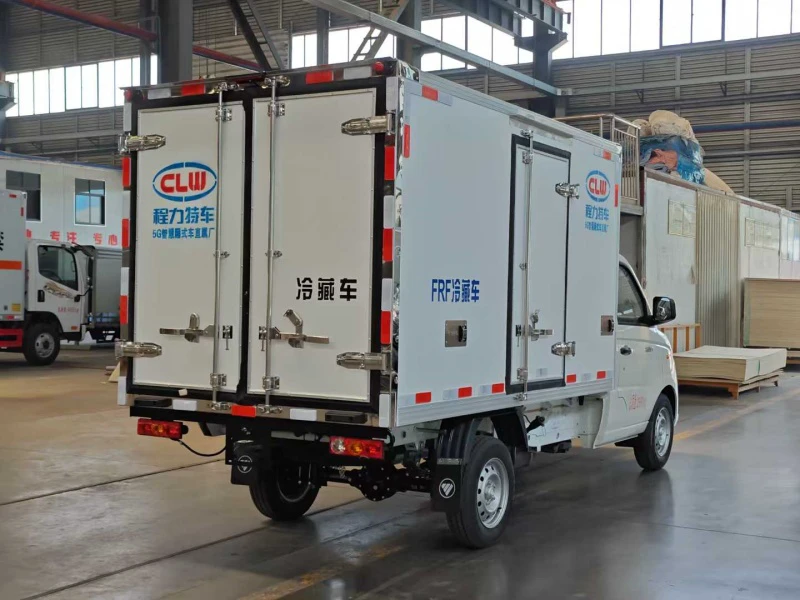

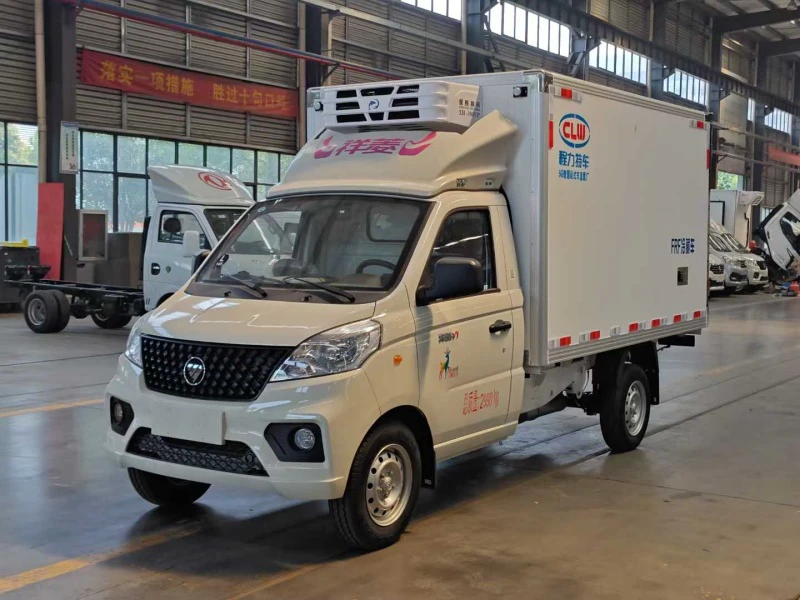

Product Introduction: Foton V1 (High-End 1.6L) Refrigerator Truck (Model: BJ5030XLC4JV5-11) | Foton 4×2 Refrigerator Truck with 2.8m Cargo Box and 7m³ Volume

I. Product Overview
The Foton V1 High-End 1.6L Refrigerator Truck is a compact and efficient light-duty refrigerated vehicle engineered for urban cold chain logistics and last-mile delivery of temperature-sensitive goods. Built on the versatile Foton V1 platform with a 1,600 mm wide cab, this model combines exceptional maneuverability, reliable performance, and advanced refrigeration technology. As a specialized refrigerated truck manufactured by Chengli Group, it ensures cargo integrity for fresh produce, frozen foods, and pharmaceuticals in city environments. This 2.8-meter refrigerated truck is ideal for small-scale fleet operators and independent drivers requiring efficient temperature-controlled transport in narrow urban streets.

II. Key Specifications

• Overall Dimensions (L×W×H): 4,960 mm × 1,720 mm × 2,515 mm

• Cargo Box Internal Dimensions (L×W×H): 2,795 mm × 1,545 mm × 1,535 mm

• Cargo Volume: Approximately 6.6 m³

• Engine Displacement: 1.6L

• Transmission: 5-speed manual gearbox

• Rear Axle: 1.5-ton capacity

• Wheelbase: 3,070 mm

• Tires: 175R14 radial tires

• Braking System: ABS

• Steering: Electric power steering

• Suspension: Front stabilizer bar for enhanced handling

• Cab Features: Central door locks, electric air conditioning, power windows

III. Exterior Dimensions, Materials, and Design Concept

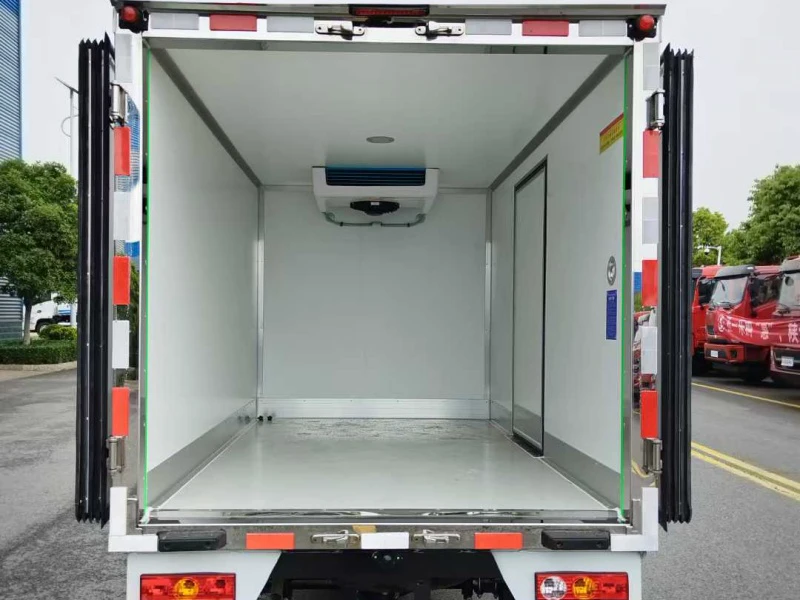

The vehicle measures 4,960 mm in length with a 1,720 mm width, designed for exceptional maneuverability in congested urban environments while maximizing cargo capacity for refrigerated delivery trucks. The refrigerated box construction utilizes vacuum adsorption and hydraulic adsorption integrated molding technology, with sandwich composite bonding achieving national Class A insulation standards. The construction includes high-quality 2.0 mm fiberglass-reinforced plastic inner and outer panels with an 80 mm thick XPS extruded polystyrene insulation layer. The fiberglass patterned floor ensures durability and easy cleaning. The design prioritizes thermal efficiency and cargo protection, with labyrinth rubber door seals providing airtight insulation and 150 mm high interior impact guards protecting walls during loading operations. The frame utilizes electrocoated auxiliary beams and guards for enhanced corrosion resistance.

IV. Structural Advantages

• Engine Performance: The 1.6L engine delivers reliable power with excellent fuel efficiency for frequent urban start-stop delivery operations carrying fresh produce and dairy products.

• Transmission Efficiency: The 5-speed manual gearbox provides smooth gear transitions and adapts well to city driving conditions for compact refrigerated vans, reducing driver fatigue during last-mile delivery.

• Axle Durability: The 1.5-ton rear axle is engineered for light-duty applications, ensuring stability and durability under full load conditions for temperature-controlled trucks.

• Chassis Strength: The 3,070 mm wheelbase provides excellent stability for urban transport, while the front stabilizer bar enhances handling during cornering and uneven road conditions.

• Steering & Maneuverability: Electric power steering provides effortless maneuvering in tight urban spaces, making it ideal for narrow street deliveries and congested loading zones.

• Braking Safety: ABS ensures safe stopping under various road conditions, protecting both driver and sensitive cargo.

• Corrosion Protection: Electrocoated auxiliary beams and guards provide superior rust resistance, extending vehicle life in humid environments.

V. Product Features and Manufacturer Advantages (Chengli Group)

• Refrigerated Box Construction:

  • Vacuum adsorption and hydraulic adsorption integrated molding technology for seamless panel production.

  • Sandwich composite bonding achieving national Class A insulation standards for superior temperature retention.

  • High-quality 2.0 mm fiberglass-reinforced plastic inner and outer panels with 80 mm thick XPS extruded polystyrene insulation.

  • Fiberglass patterned floor for durability and easy cleaning.

  • Labyrinth rubber door seals for airtight insulation.

  • 150 mm high interior impact guards protecting walls during loading and unloading operations.

  • Aluminum alloy edge trim around the box, stainless steel corner guards, door locks, hinges, and door frames for corrosion resistance.

  • Stainless steel door frames, hinges, and lock components for longevity.

  • Energy-efficient LED lighting inside the cargo box for improved visibility during night deliveries.

  • Electrocoated auxiliary beams and guards for superior corrosion protection.

• Refrigeration Options:

  • Standard configuration includes domestic -15°C refrigeration unit for frozen food transport.

  • Temperature range options available for diverse cargo types, from fresh produce to frozen goods.

  • Compatible with various refrigeration unit brands including imported options for premium performance.

• Chengli Group Advantages:

  • Leading refrigerated truck manufacturer with advanced production facilities including vacuum adsorption and hydraulic adsorption molding equipment.

  • Extensive service network across China and export markets with readily available spare parts.

  • Customization options for fleet operators, including telematics integration for real-time temperature monitoring.

  • Commitment to quality with robust manufacturing processes ensuring long-term reliability.

  • Expertise in producing specialized vehicles for various applications, from fresh food delivery to pharmaceutical logistics.

  • Complete documentation package including chassis certificate, vehicle certificate, and service directory.

  • Competitive pricing and flexible financing options for small business owners and independent operators.

This Foton V1 High-End 1.6L Refrigerator Truck represents the perfect balance of compact size, maneuverability, and cold chain performance for urban logistics, backed by Chengli Group's expertise in specialized vehicle manufacturing. Whether delivering fresh produce to restaurants, frozen foods to retailers, or medical supplies to clinics in congested city centers, this vehicle ensures cargo arrives in perfect condition while navigating the tightest urban streets with ease.
