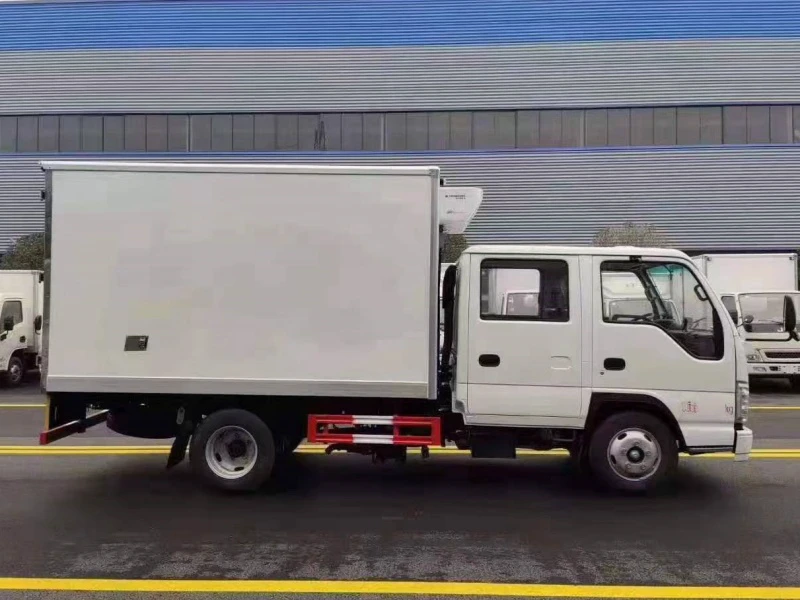

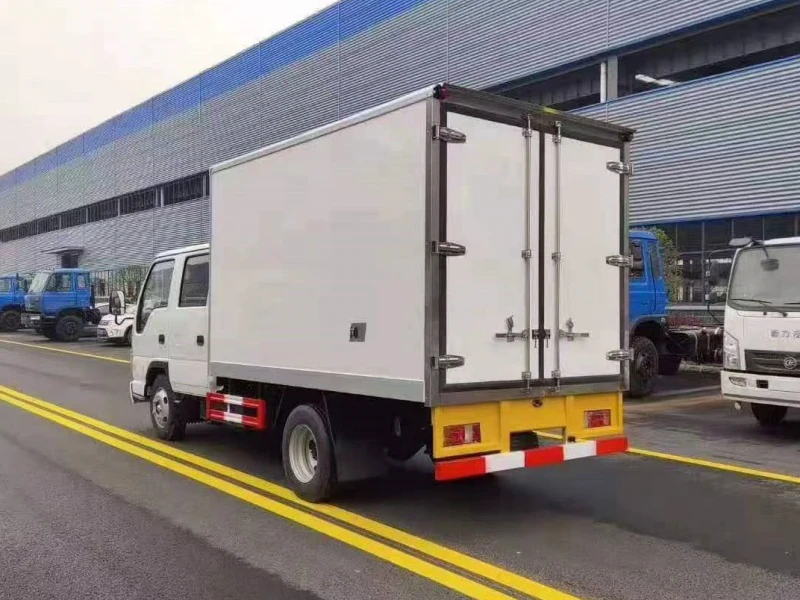

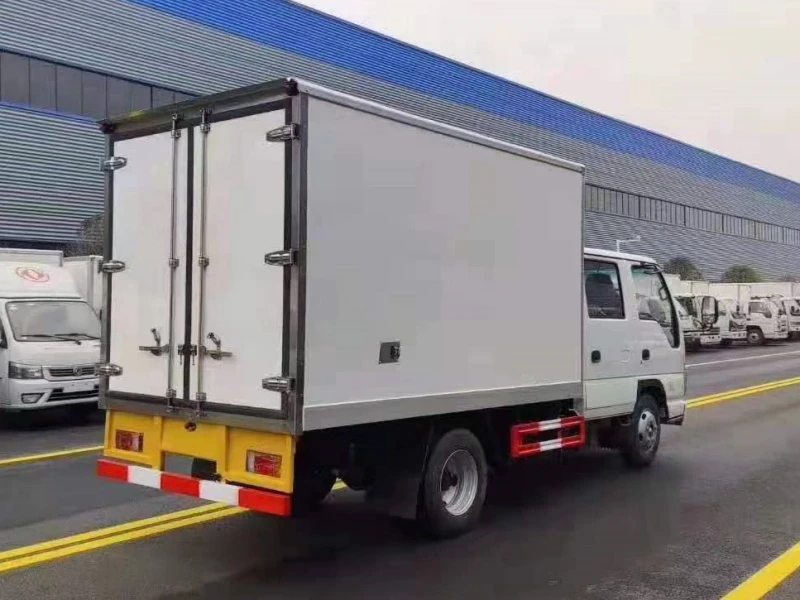

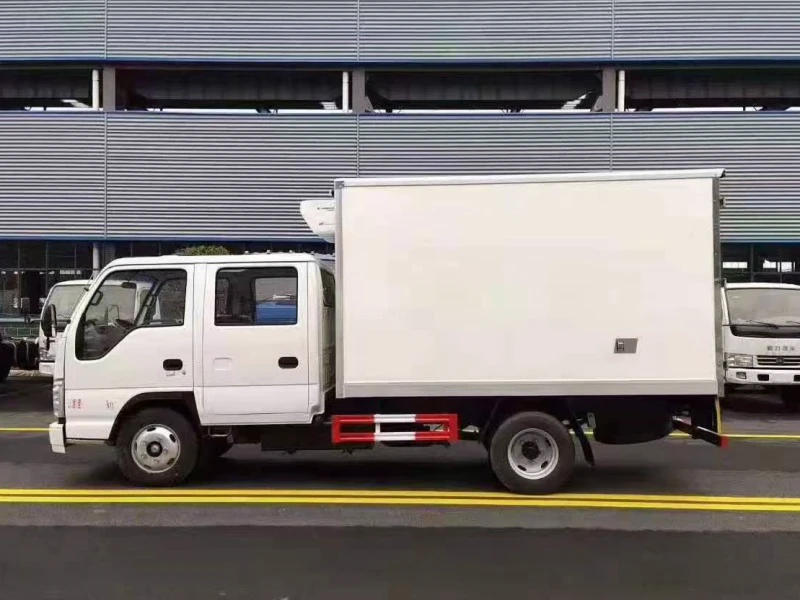

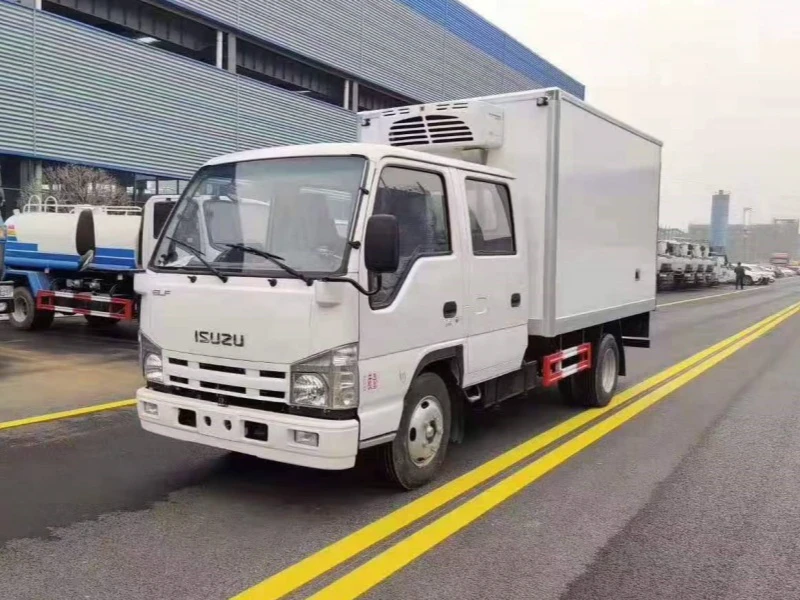

Product Introduction: Isuzu 100P Double Cab Refrigerator Truck & JMC Shunda Double Cab Refrigerator Truck | Isuzu 4×2 Double Cab Refrigerator Truck with 3.2m Cargo Box and 10m³ Volume

I. Product Overview
The Isuzu 100P Double Cab Refrigerator Truck is a versatile and reliable light-duty refrigerated vehicle engineered for urban cold chain logistics and temperature-sensitive cargo delivery. Built on the trusted Isuzu 100P platform, this double cab design accommodates up to 5 passengers (2+3 seating) while maintaining efficient refrigerated transport capabilities. As a specialized refrigerated truck manufactured by Chengli Group, it ensures cargo integrity for fresh produce, frozen foods, and pharmaceuticals in city environments. This 3.15-meter refrigerated truck is ideal for fleet operators requiring both crew transportation and temperature-controlled delivery in a single vehicle.

II. Key Specifications

Isuzu 100P Double Cab Model (CLW5040XLCQL6)

• Overall Dimensions (L×W×H): 5,995 mm × 1,960 mm × 2,835 mm

• Cargo Box Internal Dimensions (L×W×H): 3,150 mm × 1,740 mm × 1,750 mm

• Cargo Volume: Approximately 9.6 m³

• Engine: 4KH1CN6LB (Qingling Isuzu), 120 hp (88 kW)

• Displacement: 2,999 ml (inline 4-cylinder)

• Transmission: Isuzu MSB-5MT, 5-speed manual

• Front/Rear Axle: 2-ton front axle / 4-ton rear axle

• Wheelbase: 3,360 mm

• Tires: 7.00R16 steel radial tires

• Braking System: Hydraulic brake with ABS

• Cab Features: Air conditioning, power steering, power windows, central door locks

JMC Shunda Double Cab Model

• Chassis Model: JX1041TSG26

• Engine: Jiangxi Isuzu 115 hp

• Wheelbase: 3,360 mm

• Tires: 7.00 steel radial tires

• Braking System: Hydraulic brake with ABS

• Cab Features: Factory air conditioning, power steering, central door locks, power windows

• Special Feature: Dual factory-installed brackets for refrigeration system

III. Exterior Dimensions, Materials, and Design Concept
The Isuzu 100P vehicle measures 5,995 mm in length with a 1,960 mm width, designed for urban maneuverability while maximizing cargo capacity for refrigerated delivery trucks. The refrigerated box features a double cab configuration allowing 2+3 seating while maintaining a 3,150 mm cargo space. The refrigerated box construction utilizes hydraulic adsorption integrated molding technology, with sandwich composite bonding achieving national Class A insulation standards. The construction includes high-quality fiberglass-reinforced plastic inner and outer panels with an 80 mm thick polyurethane foam insulation layer. The aluminum checkered floor ensures durability and easy cleaning. The design prioritizes thermal efficiency and durability, with labyrinth rubber door seals providing airtight insulation. The frame utilizes anti-rust treated high-quality light steel profiles for enhanced structural integrity.

IV. Structural Advantages

• Engine Performance: The Isuzu 4KH1CN6LB engine delivers 120 hp with high fuel efficiency and reliability, meeting stringent emission standards. Its proven durability makes it ideal for frequent urban start-stop delivery operations carrying fresh produce and dairy products.

• Transmission Efficiency: The Isuzu MSB-5MT 5-speed manual gearbox provides smooth gear transitions and adapts well to city driving conditions for refrigerated vans, reducing driver fatigue during last-mile delivery.

• Axle Durability: The 2-ton front axle and 4-ton rear axle are engineered for light-duty applications, ensuring stability and durability under full load conditions for temperature-controlled trucks.

• Chassis Strength: The 3,360 mm wheelbase provides excellent stability for urban transport, while the hydraulic brake system with ABS ensures safe stopping under load.

• Cab Comfort & Capacity: The double cab design accommodates up to 5 passengers, making it ideal for work crews requiring both transportation and refrigerated cargo capacity.

• Electrical Reliability: Factory-installed dual brackets for refrigeration system ensure proper mounting and reliable operation.

V. Product Features and Manufacturer Advantages (Chengli Group)

• Refrigerated Box Construction:

  • Hydraulic adsorption integrated molding technology for seamless panel production.

  • Sandwich composite bonding achieving national Class A insulation standards for superior temperature retention.

  • High-quality fiberglass-reinforced plastic inner and outer panels with 80 mm thick polyurethane foam insulation.

  • Aluminum checkered floor for durability and easy cleaning.

  • Labyrinth rubber door seals for airtight insulation.

  • Aluminum alloy edge trim around the box, stainless steel corner guards, door locks, hinges, and door frames for corrosion resistance.

  • Stainless steel door frames, hinges, and lock components for longevity.

  • Energy-efficient LED lighting inside the cargo box for improved visibility during night deliveries.

  • Front drainage holes for easy cleaning and maintenance.

  • Double rear doors for flexible loading operations.

• Refrigeration Options:

  • Temperature range options: -5°C, -10°C, -15°C, or -18°C to -20°C for diverse cargo types.

  • Compatible with domestic refrigeration unit brands including Kaixue, Hanxue, Huatai, Songhan, and Chaoku.

  • Compatible with imported refrigeration unit brands including Carrier and Thermo King.

  • Optional dual-temperature units with heating capability for temperature range of +20°C to -18°C.

  • Independent or non-independent refrigeration unit options available.

• Optional Configurations:

  • Side door on right front for flexible loading operations.

  • Ventilation channels (T-shaped) for improved air circulation.

  • Meat hook rails for hanging meat transport applications.

  • Temperature real-time monitoring with printing device.

  • 12V-24V external power connection for refrigeration during engine-off periods.

  • Stainless steel interior for seafood transport.

• Specialized Applications:

  • Pharmaceutical/Vaccine Transport: Requires 5-side ventilation channels and temperature/humidity recorder with printing device for GSP certification.

  • Medical Waste Transport: Fully sealed stainless steel interior with disinfection spray, UV sterilization, and waste leakage containment box.

• Chengli Group Advantages:

  • Leading refrigerated truck manufacturer with advanced production facilities including hydraulic adsorption molding equipment.

  • "Jinglong Process" technology utilizing 1,200-ton hydraulic heating curing equipment for integrated panel production.

  • Extensive service network across China and export markets with readily available spare parts.

  • Customization options for fleet operators, including telematics integration for real-time temperature monitoring.

  • Commitment to quality with robust manufacturing processes ensuring long-term reliability.

  • Complete documentation package including chassis certificate, vehicle certificate, and nationwide service directory.

  • Expertise in producing specialized vehicles for various applications, from fresh food delivery to pharmaceutical logistics.

This Isuzu 100P Double Cab Refrigerator Truck represents the perfect balance of crew capacity, reliability, and cold chain performance for urban logistics, backed by Chengli Group's expertise in specialized vehicle manufacturing. Whether transporting fresh produce, dairy products, or requiring pharmaceutical-grade transport, this vehicle ensures cargo arrives in perfect condition while providing seating for work crews.
