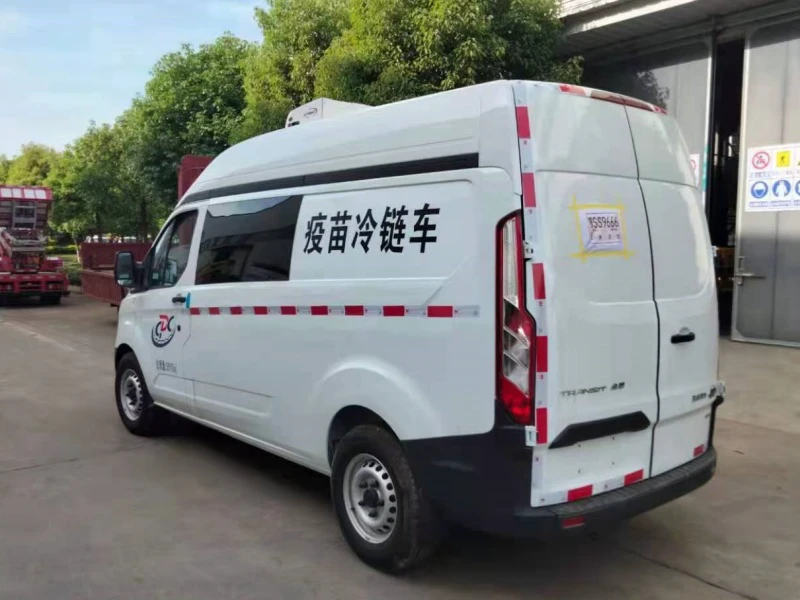

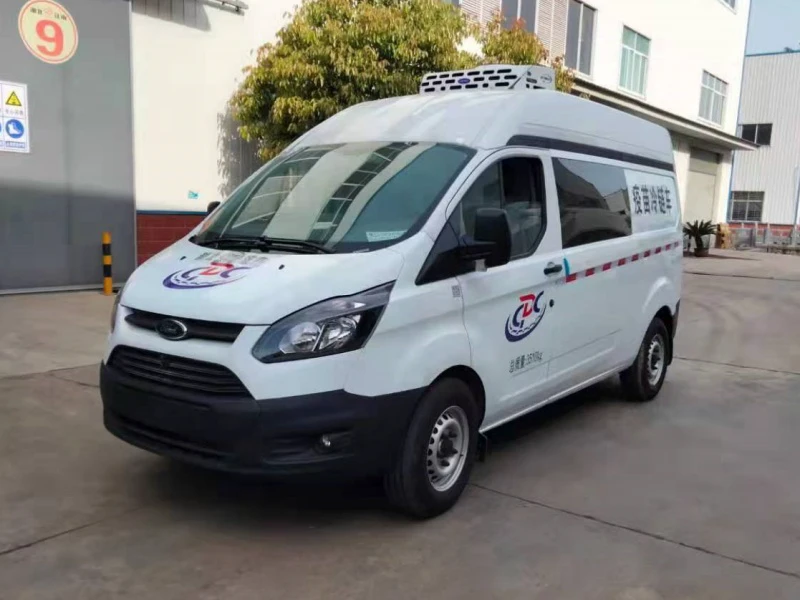

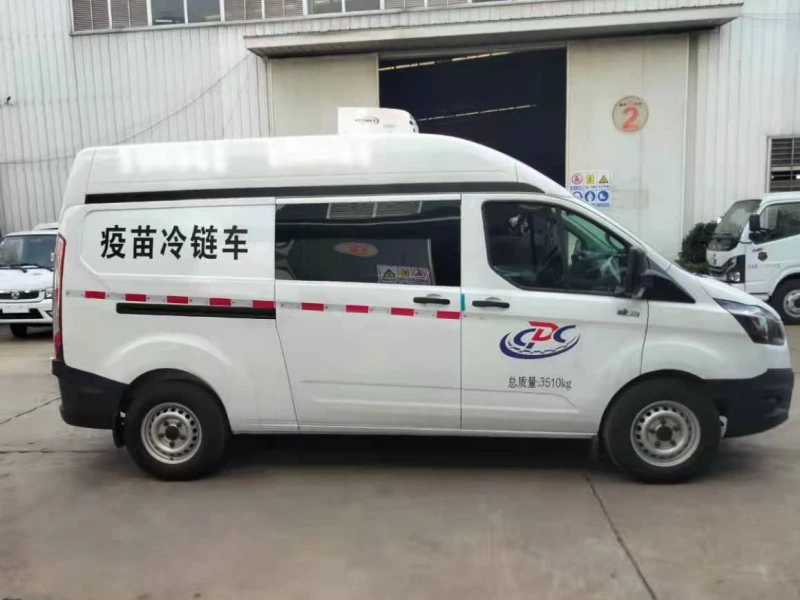

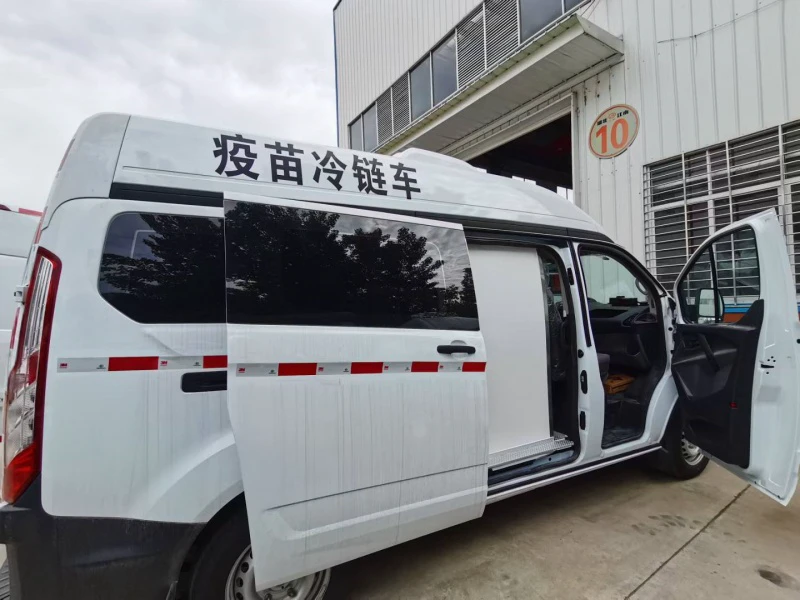

Ford Transit V362 Vaccine Refrigerated Truck – Professional Product Introduction | Ford Refrigerated Truck Vaccine Transport Vehicle with 3 to 5 cubic meters of cargo volume available in single row or dual row cab configurations

I. Product Overview

The secure and reliable cold chain distribution of vaccines and other temperature-sensitive pharmaceuticals is a critical link in the healthcare supply chain. The Ford Transit V362 Vaccine Transport Vehicle is specifically engineered to meet this challenge. As a specialized medical refrigeration truck within the pharmaceutical cold chain logistics system, this temperature-controlled delivery vehicle ensures that vaccines and biologics are stored and transported within strict parameters from production facility to final point of use. Built on the reliable chassis of the Guo-liu Jiangling Ford Transit V362, this insulated delivery truck is designed to navigate urban environments efficiently, requiring only a C1 driver's license for operation.

II. Core Specifications

• Chassis Model: Guo-liu Jiangling Ford Transit V362

• Engine Type: Ford PUMA 2.0L Turbocharged Diesel Engine with High-Pressure Common Rail Direct Injection

• Power Output: 90 kW (122 Horsepower)

• Peak Torque: 300 N.m

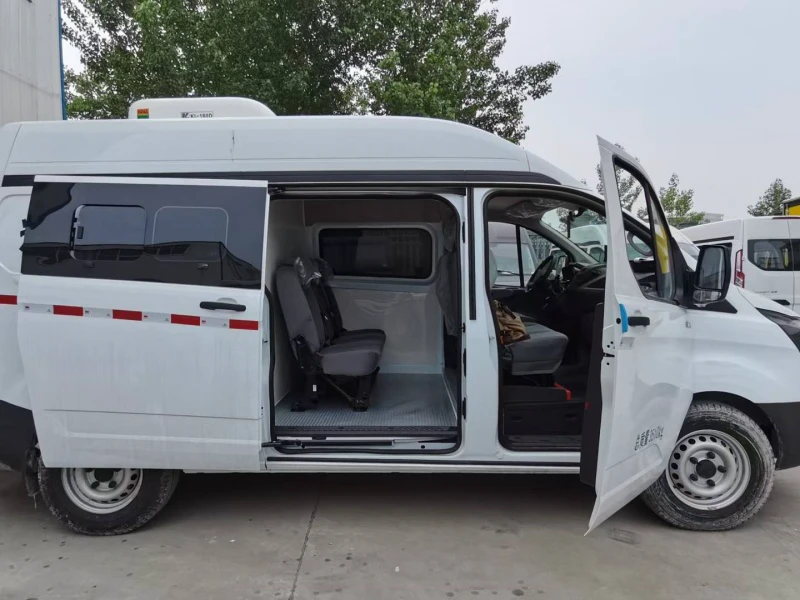

• Crew Capacity: 3-6 persons (Dual-row seat configuration)

• Emission Compliance: Guo VI (National Phase VI)

• Cooling Unit Options: Keli Refrigeration, -5°C / -15°C (Field-selectable)

• Braking System: Four-wheel disc brakes with Bosch 9.1 ABS+EBD

• Transmission: 5-speed manual

III. Exterior Dimensions, Construction Materials & Design Philosophy

• Overall Vehicle Dimensions: 5341 x 2032 x 2660 mm

• Insulated Cargo Box Internal Dimensions: 1300 x 1490 x 1600 mm (Approx. 3.1 cubic meters cargo capacity)

• Wheelbase: 3300 mm

• Box Construction Materials: The refrigerated compartment features a high-strength sandwich panel construction manufactured through advanced vacuum adsorption and hydraulic adsorption molding processes. The inner and outer walls are made of corrosion-resistant, high-strength fiberglass reinforced plastic (FRP) , providing excellent thermal insulation and oxidation resistance. The core thermal insulation layer is composed of XPS extruded polystyrene foam, ensuring minimal thermal exchange. Flooring features durable aluminum tread plate.

• Design Philosophy: The design prioritizes "Thermal Integrity and Urban Agility." The compact 3.1 m³ cold storage box is perfectly sized for high-value, low-volume pharmaceutical payloads, while the overall vehicle dimensions allow for excellent maneuverability in city traffic and easy access to loading bays. The focus is on creating a stable, micro-environment controlled chamber within a mobile platform.

IV. Structural Advantages and Component Analysis

• Engine Performance & Fuel Efficiency: The heart of this mobile cold chain solution is the renowned Ford PUMA 2.0T diesel engine. Utilizing direct injection technology and high-pressure common rail fuel system, it delivers a robust 300 N.m of torque. This ensures ample power for the refrigeration unit and reliable driving performance even under full load, while maintaining diesel fuel economy.

• Drivetrain & Suspension System: The Front-Wheel-Drive (FWD) layout provides superior traction on slippery surfaces and contributes to stable handling. The suspension system combines front MacPherson strut independent suspension for superior ride comfort and precise handling, with rear leaf spring non-independent suspension engineered to handle the payload capacity of the insulated box.

• Safety Features & Cargo Protection: Safety is paramount for pharmaceutical transport. The truck is equipped with Bosch 9.1 ABS anti-lock braking system and EBD electronic brakeforce distribution for stable, controlled braking, ensuring protection of the precious and temperature-sensitive cargo. Standard safety features include a driver's airbag and four-wheel disc brakes, providing additional peace of mind.

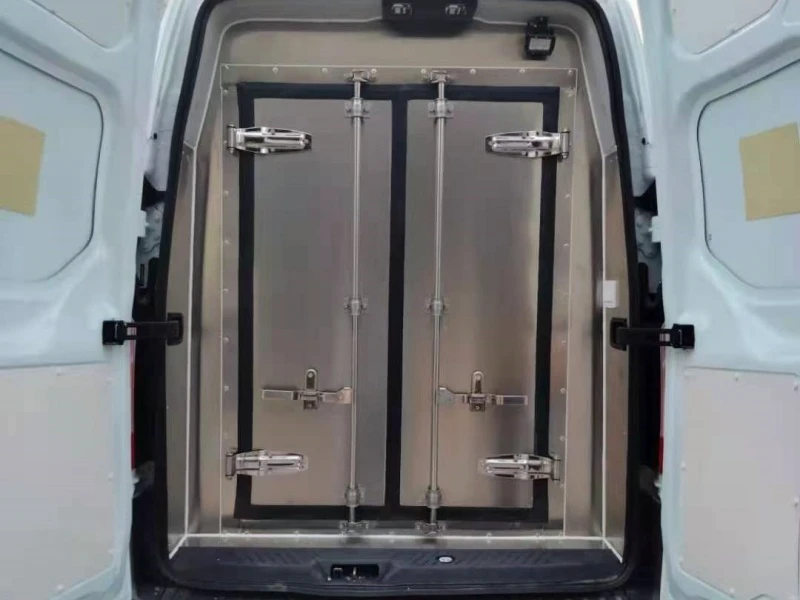

• Airtight Sealing System: The door frame utilizes specialized labyrinth rubber sealing strips to maintain temperature integrity. Stainless steel door hinges, locks, and door frames ensure long-lasting, corrosion-resistant performance and a reliable airtight seal.

V. Product Features & Manufacturer Advantages of Chengli Group

• Superior Insulation Technology for Medical Storage: The refrigerated box body is manufactured using advanced vacuum adsorption and hydraulic adsorption one-piece molding production lines. This creates a seamless, high-density thermal insulation panel that meets national Class A insulation standards, guaranteeing temperature stability and significantly reducing the workload on the cooling unit.

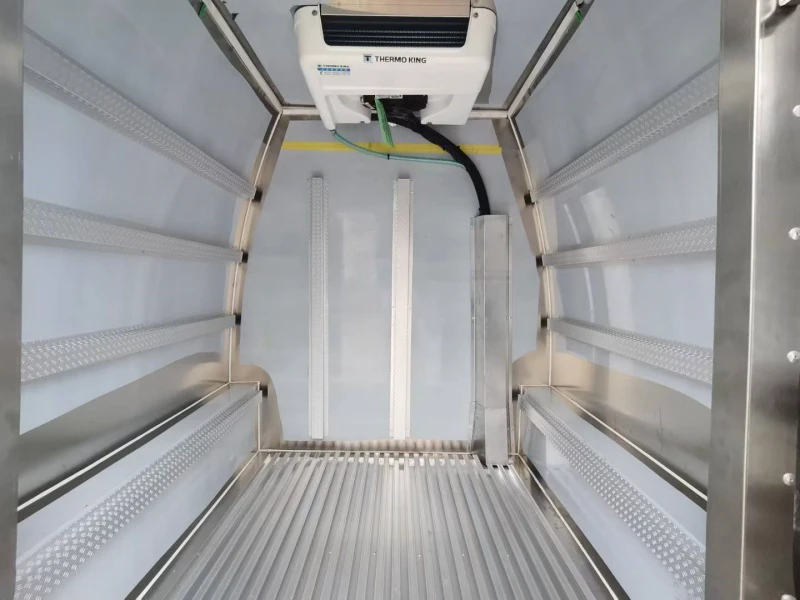

• User-Oriented Refinement & Interior Features: The interior features an anti-slip aluminum tread plate floor for durability and safety during loading and unloading. The stainless steel door hardware, including locks and hinges, ensures long-term reliability. An interior LED energy-saving lighting system provides convenient illumination for nighttime or low-light operations.

• Chengli Group Advantage – Specialized Vehicle Manufacturing Expertise: As a product of Chengli Group, a leader in the special purpose vehicle industry, this vaccine refrigerator truck benefits from decades of specialized manufacturing expertise. Our advantage lies in the precision engineering of the insulated compartment to perfectly match the chassis specifications. We seamlessly integrate the refrigeration system with the vehicle's electrical architecture for reliable, worry-free operation. We offer a complete, ready-to-deploy solution for public health logistics, medical supply chain requirements, and cold chain transportation needs globally.
