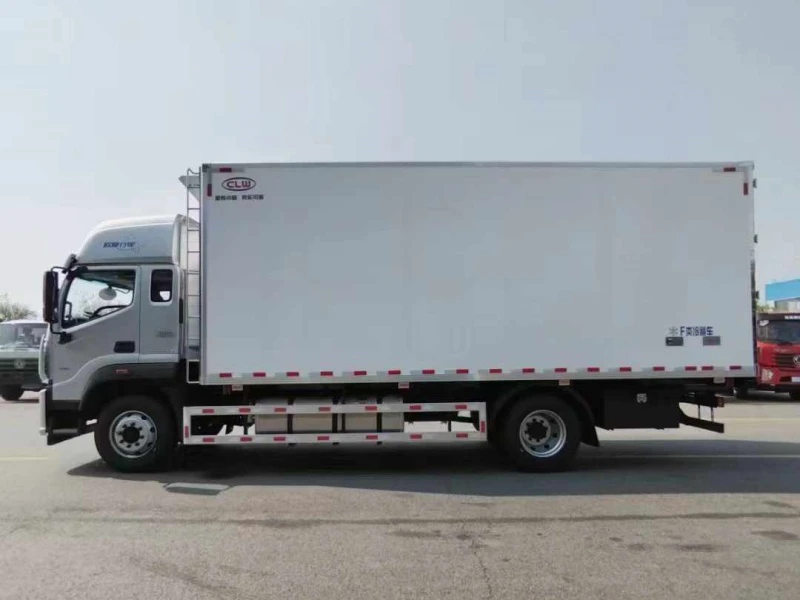

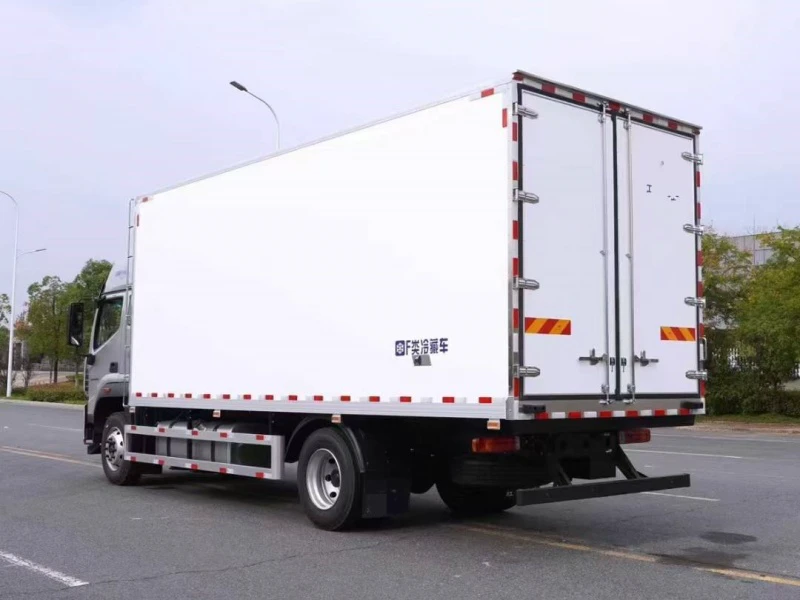

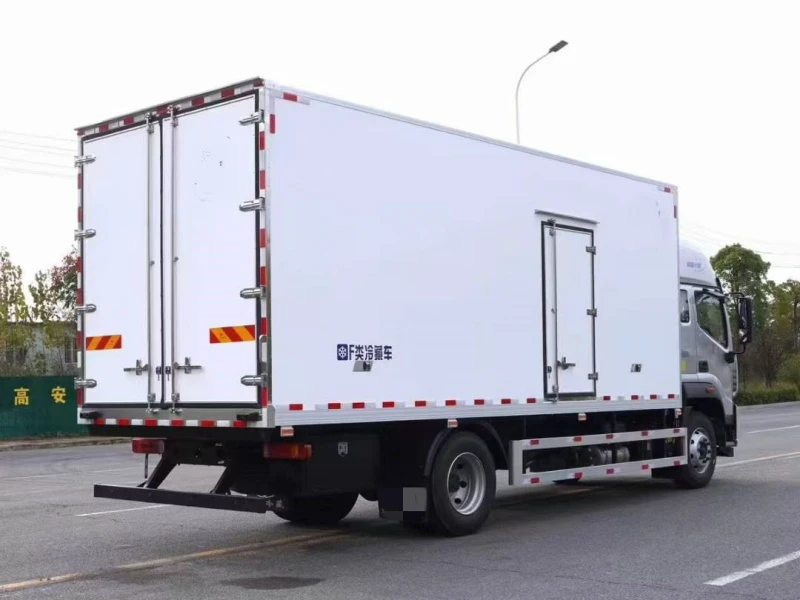

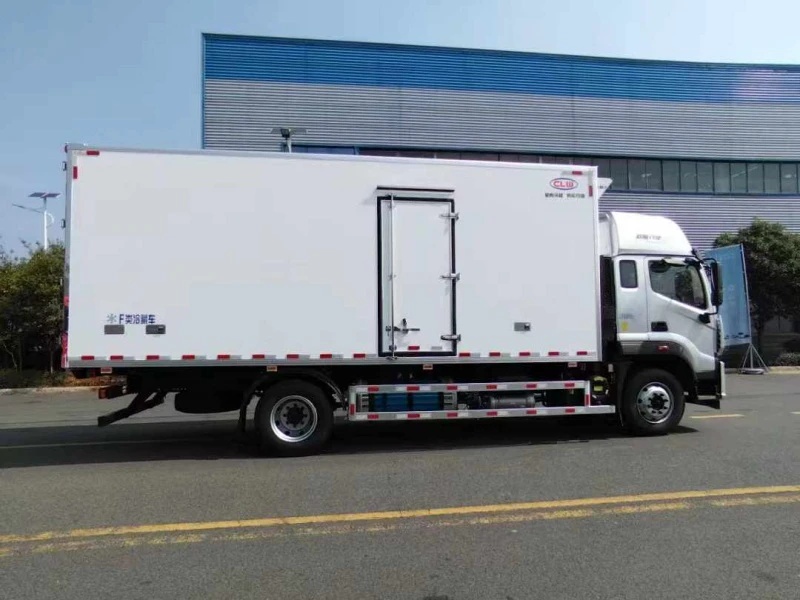

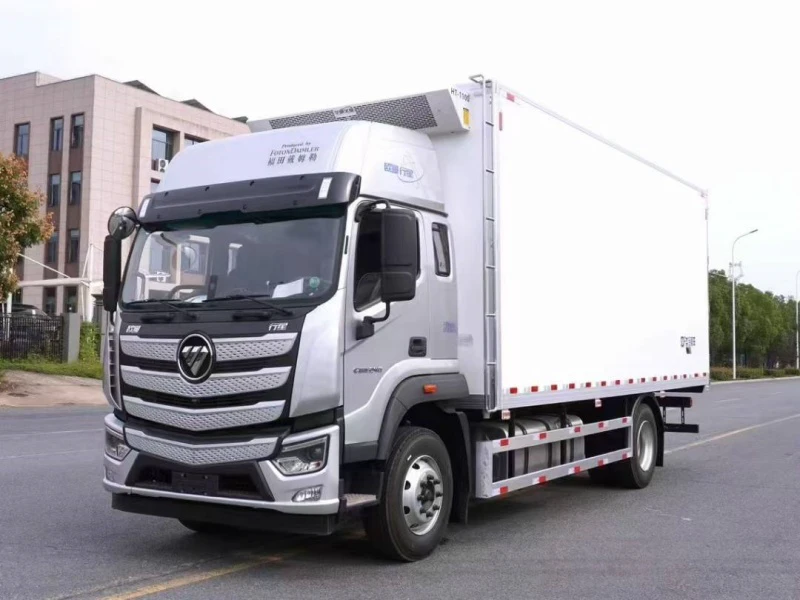

Foton 6m Refrigerated Truck – Foton Auman Planet (High Roof Double Sleeper) – Professional Product Introduction | Foton 4x2 Refrigerated Truck with 6m box length and 36m³ cargo volume

I. Product Overview

The Foton 6m Refrigerated Truck, part of the Foton Auman Planet series, is a cost-effective and fuel-efficient refrigerated vehicle designed for reliable cold chain logistics. Built on a readily available chassis with economical operation in mind, this insulated transport truck is ideal for medium-distance distribution of frozen food, fresh produce, dairy products, and other temperature-sensitive goods. Manufactured by Chengli Group, a trusted refrigerated truck manufacturer, this temperature-controlled freight solution combines a powerful Cummins engine with a spacious high-roof double sleeper cab, making it perfect for long-haul refrigerated transport operations requiring driver comfort and rest.

II. Core Specifications

• Chassis Model: Foton Auman Planet BJ5181XLCY6AKL-01 truck chassis

• Engine Model: Cummins 240 HP diesel engine

• Power Output: 240 Horsepower

• Transmission: Fast 8-Speed gearbox

• Emission Compliance: National Phase VI (Guo VI) emission standard

• Rear Axle: 8-Ton rear axle with Ratio 3.909

• Braking System: ABS anti-lock braking system

• Suspension: 10/10+8 leaf spring suspension

• Tires: 275/80R22.5 18PR radial tires

• Battery: 180Ah heavy-duty battery

• Alternator: 120A high-output alternator

• Cab Features: High-roof double sleeper cab, Electric Windows, Central Door Lock, 7-inch Color Display Instrument, Multifunction steering wheel, Heated/Cooled Electric Air Conditioning, Daytime Running Lights, LED Headlights, Automatic Headlights, Integrated Lens, Electric heated defrost mirrors, Airbag suspension seat, Electric Hydraulic Cab Tilt, Cruise control, Reverse Radar, Reinforced Body

III. Exterior Dimensions, Box Size, Materials & Design Philosophy

• Overall Vehicle Dimensions: Approx. 5995-6500 mm (varies by configuration)

• Insulated Cargo Box Internal Dimensions: 6000 / 6200 x 2420 x 2500 mm (Approx. 36.3 - 37.5 m³ cargo capacity / 36-37 m³ load volume / 1260-1320 cubic feet)

• Wheelbase: 4800 mm wheelbase

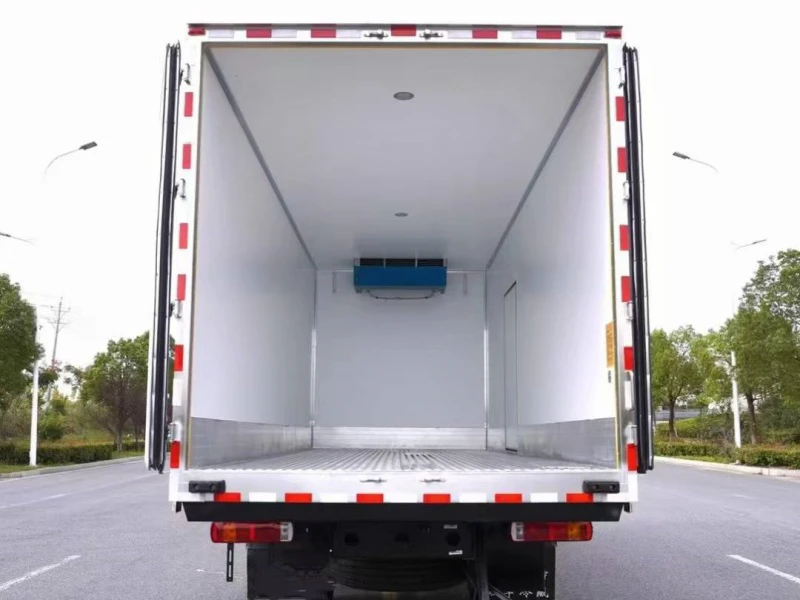

• Box Construction Materials: The refrigerated body features a high-strength sandwich panel construction. The inner and outer walls are made of corrosion-resistant, high-strength fiberglass reinforced plastic (FRP) , providing excellent thermal insulation and oxidation resistance. The core insulation layer is composed of high-density polyurethane foam or XPS foam, ensuring minimal temperature fluctuation. Flooring features durable anti-slip aluminum tread plate for safe loading and unloading.

• Design Philosophy: The design prioritizes "Long-Haul Comfort with Maximum Capacity." The spacious 36-37 m³ cargo compartment is optimized for high-volume cold storage distribution, while the high-roof sleeper cab ensures driver comfort during extended trips. The focus is on creating a durable, thermally efficient mobile cold storage unit that maximizes payload capacity without compromising on driver well-being.

IV. Structural Advantages – Engine, Transmission, Axles & More

• Engine Performance & Reliability: The Foton Auman Planet is powered by a Cummins 240 HP heavy-duty diesel engine, renowned for its fuel efficiency, durability, and strong low-end torque. This powerful engine ensures reliable power delivery under load and in varied driving conditions, making it ideal for refrigerated cargo transport applications requiring consistent temperature maintenance.

• Transmission & Drivetrain: Equipped with a Fast 8-speed manual transmission, the drivetrain is engineered for smooth gear changes and optimal power delivery across various terrains, enhancing driver control and fuel consumption during both highway cruising and urban delivery.

• Chassis & Suspension: Built on a robust truck frame with a 4800 mm wheelbase, the vehicle offers excellent stability and load-bearing capacity. The 10/10+8 leaf spring system is tuned to absorb road vibrations, protecting sensitive cargo while ensuring durability under full load.

• Front and Rear Axles: The 8-ton rear differential with a 3.909 ratio is specifically designed to handle the demanding payload of refrigerated freight, providing long-term durability and reliable performance under full load conditions. The front axle is engineered for precise steering and stability.

• Advanced Safety & Driver Assistance Features: The vehicle is equipped with a comprehensive safety system, including ABS for stable braking, reverse radar for safe maneuvering, and reinforced body construction for enhanced protection. The electric heated defrost mirrors ensure clear visibility in adverse weather conditions, while automatic headlights and LED lighting improve nighttime safety.

V. Product Features & Chengli Group Manufacturer Advantages

• Superior Insulation Technology for Cold Storage: The refrigerated compartment is manufactured using advanced vacuum adsorption and hydraulic adsorption one-piece molding production lines. This creates a seamless, high-density thermal barrier that guarantees temperature retention and significantly reduces the workload on the refrigeration unit, ensuring optimal energy savings and cooling performance.

• Driver-Focused Cabin Design for Long Hauls: The Foton Auman Planet features a luxury sleeper cab with driver-centric amenities, including an air-ride driver seat, multifunction steering wheel, cruise control, 7-inch color display, and heated/cooled electric air conditioning. These features significantly reduce driver fatigue and enhance long-distance comfort, making it a true driver-friendly vehicle for overnight operations and team driving.

• Convenience & Durability Features: The vehicle comes standard with electric windows, central door lock, LED headlights, automatic headlights with integrated lens, daytime running lights, and electric hydraulic cab tilt for easy maintenance. The 180Ah maintenance-free battery and 120A alternator ensure reliable electrical system performance, reducing operating costs and vehicle downtime.

• Chengli Group Advantage – Specialized Vehicle Manufacturing Expertise: As a product of Chengli Group, a leader in the commercial vehicle industry and a renowned refrigeration truck builder, this cold chain solution benefits from decades of specialized manufacturing expertise. Our advantage lies in the precision engineering of the insulated compartment to perfectly match the chassis specifications. We seamlessly integrate the cooling system with the vehicle's electrical and mechanical architecture for reliable, worry-free operation. We offer a complete, ready-to-deploy solution for perishable goods transport, food logistics, pharmaceutical cold chain, and other temperature-controlled supply chain needs globally.
