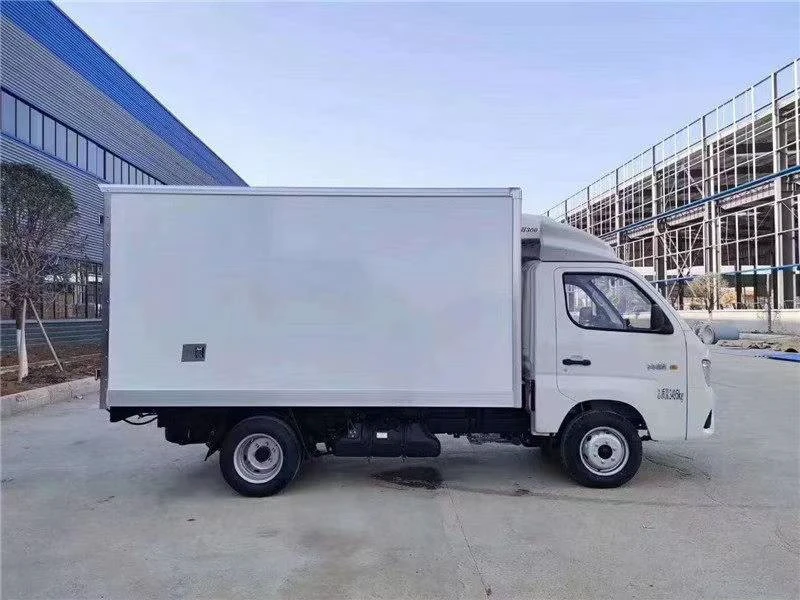

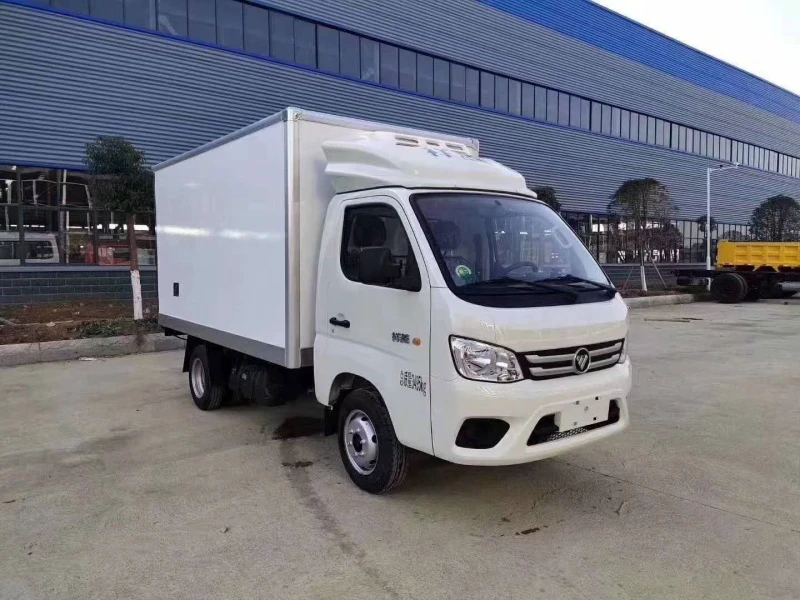

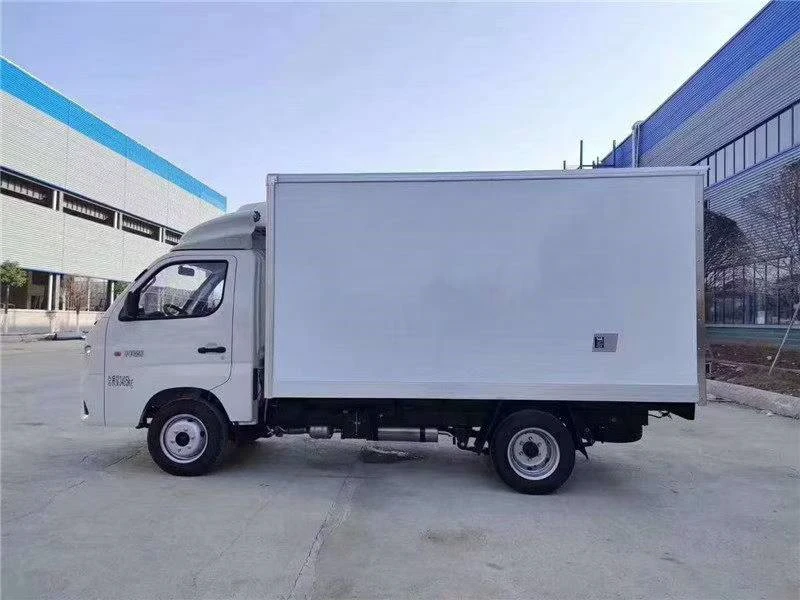

Foton Xiangling M1 Refrigerated Truck – Professional Product Introduction | Foton 4x2 Refrigerated Truck with 3.2m box length and 7.6m³ cargo volume

I. Product Overview

The Foton Xiangling M1 Refrigerated Truck is a compact and agile temperature-controlled delivery vehicle designed for urban and suburban cold chain logistics. With its small footprint and maneuverability, this insulated transport truck is ideal for last-mile delivery of fresh food, beverages, pharmaceuticals, dairy products, and other perishable goods. Manufactured by Chengli Group, a trusted refrigerated truck manufacturer, this cold storage vehicle combines a fuel-efficient gasoline engine with a durable, high-performance insulated compartment, making it perfect for businesses requiring reliable temperature-sensitive transportation in city environments.

II. Core Specifications

• Chassis Model: Foton Xiangling M1 (BJ5031XLCJV4-51) light-duty truck chassis

• Engine Model: Dongan DAM15KR gasoline engine

• Power Output: 115 Horsepower

• Displacement: 1.5L engine displacement

• Emission Compliance: National Phase VI (Guo VI) emission standard

• Transmission: DAT18R 5-Speed manual gearbox

• Tires: 175R14LT rear dual wheels / dual rear tires

• Wheelbase: 2750 mm wheelbase

• Steering: Electronic Power Steering (EPS) power steering system

• Braking System: ABS anti-lock braking system

III. Exterior Dimensions, Box Size, Materials & Design Philosophy

• Overall Vehicle Dimensions: 5070 x 1720 x 2490 mm exterior dimensions

• Insulated Cargo Box Internal Dimensions: 3120 x 1560 x 1560 mm (Approx. 7.6 cubic meters cargo capacity / 7.6 m³ load volume / 268 cubic feet)

• Box Wall Thickness: 80 mm (8 cm) high-density insulation thickness

• Box Construction Materials: The refrigerated compartment features a premium yacht-grade thermoplastic panel construction (also available in FRP/fiberglass option as alternative material). This durable material offers exceptional hardness, oxidation resistance, and impact resistance (virtually unbreakable even under hammer impact). The core insulation layer consists of void-free polyurethane extruded foam and XPS insulation board, ensuring maximum thermal efficiency and minimal temperature loss.

• Flooring: Aluminum tread plate (standard) or flat-surface nano-FRP (optional flooring material)

• Additional Box Features: Front drainage hole for easy cleaning, aluminum profile edging, stainless steel corner caps, stainless steel door locks, heavy-duty stainless steel rear door hinges and lock components, interior LED lighting for nighttime operation

• Design Philosophy: The design prioritizes "Compact Efficiency with Maximum Protection." The 7.6 m³ cargo compartment is optimized for urban delivery routes, while the premium thermoplastic construction ensures superior durability and insulation. The focus is on creating a lightweight yet robust mobile refrigeration unit that maximizes payload capacity while maintaining strict temperature control in confined city environments.

IV. Structural Advantages – Engine, Transmission, Axles & More

• Engine Performance & Reliability: The Foton Xiangling M1 is powered by the Dongan DAM15KR 1.5L gasoline powertrain, delivering 115 horsepower. This fuel-efficient engine is specifically designed for light-duty urban logistics, providing reliable performance with low operating costs and minimal maintenance requirements. The gasoline engine offers smooth operation and easy starting in various weather conditions.

• Transmission & Drivetrain: Equipped with a DAT18R 5-speed manual transmission, the drivetrain is engineered for smooth gear changes and optimal power delivery in stop-and-go city traffic, enhancing driver control and fuel economy during frequent starts and stops. The gearbox is matched perfectly to the engine's power curve for efficient operation.

• Chassis & Suspension: Built on a light-duty truck frame with a 2750 mm wheelbase, the vehicle offers excellent stability and maneuverability in tight urban spaces. The suspension system is tuned to absorb road vibrations while protecting sensitive cargo from shock and vibration damage.

• Rear Axle & Wheels: The rear dual wheel configuration provides enhanced stability and load-bearing capacity for the refrigerated compartment, ensuring safe transport even under full load conditions. The dual rear tires distribute weight evenly and provide additional traction.

• Front Axle & Steering: Electronic Power Steering (EPS) ensures effortless maneuverability in congested city streets, reducing driver fatigue during long delivery routes. The front axle is engineered for precise handling and stability.

• Braking System & Safety: The vehicle is equipped with ABS for stable braking performance, ensuring protection of both the driver and the temperature-sensitive cargo during emergency stops or adverse conditions.

V. Product Features & Chengli Group Manufacturer Advantages

• Superior Insulation Technology: The refrigerated box body features 80 mm thick void-free polyurethane insulation and XPS foam core, ensuring exceptional temperature retention and minimizing the workload on the cooling unit. This advanced thermal barrier guarantees consistent interior temperatures even in extreme ambient conditions, providing reliable cold chain integrity.

• Premium Thermoplastic Construction: The yacht-grade thermoplastic panels offer superior impact resistance (virtually unbreakable even under hammer impact), oxidation resistance, and long-term durability compared to traditional materials like fiberglass. This high-strength material ensures the box maintains its structural integrity and insulation properties for years of reliable service, reducing maintenance costs and replacement frequency.

• Weatherproof & Airtight Design: The door frame features specialized rain-proof labyrinth rubber sealing strips to maintain temperature integrity and prevent moisture ingress. These rubber seals create an airtight barrier that prevents thermal leakage. Aluminum profile edging, stainless steel corner caps, and heavy-duty stainless steel rear door hinges and locks ensure long-lasting, corrosion-resistant performance in all weather conditions.

• User-Oriented Refinement: The interior features an anti-slip aluminum tread plate floor (or optional nano-FRP) for durability and safety during loading and unloading. A front drainage hole allows for easy cleaning and sanitation maintenance. An interior LED lighting system provides convenient illumination for nighttime or low-light operations, improving loading efficiency and safety.

• Chengli Group Advantage – Specialized Vehicle Manufacturing Expertise: As a product of Chengli Group, a leader in the special purpose vehicle industry and a renowned commercial vehicle manufacturer, this light-duty refrigerated truck benefits from decades of specialized manufacturing expertise. Our advantage lies in the precision engineering of the insulated compartment to perfectly match the chassis specifications. We seamlessly integrate the refrigeration system with the vehicle's electrical and mechanical architecture for reliable, worry-free operation. We offer a complete, ready-to-deploy solution for urban cold chain logistics, food delivery services, beverage distribution, pharmaceutical transport, grocery delivery, and other temperature-sensitive last-mile delivery needs globally.
