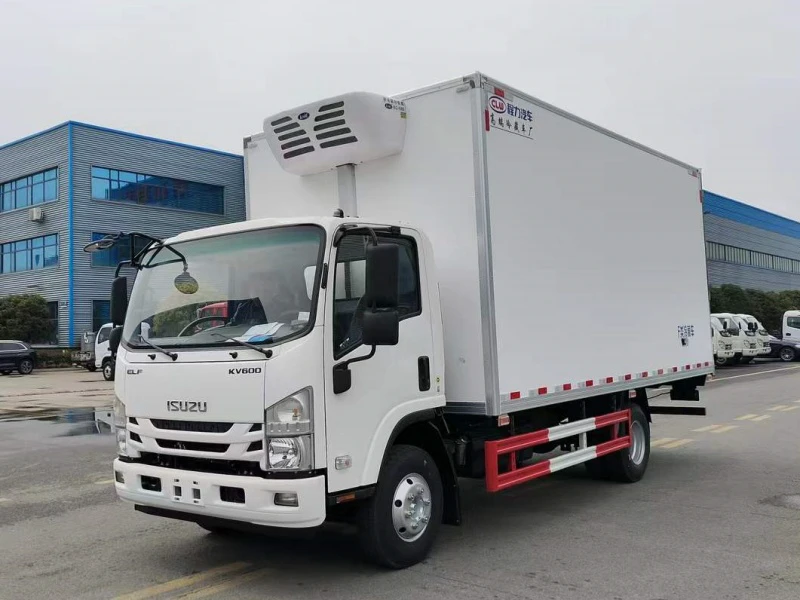

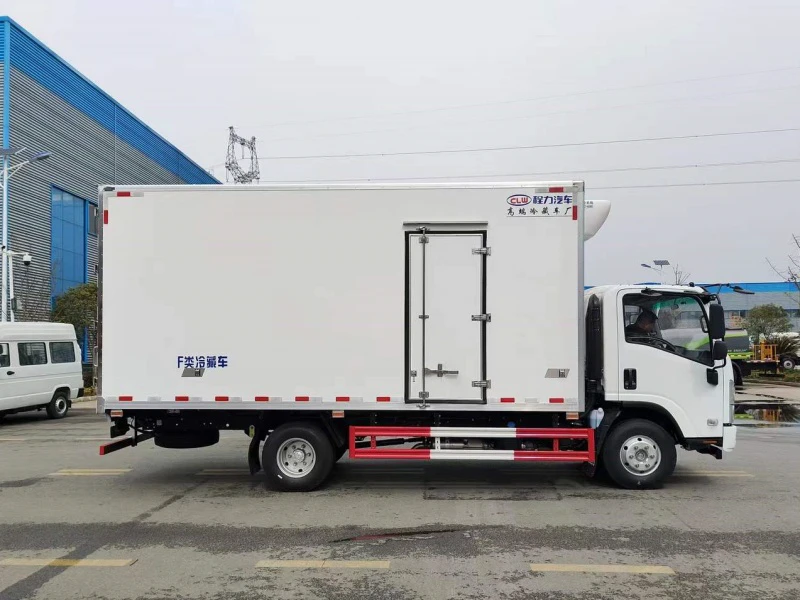

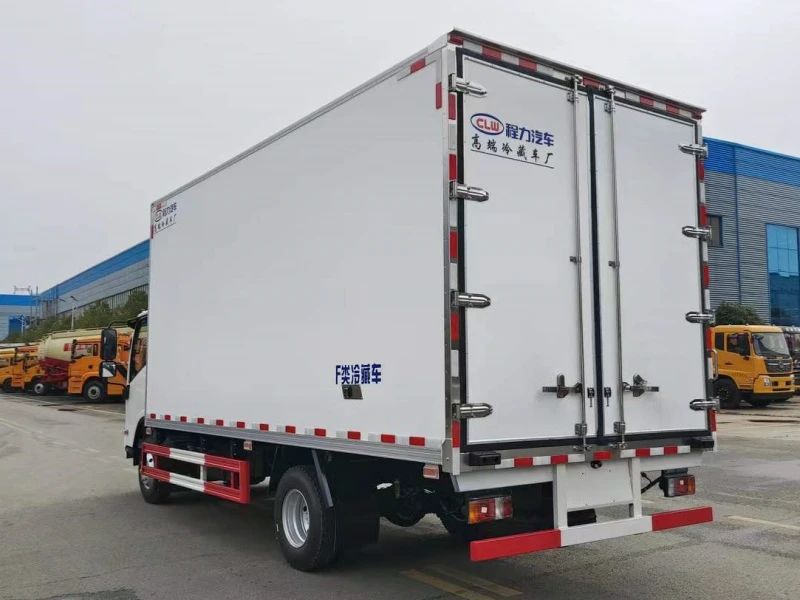

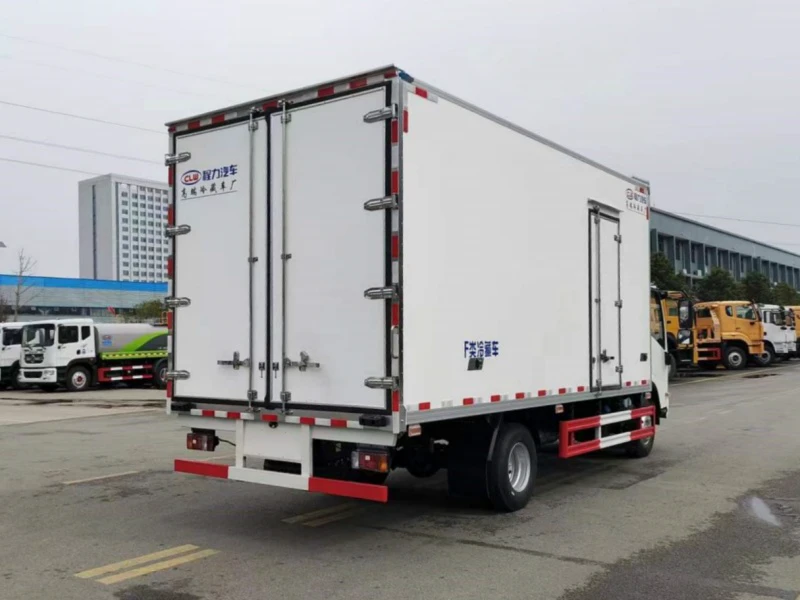

Isuzu KV600 Refrigerated Truck – Professional Product Introduction | Isuzu 4x2 Refrigerated Truck with 5.2m box length and 27m³ cargo volume

I. Product Overview

The Isuzu KV600 Refrigerated Truck is a heavy-duty temperature-controlled delivery vehicle renowned for its exceptional reliability, durability, and performance in cold chain logistics. Built on Isuzu's legendary commercial vehicle chassis technology, this insulated transport truck is specifically engineered for long-distance and high-volume distribution of frozen food, fresh produce, dairy products, meat, seafood, pharmaceuticals, and other perishable cargo. Manufactured by Chengli Group with decades of specialized expertise, this refrigerated freight solution combines Isuzu's world-class engineering with superior insulation technology to deliver unmatched performance for demanding temperature-sensitive transportation operations. Professional expertise makes life better.

II. Core Specifications

• Chassis Model: Isuzu KV600 heavy-duty truck chassis

• Engine Model: Isuzu 4KH1CN6HB diesel engine

• Power Output: 97 kW (130 Horsepower) engine power

• Peak Torque: High-torque output for heavy load capacity

• Displacement: 2999 ml (3.0L) engine displacement

• Emission Compliance: National Phase VI (Guo VI) emission standard

• Transmission: Isuzu 6-Speed manual gearbox / manual transmission

• Front Axle: 3.3-Ton front axle capacity with heavy-duty steering

• Rear Axle: 5.5-Ton rear axle capacity with hypoid gear design

• Tires: 7.50R16LT radial tires / steel-belted tires

• Wheelbase: 3815 mm wheelbase for stability

• Braking System: ABS anti-lock braking system with spring brake (emergency/parking brake)

• Cab Features: KV600 wide-body cab with panoramic visibility, factory air conditioning, hydraulic power steering, central door lock, power windows, tilt-adjustable steering, multifunction LCD instrument panel with digital display

• Additional Chassis Features: Reinforced frame rails, corrosion-resistant coating, maintenance-free battery

III. Exterior Dimensions, Box Size, Materials & Design Philosophy

• Overall Vehicle Dimensions: 7120 x 2510 x 3460 mm exterior dimensions / external measurements

• Insulated Cargo Box Internal Dimensions: 5150 x 2300 x 2300 mm （Approx. 27.2 cubic meters cargo capacity / 27.2 m³ load volume / 960 cubic feet）

• Box Wall Thickness: High-density insulation thickness (80-100 mm typical) with thermal break design

• Wheelbase: 3815 mm

• Box Construction Materials: The refrigerated compartment features a high-strength sandwich panel construction with monocoque reinforcement. The inner and outer walls are made of corrosion-resistant, high-strength fiberglass reinforced plastic (FRP) , providing excellent thermal insulation and oxidation resistance. The core insulation layer is composed of high-density polyurethane foam and XPS insulation board with closed-cell structure, ensuring minimal temperature fluctuation and superior thermal performance. Flooring features durable anti-slip aluminum tread plate (diamond plate) for safe loading and unloading operations with forklift compatibility.

• Design Philosophy: The design prioritizes "Isuzu Reliability with Maximum Capacity." The spacious 27.2 m³ cargo compartment is optimized for high-volume cold storage distribution, while the KV600 wide-body cab ensures driver comfort during extended routes. The focus is on creating a durable, thermally efficient mobile refrigeration unit that maximizes payload capacity while leveraging Isuzu's legendary durability and low maintenance requirements. Professional expertise makes life better.

IV. Structural Advantages – Engine, Transmission, Axles & More

• Engine Performance & Reliability: The Isuzu KV600 is powered by the renowned Isuzu 4KH1CN6HB heavy-duty diesel engine, delivering 130 horsepower and 97 kW of power. This fuel-efficient engine features Isuzu's advanced common-rail direct injection technology, providing exceptional durability, strong low-end torque, and reliable performance under heavy loads. The engine is specifically engineered for commercial vehicle applications, ensuring long service life and reduced operating costs. Isuzu's legendary engine reliability minimizes vehicle downtime and maximizes productivity. The emission control system meets strict Guo VI standards while maintaining optimal fuel economy.

• Transmission & Drivetrain: Equipped with an Isuzu 6-speed manual transmission, the drivetrain is engineered for smooth gear changes and optimal power delivery across various terrains. The gearbox features synchronized gearing for effortless shifting and is perfectly matched to the engine's power curve for efficient operation during both highway cruising and urban delivery, enhancing driver control and fuel economy.

• Front and Rear Axles: The 3.3-ton front axle features reverse Elliot-type construction for precise steering and durability. The 5.5-ton rear axle with hypoid gearing is specifically designed to handle the demanding payload of refrigerated freight, providing exceptional load-bearing capacity and long-term durability under full load conditions. The robust axle construction with full-floating design ensures reliable performance even in the most demanding applications.

• Chassis & Suspension: Built on Isuzu's legendary truck frame with heat-treated alloy steel construction, the vehicle offers excellent stability and durability. The multi-leaf spring suspension is tuned to absorb road vibrations while protecting sensitive cargo, ensuring cargo protection during transport. Stabilizer bars enhance cornering stability.

• Braking System & Safety: The vehicle is equipped with dual-circuit ABS for stable braking performance and a spring brake (emergency/parking brake) system with diaphragm chambers for enhanced safety during parking and emergency situations. This comprehensive safety system includes automatic slack adjusters and ensures protection of both the driver and the valuable temperature-sensitive cargo.

• Steering & Handling: Hydraulic power steering with variable ratio provides effortless maneuverability and precise control, reducing driver effort during long hours of operation.

• Cab Design & Driver Comfort: The KV600 wide-body cab with galvanized steel construction provides exceptional interior space and comfort for long-haul operations. Standard equipment includes factory air conditioning with cabin air filtration, power steering for effortless handling, central door lock with remote keyless entry, power windows with one-touch operation, tilt-adjustable steering column, and a multifunction LCD instrument panel that provides comprehensive vehicle information including fuel economy data, trip information, and diagnostic alerts. The ergonomic seat design and adjustable driver's seat create a driver-friendly environment that significantly reduces driver fatigue during extended routes. Sound insulation minimizes cabin noise for a more comfortable driving experience.

V. Product Features & Chengli Group Manufacturer Advantages

• Superior Insulation Technology for Cold Storage: The refrigerated box body is manufactured using advanced vacuum adsorption and hydraulic adsorption one-piece molding production lines. This creates a seamless, high-density thermal barrier that guarantees temperature retention and significantly reduces the workload on the refrigeration unit, ensuring optimal energy savings and cooling performance. The high-density closed-cell foam insulation maintains consistent interior temperatures even in extreme ambient conditions, providing reliable cold chain integrity and temperature stability for valuable cargo. Thermal bridge-free construction eliminates heat leakage at panel joints.

• Isuzu Legendary Reliability: The KV600 chassis benefits from Isuzu's decades of commercial vehicle manufacturing expertise and reputation for exceptional durability. Isuzu diesel engines are renowned worldwide for their longevity, fuel efficiency, and low maintenance requirements, making this vehicle a cost-effective choice for long-term cold chain operations. Isuzu's global parts network ensures quick access to genuine Isuzu parts for maintenance and repairs.

• Optimized for Heavy-Duty Cold Chain Applications: With a generous 27.2 m³ cargo capacity, robust 5.5-ton rear axle, and powerful 130 HP engine, this vehicle is specifically configured for demanding refrigerated freight applications requiring high volume and heavy payloads. The reefer compatibility ensures seamless integration with various cooling systems for different temperature requirements.

• Driver-Focused Design for Long Hauls: The KV600 wide-body cab provides exceptional comfort for long-distance operations. Standard features including air conditioning, power steering, tilt steering, and multifunction LCD instrument panel ensure driver satisfaction and productivity. The spring brake system with parking brake adds an extra layer of safety during loading and unloading operations. Large windows and wide-angle mirrors provide excellent visibility for safe maneuvering.

• Comprehensive Safety Package: The vehicle comes equipped with dual-circuit ABS, spring brake system, automatic slack adjusters, and robust chassis construction to ensure safe operation under all conditions. The 7.50R16LT radial tires provide excellent traction and durability. Reflective safety markings enhance nighttime visibility.

• Low Operating Costs & Maintenance: Isuzu's reputation for reliability translates to lower maintenance costs and reduced vehicle downtime. The fuel-efficient engine reduces daily fuel consumption, while durable components extend service intervals. Easy access to service points simplifies routine maintenance.

• Chengli Group Advantage – Specialized Vehicle Manufacturing Expertise: As a product of Chengli Group, a leader in the special purpose vehicle industry and a renowned commercial vehicle manufacturer, this heavy-duty refrigerated truck benefits from decades of specialized manufacturing expertise. Our advantage lies in the precision engineering of the insulated compartment to perfectly match the Isuzu chassis specifications. We seamlessly integrate the refrigeration system with the vehicle's electrical and mechanical architecture for reliable, worry-free operation. As a trusted refrigerated truck builder with ISO-certified production facilities, we offer a complete, ready-to-deploy solution for temperature-sensitive logistics, food transportation, pharmaceutical distribution, frozen food delivery, cold storage warehousing transport, and other cold supply chain needs globally. Our commitment to professional expertise ensures that every vehicle meets the highest standards of quality and performance. Professional expertise makes life better.
