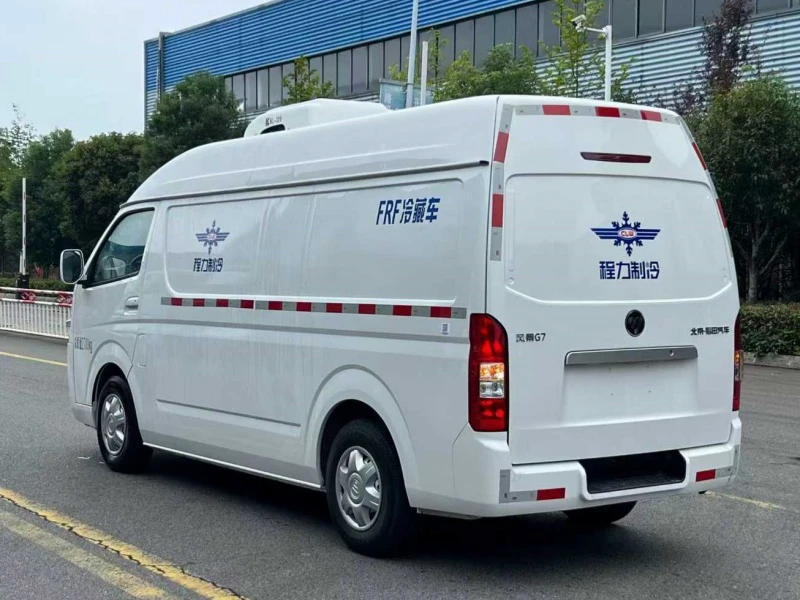

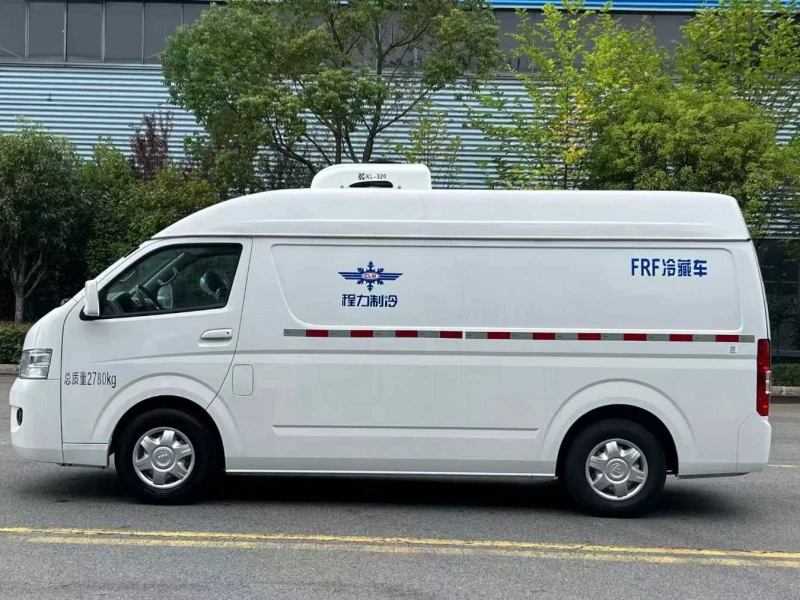

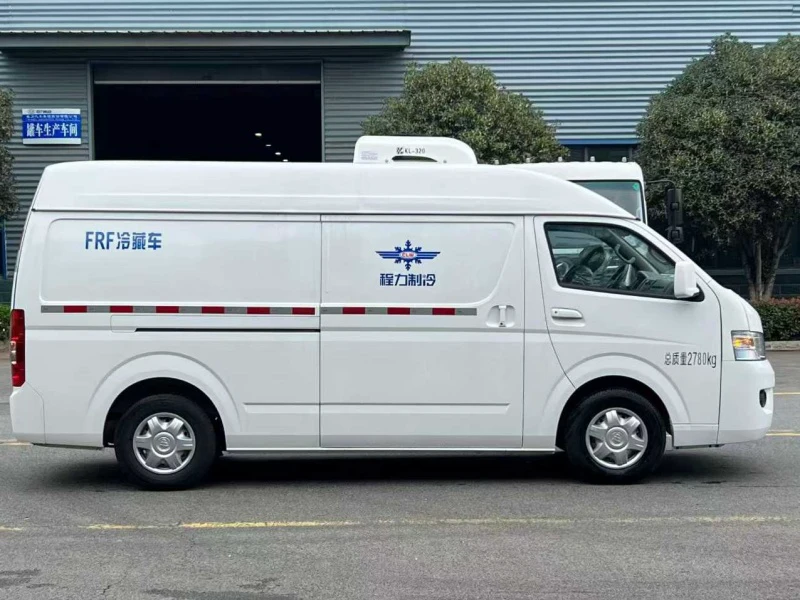

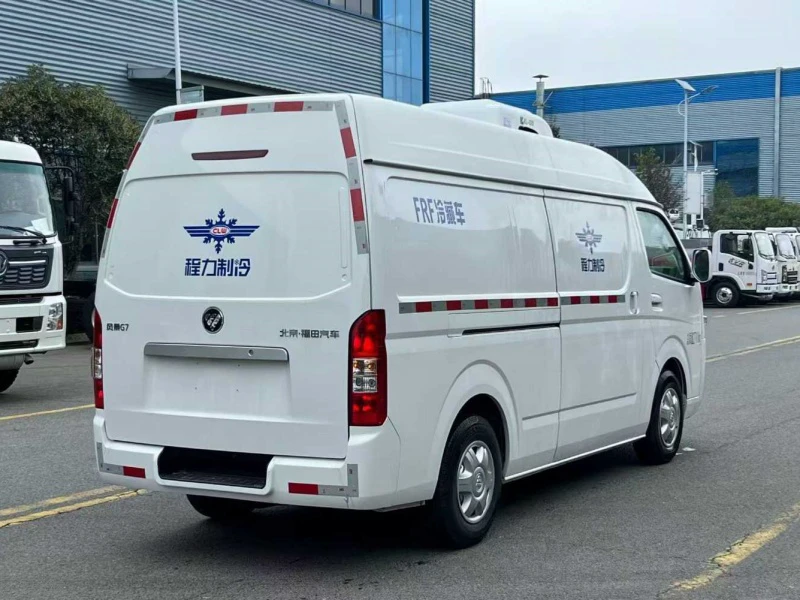

Foton G7 Gasoline Panel Van Refrigerated Truck – Professional Product Introduction | Foton G7 Refrigerated Truck with 2.9m box length and 6m³ cargo volume

I. Product Overview

The Foton G7 Gasoline Panel Van Refrigerated Truck is a compact temperature-controlled delivery vehicle designed for urban and suburban cold chain logistics. Built on a versatile panel van chassis, this insulated transport truck is ideal for last-mile delivery and medium-distance distribution of vaccines, pharmaceuticals, fresh food, beverages, dairy products, ice cream, flowers, and other perishable goods. Manufactured by Chengli Group, a trusted refrigerated truck manufacturer, this refrigerated van solution combines a powerful Mitsubishi gasoline engine with superior insulation technology, making it perfect for businesses requiring reliable temperature-controlled transportation in city environments. This light-duty refrigerated vehicle offers exceptional maneuverability and efficiency for urban cold chain distribution.

II. Core Specifications

• Chassis Model: Foton G7 BJ5039XLC-K3 panel van chassis / cargo van chassis

• Engine Model: Shenyang Mitsubishi 4K22 gasoline engine

• Power Output: 160 Horsepower engine power / horsepower rating

• Displacement: 2.4L engine displacement / 2.4-liter engine

• Emission Compliance: National Phase VI (Guo VI) emission standard

• Transmission: Manual gearbox / manual transmission

• Tires: 195R15C commercial tires / light truck tires

• Wheelbase: 3050 mm wheelbase / wheelbase length

• Braking System: ABS + EBD anti-lock braking system with electronic brakeforce distribution

• Cab Features: Power steering, factory air conditioning, central door lock, power windows

• Cooling Unit Options: Keli Refrigeration, -5°C / -15°C (field-selectable temperature range)

III. Exterior Dimensions, Box Size, Materials & Design Philosophy

• Overall Vehicle Dimensions: 5340 x 1695 x 2500 mm exterior dimensions / external measurements

• Insulated Cargo Box Internal Dimensions: 2900 x 1400 x 1430 mm (Approx. 5.9 cubic meters cargo capacity / 5.9 m³ load volume / 208 cubic feet)

• Cargo Floor Area: Approximately 4.06 square meters loading floor space

• Box Wall Thickness: High-density insulation thickness meeting national Class A insulation standards

• Wheelbase: 3050 mm

• Box Construction Materials: The refrigerated compartment features a high-strength sandwich panel construction manufactured through advanced vacuum adsorption and hydraulic adsorption one-piece molding production lines. This composite panel technology ensures superior structural integrity. The inner and outer walls are made of corrosion-resistant, high-strength fiberglass reinforced plastic (FRP) , providing excellent thermal insulation and oxidation resistance. The core insulation layer is composed of high-density XPS extruded polystyrene foam with closed-cell structure, ensuring minimal temperature fluctuation and superior thermal performance. Flooring features durable anti-slip aluminum tread plate (diamond plate) for safe loading and unloading. Door frames utilize specialized labyrinth rubber sealing strips and weather sealing to maintain temperature integrity.

• Design Philosophy: The design prioritizes "Compact Efficiency with Medical-Grade Reliability." The 5.9 m³ cargo compartment is optimized for urban delivery routes, while the panel van configuration provides excellent maneuverability in congested city streets. The focus is on creating a thermally efficient mobile refrigeration unit that maintains strict temperature control for sensitive cargo such as vaccines and pharmaceuticals. This urban delivery vehicle is engineered for maximum efficiency in city logistics.

IV. Structural Advantages – Engine, Transmission, Axles & More

• Engine Performance & Reliability: The Foton G7 is powered by the Shenyang Mitsubishi 4K22 2.4L gasoline engine, delivering an impressive 160 horsepower. This high-output gasoline engine provides exceptional power density and smooth operation, making it ideal for refrigerated cargo transport applications requiring reliable performance with quick temperature recovery after door openings. The gasoline powertrain offers easy starting in various weather conditions and lower initial investment compared to diesel alternatives. The Mitsubishi technology ensures long-term durability and engine reliability.

• Transmission & Drivetrain: Equipped with a manual transmission system, the drivetrain is engineered for smooth gear changes and optimal power delivery in stop-and-go city traffic, enhancing driver control and fuel economy during frequent starts and stops. The gearbox ratios are optimized for urban driving conditions.

• Chassis & Suspension: Built on a panel van chassis with a 3050 mm wheelbase, the vehicle offers excellent stability and maneuverability in tight urban spaces. The suspension system is tuned to absorb road vibrations while protecting sensitive cargo from shock and vibration damage. The light-duty chassis provides the perfect balance of strength and weight efficiency.

• Front and Rear Axles: The front axle is engineered for precise steering and stability, while the rear axle is designed to handle the payload of the refrigerated compartment. The axle configuration ensures optimal weight distribution for safe handling.

• Braking System & Safety: The vehicle is equipped with ABS + EBD (anti-lock braking system with electronic brakeforce distribution) for stable, controlled braking performance, ensuring protection of both the driver and the valuable temperature-sensitive cargo. This advanced safety system optimizes brake force distribution based on load conditions, reducing stopping distances and preventing wheel lockup.

• Steering & Driver Comfort: Power steering ensures effortless maneuverability in congested city streets, reducing driver fatigue during long delivery routes. Factory air conditioning, central door lock, and power windows enhance driver comfort and convenience. The ergonomic cab design provides a comfortable working environment for professional drivers.

V. Product Features & Chengli Group Manufacturer Advantages

• Superior Insulation Technology Meeting National Class A Standards: The refrigerated box body is manufactured using advanced vacuum adsorption and hydraulic adsorption one-piece molding production lines. This creates a seamless, high-density thermal barrier that guarantees temperature retention and significantly reduces the workload on the refrigeration unit, ensuring optimal energy savings and cooling performance. The insulation meets national Class A insulation standards, providing reliable cold chain integrity for sensitive cargo. This thermal efficiency translates to lower operating costs and better temperature stability.

• Premium Materials for Long-Term Durability: The inner and outer walls feature high-quality fiberglass reinforced plastic (FRP) that is non-light-absorbing, thermally efficient, hardness-enhanced, and oxidation-resistant. The core XPS extruded polystyrene foam insulation provides exceptional thermal performance with minimal thermal conductivity. The aluminum tread plate floor ensures durability and safety during loading and unloading, with excellent slip resistance.

• Airtight Sealing System: Specialized labyrinth rubber sealing strips on door frames maintain temperature integrity and prevent thermal leakage. These weather seals create an airtight barrier that prevents temperature loss and moisture ingress. Stainless steel door hinges, locks, and door frames ensure long-lasting, corrosion-resistant performance in all weather conditions.

• Comprehensive Hardware Package: The vehicle features stainless steel door locks, stainless steel hinges, stainless steel door frames, and interior LED energy-saving lighting for convenient nighttime or low-light operations. The LED lighting provides bright illumination while minimizing power consumption from the vehicle's electrical system.

• Flexible Cooling Options: The Keli refrigeration unit offers field-selectable temperature settings of -5°C or -15°C to accommodate various cargo requirements. The refrigeration system is engineered for reliable performance and quick temperature recovery after door openings. Optional upgrades include:

  • Five-sided ventilation channels for improved air circulation and uniform temperature distribution

  • Temperature and humidity recorder for cargo monitoring, data logging, and regulatory compliance documentation

  • Dual-temperature zone configuration for transporting different products requiring different temperatures simultaneously

  • Multi-temperature refrigeration for versatile cargo combinations

• Vaccine Transport Specialization: This model is specifically configurable for vaccine distribution applications, with options for temperature monitoring and documentation to meet pharmaceutical cold chain requirements and WHO standards for vaccine transport. The medical-grade refrigeration capabilities ensure compliance with strict health regulations.

• Urban Logistics Optimization: With its compact dimensions and maneuverability, this vehicle is perfect for city delivery, street parking, and navigating narrow urban streets. The low-height profile allows access to underground parking and loading docks with height restrictions.

• Chengli Group Advantage – Specialized Vehicle Manufacturing Expertise: As a product of Chengli Group, a leader in the special purpose vehicle industry and a renowned commercial vehicle manufacturer, this panel van refrigerated truck benefits from decades of specialized manufacturing expertise. Our advantage lies in the precision engineering of the insulated compartment to perfectly match the Foton G7 chassis specifications. We seamlessly integrate the refrigeration system with the vehicle's electrical and mechanical architecture for reliable, worry-free operation. As a trusted refrigerated truck builder with ISO-certified production facilities, we offer a complete, ready-to-deploy solution for urban cold chain logistics, pharmaceutical distribution, vaccine transport, food delivery services, catering supply, grocery delivery, ice cream distribution, and other temperature-sensitive last-mile delivery needs globally. Our custom refrigerated solutions ensure that every vehicle meets the specific requirements of our customers' operations.
