CLW 4×4 Off-Road Coach – 21-Seater All-Wheel-Drive Personnel Carrier for Severe Terrain

I. Product Introduction

The CLW 4×4 Off-Road Coach is a high-performance, 21-seater all-wheel-drive personnel carrier specifically engineered for severe operating conditions. Built on the reliable Dongfeng Tianjin cab, this 4×4 off-road bus is powered by a robust and fuel-efficient Cummins ISD160 50 engine (160 HP) and equipped with a Fast Gear 6DS60T-B transmission for ample power delivery. Designed for challenging environments such as mining areas, oil fields, mountainous regions, construction sites, and border patrols, this all-wheel-drive passenger vehicle offers exceptional off-road capability, load-bearing capacity, and passenger comfort.

II. Key Features at a Glance

III. Full Technical Specifications

Chassis & Cab

Engine

Transmission & Drivetrain

Axles & Frame

Tires & Dimensions

IV. Dimensions & Design Philosophy

• Wheelbase: 3,800 mm – provides excellent stability and ride comfort on rough terrain while maintaining maneuverability.

• Frame Construction: 230 (6+4) double-layer frame – engineered for maximum torsional rigidity and load-bearing capacity in severe operating conditions.

• Tire Specification: 12.5R20 heavy-duty tires – deliver superior traction on mud, sand, gravel, snow, and steep inclines.

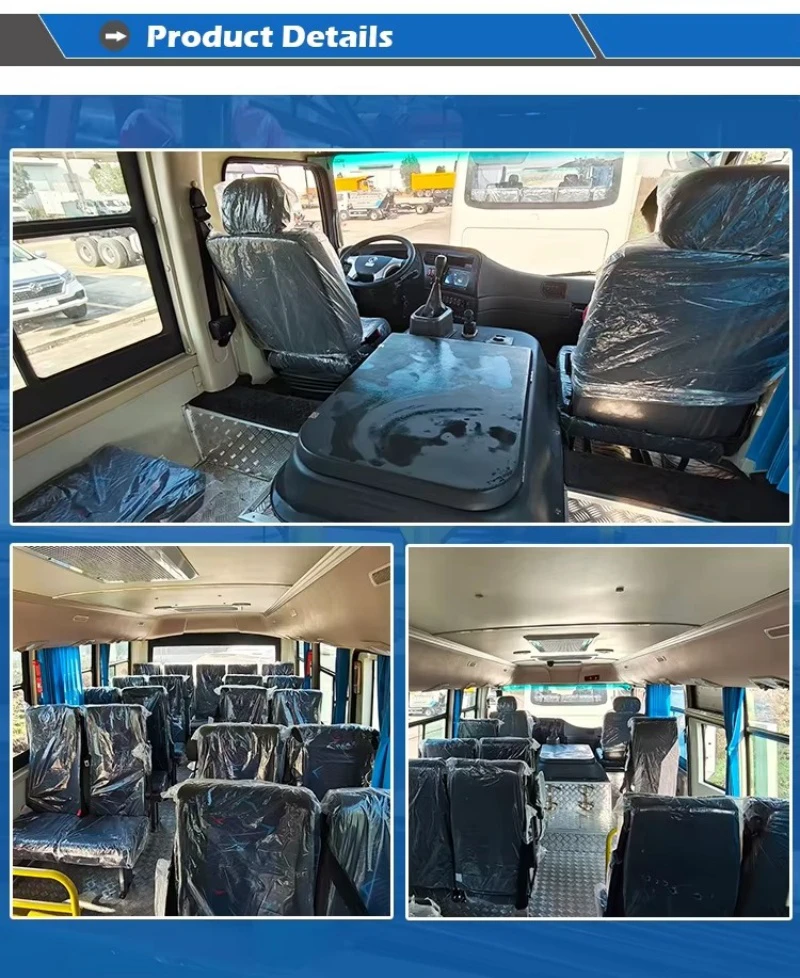

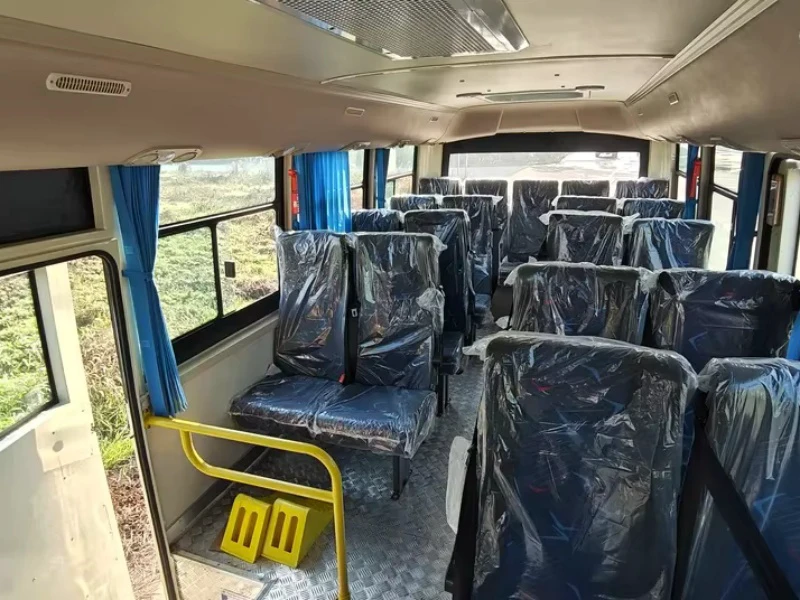

• Cab Design: Dongfeng Tianjin cab with 21 knitted fabric seats featuring headrests for passenger comfort during long journeys on unpaved roads.

• Design Philosophy: "Rugged reliability + passenger comfort" – This 4×4 off-road coach combines a heavy-duty drivetrain with a spacious, well-appointed cab to safely transport personnel to and from remote work sites.

V. Structural Advantages

Powertrain

• Cummins ISD160 50 Engine (160 HP): Delivers reliable power and excellent fuel efficiency. The 4-cylinder diesel engine is specifically calibrated for off-road applications, providing strong low-end torque for climbing steep grades and navigating soft terrain. Selectable Euro 2–6 emission standards allow this vehicle to meet diverse global environmental regulations.

• Fast Gear 6DS60T-B Transmission: The 6-speed manual gearbox is engineered for durability in demanding conditions, with gear ratios optimized for both highway cruising and low-speed off-road maneuvering.

• ZNC580 Transfer Case: Provides reliable power distribution between front and rear axles, enabling true 4×4 all-wheel drive capability.

Drivetrain & Chassis

• 5T Front Drive Axle: Heavy-duty construction provides exceptional load-bearing capacity and steering precision on uneven terrain.

• 10T Rear Drive Axle: Engineered to handle heavy loads and provide maximum traction on soft or slippery surfaces.

• 230 (6+4) Double-Layer Frame: The reinforced frame provides exceptional torsional rigidity, preventing chassis flex during extreme off-road maneuvers and ensuring long-term durability.

Braking & Safety Systems

• EPB (Electric Parking Brake): Convenient electronic parking brake for safe parking on inclines.

• ESC (Electronic Stability Control): Maintains vehicle stability during cornering and emergency maneuvers on loose surfaces.

• ABS (Anti-lock Braking System): Prevents wheel lockup during emergency braking on wet or icy roads.

• HHC (Hill Hold Control): Prevents rollback when starting on steep inclines, reducing driver stress on mountainous routes.

Cab Comfort & Technology

• Rotary Gear Selector: Ergonomic transmission control for easy operation.

• Auto A/C: Automatic climate control maintains comfortable cabin temperature in extreme weather conditions.

• Power Windows & Central Locking: Convenience features for passenger comfort and security.

• Remote Key: Keyless entry for driver convenience.

• Multi-Function Steering Wheel: Allows driver to control audio and cruise functions without removing hands from the wheel.

• DRL (Daytime Running Lights) & Auto Headlight: Enhances visibility and safety in low-light conditions.

• OTA (Over-the-Air Updates): Allows remote software updates for vehicle systems.

• Cruise Control: Reduces driver fatigue on long highway segments between off-road sections.

VI. Applications

The CLW 4×4 Off-Road Coach is specifically designed for:

• Mining Operations: Transporting personnel to and from remote mine sites on unpaved access roads.

• Oil & Gas Fields: Crew transport in desert, arctic, or mountainous drilling locations.

• Mountainous Regions: Passenger transport on steep, narrow, and winding mountain roads.

• Construction Sites: Moving workers between base camp and active work areas on rough terrain.

• Border Patrol & Military: Personnel transport in remote border areas with limited road infrastructure.

• Forestry & Logging: Crew access to remote timber harvesting operations.

• Tourism: Off-road passenger transport for adventure tourism in national parks and wilderness areas.

VII. Product Features

• 21-Seat Capacity: Spacious interior accommodates a full work crew or tour group, reducing the number of vehicles required for personnel transport.

• 4×4 All-Wheel Drive: True off-road capability with power distributed to all four wheels via the ZNC580 transfer case, ensuring traction on mud, sand, snow, and steep inclines.

• Cummins 160 HP Engine: Proven reliability and fuel efficiency for demanding off-road applications. Selectable Euro 2–6 emission standards for global compliance.

• Heavy-Duty Axles (5T Front / 10T Rear): Robust construction provides exceptional load-bearing capacity for rough terrain operations.

• 230 (6+4) Double-Layer Frame: Reinforced chassis provides maximum torsional rigidity and durability under extreme conditions.

• 12.5R20 Tires: Large, heavy-duty tires deliver superior traction and puncture resistance on unpaved roads.

• Comprehensive Safety Systems: EPB, ESC, ABS, and HHC provide confidence and control on steep, slippery, or uneven surfaces.

• Passenger Comfort: Knitted fabric seats with headrests, auto A/C, and power windows ensure passenger comfort during long journeys.

• Driver Convenience: Rotary gear selector, cruise control, multi-function steering wheel, and remote key reduce driver fatigue.

• Global Certifications: Euro 5 emission standard (Euro 2/3/4/6 selectable) with full compliance documentation for international markets.

VIII. CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) is a leading manufacturer of special-purpose vehicles in China, with decades of experience in the commercial vehicle industry.

• Large-Scale Production: Modern manufacturing facilities ensure short delivery lead times and consistent product quality for every off-road coach.

• Comprehensive Quality Control: From raw material procurement to final assembly, a strict quality management system is implemented at every stage of the production process.

• Technical R&D Strength: A dedicated professional R&D team continuously optimizes chassis design, drivetrain integration, and passenger comfort features for severe terrain applications.

• Complete Compliance Certification: All products are certified under national and international standards with full documentation for smooth export and registration.

• Global Sales and Service Network: Products are exported to countries worldwide, supported by a comprehensive after-sales service network.

• Customization Capability: Flexible manufacturing processes allow for customization of seating capacity, emission standards (Euro 2–6), and additional equipment.

• Cost-Effective Value: CLW Group offers competitive factory-direct pricing without compromising on quality, making it a trusted choice for off-road personnel transport globally.
