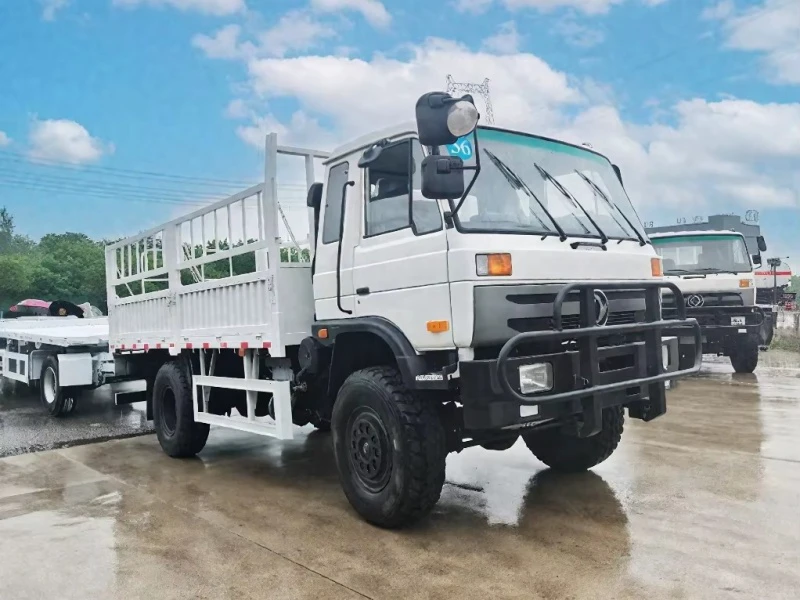

DFAC 4×4 Off-Road Cargo Truck – 5.1m Drop-Side Cargo Box

I. Product Introduction

The DFAC 4×4 Off-Road Cargo Truck is a rugged, all-wheel-drive commercial vehicle built to tackle the toughest terrain with confidence. Powered by a reliable Cummins 170HP diesel engine delivering 560 N·m of torque, this 4×4 off-road cargo truck offers exceptional performance for construction sites, agricultural operations, and remote field logistics. Featuring a 5.1m drop-side cargo box with a 7,000 kg payload capacity, an air-conditioned DFAC 153 cab with a sleeping berth, and left-hand drive configuration, this vehicle is Euro 2 compliant and can also be customized into a 4×2 configuration or personnel carrier to meet diverse business requirements.

II. Key Specifications

III. Product Features

• 4×4 All-Wheel Drive Off-Road Dominance: True off-road capability with power distributed to all four wheels, delivering exceptional traction on mud, sand, snow, steep slopes, and unpaved roads – perfect for construction and agricultural terrain.

• Cummins 170HP High-Torque Engine: 5.9L displacement with 125 kW / 170 HP and 560 N·m of torque provides reliable power and fuel efficiency for demanding cargo transport operations.

• 5.1m Drop-Side Cargo Box with 7,000 kg Payload: Large capacity cargo box measuring approximately 5,000 × 2,450 × 600 mm, capable of handling up to 7,000 kg of cargo for heavy-duty logistics.

• DFAC 153 Cab with AC & Sleeping Berth: Air-conditioned cab with a single sleeper berth ensures driver comfort during long-haul operations and overnight trips.

• Left-Hand Drive & Euro 2 Compliant: Designed for right-side driving markets with Euro 2 emission compliance, suitable for regions with less stringent environmental regulations.

• Customizable Configuration: Can be converted into 4×2 drive configuration or modified as a personnel carrier to meet specific business requirements.

• Rugged Construction for Off-Road Use: Heavy-duty frame (250 × 80 × 7+4 mm) and reinforced suspension (spring 8/10+8) provide exceptional durability for demanding work environments.

• 8-Speed Manual Transmission: 8 forward gears + 2 reverse (8JS85C-FDX) offer precise control for both highway cruising and low-speed off-road maneuvering.

• Heavy-Duty Tires (11.00R20): 6+1 radial tires provide excellent load capacity, puncture resistance, and traction for rough terrain operations.

• Comprehensive Cargo Box Design: Vertical corrugation wallboard (1.3 mm), patterned bottom board (3 mm), 5 side doors for easy loading/unloading, foldable seat, 3 rows of handrails, and 14 rope hooks for secure cargo fastening.

IV. Structural Advantages

Chassis & Drivetrain

• 4×4 All-Wheel Drive: Power distributed to all four wheels ensures superior traction on soft, slippery, or uneven surfaces – essential for off-road cargo transport.

• DFAC 4.5T Front Axle & 9T Rear Axle: Heavy-duty axles provide exceptional load-bearing capacity for 7,000 kg payload operations.

• Reinforced Frame (250 × 80 × 7+4 mm): Double-layer frame construction provides maximum torsional rigidity and durability for rough terrain operations.

• 8/10+8 Leaf Spring Suspension: Heavy-duty multi-leaf suspension absorbs impacts from rough roads while maintaining stability under full load.

• 3,950 mm Wheelbase: Optimized for stability and maneuverability on narrow off-road tracks and construction sites.

Cab & Driver Comfort

• DFAC 153 Cab: Single row with one sleeper berth, white color, front protector bar, and air conditioning – designed for driver comfort during long-haul operations.

• Left-Hand Drive: Configured for markets where vehicles drive on the right side of the road.

• Foldable Passenger Seat: Carbon steel flat plate seat for additional cargo space or passenger accommodation when needed.

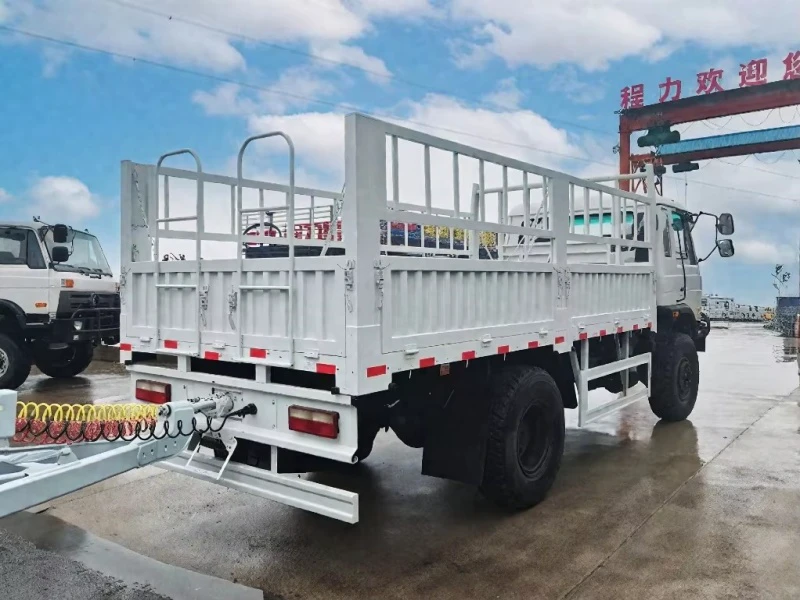

Cargo Box Design – 5.1m Drop-Side

• Drop-Side Configuration: The 5.1m drop-side cargo box allows for convenient loading and unloading from three sides – ideal for construction and agricultural sites.

• 5-Door Access: Two doors on each side plus a rear door provide convenient loading and unloading from multiple angles.

• Vertical Corrugation Wallboard (1.3 mm): Reinforced wall structure resists dents and damage from heavy cargo.

• Patterned Bottom Board (3 mm): Anti-slip surface prevents cargo shifting during transport.

• 14 Rope Hooks (7 per side): Secure cargo fastening points for safe transport of irregular loads.

• Tarpaulin Option: Optional cover for weather protection during transport.

V. Applications

The DFAC 4×4 Off-Road Cargo Truck with 5.1m Drop-Side Cargo Box is specifically designed for:

• Construction Sites: Transporting building materials, tools, and equipment to remote or off-road construction locations.

• Agricultural Operations: Hauling crops, livestock feed, fertilizers, and farm equipment across fields and unpaved farm roads.

• Remote Field Logistics: Supplying goods and materials to mining sites, oil fields, forestry operations, and rural communities.

• Infrastructure Projects: Moving materials to road construction, bridge building, and pipeline installation sites.

• Military & Border Patrol: Personnel and cargo transport in challenging terrain with limited road infrastructure.

• Disaster Relief: Emergency supply delivery to areas with damaged or destroyed roads.

• Personnel Carrier (Customizable): Can be modified to transport workers or passengers to remote job sites.

VI. CLW Group Manufacturer Advantages

CLW Group (CLW Special Purpose Vehicle Co., Ltd.) is a leading manufacturer of special-purpose vehicles and cargo trucks in China, with decades of experience in the commercial vehicle industry.

• Large-Scale Production: Modern manufacturing facilities with a production capacity of 10,000 units per year ensure short delivery lead times and consistent product quality.

• Ready Stock Availability: This DFAC 4×4 off-road cargo truck is available as ready stock for immediate delivery.

• Comprehensive Quality Control: From raw material procurement to final assembly, a strict quality management system is implemented at every stage of the production process.

• Technical R&D Strength: A dedicated professional R&D team continuously optimizes chassis design, drivetrain integration, and cargo box durability for off-road applications.

• Complete Compliance Certification: All products are certified under national and international standards with full documentation for smooth export and registration.

• Global Sales and Service Network: Products are exported to countries worldwide, supported by a comprehensive after-sales service network.

• Customization Capability: Flexible manufacturing processes allow for conversion to 4×2 configuration, personnel carrier modification, and additional equipment installation.

• Export-Ready Packaging: Waxing treatment before shipment and rain protection ensure vehicles arrive in optimal condition.

• Cost-Effective Value: CLW Group offers competitive factory-direct pricing without compromising on quality, making this DFAC 4×4 off-road cargo truck a trusted choice for off-road logistics operators globally.
