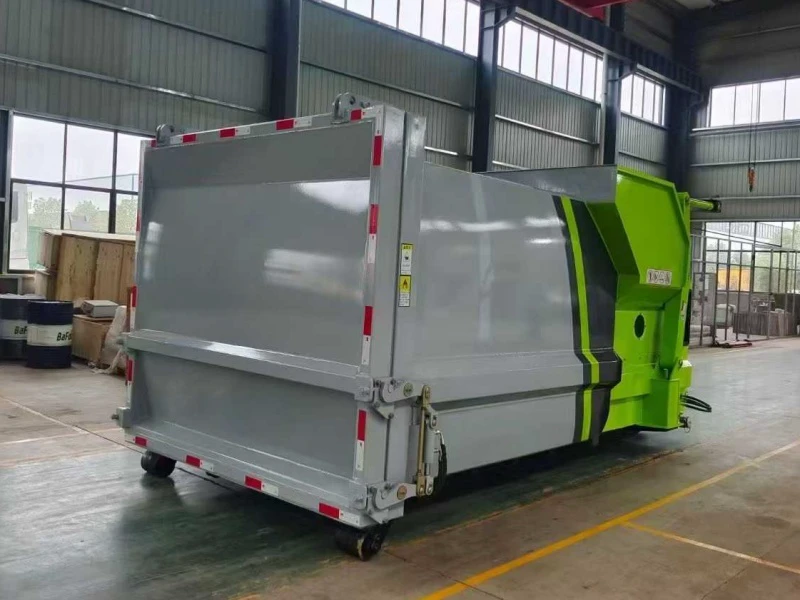

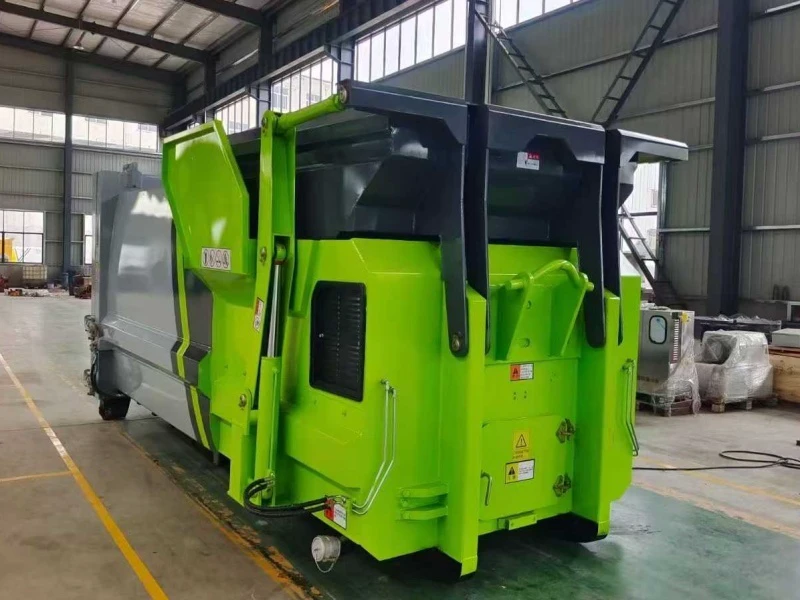

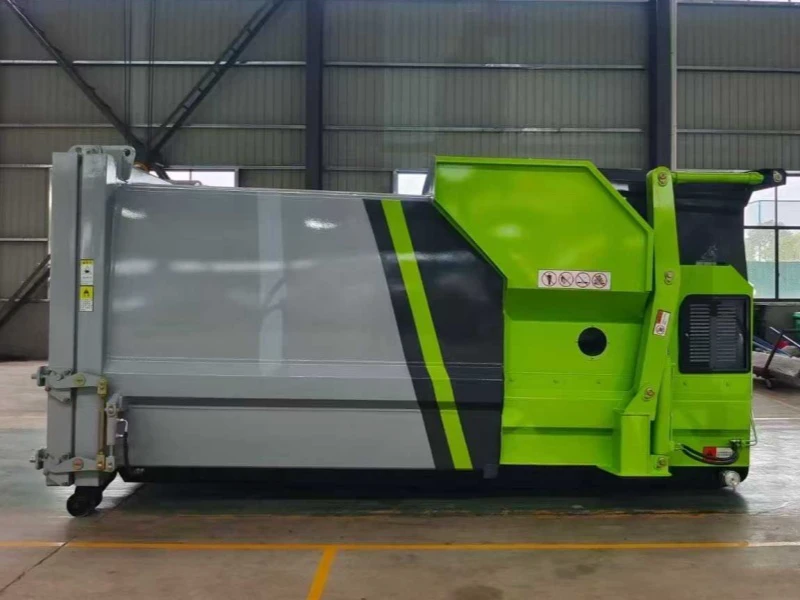

CLW-YD12m³ Mobile Garbage Compactor Container – Integrated Waste Management Solution
I. Product Overview – Advanced Waste Treatment System
The CLW-YD12m³ Mobile Garbage Compactor Container is a fully self-contained, mobile waste processing solution designed for flexible deployment across urban and rural settings. Combining collection, compression, and transportation into a single integrated unit, it provides an efficient alternative to fixed waste transfer stations while maintaining high operational standards and environmental compliance.
II. Core Technical Parameters
Model: CLW-YD12m³
External Dimensions (L×W×H): 5000 × 2500 × 2500 mm
Daily Processing Capacity: 30–50 tons / 8 hours
Unit Weight: ≥ 5.5 tons
Container Volume: ≥ 12 m³
Compression Chamber Volume: ≥ 1.8 m³
Loading Hopper Volume: ≥ 2 m³
Compression Force: ≥ 340 kN
Compacted Waste Density: 0.75–0.9 t/m³
Hydraulic System Pressure: 18–22 MPa
Motor Power: ≥ 5.5 kW
Operating Noise: ≤ 65 dB
Control System: PLC-based intelligent interface
Compression Method: Horizontal compression
Power Supply: 380V, three-phase, 50Hz
III. Design & Structural Features
Optimized Space Utilization: Designed with a minimal installation footprint, allowing placement in confined or temporary locations.
High-Strength Construction: Fabricated using reinforced structural steel with corrosion-resistant finishing to ensure long-term durability.
Integrated Enclosure System: Fully sealed body construction prevents leakage and odor emissions during storage and transit.
Modular & Mobile Design: Enables quick relocation and adaptability to varying operational sites without permanent infrastructure.
IV. Engineering & Operational Systems
Advanced Hydraulic Compression: Delivers consistent high-pressure compaction for maximum waste volume reduction.
Intelligent Control Interface: User-friendly PLC system provides real-time monitoring, fault diagnostics, and operational guidance.

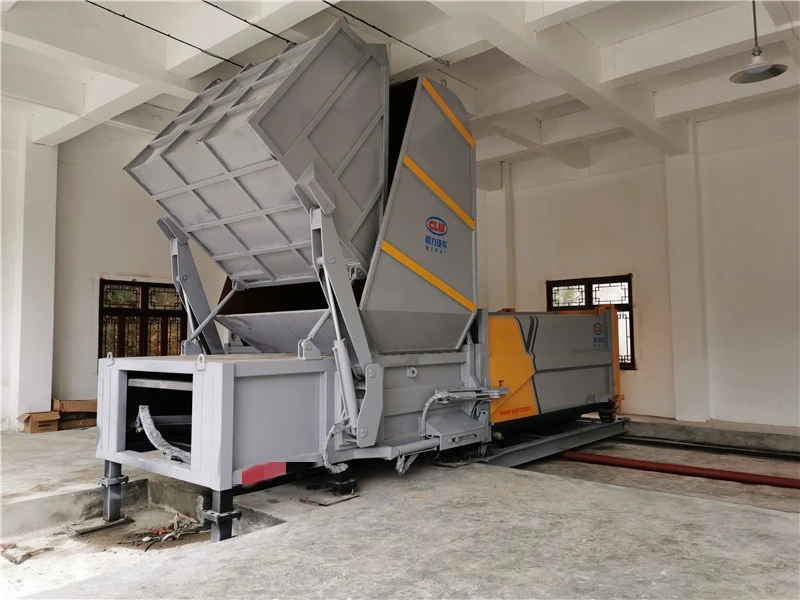

Flexible Loading Configuration: Front-tilting hopper supports multiple input types including bins, bags, and small collection vehicles.

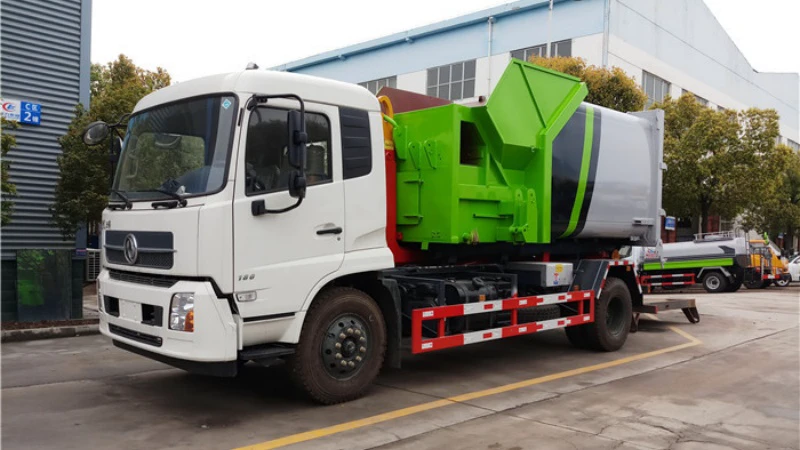

Secure Transport Ready: Compatible with standard hook-lift transport systems for efficient container exchange and relocation.
Quiet & Efficient Performance: Low-noise operation ensures minimal disturbance in residential or public areas.
V. Key Advantages & Manufacturer Support
Rapid Deployment: Operational with only basic electrical and drainage connections, reducing setup time and cost.
Environmental Protection: Leak-proof and fully enclosed design eliminates spillage and controls odors.
Wide Application Scope: Effective for residential complexes, commercial zones, markets, parks, and institutional campuses.
Scalable Solutions: Available in capacities ranging from 8 to 20 m³, with options for customization based on specific site needs.
Chengli Group Assurance:
Industry-leading expertise in waste handling equipment design and manufacturing.
Certified quality management and product testing protocols.
Tailored engineering support to meet project-specific requirements.
Comprehensive after-sales service network offering maintenance and technical assistance.
This system embodies a modern, adaptable approach to decentralized waste management, delivering reliability, efficiency, and environmental stewardship in a compact and mobile format.
