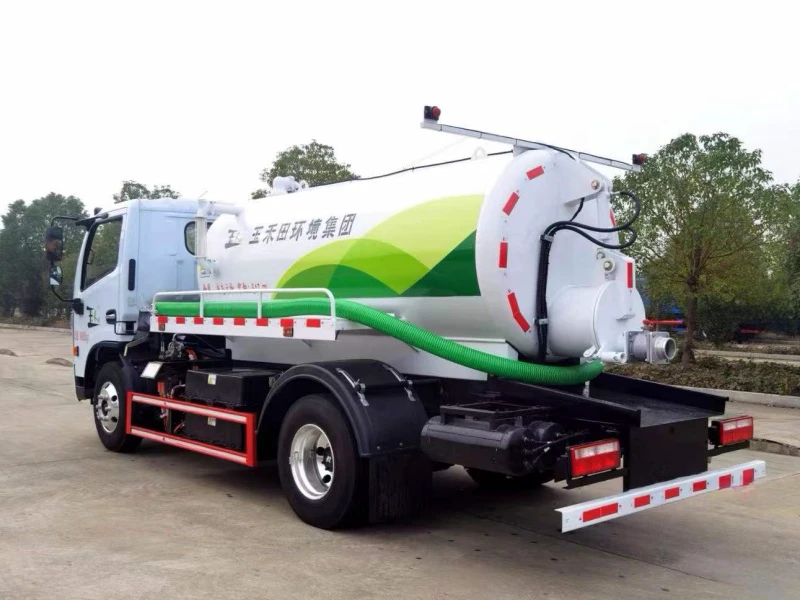

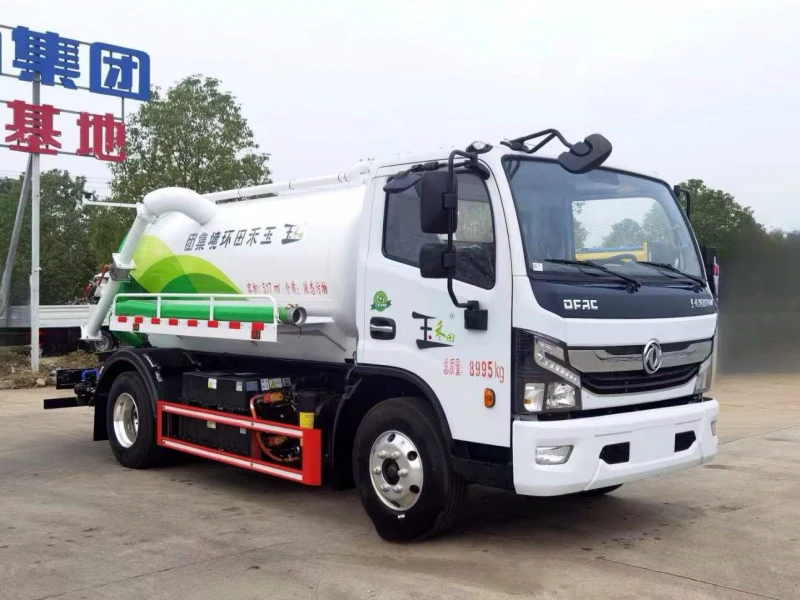

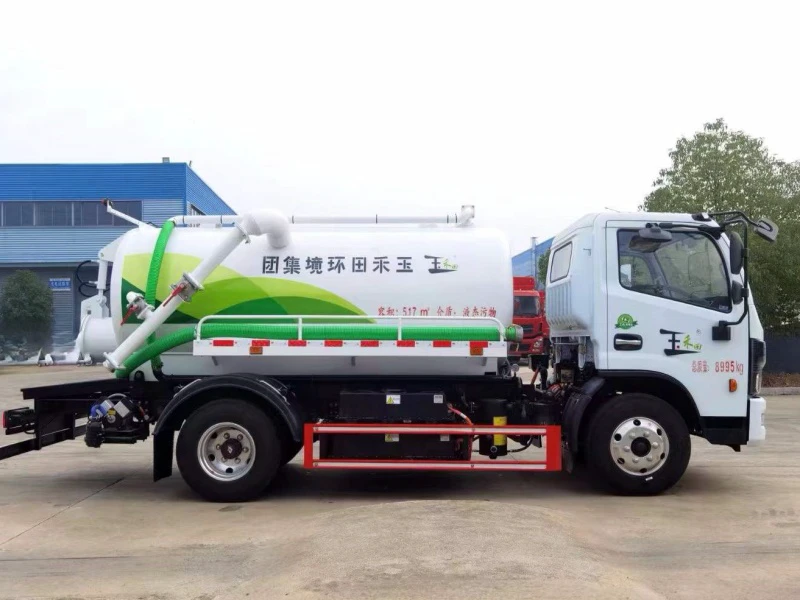

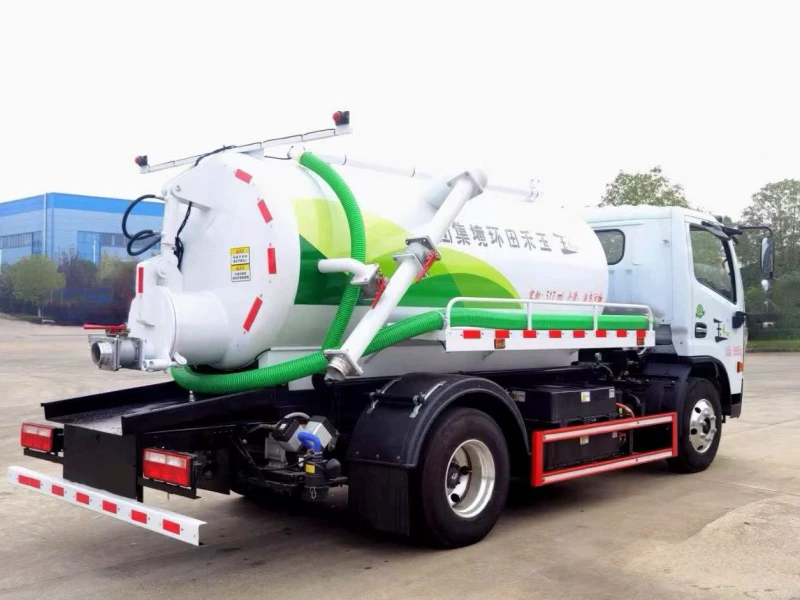

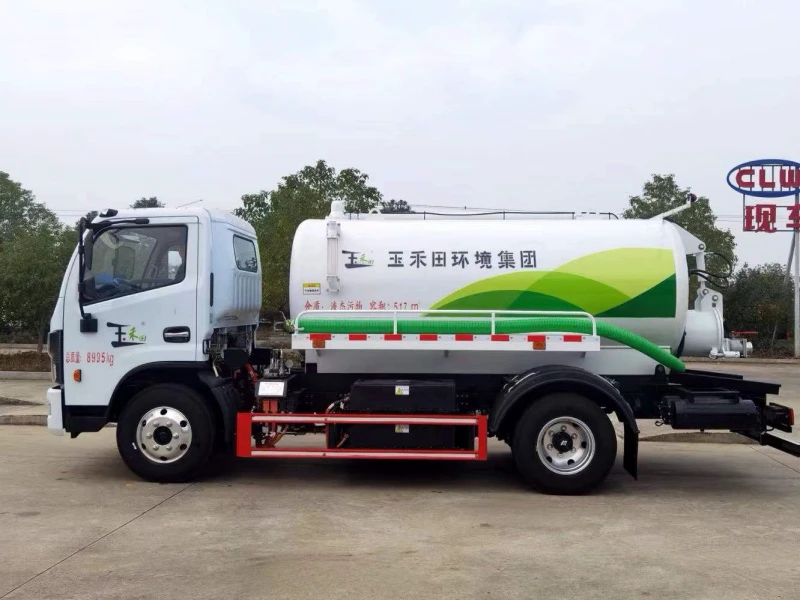

DFAC Kaiput Extreme Electric Sewage Suction Truck | DFAC 4x2 Electric Sewage Suction Truck 5m³ Capacity 121.1KWH Battery

I. Product Introduction

The DFAC Kaiput Extreme Electric Sewage Suction Truck is a zero-emission vacuum tanker designed for environmentally conscious municipal sanitation operations and industrial waste collection. This electric sewage suction truck combines the reliability of DFAC's chassis engineering with clean energy technology, making it ideal for eco-friendly waste management in urban environments, residential areas, and facilities with strict emission requirements. As a new energy sanitation vehicle, it represents the future of sustainable municipal fleets with a pure electric drivetrain and high-capacity lithium battery system for sustainable operation.

II. Core Specifications

• Model Number: CL5090GXWBEV

• Chassis Model: EQ1090KACEV2

• Tank Volume: 5 m³ (1,321 Gallons), compact sewage tank for urban waste collection

• Wheelbase: 3,300 mm, urban-friendly maneuverability for residential street access

• Gross Vehicle Weight: 8,995 kg (19,830 lbs)

• Curb Weight: 4,860 kg (10,714 lbs)

• Battery Capacity: 121.1 kWh, high-capacity lithium battery for extended range

• Battery Type: Lithium Iron Phosphate (LFP), long-cycle battery, thermal stability

• Battery Brand: CATL (Contemporary Amperex Technology Co., Limited), premium battery supplier, global leader

• Charging Time: Approx. 2 hours (with 120kW DC fast charger), rapid charging technology

• Recommended Charger Power: 120 kW DC, fast charging compatible

• Rated Battery Voltage: 540V, high-voltage architecture

• Driving Motor Power: 120 kW (maximum), permanent magnet synchronous motor, high-efficiency motor

• Full Load Range: 280 km (174 miles), extended range capability for all-day operation

• Vacuum Pump: Shandong SK-9 water ring vacuum pump, high suction power

• Emission Standard: Zero-emission electric vehicle, carbon-free operation

III. Dimensions, Materials & Design Philosophy

• Tank Material: High-quality Wuhan Steel carbon steel plates, heavy-duty steel construction for long-term durability

• Tank Features: Reinforced construction with thickened sewage observation tube for level monitoring and visual inspection

• Charging System: DC fast charging capable (120kW recommended), opportunity charging for minimal downtime

• Wheelbase: 3,300 mm optimized for tight turning radius and urban navigation in congested areas

• Design Philosophy: The vehicle prioritizes environmental sustainability and superior operator experience. The electric drivetrain eliminates emissions for green sanitation operations, while the independent PTO (Power Take-Off) system ensures vacuum pump operation is completely decoupled from driving functions, providing smooth operation and energy efficiency. The vehicle is engineered for quiet operation, making it ideal for noise-sensitive areas like hospitals, schools, and residential neighborhoods, enabling nighttime operations without disturbance.

IV. Structural Advantages (Chassis & Drivetrain)

Electric Powertrain:

• Drive Motor: Permanent magnet synchronous motor delivering 120kW maximum power for responsive acceleration and gradeability on hilly terrain

• Motor Control: Variable speed control allows real-time speed adjustment based on operating conditions, precise control for optimal efficiency

• Instant Torque: Electric motor provides instant torque delivery for responsive performance from standstill

• PTO Independence: Power take-off operation is completely independent from the driving system, enabling vacuum pump operation while stationary without affecting battery range for driving, dual-mode operation

Battery System:

• Battery Type: Lithium Iron Phosphate (LFP) chemistry from CATL (world's largest battery manufacturer), inherently safe chemistry, excellent thermal stability

• Battery Capacity: 121.1 kWh high-capacity pack for extended operating range covering full shift requirements

• Voltage: 540V high-voltage architecture for efficient power delivery and reduced charging losses

• Charging: 2-hour fast charging capability (with 120kW DC charger) for minimal downtime, opportunity charging during breaks

• Battery Management: Advanced BMS (Battery Management System) for optimal battery health and long cycle life

Chassis & Frame:

• Frame Construction: DFAC engineered electric vehicle chassis, designed specifically for electric vehicle weight distribution with battery integration

• Wheelbase: 3,300mm optimized for maneuverability in urban environments and narrow streets

• Weight Distribution: Battery placement optimized for ideal weight balance and vehicle stability during transport and operation

Axles & Suspension:

• Front Axle: Heavy-duty front axle engineered for electric vehicle loads with enhanced load rating

• Rear Axle: Reinforced rear axle for load capacity with electric drivetrain integration, durable construction

• Suspension: Calibrated for ride comfort and load stability with battery weight considerations, optimized damping

Braking & Safety:

• Regenerative Braking: Energy recovery system extends range while providing smooth deceleration and reducing brake wear, energy regeneration

• Service Brakes: Full air brake system for reliable stopping power under full load conditions

• Safety Systems: Factory ABS and safety features per DFAC standards for accident prevention

V. Product Features & Manufacturer Advantages

Vacuum System:

• Vacuum Pump: Shandong SK-9 water ring vacuum pump providing high suction power for efficient waste collection from septic tanks and sewer systems

• Pump Protection: Oil-water separator prevents contamination, anti-overflow valve prevents liquid entry into pump, ensuring pump longevity and reduced maintenance

• Suction Hose: 8 meters of suction hose included for immediate field operation and waste extraction

Tank Features:

• Hydraulic Tipping: Tank with hydraulic lifting function for self-unloading sludge, efficient discharge into treatment facilities

• Hydraulic Rear Door: Hydraulically operated rear door for rapid waste disposal and easy cleaning

• Observation Port: Thickened sewage observation tube for visual level monitoring during filling operations, overfill prevention

• Handwash System: Built-in handwash facility for operator hygiene and site cleanup after operations

Operator Experience:

• Quiet Operation: Electric motor provides silent operation compared to diesel engines, ideal for night work and noise-sensitive environments like hospitals and residential areas

• Smooth Driving: Permanent magnet synchronous motor delivers vibration-free acceleration and seamless power delivery for operator comfort

• Zero Emissions: No exhaust fumes for clean operation in confined spaces like underground parking garages, tunnels, and indoor facilities

• Enhanced Cab Comfort: Factory air conditioning and amenities for operator satisfaction during extended shifts

Environmental Benefits:

• Zero Tailpipe Emissions: Eliminates CO2, NOx, and particulate matter for carbon-free sanitation and air quality improvement

• Reduced Noise Pollution: Significantly quieter than diesel equivalents for noise reduction in communities

• Energy Efficiency: Electric drivetrain efficiency exceeds 90% compared to 30-40% for diesel engines, lower operating costs

• Sustainable Operations: Supports green fleet initiatives and environmental compliance for municipalities

Manufacturer Advantages:

• Industry Leadership: As a leading Chinese truck manufacturer and designated government supplier, Chengli has extensive experience in specialized vehicle manufacturing for sanitation applications

• Electric Vehicle Expertise: Chengli's EV lineup represents the company's commitment to green technology and sustainable transportation solutions for future-ready fleets

• Premium Component Integration: Features CATL batteries (world's largest EV battery manufacturer) for reliable performance and proven quality

• Comprehensive After-Sales Service: Robust service network with warranty coverage and technical support for electric vehicle systems, including battery warranty

• Easy Registration: Meets all requirements for new energy vehicle registration with applicable green vehicle incentives and subsidies

• Turnkey Solution: Complete electric sewage suction truck ready for operation with charging compatibility information provided for seamless deployment

• Future-Ready Design: Engineered for the transition to electrified municipal fleets and zero-emission zones in progressive cities

• Export Experience: Knowledge of international shipping requirements for electric vehicles and battery systems
