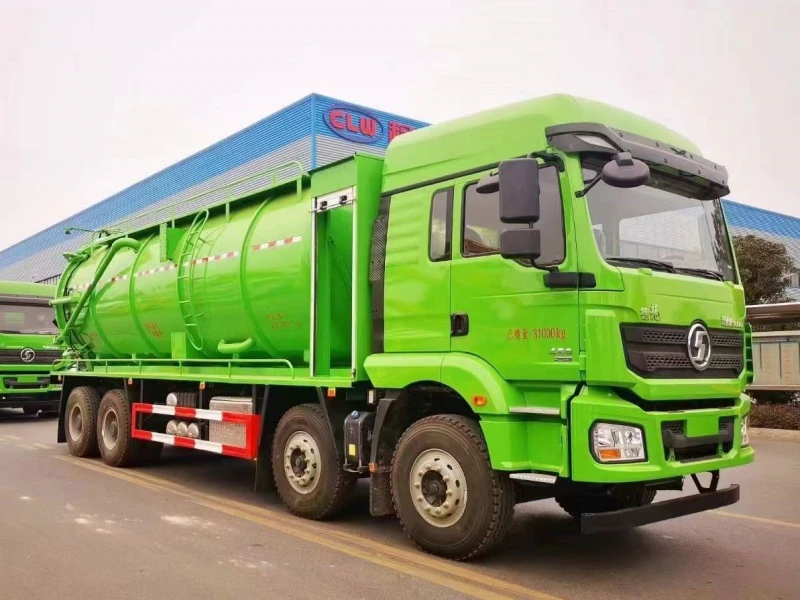

Shacman Delong Front Four Rear Eight 30-Ton Sludge Transport Truck | Shacman 8x4 Sludge Transport Truck 26m³ Capacity
I. Product Introduction
The Shacman Delong Front Four Rear Eight 30-Ton Sludge Transport Truck is a heavy-duty industrial waste hauler specifically engineered for municipal sludge collection and sewage treatment plant waste transportation. This sealed sludge tanker features a robust 8x4 configuration with a powerful 80-ton capacity tipper-style unloading system, making it ideal for waste management operations requiring high payload capacity and reliable performance in demanding environments. The vehicle combines Shacman's renowned chassis durability with specialized sludge handling equipment for efficient waste disposal logistics and biosolids transportation.
II. Core Specifications
Rated Payload: 30 tons (approximately 30,000 kg / 66,000 lbs), heavy-duty hauler for bulk material transport
Tank Volume: Approx. 26 m³ (6,868 Gallons), large capacity tank
Engine: Weichai 460 HP, Euro VI diesel engine, high torque output, fuel-efficient, low emissions
Transmission: Fast Gear 12-speed manual gearbox, smooth shifting, heavy-duty transmission
Drive Type: 8x4 (Front Four Rear Eight), tandem axle configuration, multi-axle truck
Rear Axles: Dual 16-ton rear axles, heavy-duty axles for maximum load capacity and off-road capability
Tires: 12.00R20 steel cord tires, heavy-duty tires for construction site access and landfill operations
Cab: New Delong M3000 luxury cab with automatic climate control, central door locking, electric windows, and ABS
Hoist Cylinder: HYVA front-mounted 80-ton oil cylinder, premium hydraulic system, global brand component
Tank Material: 8mm national standard carbon steel plates, heavy-duty steel construction
Tank Flooring: Stainless steel plate lining (semi-laid) for corrosion resistance and long service life
Discharge Valves: One 6-inch and three 4-inch discharge valves at rear left for versatile discharge options
Emission Standard: GB17691-2018 Euro VI
III. Dimensions, Materials & Design Philosophy
Tank Construction: 8mm national standard carbon steel with reinforced interior using channel steel reinforcement instead of partition plates, allowing for maximum sludge capacity and smooth material flow during discharge, unobstructed flow design
Tank Flooring: Semi-laid stainless steel bottom plate for enhanced corrosion protection against aggressive sludge and wastewater, extended equipment life
Reinforcement Design: Heavy-duty load frame design with frame reinforcement, six side supports on each side of the tank, reinforced sub-frame, and reinforced tipping mechanism for structural integrity and durable performance
Top Opening System: Dual 1200x800 hydraulic covers on tank top (opposing opening design) with reinforced center for efficient top loading and dust control during filling
Chassis Integration: Tank positioned forward without reserved space for auxiliary engine, optimized weight distribution for legal payload compliance, tipping point positioned close to rear tires for maximum tipping stability and safe operation
Design Philosophy: The vehicle prioritizes structural integrity and operational durability for heavy sludge transport applications. The 80-ton HYVA hoist system ensures reliable unloading even with the heaviest loads and sticky materials, while the reinforced frame and tank design guarantee long-term reliability under extreme conditions. The vehicle follows "heavy-duty load design" principles with all components engineered for maximum payload capacity and service life in harsh environments.
IV. Structural Advantages (Chassis & Drivetrain)
Chassis & Frame:
Frame Construction: Reinforced heavy-duty frame with strengthened main beams, designed for maximum load-bearing capacity and structural rigidity under 30-ton payloads, twist-resistant design
Sub-frame: Reinforced sub-frame with additional strengthening for tipper applications, integrated reinforcement
Side Supports: Six side supports on each side of the tank for enhanced stability during transport and unloading on uneven terrain, lateral support system
Powertrain:
Engine: Weichai 460 HP Euro VI engine delivering exceptional torque (460HP/338kW) for heavy hauling and off-road operation at landfill sites and wastewater treatment facilities, high power density
Transmission: Fast Gear 12-speed manual gearbox with optimized gear ratios for sludge transport applications, providing smooth power delivery and fuel economy under maximum load, wide gear ratio coverage
Axles & Suspension:
Front Axles: Heavy-duty front axles engineered for 8x4 configuration, load-optimized design
Rear Axles: Dual 16-ton rear axles (tandem configuration) providing exceptional load capacity for 30-ton payloads and challenging terrain, high-GVW configuration
Suspension: Reinforced suspension system calibrated for maximum payload and vehicle stability during transit over rough terrain, heavy-duty leaf springs
Tipper System:
Hoist Cylinder: Front-mounted HYVA 80-ton oil cylinder (premium global brand) for reliable tipping power and hydraulic lifting capacity even with maximum load, oversized capacity
Tipping Mechanism: Reinforced tipping system with strengthened pivot points for durable performance under frequent heavy-duty use, wear-resistant design
Stability Features: Tipping point positioned close to rear tires for optimal leverage and safe unloading even on uneven ground, low center of gravity design
Safety Features:
Braking System: Full air brake system with ABS for reliable stopping power under full load, spring brakes for parking safety
Hydraulic Safety: Limit valves and safety supports for operator protection during unloading cycles, preventing over-tipping and accident prevention
Visual Safety: Arrow lights for work site safety during night operations, high-visibility lighting
Structural Safety: Reinforced side supports and frame bracing for load stability during transport, rollover protection
V. Product Features & Chengli Manufacturer Advantages
Tank & Discharge System:

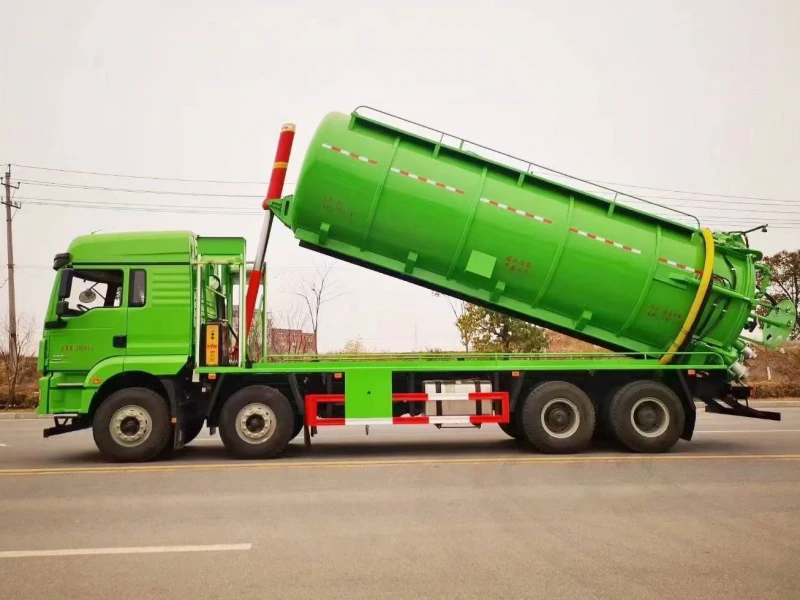

Powerful Tipper System: Front-mounted HYVA 80-ton hydraulic hoist enables efficient self-unloading of thick sludge without additional equipment, rapid waste disposal, time-saving operation

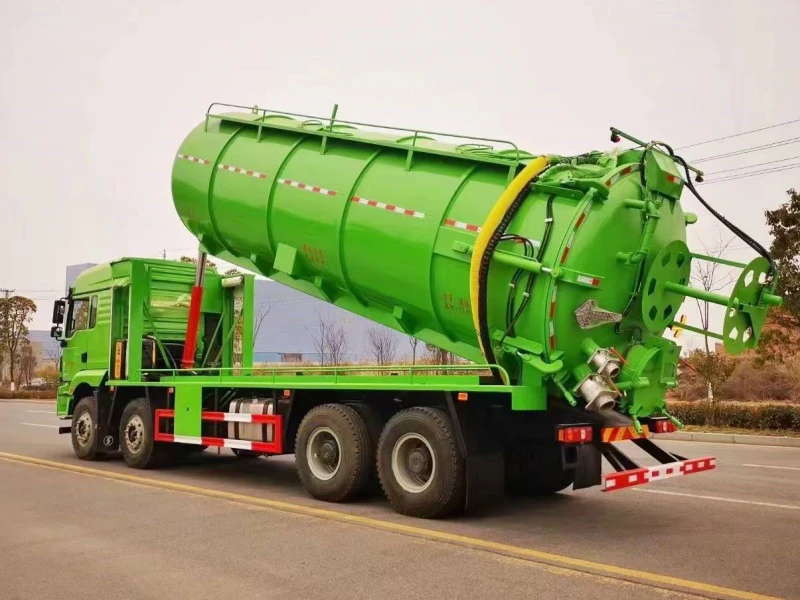

Hydraulic Rear Door: Hydraulically operated rear door with thickened hydraulic cylinders, featuring four hydraulic locks and four manual locks for secure sealing and controlled discharge of liquid waste, leak-proof design
Bottom Discharge Port: 600mm inner diameter hydraulic opening at lower rear head for rapid waste disposal of thick sludge and bulk material handling, large opening design
Multiple Discharge Options: One 6-inch discharge valve and three 4-inch discharge valves at rear left for versatile discharge options in different applications and sites, flexible unloading
Operational Features:
Top Loading System: Dual 1200x800 hydraulic covers on tank top (opposing opening design) with reinforced center, allowing for efficient top loading from treatment facilities, weather-resistant sealing
Safety Systems: Limit valves and safety supports prevent over-tipping and ensure operator safety during unloading operations, fail-safe design
Hose Reel: Detachable hose reel design (reel controls overall vehicle length for transport compliance), space-optimized storage
Visual Monitoring: Arrow lights for work site visibility, sight glass window for monitoring sludge levels, load monitoring
Access Platform: Top platform with walkway for safe access during inspection and maintenance, anti-slip surface, fall protection

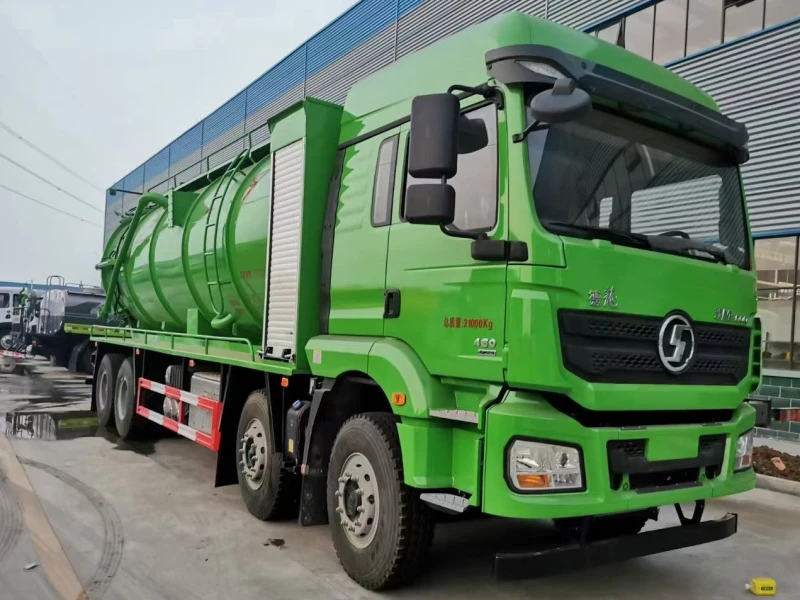

Roller Shutter Door: Convenient roller shutter door for tool and hose storage, secure storage, weather protection
Reinforced Durability Features:
Heavy-Duty Load Design: Entire vehicle engineered according to "heavy-duty load design" principles with reinforced frame, sub-frame, and tank structure, overbuilt construction
Interior Reinforcement: Tank interior reinforced with channel steel (no partition plates) for maximum structural integrity while allowing smooth material flow, flow-optimized interior
Corrosion Protection: Stainless steel bottom plate (semi-laid) provides corrosion resistance against aggressive sludge and wastewater, chemical resistance
Tipping Reinforcement: Strengthened tipping mechanism with reinforced pivot points for long service life under frequent unloading cycles, fatigue-resistant design
80-Ton Hoist Capacity: Oversized HYVA hoist system ensures reliable operation even with maximum load and sticky materials, margin of safety
Chengli Group Manufacturer Advantages:
Industry Leadership: As a leading Chinese truck manufacturer and designated government supplier, Chengli utilizes large-scale production and advanced manufacturing techniques to ensure consistent manufacturing quality for heavy-duty sludge transport applications, ISO-certified production
Premium Component Integration: Features globally recognized HYVA hydraulic system, Weichai engine, and Fast Gear transmission for reliable performance and global parts availability
Custom Engineering: Specialized engineering for sludge transport including reinforced frame, heavy-duty tipper system, and corrosion-resistant tank lining for application-specific design, purpose-built vehicles
Comprehensive After-Sales Service: Robust global service network with warranty coverage and rapid technical support and replacement parts availability worldwide, 24/7 customer support
Easy Registration: Built strictly according to notification standards, simplifying vehicle registration process for buyers, compliant manufacturing
Application-Specific Design: Forward-positioned tank design optimizes weight distribution for maximum payload capacity within legal limits, ensuring regulatory compliance and legal operation
Export Experience: Extensive experience in international shipping and overseas deployment with documentation support for various countries
