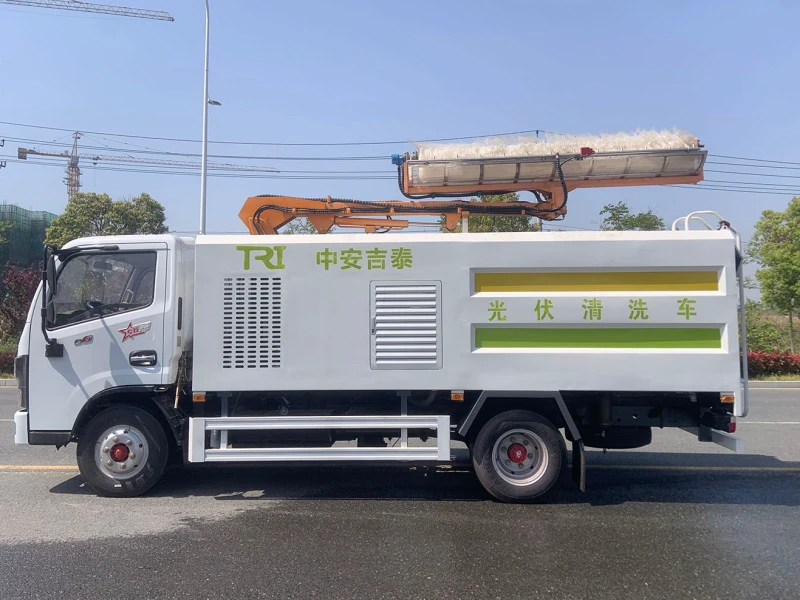

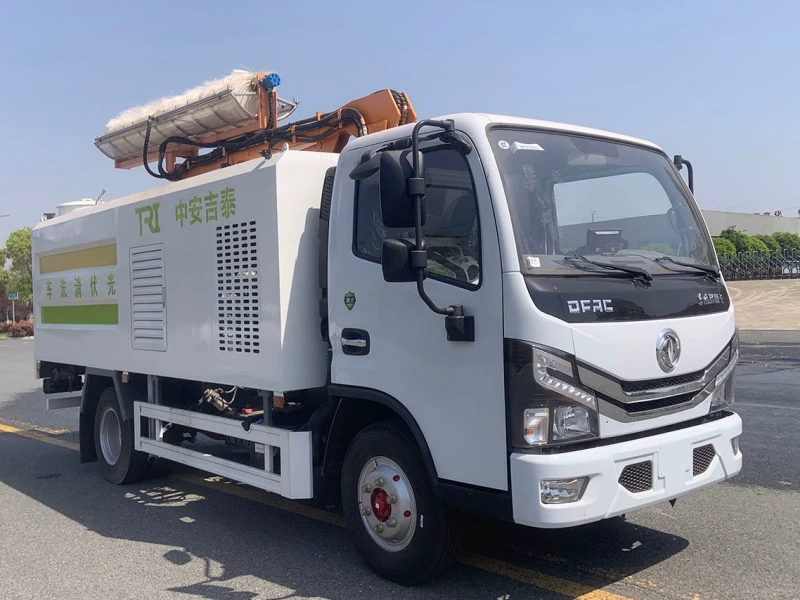

Dongfeng Xiaoduolika Solar Panel Cleaning Truck: Professional PV Maintenance Equipment | DFAC 4x2 Solar Panel Cleaning Truck with 5 m³ Capacity

I. Product Introduction

The Dongfeng Xiaoduolika solar panel cleaning truck is a specialized maintenance vehicle engineered for professional photovoltaic power station cleaning operations. This PV panel cleaning truck is modified on the reliable Dongfeng Xiaoduolika chassis, integrating high-pressure washing and rotating brush systems to efficiently remove dust, bird droppings, and other contaminants from solar panel surfaces. As essential solar farm equipment, this mobile cleaning unit helps photovoltaic power plants maximize power generation efficiency by maintaining optimal light absorption. The solar array cleaner is suitable for ground-mounted PV plants of various scales, making it an ideal choice for solar maintenance teams.

II. Core Specifications

• Chassis Configuration: Dongfeng Xiaoduolika series with 3308mm wheelbase, providing excellent maneuverability and turning radius for navigating between solar panel arrays

• Tank Capacity: 5 cubic meters

• Pressure System: High-pressure water pump delivering 13-15MPa working pressure with 170L/min flow rate for effective panel cleaning

• Cleaning Performance: Daily capacity of 5-6 megawatts, capable of cleaning approximately 8 kilometers of solar panels per hour

• Operating Height: Cleaning arm reaches up to 5.5 meters, covering most standard solar mounting structures

III. Dimensions & Design Concept

• Vehicle Dimensions: Compact Xiaoduolika footprint designed for agile movement through narrow passages between photovoltaic panel rows

• Tank Material: Constructed from 5mm carbon steel with elliptical tank shape providing low center of gravity and excellent driving stability

• Structural Features: Internal baffle plates reduce liquid surge during transport, enhancing driving safety on solar farm terrain

• Design Philosophy: Built around "efficient cleaning with zero damage" using precision-controlled hydraulic systems and soft brushes that protect PV module surfaces from scratches while ensuring thorough cleaning

IV. Detailed Structure & Component Advantages

• Powertrain: Powered by Chaochai 130 HP engine (optional Yuchai 140 HP) delivering reliable power for various operating conditions; paired with Wanliyang 5-speed manual transmission for smooth gear shifts and efficient power transfer

• Chassis Configuration: The 3308mm wheelbase design ensures optimal weight distribution between front and rear axles; 1.8-ton front axle and 3.5-ton rear axle provide stable load capacity for demanding off-road conditions in solar plants

• Braking System: Air brake system with ABS ensures reliable stopping power even on slopes; clutch booster reduces operator fatigue during frequent starts and stops

• Cleaning Mechanism: Independent auxiliary engine drives the high-pressure water pump; 360° fully hydraulic rotating arm with extension capability allows flexible positioning; dual-action cleaning combines water jets with hydraulically driven rotating brush for removing stubborn deposits

• Control Systems: All cleaning functions controlled via cab-mounted electric panel or wireless remote control; rear-view camera system provides visual monitoring of cleaning operations

V. Product Features & Chengli Group Advantages

• Operational Features:

  • Cold weather option: Diesel burner system for tank heating enables year-round operation in freezing temperatures

  • Versatile applications: High-pressure system suitable for cleaning tunnels, building facades, and sanitation tasks beyond solar farm maintenance

  • User-friendly design: Controls designed for single-operator use, reducing labor costs for solar asset management

• Chengli Group Manufacturer Advantages:

  • As a leading Chinese special vehicle manufacturer, Chengli integrates advanced fabrication techniques into every solar panel cleaning vehicle

  • Factory-direct pricing eliminates middlemen, offering competitive value for renewable energy equipment buyers

  • Strict quality control on critical components including 5mm carbon steel tanks and hydraulic systems ensures long-term reliability

  • Comprehensive after-sales support network provides parts and service availability, protecting your investment in solar maintenance equipment

  • Customization options available to meet specific requirements of different photovoltaic installations worldwide
