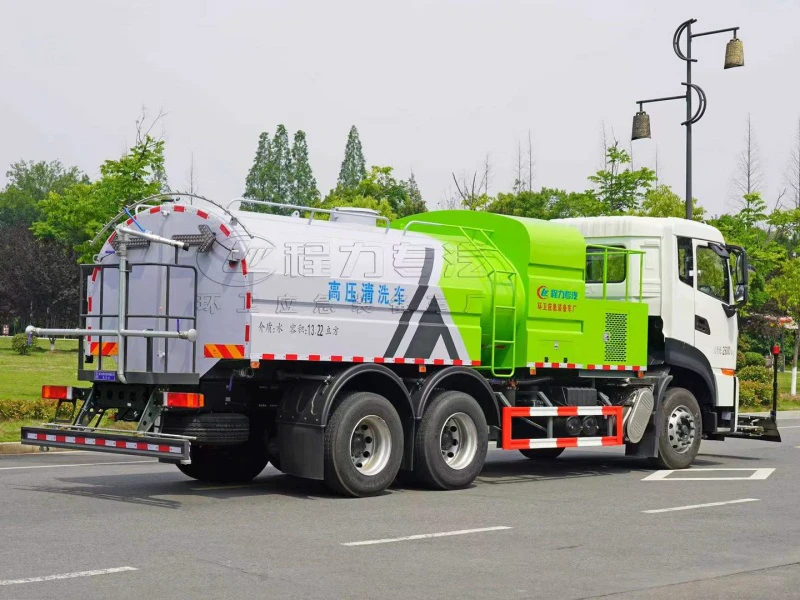

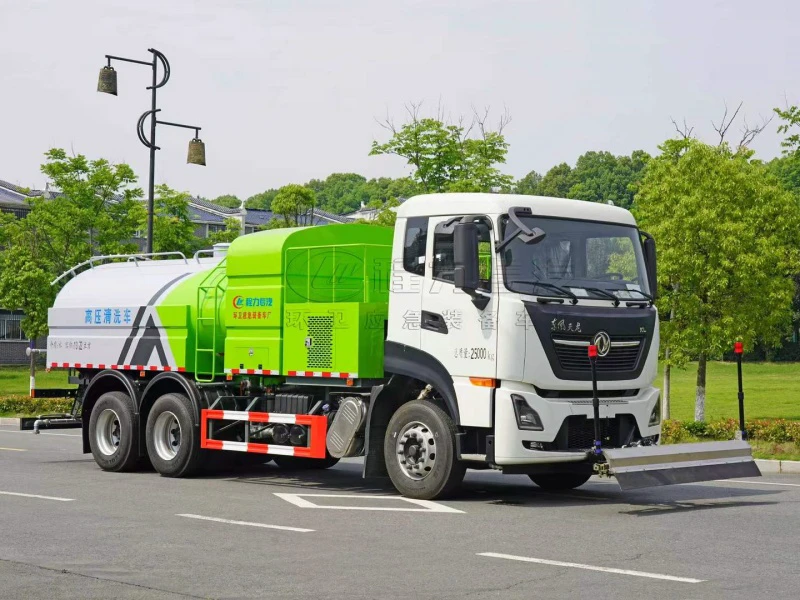

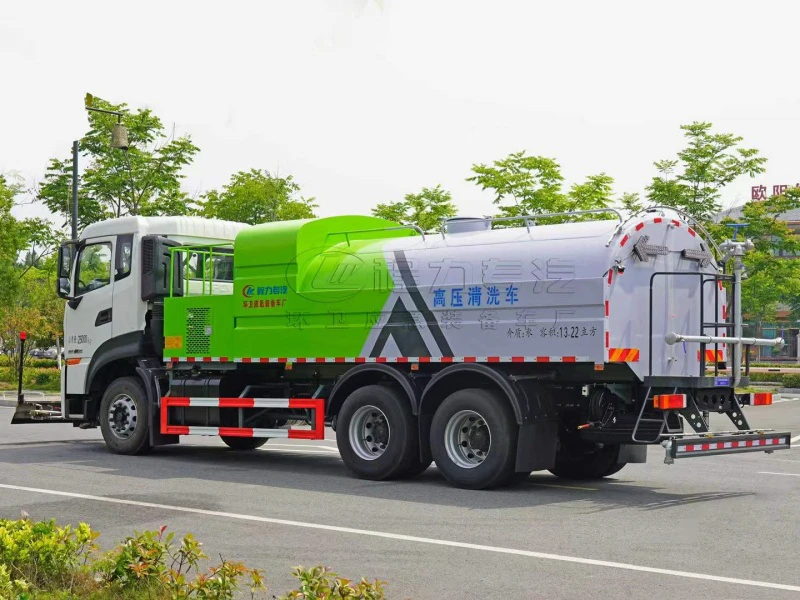

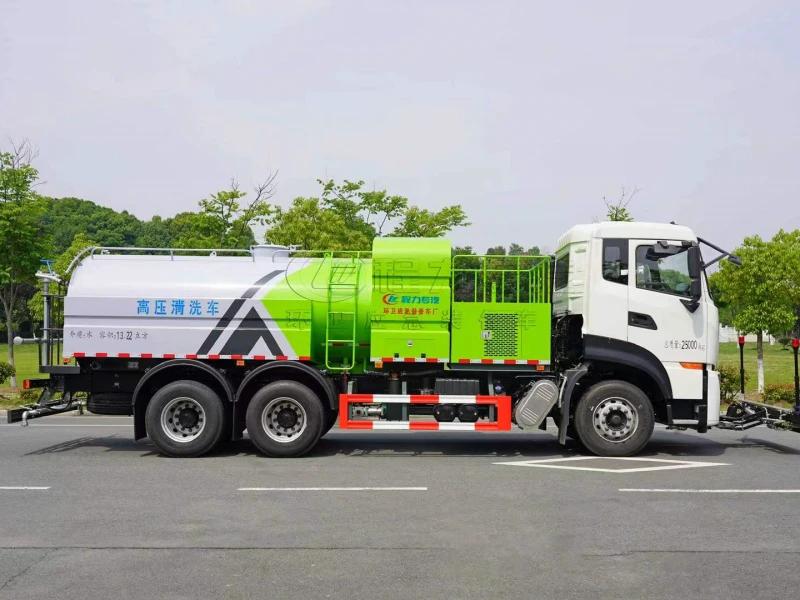

Dongfeng Tianlong 6x4 Road Cleaning Truck
1. Product Overview
The Dongfeng Tianlong Rear Double Axle Road Cleaning Truck is a versatile, high-performance multi-purpose municipal vehicle designed for comprehensive urban sanitation and road maintenance. Built on a robust Dongfeng Tianlong chassis with a 4350mm+1350mm tandem rear axle configuration, this 13-cubic-meter capacity truck integrates a powerful Longxi 350HP main engine and a Yuchai 102HP auxiliary engine, driving a Pinfu 170 flow high-pressure pump. This combination enables a wide range of functions including road washing, water spraying, dust suppression, and high-pressure flushing, making it an all-in-one solution for city cleaning departments, construction sites, and environmental management projects. Its dual-engine design ensures operational efficiency and adaptability across diverse working environments.
2. Key Specifications
Chassis Model: Dongfeng Tianlong Rear Double Axle
Wheelbase: 4350mm + 1350mm (total 5700mm)
Tank Capacity: 13 cubic meters (approximately 3,434 US gallons / 13,000 liters)
Main Engine: Longxi 350HP (Euro VI emission standard)
Auxiliary Engine: Yuchai 102HP (dedicated to high-pressure pump operation)
Transmission: Heavy-duty manual gearbox (matched to main engine)
Tires: 11.00R20 steel cord radial tires
High-Pressure Pump: Pinfu 170 flow rate (suitable for high-pressure washing and flushing)
Functional Capabilities: Road cleaning, water spraying, dust suppression, high-pressure flushing, and more
Frame: Reinforced heavy-duty frame for tandem axle configuration
3. Dimensions, Material & Design Philosophy
Design Philosophy: This road cleaning truck embodies a multi-functional design that maximizes utility across various sanitation tasks. The tandem rear axle provides exceptional stability and load-bearing capacity, while the dual-engine system allows independent operation of the driving and working functions, enhancing fuel efficiency and reducing wear on the main engine during stationary cleaning operations. The vehicle is engineered for all-in-one performance in municipal and industrial environments.
Construction Materials: The water tank is constructed from high-strength steel with anti-corrosion coating, ensuring durability and long service life. The frame features a reinforced heavy-duty structure capable of withstanding the stresses of off-road and urban operations. The high-pressure pump and piping are made of stainless steel and wear-resistant materials for reliability under continuous use.
Dimensions and Tank Details: The 13-cubic-meter tank is optimally sized for extended operation without frequent refilling. The tank is equipped with internal baffles to reduce water surge during transport. The vehicle features a rear platform with access ladders and safety rails for operator convenience. The high-pressure hose reel is positioned for easy access and rapid deployment.
4. Structural & Component Advantages
Engine and Transmission Advantages: The Longxi 350HP main engine delivers robust power for highway travel and hill climbing, while the Yuchai 102HP auxiliary engine independently drives the Pinfu 170 high-pressure pump, ensuring consistent water pressure for cleaning tasks without idling the main engine. This dual-power system significantly reduces fuel consumption and emissions during stationary operations. The transmission is matched to provide optimal torque for both on-road and off-road conditions.
Chassis and Axle Advantages: The 4350mm+1350mm tandem rear axle configuration provides superior load distribution and stability, essential for carrying full water tanks and operating on uneven terrain. The heavy-duty frame with reinforced cross-members ensures durability under heavy loads. The 11.00R20 steel radial tires offer excellent traction and puncture resistance on construction sites and rough roads.
Pump and Hydraulic System Advantages: The Pinfu 170 high-pressure pump delivers reliable water flow for road washing, flushing, and dust suppression. The system includes pressure regulation and safety valves to protect components. The auxiliary engine drive allows precise control of pump speed and pressure independent of vehicle speed.

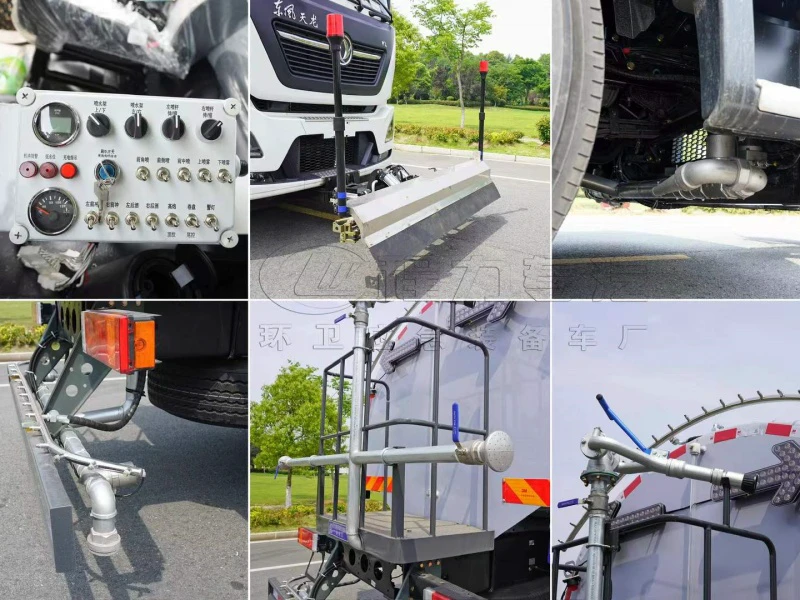

Multi-Function Capability Advantages: The vehicle integrates multiple systems for spraying, flushing, and washing. It features front and side spray bars for wide-path road cleaning, a rear high-pressure nozzle for targeted flushing, and a dust suppression cannon for airborne particle control. These functions can be operated simultaneously or independently, maximizing productivity.
5. Product Features & Chengli Group Advantages
Operational Efficiency Features: This Dongfeng Tianlong road cleaning truck is designed for all-in-one municipal sanitation, replacing multiple single-purpose vehicles. The 13-cubic-meter tank allows long operation cycles, while the dual-engine system reduces fuel costs and engine hours. The Pinfu 170 pump ensures powerful cleaning performance for stubborn dirt and debris.
Versatility Across Environments: Whether for urban road cleaning, construction site dust control, or emergency environmental response, this truck adapts easily. The high-pressure flushing capability can clear clogged drains, while the spraying function maintains road moisture and reduces dust. The vehicle is equally effective on highways, residential streets, and industrial zones.
Chengli Group Manufacturing Advantages: As a flagship product of Chengli Special Automobile Co., Ltd. — China's leading specialized vehicle manufacturer — this truck benefits from decades of expertise in municipal equipment production. Chengli's rigorous quality control ensures reliable performance and long service life. Each vehicle undergoes comprehensive testing, and customers receive genuine manufacturer support including spare parts availability and technical assistance worldwide. Chengli's commitment to innovation ensures that this multi-purpose road cleaning truck meets the highest standards of efficiency and durability.
