Dongfeng Original Tianjin Rear Twin Axle Combination High-Pressure Sewer Jetting & Vacuum Truck – CL5255GQW6ACC | DFAC 6x4 Combination Unit – 22 Cubic Meters Tank Capacity (5 Cubic Meters Clean Water Compartment)
I. Product Introduction
This Dongfeng Original Tianjin Rear Twin Axle Combination High-Pressure Sewer Jetting & Vacuum Truck (Model: CL5255GQW6ACC) represents the best value-for-money option in the Dongfeng original factory lineup for 22-cubic-meter combination sewer cleaning vehicles. Built on the reliable DFH1250B chassis, this truck integrates powerful high-pressure water jetting with high-capacity vacuum suction in a single, durable unit. Designed for municipal drainage maintenance, industrial waste removal, and urban sanitation projects, it features a split-tank design with hydraulic rear head operation and heavy-duty dump capability, delivering exceptional performance and reliability for sanitation departments, environmental contractors, and waste management professionals seeking cost-effective sewer cleaning solutions without compromising on original factory quality.
II. Core Specifications
Manufacturer: Dongfeng Original Factory – ensuring genuine OEM quality and long-term reliability
Chassis Model: DFH1250B Heavy-Duty Chassis – engineered for demanding commercial applications
Cab: New Generation Dongfeng Tianjin Cab – modern aerodynamic design with factory-installed air conditioning for operator comfort
Engine Power: Longqing 300 HP Diesel Engine – upgraded series, meeting Euro VI B emission standards for environmental compliance
Transmission: Fast 8-Speed Gearbox – smooth and reliable power delivery for various operating conditions
Wheelbase: 4,350 + 1,350 mm – optimized for load distribution and vehicle stability during transit and vacuum operations
Total Tank Capacity: 22 Cubic Meters (Approximately 5 Cubic Meters Fresh Water Tank + 17 Cubic Meters Sludge Tank) – configurable split via ball valve interconnection
Tank Thickness: 8 mm Carbon Steel Plate construction – heavy-duty durability
Bulkhead Thickness: 8 mm between water and sludge compartments – reinforced separation
High-Pressure Pump: PF 350 High-Pressure Plunger Pump – industrial-grade water jetting performance
High-Pressure Hose: 100 Meters included – extended reach for sewer cleaning
Vacuum Pump Option: 42 / 258 Water-Circulation Vacuum Pump (optional, powered by 420 / 460 HP Auxiliary Engine)
III. Dimensions, Materials & Design Concept
Overall Dimensions: The vehicle is built on a 4,350 + 1,350 mm wheelbase configuration, providing excellent maneuverability in urban environments while maintaining stability for heavy-duty operations at job sites.
Tank Dimensions & Configuration: The 22-cubic-meter tank features a split-body design with two compartments separated by an 8 mm thick bulkhead: approximately 5 cubic meters dedicated to fresh water and 17 cubic meters for sludge collection. The compartments are connected via ball valves, allowing operational flexibility to adjust water-to-waste ratios as needed for specific cleaning tasks.
Material: The tank is constructed from 8 mm thick carbon steel plate, offering exceptional durability against impact, pressure, and corrosion from abrasive sludge and waste materials. The tank interior features stainless steel floor lining to resist wear from heavy debris and facilitate easier cleaning. The subframe is reinforced with 8 mm heavy-duty material to support self-dumping operations.
Design Concept: The design philosophy centers on "Original Quality with Maximum Value." Every component, from the Dongfeng original chassis to the 8 mm tank construction and hydraulic rear head, is engineered to deliver reliable performance at a competitive price point. The split-tank design with ball valve interconnection provides operational versatility, while the hydraulically operated rear head and 600 mm discharge port ensure efficient waste unloading – making this an ideal choice for budget-conscious buyers who refuse to compromise on essential features.
IV. Detailed Structure & Component Advantages
Engine: Powered by the upgraded Longqing 300 HP diesel engine, meeting stringent Euro VI B emission standards. This fuel-efficient powerplant delivers consistent torque for demanding suction tasks and high-pressure jetting while maintaining excellent fuel economy and environmental compliance for fleet operators concerned with operating costs and emissions regulations.
Transmission: Equipped with a Fast 8-speed gearbox, this truck offers exceptional versatility for diverse driving conditions. The 8-speed transmission provides low-range power for challenging off-road environments and construction sites, while overdrive gearing enables efficient highway travel between project locations – a perfect match for the Longqing engine's power curve.
Chassis & Axles: The DFH1250B chassis is specifically engineered for rear twin axle applications, with reinforced front axle and tandem rear axles designed to handle the 22-ton payload capacity with ease. The 4,350 + 1,350 mm wheelbase ensures optimal weight distribution between axles, providing stability during both transit and stationary vacuum extraction operations.
Heavy-Duty Subframe: The tank is mounted on an 8 mm heavy-duty subframe, specifically designed for self-dumping applications. This reinforced foundation ensures structural integrity during waste discharge and extends the vehicle's service life under continuous heavy-duty use.

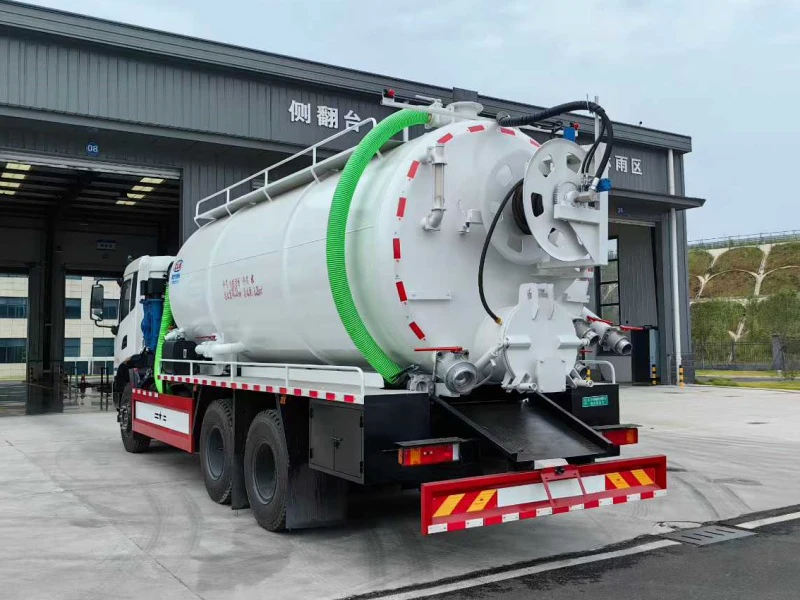

Hydraulic Rear Head System: The rear head features hydraulic opening with 180-degree rotation capability for the hose reel. This innovative design allows operators to position the high-pressure hose at optimal angles for accessing manholes and drainage points from either side of the vehicle, significantly improving on-site efficiency and reducing setup time.
Discharge & Suction Ports:
600 mm Hydraulic Discharge Port: One 600 mm cement cover on the rear head for waste discharge, hydraulically operated for easy unloading
6-inch Emergency Bypass Valve: Side-mounted for operational flexibility
6-inch Rear Discharge Port: Standard configuration
100-inch Suction Inlet: Direct connection to tank top for rapid sludge extraction
V. Product Features & CLW Group Advantages
Original Factory Quality: As a Dongfeng original factory vehicle, this CL5255GQW6ACC benefits from genuine OEM engineering, quality control, and component sourcing. Buyers receive a factory-guaranteed product with all the reliability and durability associated with the Dongfeng brand – a key advantage for fleet managers and government tenders requiring original equipment.
Best Value Proposition: This model represents the most cost-effective entry point into the 22-cubic-meter combination truck segment without sacrificing essential features. By optimizing the component selection and manufacturing process, CLW Group delivers exceptional value for budget-conscious operators seeking reliable sanitation equipment.
Versatile Split-Tank Design: The 5m³ + 17m³ approximate split with ball valve interconnection allows operators to adjust the water-to-waste ratio based on specific job requirements. For jobs requiring more jetting water, the ball valve can be opened to transfer water to the sludge compartment, or vice versa – providing operational flexibility unmatched by fixed-ratio tanks.
High-Performance Pump System: The PF 350 high-pressure pump delivers powerful water jetting capable of breaking through tough blockages in sewer lines, while the optional 42/258 vacuum pump with 420/460 HP auxiliary engine provides massive suction capacity for rapid sludge removal. This dual-pump configuration ensures thorough cleaning in a single pass.
Operator-Friendly Features:
Rear Head Hydraulic Operation: The hydraulically operated rear head with 600 mm discharge port makes waste unloading quick and effortless
180-Degree Rotating Hose Reel: Mounted on the rear head with full rotation for optimal hose positioning
100 Meters High-Pressure Hose: Pre-rigged and ready for extended reach sewer cleaning
Stainless Steel Floor Lining: In critical tank areas for enhanced abrasion resistance and easier cleaning
Heavy-Duty Subframe: 8 mm reinforced construction for reliable self-dumping performance
Rear Arrow Board: For work zone safety during nighttime operations
Inspection Window: One viewing port for monitoring tank fill levels
Factory Air Conditioning: Standard in the new generation Tianjin cab for operator comfort in all weather conditions
CLW Group Advantages: As a premier Chinese special vehicle manufacturer and authorized Dongfeng partner, CLW Group offers:
Original Factory Integration: Direct access to Dongfeng chassis, Longqing engines, and genuine OEM components ensures quality assurance and parts compatibility
Cost-Effective Solutions: Our purchasing power and manufacturing efficiency allow us to offer factory-direct pricing on original equipment
Customization Capabilities: We can modify tank splits, pump configurations, and accessory packages to meet specific municipal requirements or contractor preferences
Quality Manufacturing: Rigorous ISO 9001 quality control throughout the fabrication process, from 8 mm steel welding to hydraulic system testing
Integrated Supply Chain: Guaranteed spare parts availability for all components – Dongfeng chassis parts, Longqing engine parts, Fast transmission parts, and PF pump parts
Global Export Experience: Proven track record of exporting sanitation equipment worldwide with comprehensive technical documentation, shipping logistics, and after-sales support for international clients seeking reliable vacuum trucks at competitive prices
