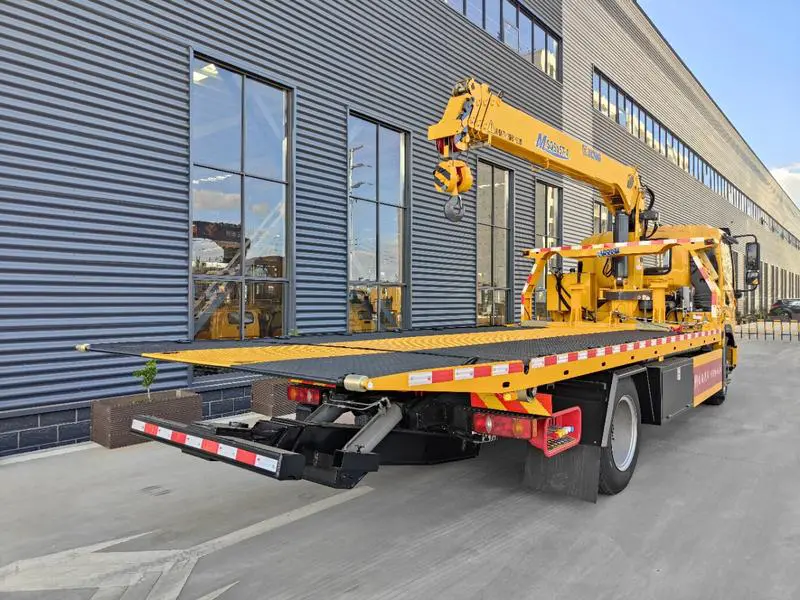

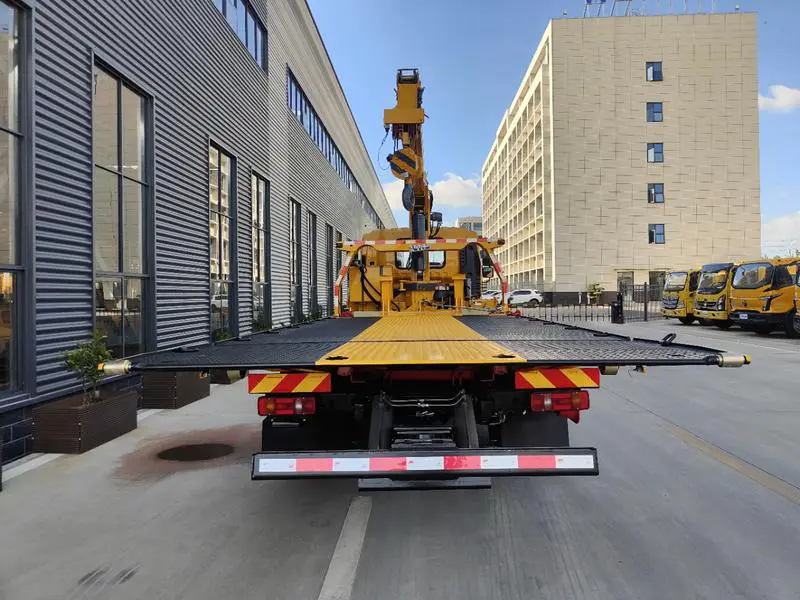

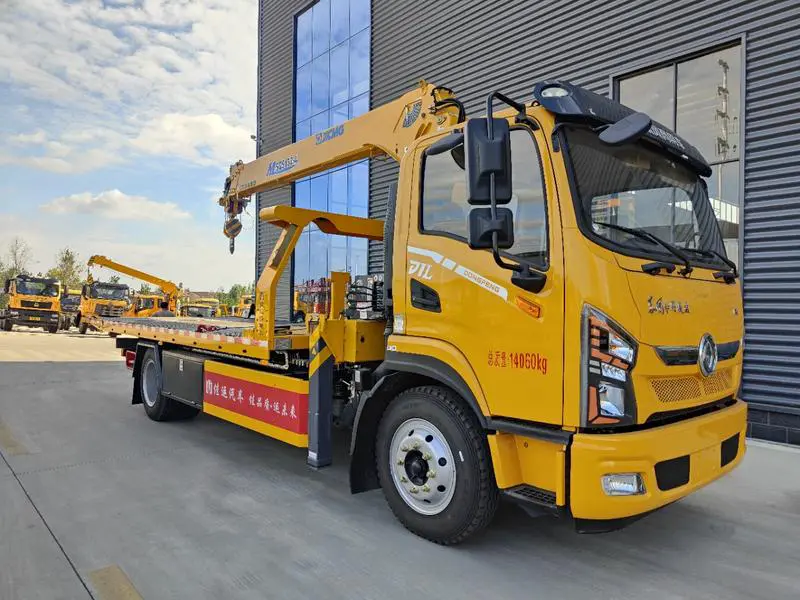

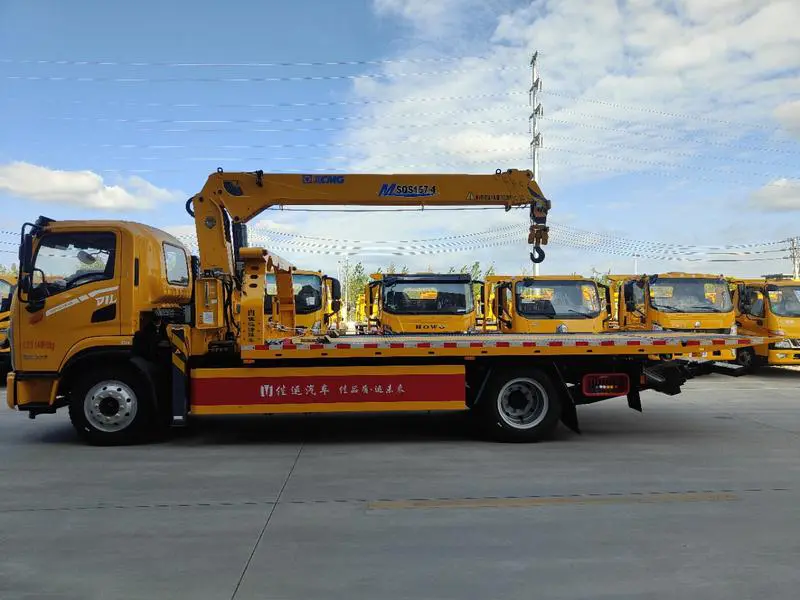

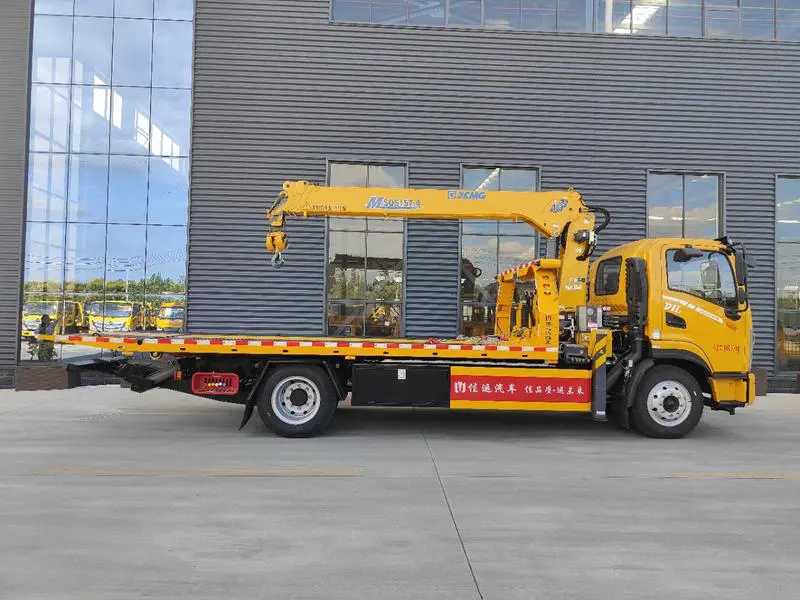

DFAC D1L Two-Car Wrecker with 8T Crane – Heavy-Duty Recovery Solution

I. Product Introduction

The DFAC D1L Two-Car Wrecker with 8T Crane is a heavy-duty recovery vehicle designed for professional towing, lifting, and roadside assistance operations. Combining a powerful crane with a flatbed tow system, this vehicle offers unparalleled versatility for recovering heavy trucks, buses, and commercial vehicles. Built on a reinforced triple-layer frame and powered by a high-torque Yuchai engine, it delivers exceptional performance for towing companies, municipal fleets, and highway maintenance teams operating in demanding conditions.

II. Core Parameters

III. Exterior Dimensions, Body Design & Material Concept

• Overall Dimensions: Designed with a 4700 mm wheelbase chassis, ensuring balanced weight distribution and stable towing dynamics even under heavy loads.

• Flatbed Construction: The integrated one-tow-two design features a 6.2 m total flatbed length, including a 1 m hydraulic tailgate, enabling efficient loading and unloading of disabled vehicles.

• Deck Material: 6 mm thick diamond-checkered steel plate, providing superior anti-slip performance and long-term durability under frequent heavy loading.

• Design Philosophy: The recessed flatbed design lowers the center of gravity, improving stability during transport. The integrated 8T crane and tow system allows simultaneous lifting, towing, and transporting of multiple vehicles, maximizing operational efficiency.

IV. Structural Advantages – Powertrain, Frame & Hydraulic System

• Engine (Yuchai YCS04220-66): Delivers 220 HP with advanced emission technology, providing ample low-end torque for heavy lifting and towing operations while ensuring fuel efficiency.

• Transmission (Fast 8-speed): The 8-speed manual gearbox offers precise gear ratios, optimizing power delivery for both highway driving and low-speed recovery scenarios.

• Triple-Layer Frame: The 232×65×(7+4+4) mm original factory straight-through triple-layer frame is engineered for heavy-duty applications, providing exceptional load-bearing capacity and resistance to torsional stress during crane operations and towing.

• Front & Rear Axles: The 3T front axle and 8T single-stage reduction rear axle are designed to withstand high dynamic loads, ensuring stable handling and braking performance under full load conditions.

• Hydraulic System: Equipped with an 8T crane and 6T hydraulic winch, delivering reliable lifting and pulling power for recovering heavy vehicles.

V. Product Features & Manufacturer Advantages

Product Features

• 8T Crane Capacity: The integrated 8-ton crane enables lifting of heavy vehicles and equipment, expanding operational capabilities beyond standard towing functions.

• 6T Hydraulic Winch: Provides powerful pulling force for recovering vehicles from ditches, embankments, or other difficult positions.

• Reinforced Flatbed: The 6.2 m flatbed with 6 mm thick diamond-checkered steel plate and recessed design ensures stable vehicle transport with enhanced safety.

• Hydraulic Tailgate: The 1 m hydraulic tailgate facilitates easy loading and unloading, reducing operator effort and improving efficiency.

• Comprehensive Recovery Kit: Includes tow sockets, two pairs of tow forks, a tire clamping device, six tie-down straps, auxiliary wheels, two air hoses, a handwashing tank, and a double chain hook, allowing operators to handle diverse recovery scenarios without additional equipment.

• Heavy-Duty Rear Tow Arm: The 3-section rear tow arm provides extended reach and flexibility for towing vehicles of various sizes.

Manufacturer Advantages

As a leading manufacturer in the special-purpose vehicle industry, our factory brings decades of expertise to every unit. Key advantages include:

• Integrated Production: From chassis modification to complete vehicle assembly, all processes are managed in-house, ensuring strict quality control and consistent workmanship.

• Proven Engineering: The DFAC D1L platform incorporates field-tested designs, including the optimized triple-layer frame and hydraulic system specifications, tailored for real-world recovery conditions.

• Compliance Assurance: All vehicles are manufactured in accordance with national standards, with full documentation for registration and operation.

• Global Export Experience: Our vehicles are exported to markets worldwide, supported by comprehensive after-sales documentation and parts availability.
